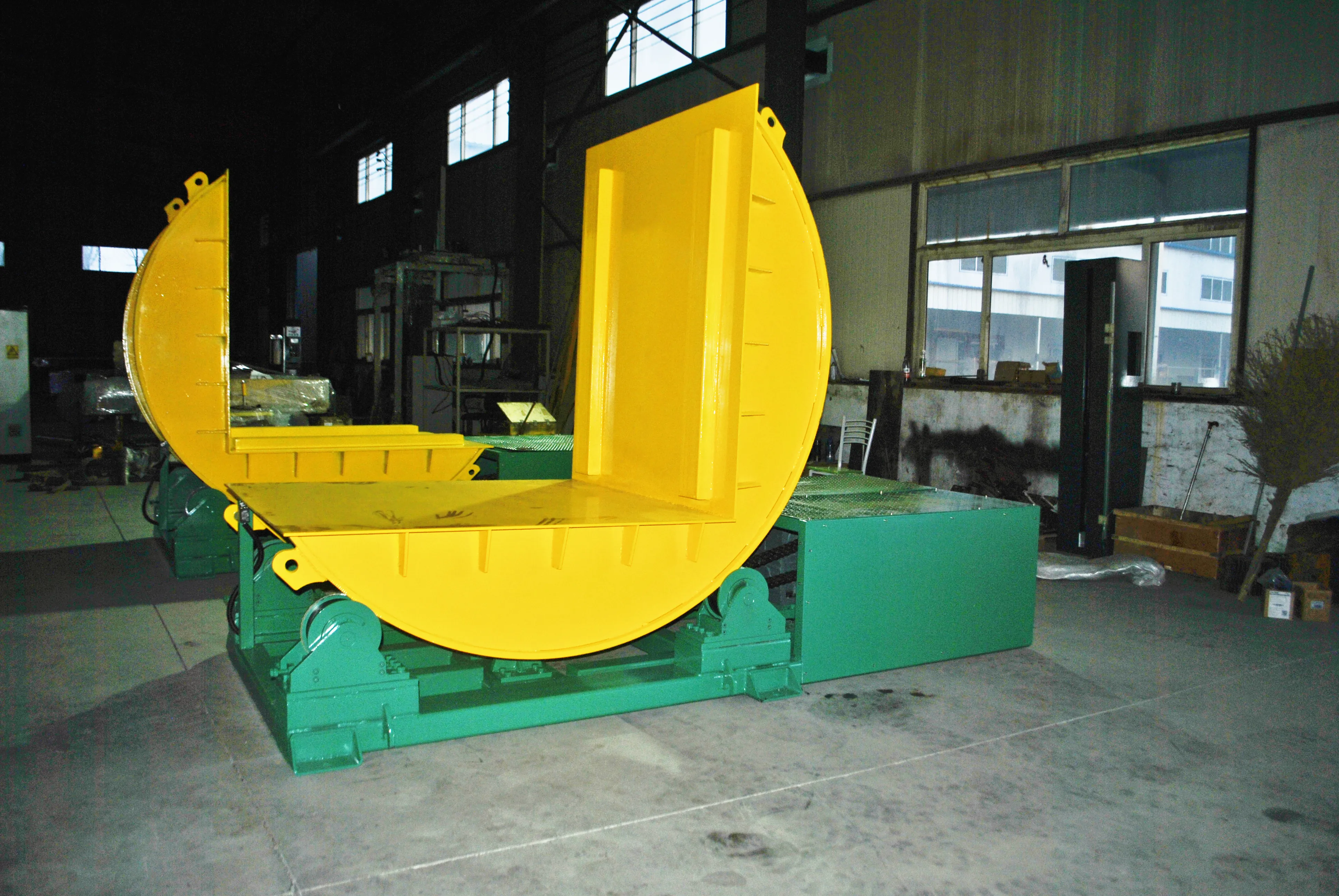

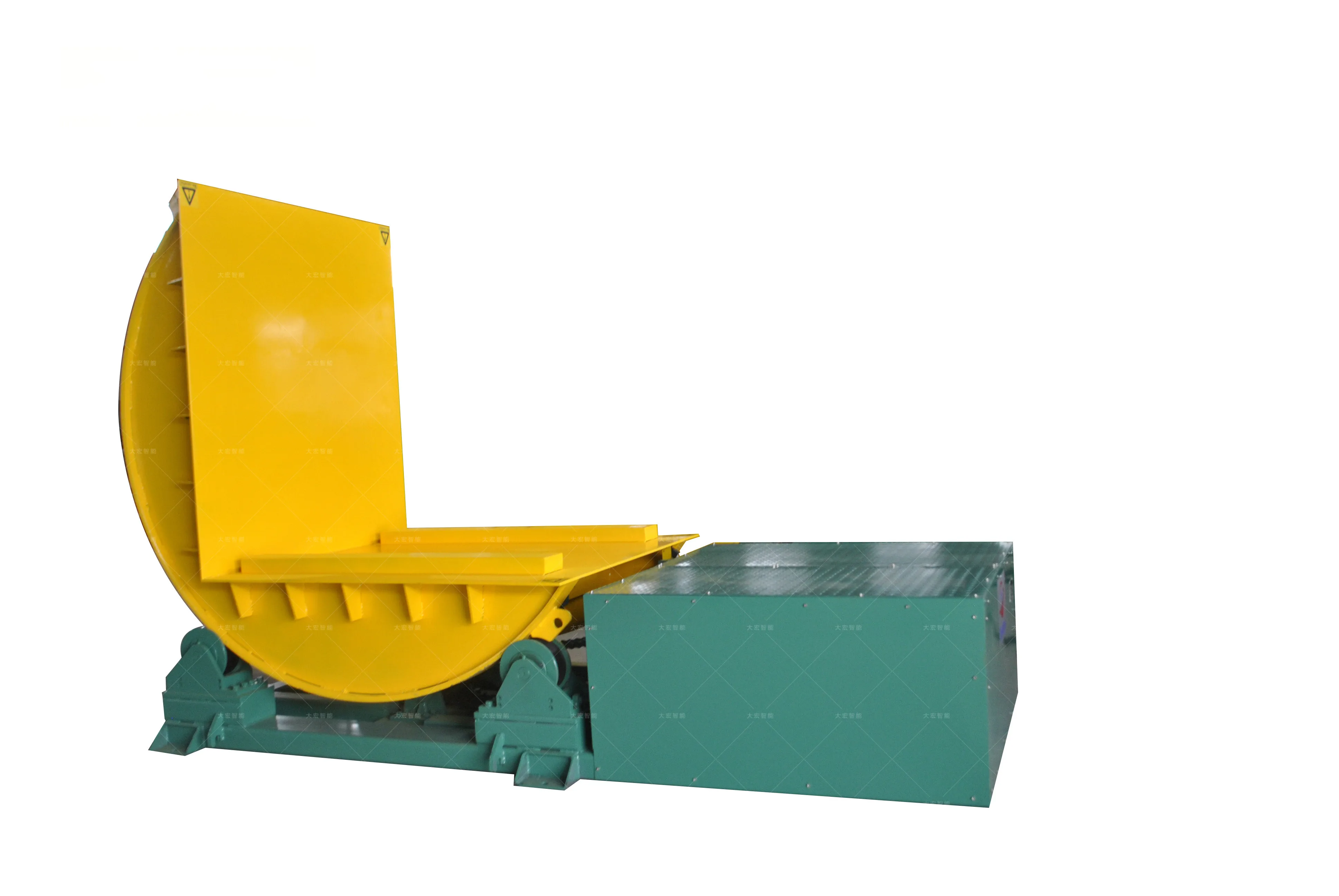

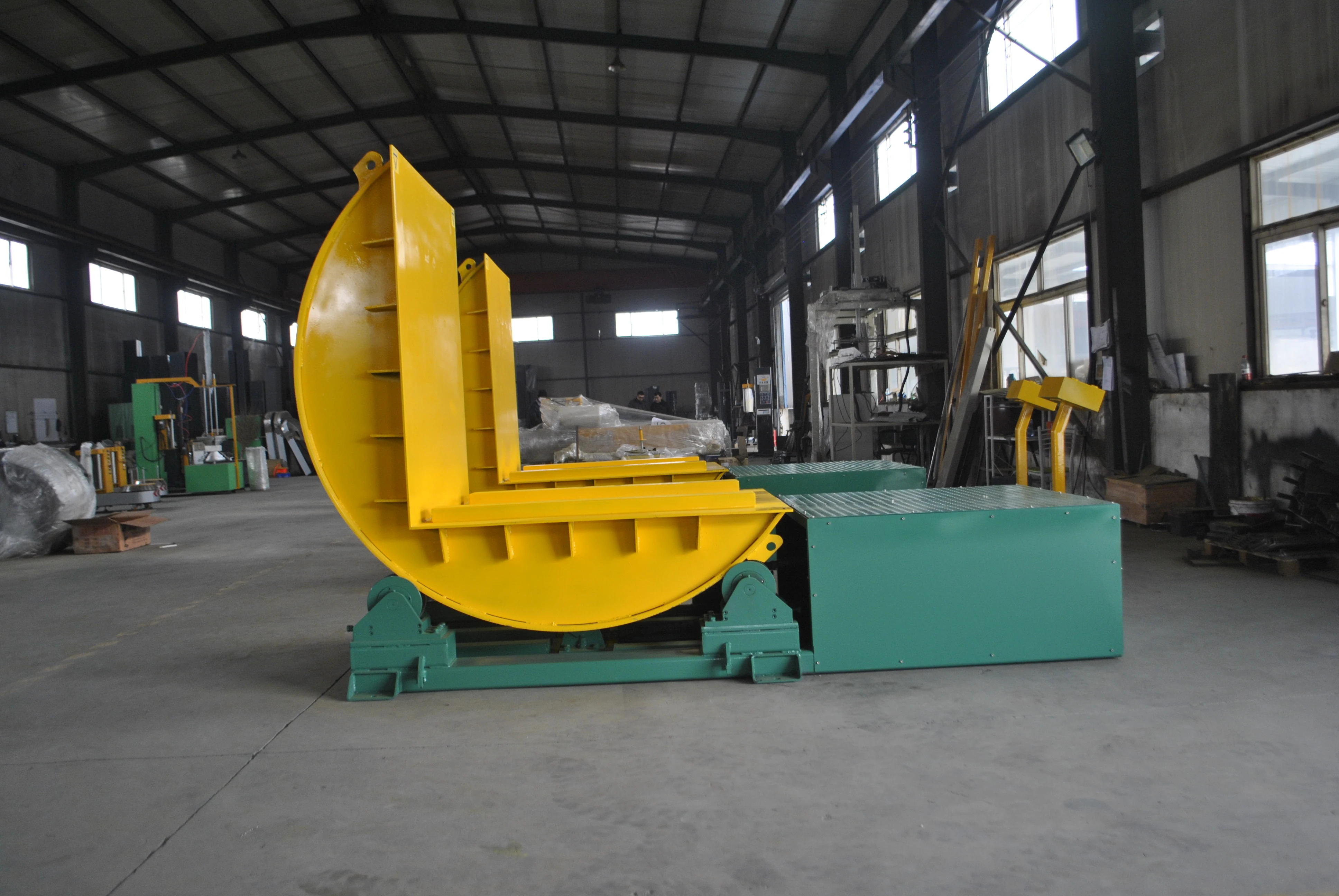

Coil Upender 180 degree Steel Coil Tilter

Product Overview

Description

1,Machine introduction

Coil upender is major used for turning over the heavy articles from one side to another. It is popular in heavy industries for lessening labor and saving time. What’s more, it also can be worked together with other machines forming into a production line.



2,Features:

² Adopting special double chain drive, oblique gear & worm speed reducer is to control the turning speed;

²  Four-roller device wrapped with polyamide adhesive;

²  In order to make safe and effective, inverter control is adopted;

²   Adjustable mechanical pressure device is adopted;

²   It can be remote operation with a separated control panel;

²   Multiple position limit system ensures safe operation.



3,Technical Parameter



Items	DH-FZ-10
Max loading	10T
Turn-over speed	90min±10%
Transfer mode	Double chain/four roller/ Oblique& worm speed reducer
Power output	5.0KW
Ratio	1:286
Perspective	90º
Power voltage	3 phase 380V
Working mode	Semi-auto/ remote control



Machine Specifications could be met
