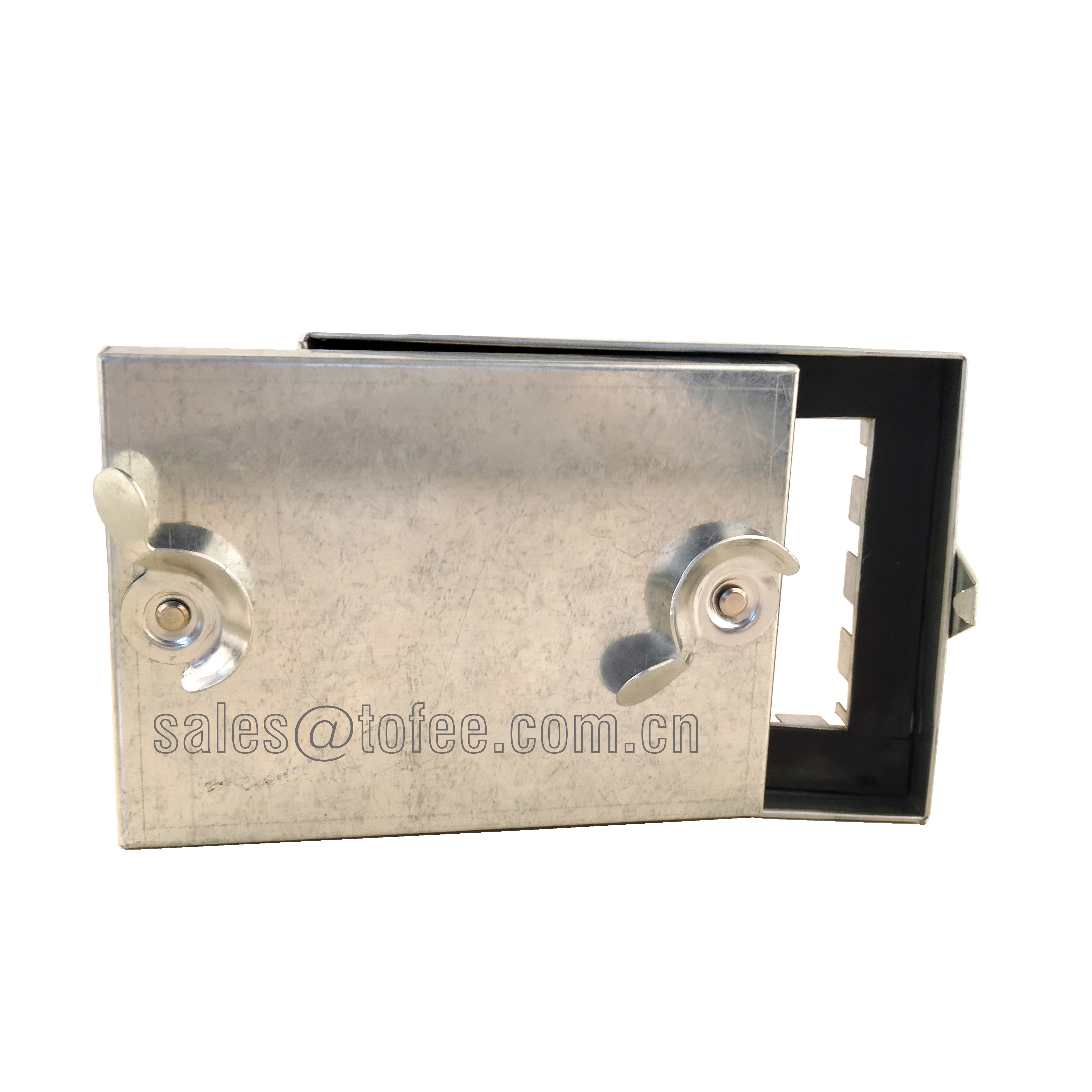

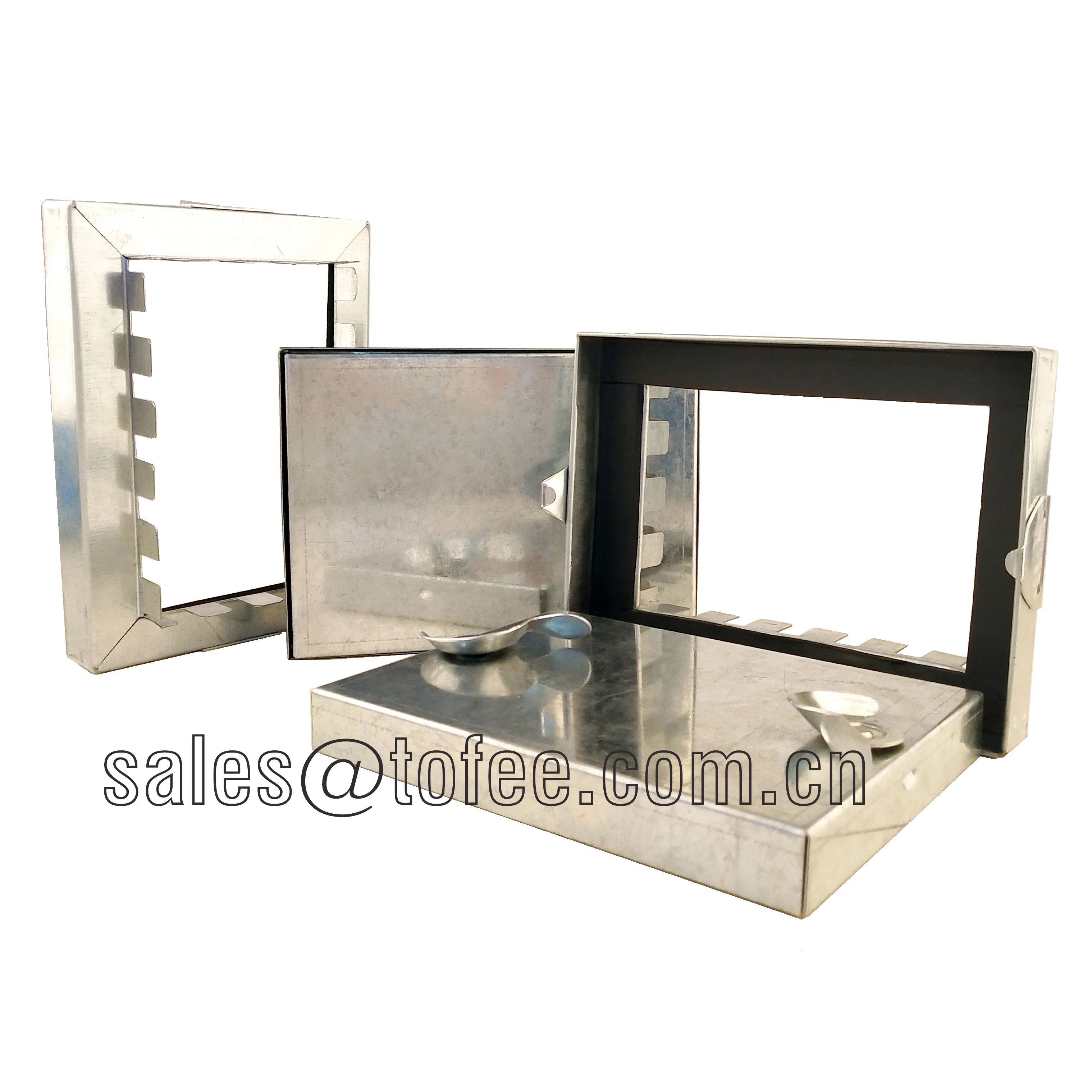

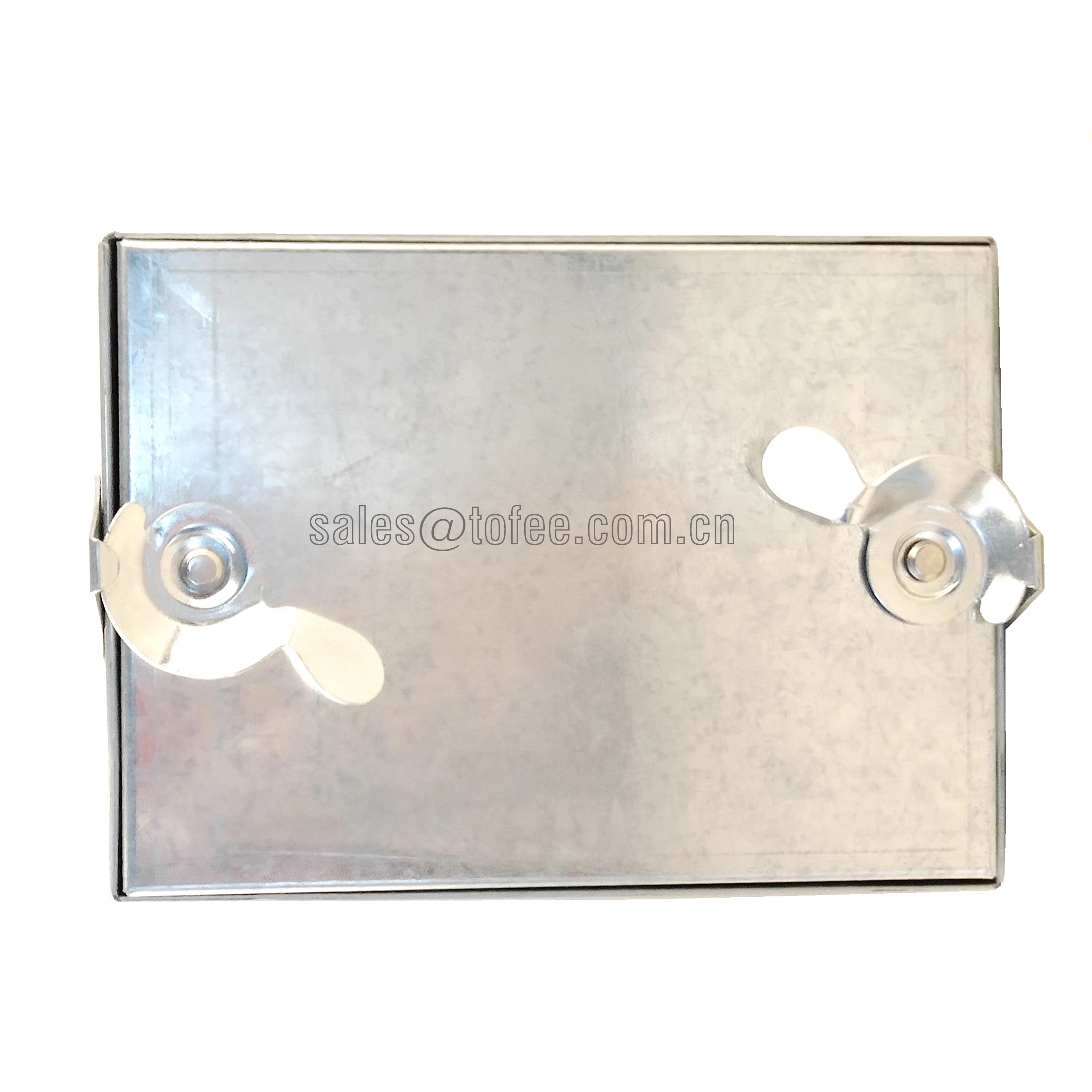

Duct Access Door (for rectangular ducts)
- Category: >>>
- Supplier: Guangzhou Tofee Electro Mechanical Equipment Co. Ltd.
Share on (1953728749):
Product Overview
Description
| Product Features |
+Assures a tight seal access to duct without obstruction in the air system
+These doors are designed for use in high, medium and low pressure applications.
+Effective progressive action camlocks.
+Thermally and acoustically insulated.

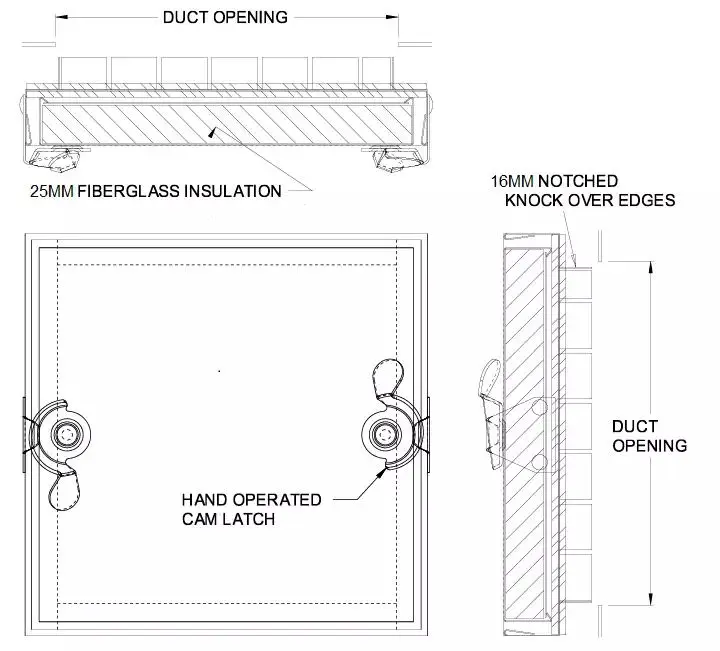

+16mm notched knock over tabs on the inside of the frame provide for easy installation.
+These doors are designed for use in high, medium and low pressure applications.
+Effective progressive action camlocks.
+Thermally and acoustically insulated.
+16mm notched knock over tabs on the inside of the frame provide for easy installation.
+"Safe-edge" radiused tabs on frame.
Specification |

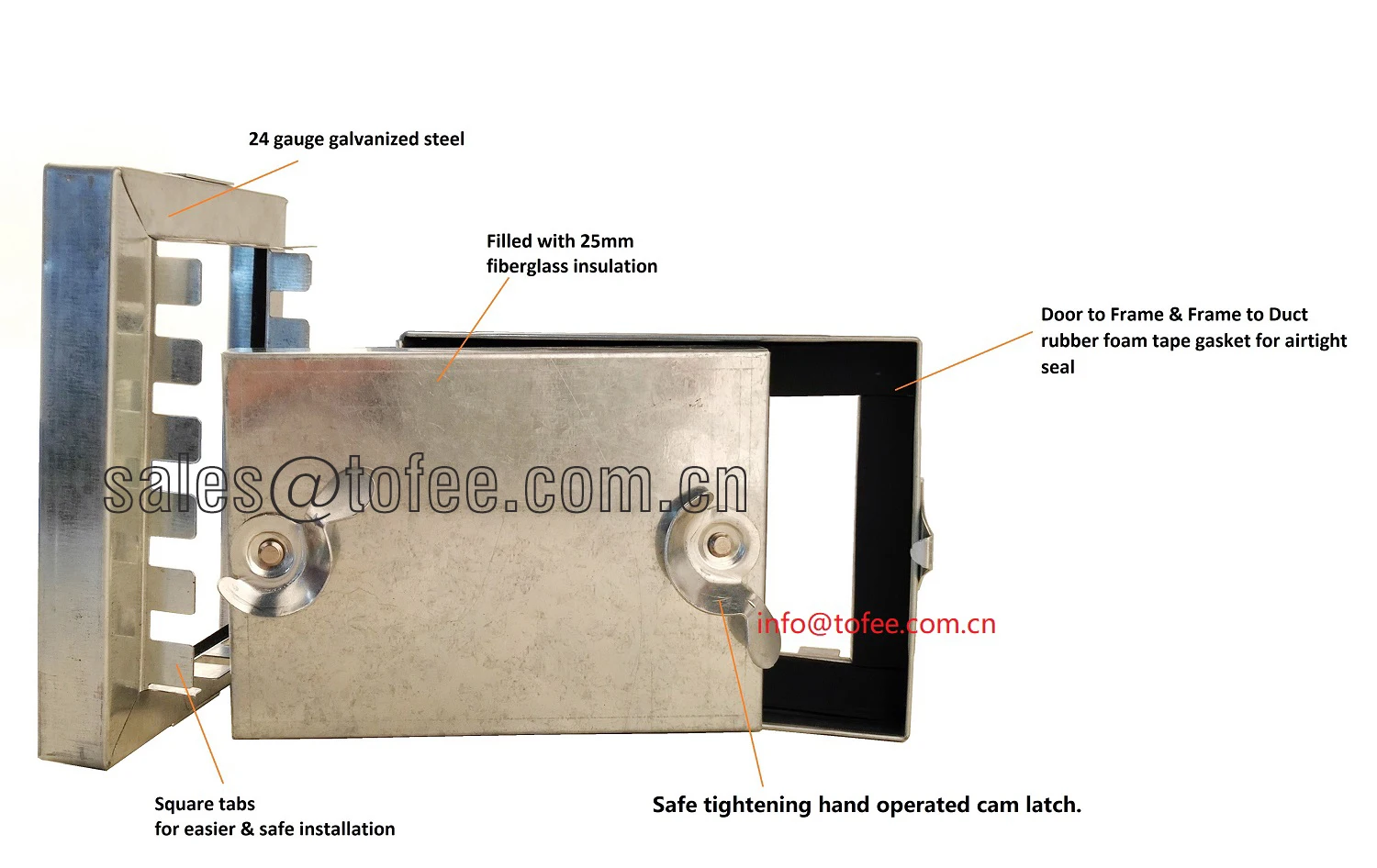

+Casing material: Galvanized steel, double panel.
+Door: 24 gauge (0.7mm).
+Mounting Frame: 24 gauge (0.7mm) with 16mm notched knock over tabs.
+Gasketing: 3mm thick by 15mm wide closed cell foam tape gasketing between door and frame, and also between frame to duct.
+Insulation: fiberglass 25mm thickness.
+Latch: Self tightening, hand operated cam latch.
| Standard Size |
Code No. | Size (mm) | Code No. | Size (mm) |
IAD1010 | 100x100
| IAD4040
| 400x400
|
IAD1015 | 150x150
| IAD4530
| 450x300
|
IAD20125 | 200x125
| IAD4545
| 450x450
|
IAD2020 | 200x200
| IAD5050
| 500x500
|
IAD2525 | 250x250
| IAD6030
| 600x300
|
IAD3015 | 300x150
| IAD6040
| 600x400
|
IAD3020 | 300x200
| IAD6045
| 600x450
|
IAD3030 | 300x300
| IAD6060
| 600x600
|
IAD4030 | 400x300
|
|
