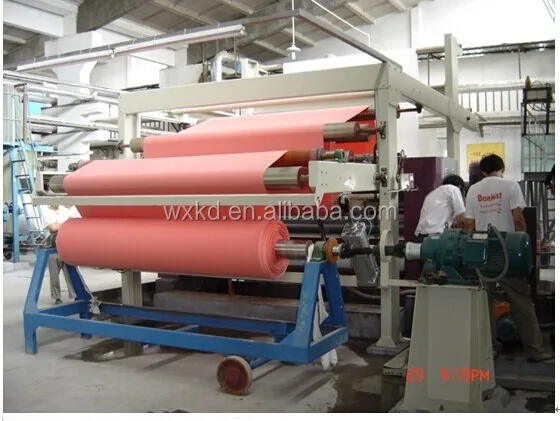

KD 240 тип холодной партии небольшая красильная машина

Product Overview

Description

1. Principle:

  1.This is a standard cold batch dyeing machine.Basic technological process is feed in—cooling roller—eveness squeezer—package.











2.Basic principle of cold batch dyeing is reactive dyes under normal temperature alkali fixing color ,according to this principle,the main notice points is:cooling roller feed in,small liquor ratio dye vat,low tension winding.







3.Big rolling dia. low tension is special important for the center winding device,top grade of frequency converter with lower price.







2. Technical Parameter:



Machine speed:	1—30m/min
Working width:	2400mm
Direction:	left hand or right hand(customer selfcare)
Total Machine power:	12KW
Tramission mode:	AC frequency conversion.











3. Composition



• Feeding frame  1 pcs







• Suction edge device  1 pcs







• Two cold water rollers as one group







• Eveness padder + charging basket 2 pcs + one group of cooling device





• Centre winding







• Electrical apparatus control system one group







• A-type rolling frame(buy in adition)













4. Spare parts:







•  Proportion pump bearing  1 set







•  Mechnical sealing   1 set total 4 pcs







•   Refrigerating machine sealing one set total 4 pcs





•  Refrigerating machine bearing 1 set total 8 pcs
