hot sale technical galvanized steel access floor for office building
US $19.00-$21.00

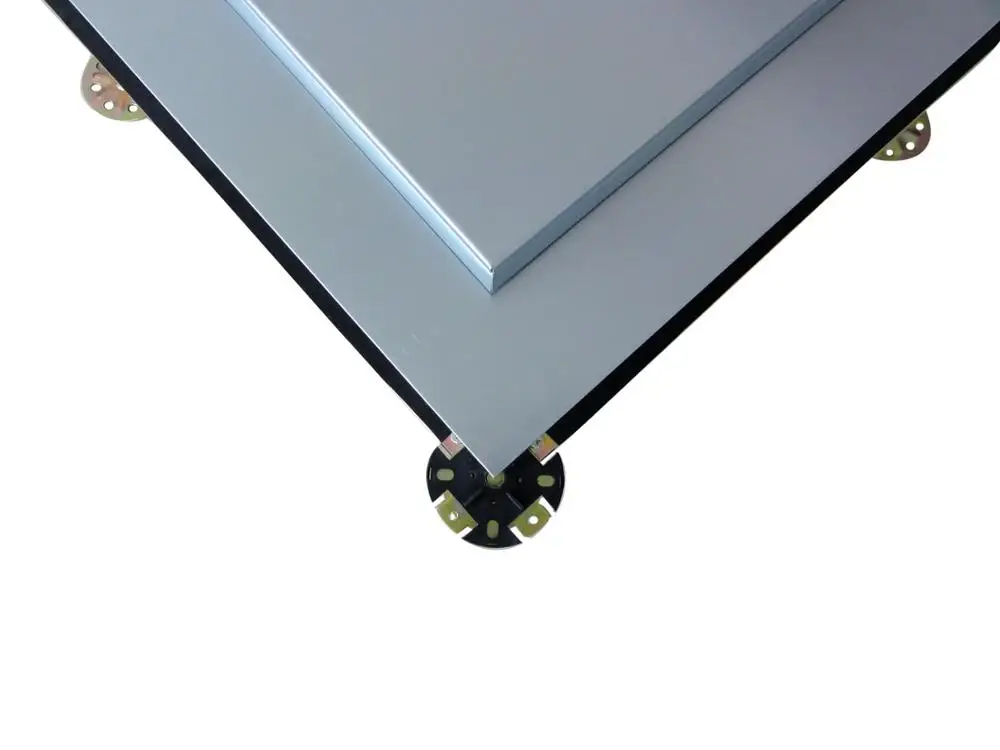

Steel Encased Chipboard Raised Access Floor tile covered with carpet
- Category: Anti-Static Flooring >>>
- Supplier: Xiangli Anti-Static Decorative Material Co. Ltd. (jiangsu)
Share on (1954353405):
Product Overview
Description
hot sale and popular match with carpet Steel Encased Wood Core Raised Access Floor FS800~FS1500 used with carpet tile hot sale
Product Description
Description
1. Full galvanized steel encased the wood core, very good sealing and water-proof
2.High dimensional precision, strong loading ability and shockproof
3.Adjustable height for pedestal , assembly agility, large wire, good exchangeability
4.Elegant appearance for paving wildly brand top tiles
5. light weight ,high loading capacity ,excellent raised flooring in 21th
6.High recycled, convenient removing, saving cost, long performance life

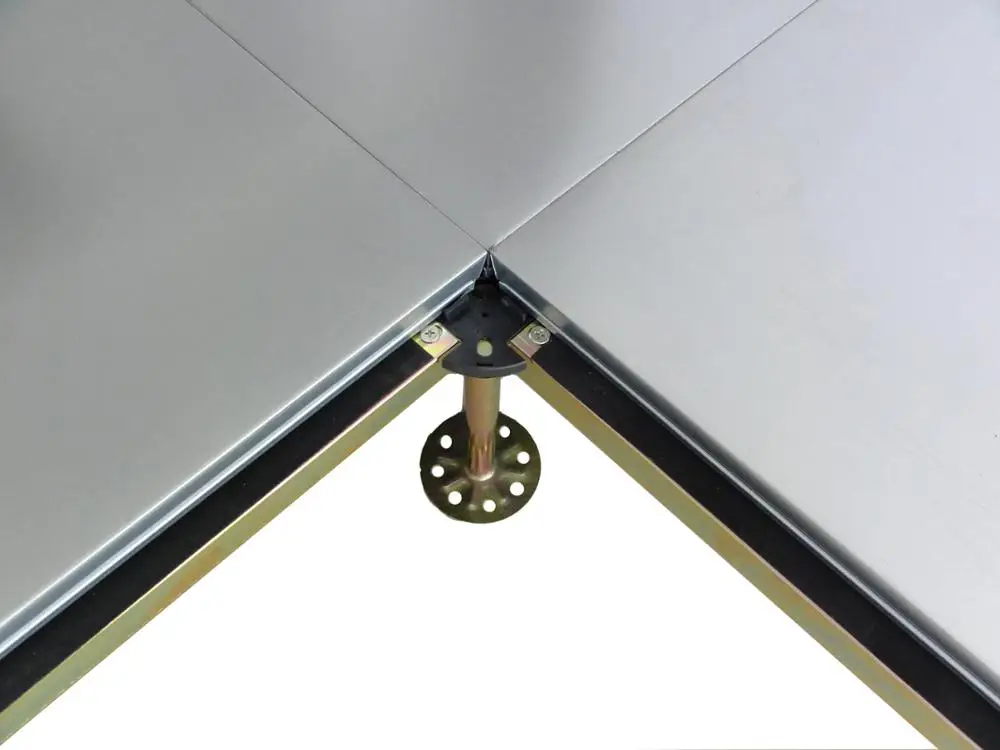

Structure
1. panel-Galvanized steel plate encased the wood core in sx faces ,steel sealed edge ,with or without coner lock hole in four corner ,wildly brand top tiles could be carpet ,HPL PVC tiles or other tiles as you like
2.Accessories -die casting steel structure pedestal plastic gasket on top ,height could be 70mm ---1500mm , with or without square tube stringer steady connect the system
Application
Wide range of the application all kinds of computerroom, network service engine room, control room, montoring cabin, top grade office
Type& Technology parameter
Type | International | Size(mm) | Fire Performance | Concentrated load | Impact load (N) | Ultimated load (N) | Uniform Load (N/m2) | Rolling load(N) | |||
LB | N | KG | 10 times | 100000 times | |||||||
XL-5001 | FS800 | 600x600x31 | A | ≥800 | ≥3350 | ≥363 | ≥536 | ≥11250 | ≥16100 | 3560 | 2670 |
XL-5002 | FS1000 | 600x600x31 | A | ≥1000 | ≥4550 | ≥450 | ≥670 | ≥13350 | ≥23000 | 4450 | 3560 |
XL-5003 | FS1250 | 600x600x31 | A | ≥1250 | ≥5560 | ≥567 | ≥780 | ≥16680 | ≥33000 | 5560 | 4450 |
Standard Pedestal SPEC
FFH(mm) | tube diameter(mm) | adjustment +(mm) | adjustment – (mm) |
≤ 600 | 25 | 25 | 25 |
700~900 | 32 | 25 | 25 |
1000~1500 | 42 | 25 | 25 |
Other height could be customized.
Standard Stringer SPEC: 535x21x30mm
New product:Steel Encased Wood Core Raised Access Floor+magnetic floor
