price of ophthalmology microsurgery urology orthopedics spine surgical instruments operating microscope 6C

Product Overview

Description



Price of ophthalmology microsurgery urology orthopedics spine surgical instruments operating microscope ASOM-6/C

The ASOM-6/C is the only model in the family of ASOM operation microscope which has a double assistant binocular system. It have perfect optics system and the biggest depth of field. It can be used in Neurosurgery, ophthalmology surgery, dentistry.



Specification

Double assistant’s binocular, new changing diaphragm give you perfect depth of field

Eyepieces

magnification 12.5x, pupil distance adjustable range 55mm~75mm, diopter adjustment range +5D ~ -5D. Focus of second object lens 180mm.

Binocular tube

30°~90°variable angle binocular tube, add new pupil distance adjustment

Magnification

6:1 zoom, motorized, magnification 4.5x~27x; field of view Φ45~Φ7.5mm

Coaxial assistant’s binocular tube

manual 3-step changer, total magnification 6.4x,10.8x,17.3x; field of view Φ31mm,Φ19mm,

Φ12mm

Coaxial illumination

illumination diameter of light spot Φ50mm, illumination intensity 100000lux

Objectives

f 200mm (Alternative 175mm,250mm,300mm,350mm,400mm etc )

Focusing

motorized, range +/-25mm, speed 33s/whole distance

X-Y translator

move in X-Y direction motorised, range +/-25mm

Maximum length of arm

1200mm

Oblique illumination

illumination range 50mm,illumination intensity 30000lx

Stand

swing angle of the carrier arm 0 ~300°,height from objective to floor 800mm<H<1250

Foot switch

waterproof, 8 function steps

Weight

164kg

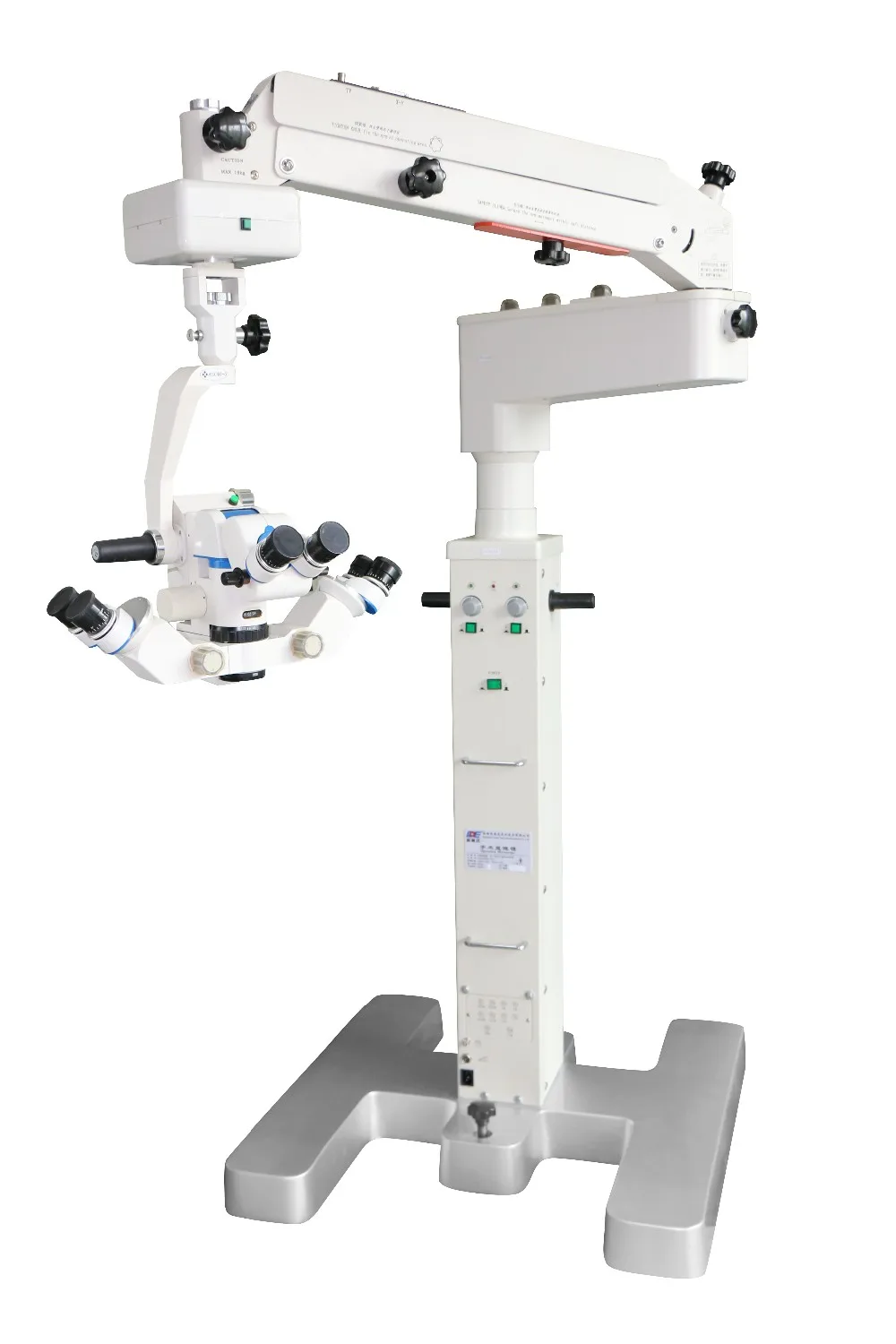

                                                                                                            ASOM-6/C

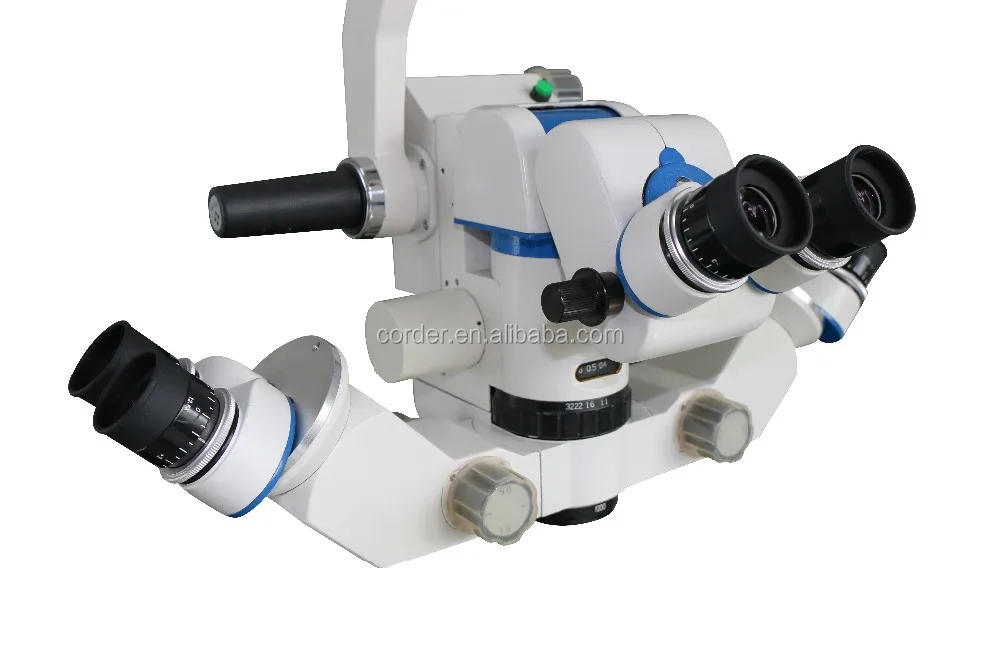

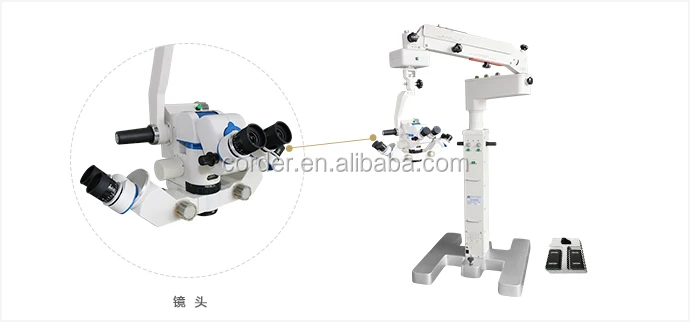

                                                                   Head

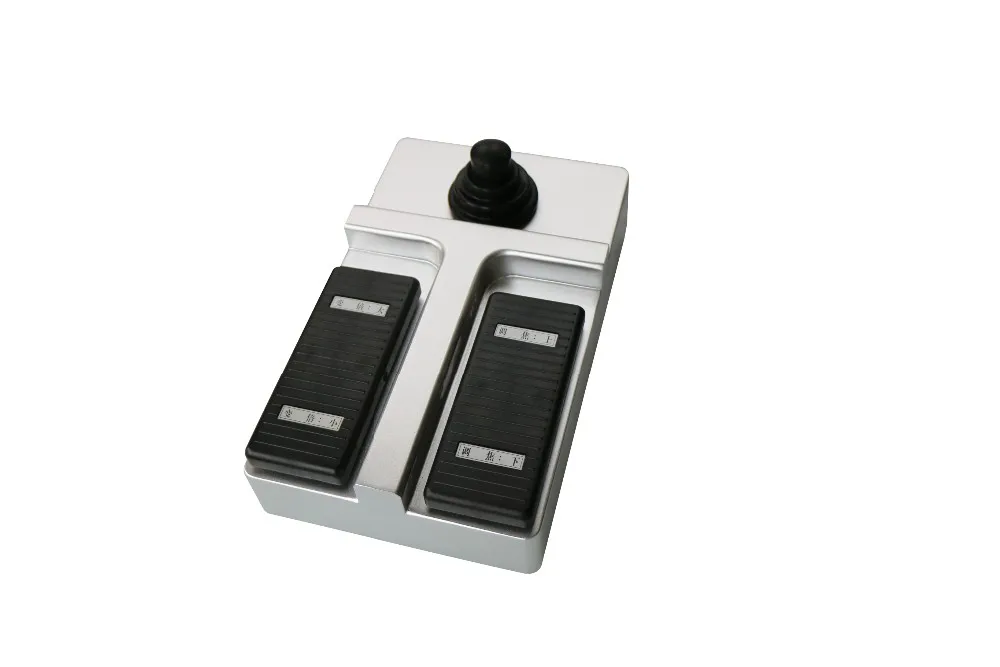

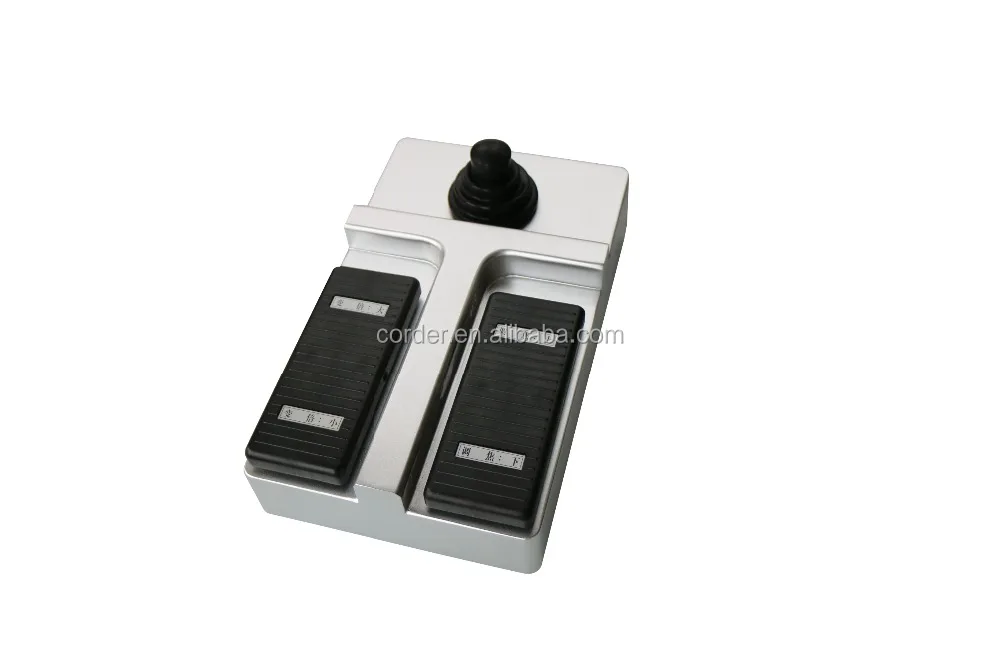

Footswitch

















 We are one of the subsidiary companys of The Institute of Optics & Electronics, Chinese Academy of Sciences(CAS). Corder have been researched and developed operation microscope since 1970s,meanwhile research other optical product:Mask aligner/Adaptive optics vision cure apparatus and so on.

















Model	Gross weight(Kg)	Net weight(Kg)	Cartons	dimensions(mm)
ASOM-6/C	170	156	Four Cartons	885x860x195 890x640x250 1020x260x297 594x460x230
