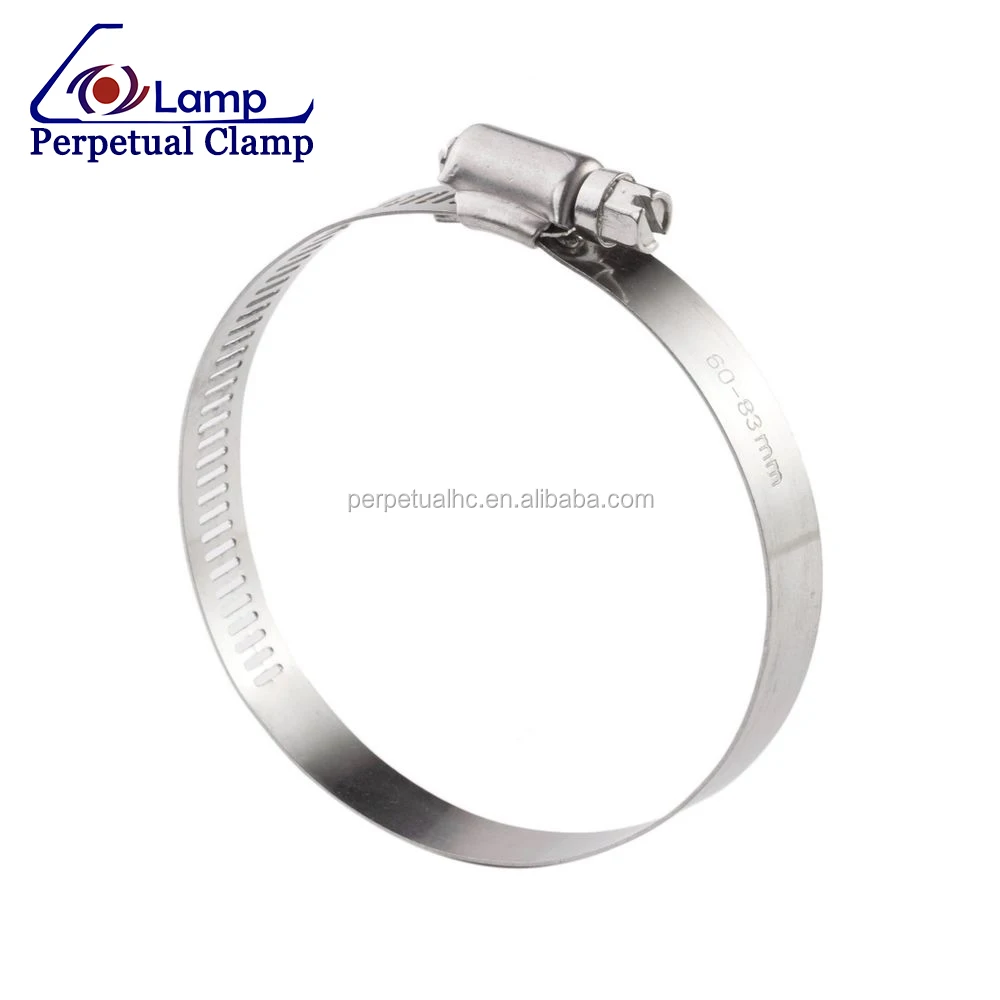

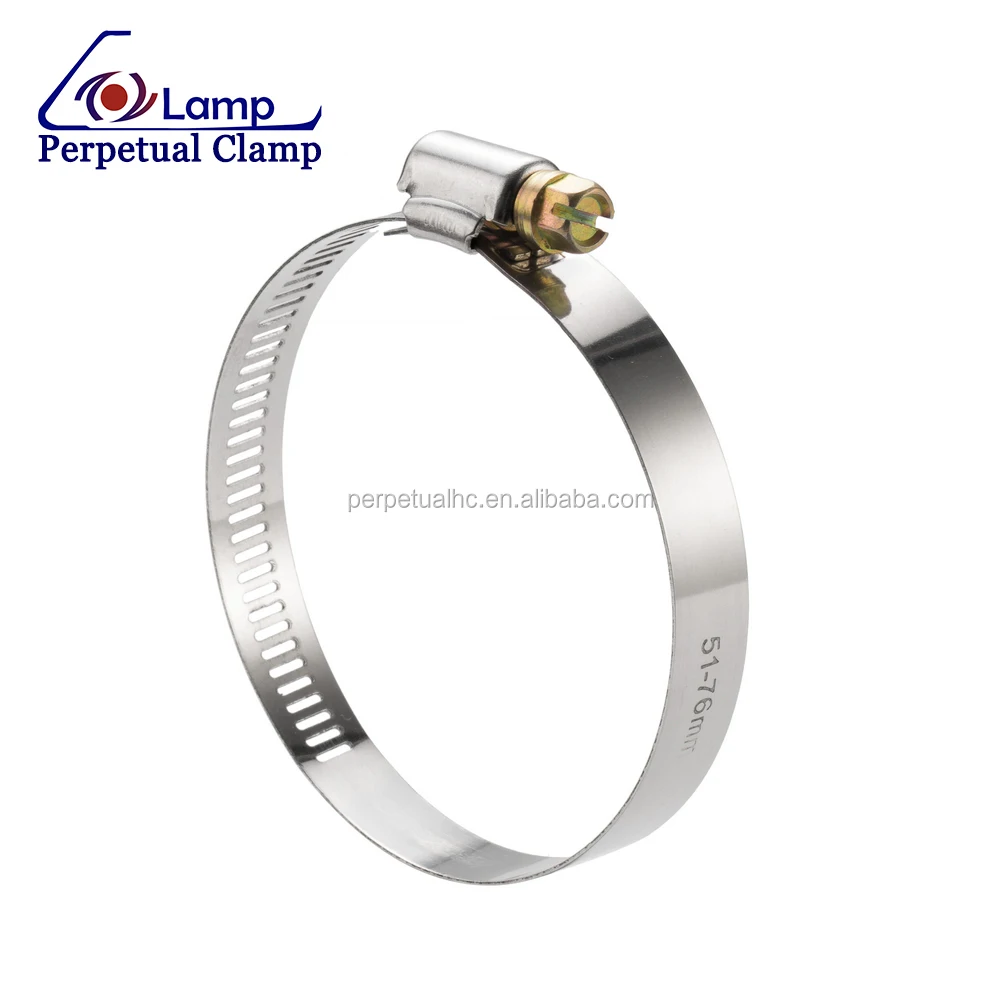

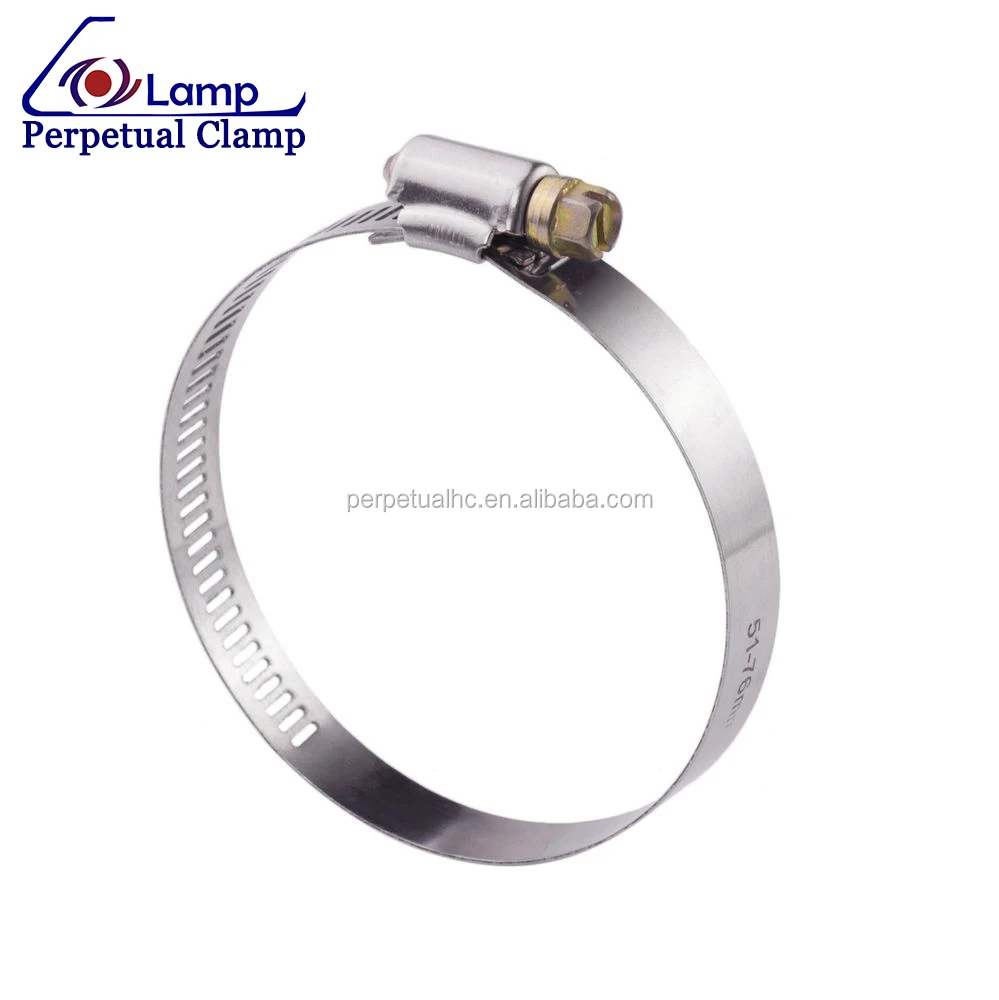

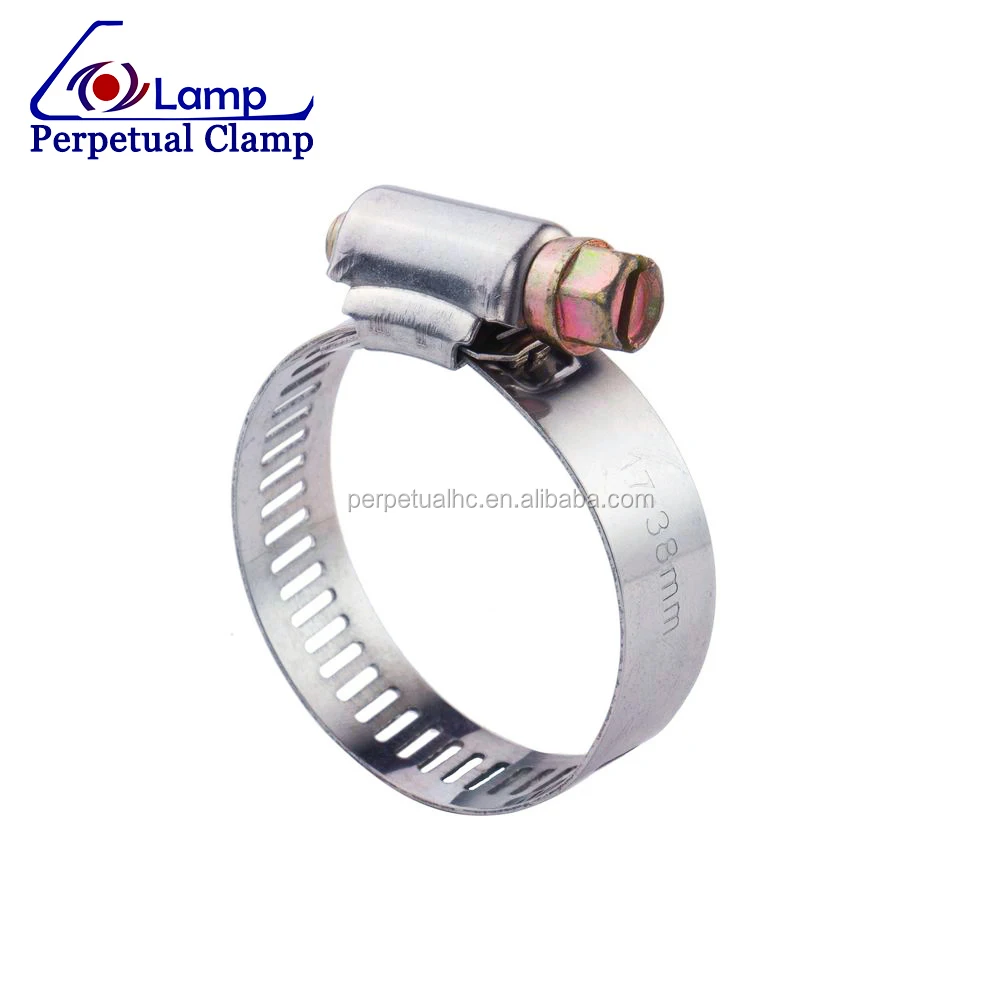

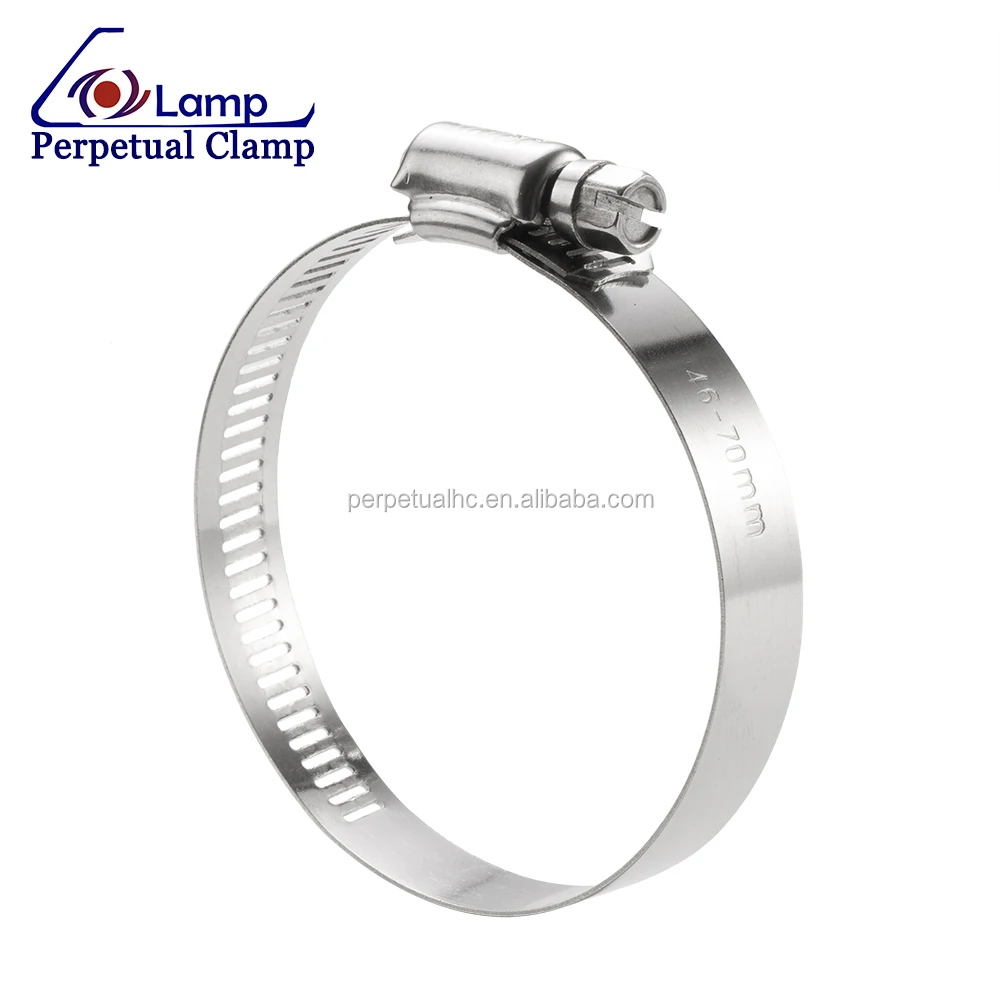

6 Inch Pipe Clamp Brand Clamp Pipe

Product Overview

Description



6 Inch Pipe Clamp Brand Clamp Pipe:

1) Band Width: 12.7mm(1/2")
2) Sizes: 11-20mm to all

3) Band Thickness: 0.6mm

4) Materials: 201/301/304/316 Stainless Steel

5) High quality: Free Torque ≤ 0.8Nm; Break Torque ≥ 7Nm

6) Best service: quick feedback, on time delivery, refund or replacement for any product faulty

7) OEM order is accepted.







SAE	Using Range(inch)		Using Range(mm)		CTN	Pack Size
No.	Min.	Max.	Min.	Max.	pcs	cm
6	7/16.	3/4.	11	20	1000	50x30x16
8	1/2.	7/8.	13	23	1000	50x30x18
10	9/16.	1  1/16	14	27	1000	50x32x21
12	11/16.	1 1/4	18	32	1000	50x30x24
16	13/16.	1 1/2	21	38	500	50x30x17
20	13/16.	1 3/4	21	44	500	50x30x21
24	1  1/16	2	27	51	500	50x30x24
28	1 1/4	2 1/4	33	57	500	50x30x27
32	1 9/16	2 1/2	40	64	500	50x30x31
36	1 3/4	2 3/4	46	70	500	50x30x34
40	2	3	50	76	500	50x30x37
44	2 1/4	3 1/4	59	83	500	50x30x41
48	2 1/2	3 1/2	65	89	500	50x30x44
52	2 3/4	3 3/4	72	95	500	50x30x47
56	3	4	78	102	500	50x30x50
60	3 1/4	4 1/4	83	108	250	50x30x26
64	3 9/16	4 1/2	91	114	250	50x30x30
72	4	5	103	127	250	50x30x34
80	4 5/8	5 1/2	117	140	250	50x30x40
88	5 1/8	6	130	152	250	50x30x46
96	5 1/2	6 1/2	141	165	250	50x30x50
104	6 3/16	7	157	178	250	50x30x50





Material	Band	Housing	Screw
W1	Galvanized steel	Galvanized steel	Galvanized steel
W2	Stainless steel	Galvanized steel	Galvanized steel
W4	Stainless steel	Stainless steel	Stainless steel

American Type Hose Camps are widely used in the vehicle, ship, construction, fire control, textile, the gasoline engine, the diesel engine, sprinkler irrigation machinery, mechanical equipment, the hose outlet gas and heating, they are necessary for all kinds of hose interface tighten connecting fittings.
