HOT! Cement Storage Bin Price Cement Silo For Sale
- Category: >>>
- Supplier: Henan Teng Fei Machine Manufacturing Co. Ltd.
Share on (1955164919):
Product Overview
Description
Cement storage bin price cement silo/sand silo for sale

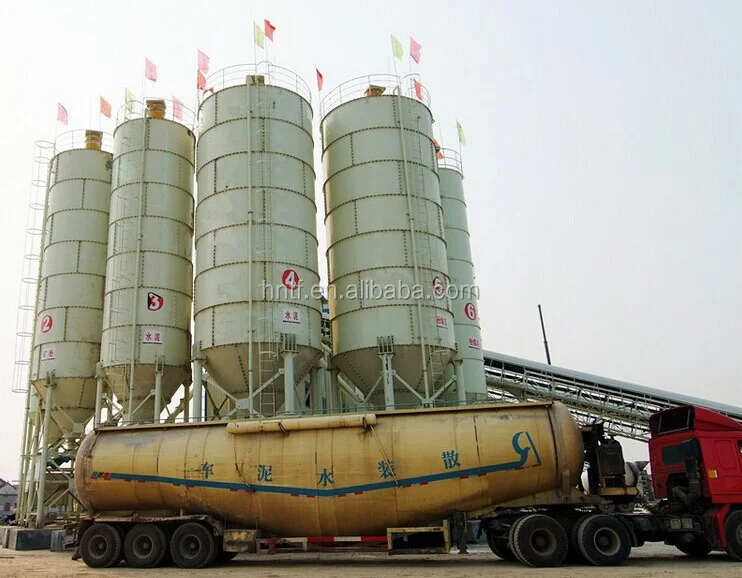

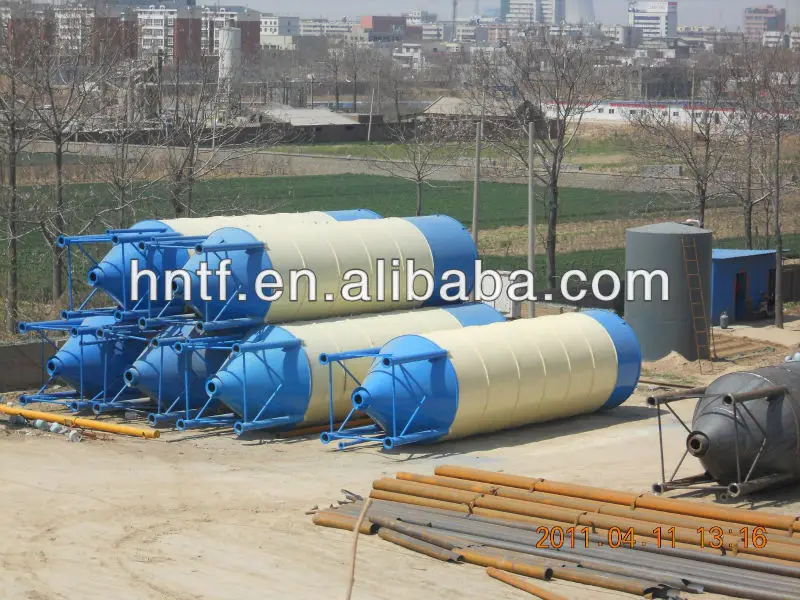

cement storage bin
storage silo price

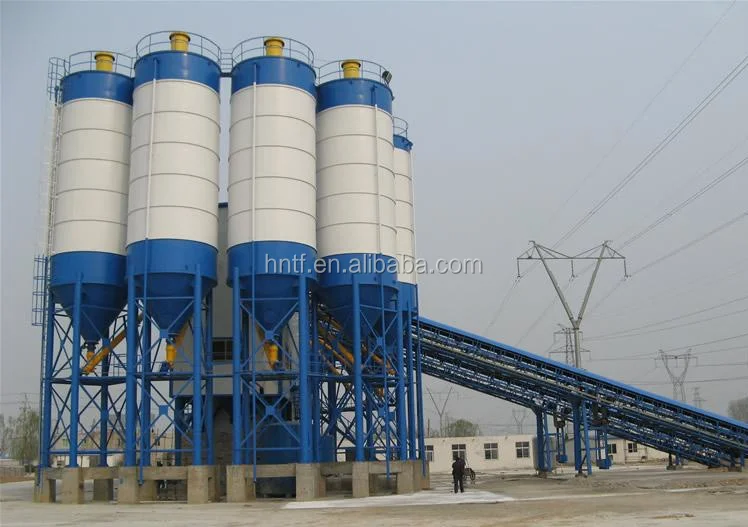

cement silo
Company Information
Product Description

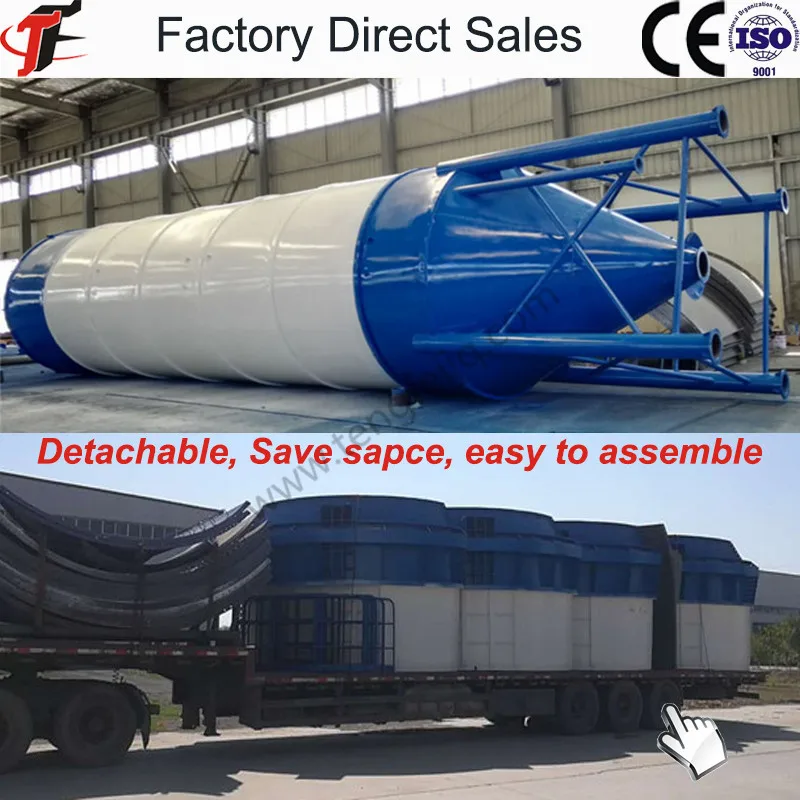

The latest model cement silo used for storage cement, or fly ash, sand, etc, is specially designed for export. It is with features of high adaptation for long-distance container loading transportation, delivery cost saving, easy and fast on-site assembly and move and high safety etc.
Safety valve to balance the pressure inside and outside the silos.
Level indicator so as to monitor the material level and amount.

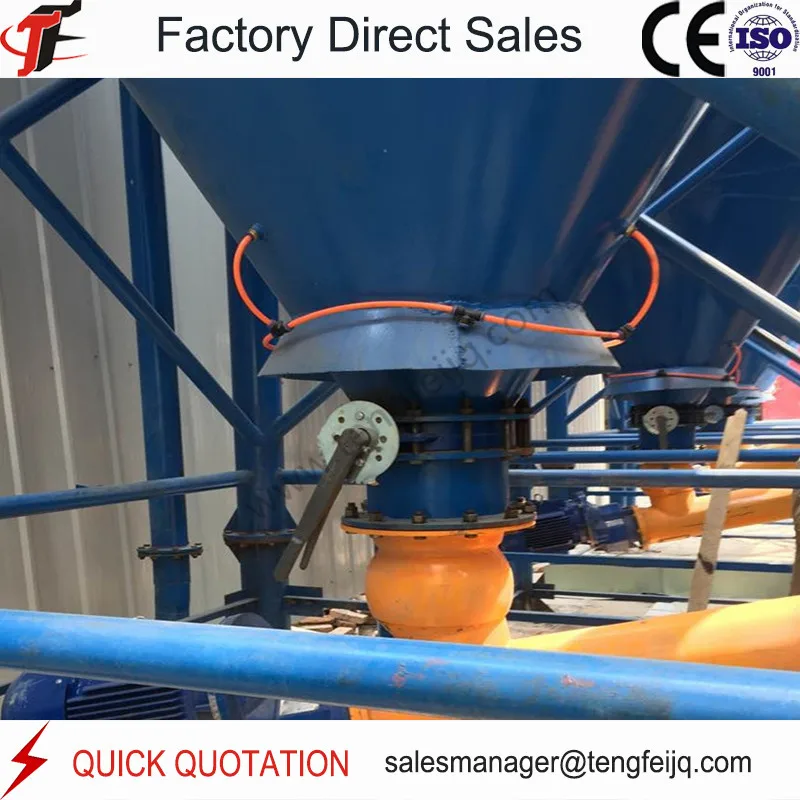

Arch breaker to avoid blocking at the discharge port.
Dust collector at the top to dedusting.
With the screw conveyor, the materials can be conveyed to a certain position.
Suitable for loading into containers and exporting. Perfect sealing assure its efficient working performance.
Item | 50t | 80t | 100t | 120t | 150t | 200t | 300t | ||
Tank | Height (m) | 4.5 | 7.5 | 9 | 10.5 | 13.5 | 9 | 8.25 | |
Diameter (m) | 3 | 3 | 3 | 3 | 3 | 4.5 | 5.5 | ||
Section quantity | 3 | 5 | 6 | 7 | 9 | 6 | 5.5 | ||
Each section is divided into three pieces, the height of each section is 1.5 meters. | |||||||||
Top cover | Top cover is divided into two pieces | ||||||||
Cone | Height (m) | 2.6 | 2.6 | 2.6 | 2.6 | 2.6 | 3.8 | 4.8 | |
Pieces | Cone is divided into 5 pieces | ||||||||
Discharging | Discharging height (m) | ≥1.5 | ≥1.5 | ≥1.5 | ≥1.5 | ≥1.5 | ≥1.5 | ≥1.5 | |
Laining leg height (m) | ≥4.1 | ≥4.1 | ≥4.1 | ≥4.1 | ≥4.1 | ≥5.3 | ≥6.3 | ||
Laining leg height depend on discharging height | |||||||||
Weight (kg) | 2.7 | 4.5 | 4.8 | 6.75 | 8.1 | 11.5 | 18 | ||
Other parts | Arch breaker | Pneumatic arch breaker / Electric vibrator , 1 unit | |||||||
Pneumatic Valve | DN300 | ||||||||
Dust collector | Dust collector / electric dust collector | ||||||||

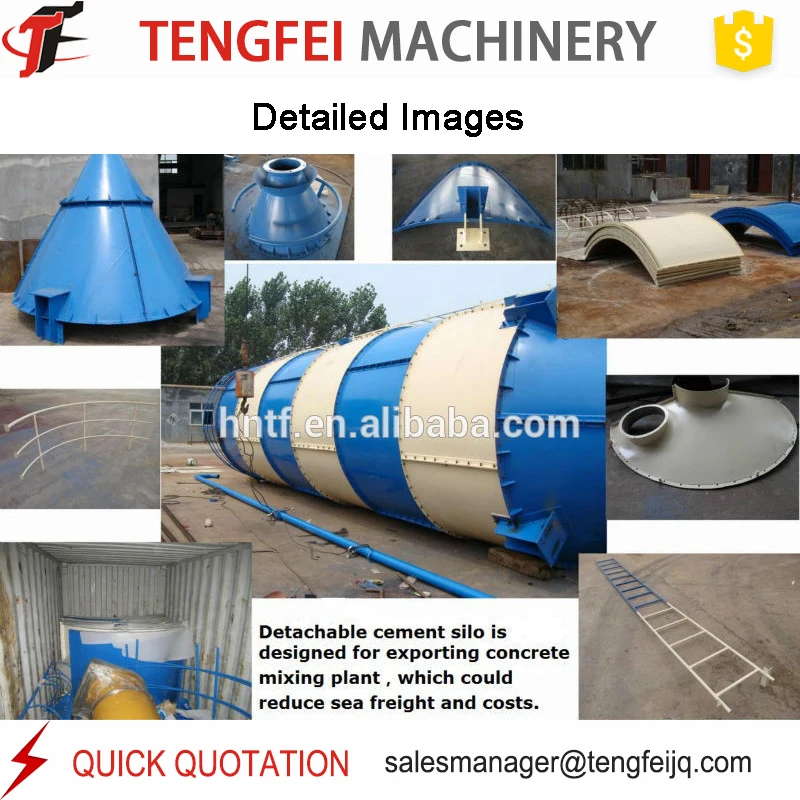

Detailed Images

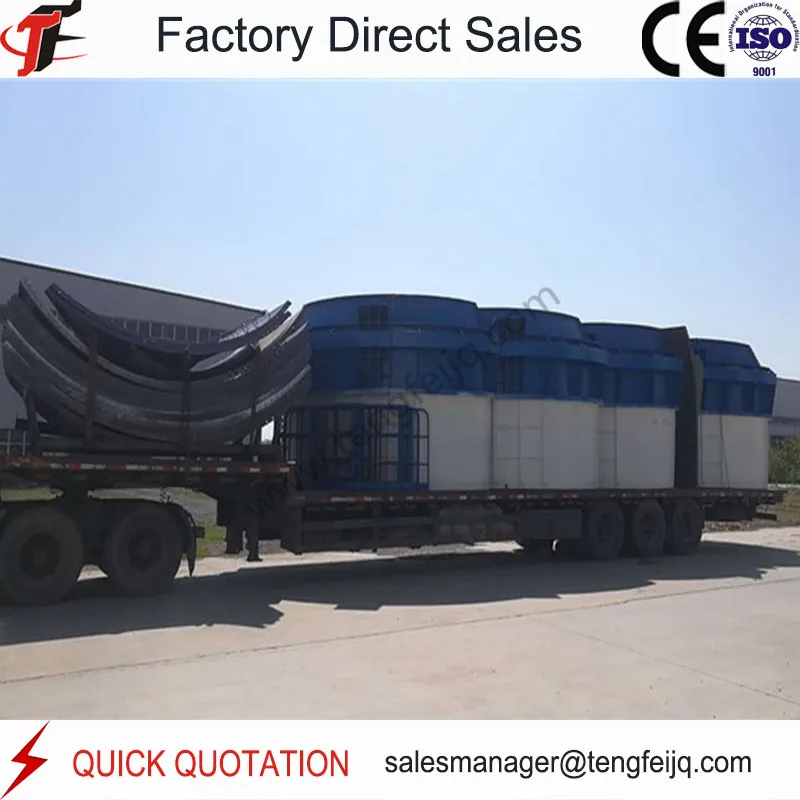

Packaging & Shipping
1)FCL:20''GP,40''HQ standard exporting container
2)LCL,Flat Rack container:
Poly wood case
Wire cables are used for fastening the machine on the trailer or inside the container.
Cork wood are placed in front or behind the machine to protect it.
Plastic film is covered on the machine as a rain-roof.
Crane is used during the whole loading.
