Electric Lifting Columns for Furniture

Product Overview

Description

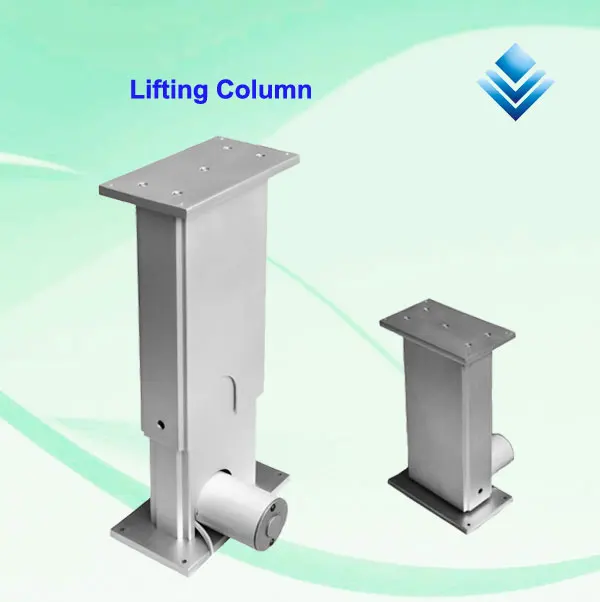

Electric Lifting Columns for Furniture











RS-LC2 Lifting Column is a system is for lifting and lowering an object, such as a vehicle.
Such a system includes at least two mobile lifting columns with: a displaceable frame with a standing mast part; a carrier displaceable along the mast part for engaging the object to be lifted;
a drive for moving the carrier along the mast part;
a control for controlling at least the drive;



Specification: of our lifting column factory:
24VDC lifting column, 12V DC lift column
stroke of lifting column: 100mm, 150mm, 200mm, 250mm, 300mm, 350mm, 400mm
Load capacity: 2000N, 6000N lifting colum
No load lifting speed : 13 mm /s when 2000N lift, 3mm/s when 6000N lifting
10% duty type
Ambient temperature: -25 °C ~ 65 °C
IP 43 lifting column
actuators with built-in limit switches (could not adjustable after production)
Low noise:  db<45 (A)
CE Certification lifting column





Description	RS-LC2 SERIES ELECTRIC LIFTING COLUMN
Composition	Rotor, Lead Screw, Aluminium Tube, Plastic Case
Model No.	LC1000	LC3000	LC4000	LC6000
Max Thrust	1000N	3000N	4000N	6000N
Standard Stroke	50-600(MM)	50-600(MM)	50-600(MM)	50-600(MM)
Min. Install Dimension	175+Stroke(MM)	175+Stroke(MM)	175+Stroke(MM)	175+Stroke(MM)
Max Pull	750N	2500N	3000N	4500N
Self-Lock	750N	2000N	3000N	4000N
Max Speed	30mm/s	18mm/s	13mm/s	6.5mm/s
Limit Switch	Built-in	Built-in	Built-in	Built-in
Carton size	44.5X32.5X20cm	44.5X32.5X20cm	44.5X32.5X20cm	44.5X32.5X20cm
