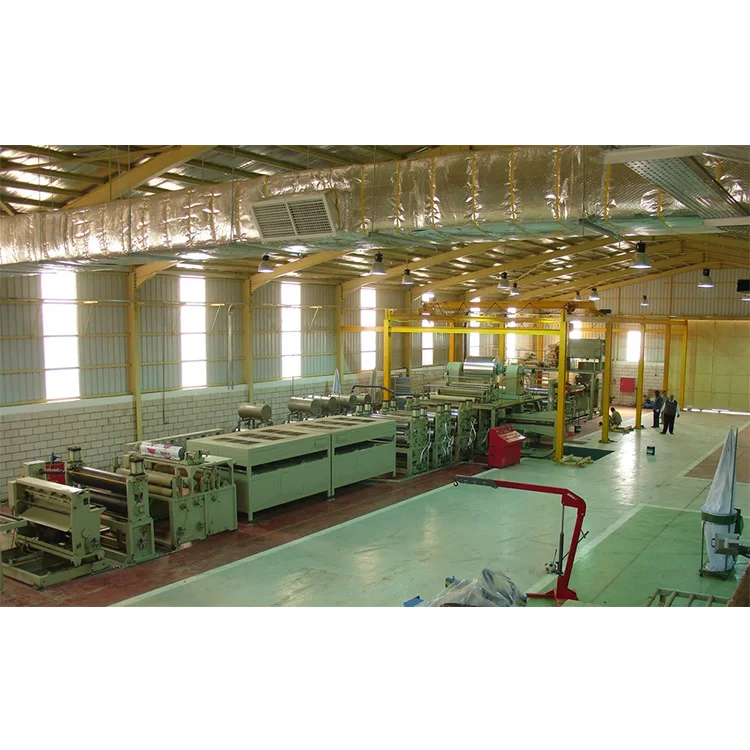

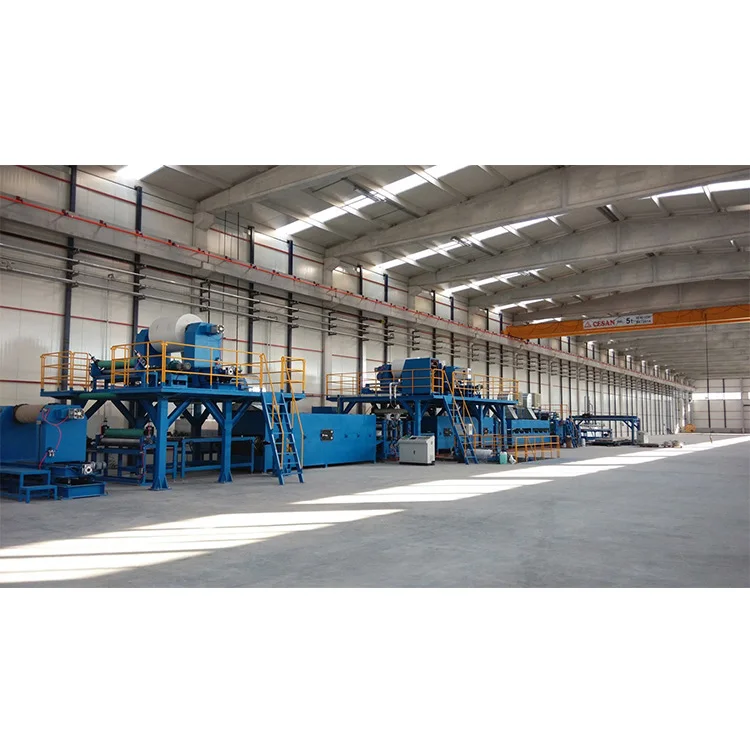

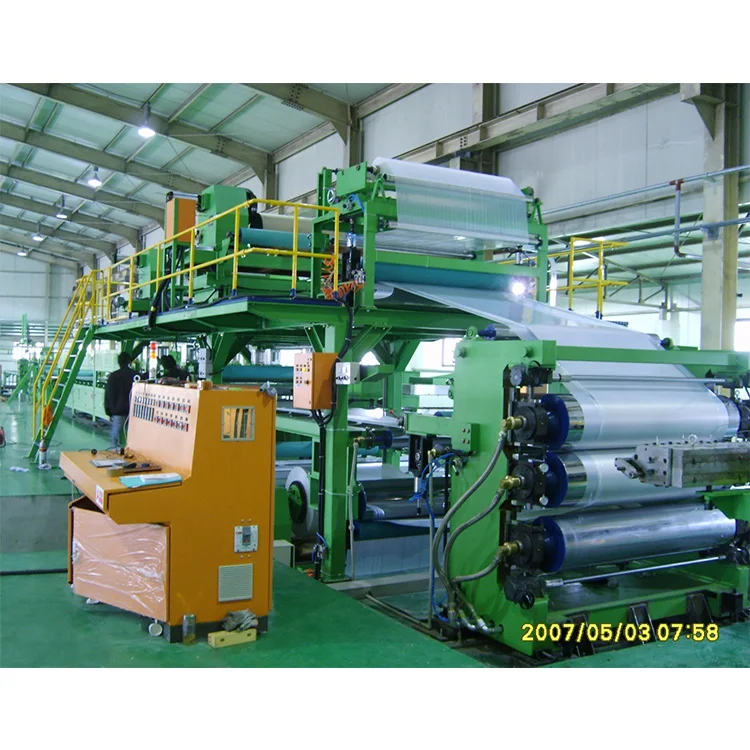

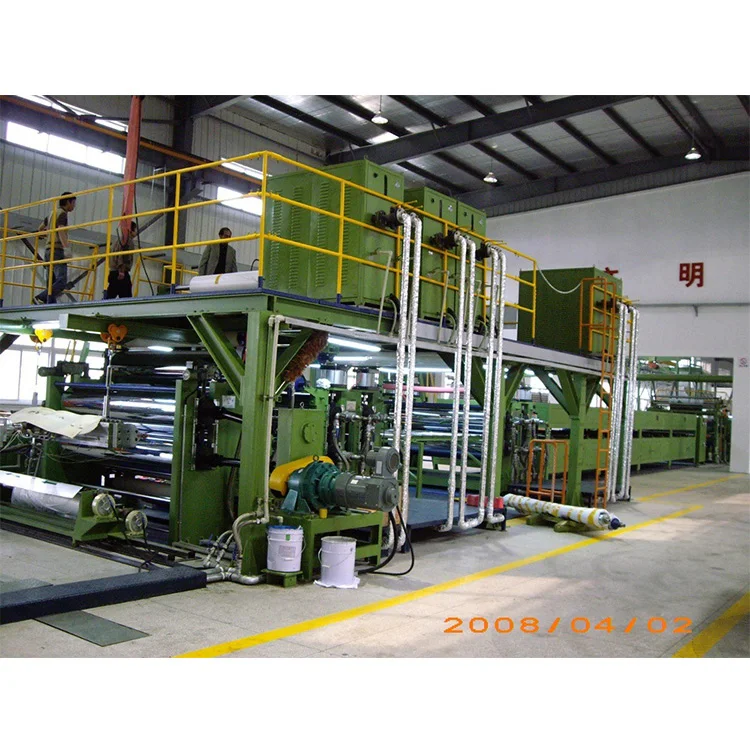

Aluminum composite panel line / pvdf acp production line

Product Overview

Description

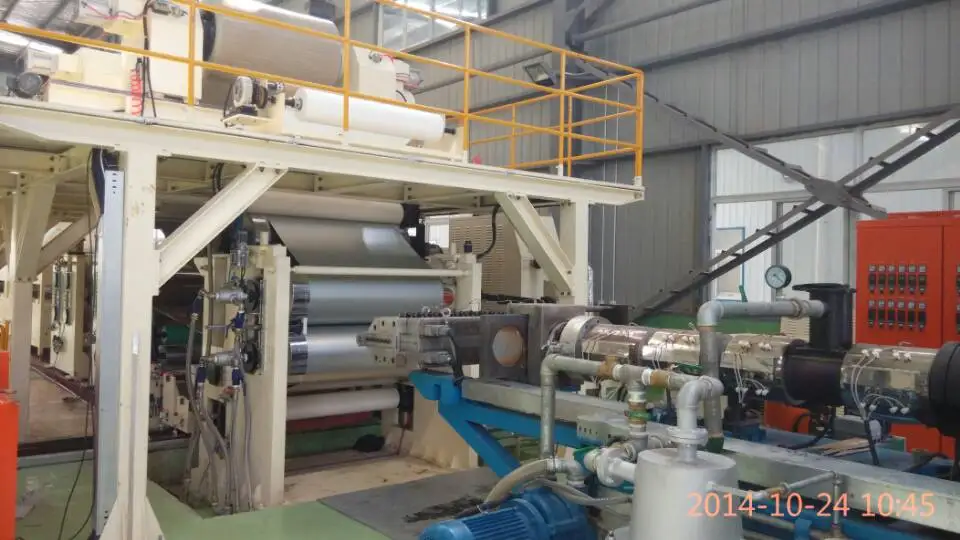

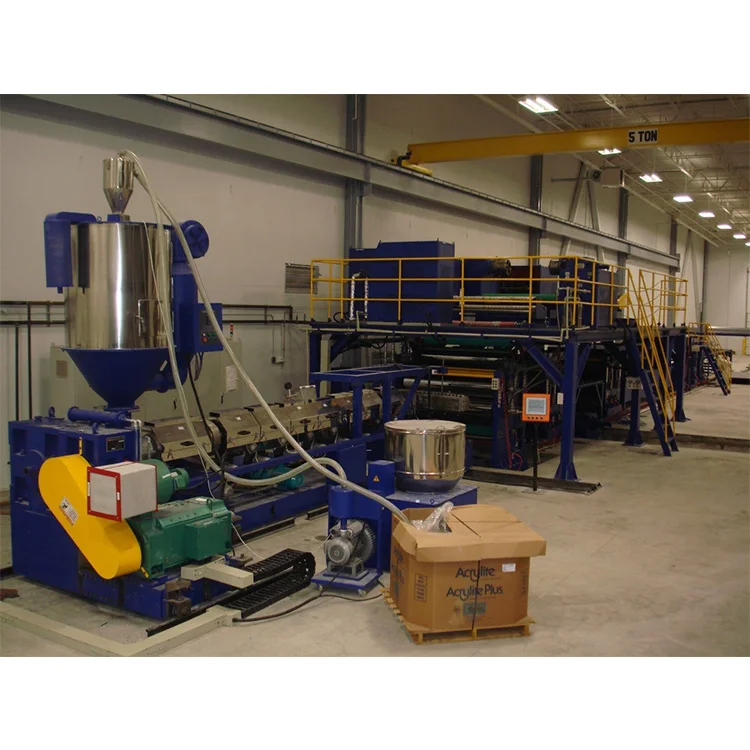

This machine use double screw extruder which is our new design, there are two parallel screw inside the extruder,the capacity can reach 1000kg/H and it improve the production speed. This machine is very good for making B1 panel, it can guarantee the production speed and panel quality.The power of main motor is only 132kw and can save much power for the customer,it can save production cost and improve the production capacity, it's the best choice for making B1 fire resistant panel.



BASIC  PARAMETER
Model	1600II double extruder
Raw Material	Core material	New PE,LDPE,HDPE,recycle core material,FRB1 material
	Aluminium coil thickness	0.21mm-0.5mm
	Aluminium coil width	800mm-2000mm
	Weight of aluminium coil	Max. 8 tons
	Macromolecule film width	800mm-2030mm
	Macromolecule film thickness	0.03mm-0.08mm
	Protective film width	800mm-2030mm
	Protective film thickness	0.06mm-0.08mm
Finished Panel	Thickness	2mm-8mm
	Width	800mm-2000mm
Line speed	For FR B1 ACP  (4mm/0.5mm ACP)	Speed is 4-6m/min Line speed depends on core material's quality and thickness of core
	For A2 ACP (4mm/0.5mm ACP)	Speed is 2-3m/min Line speed depends on core material's quality and thickness of core
