KEBO automatic program control ups
- Category: Uninterruptible Power Supplies (UPS) >>>
- Supplier: Zhongshan,Dianxing,Electrical,Appliance,Industry,Co.,Ltd.
Share on:
Product Overview
Description
Product Description

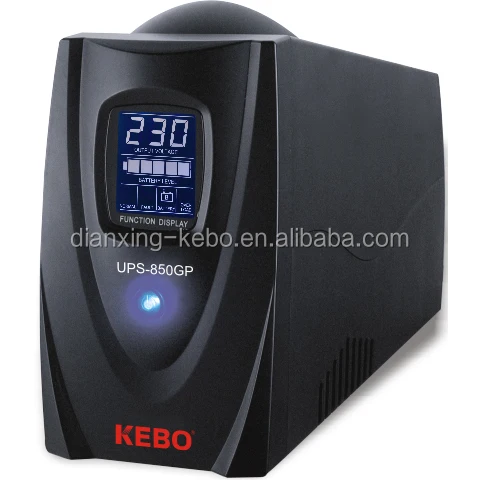

KEBO automatic program control ups
Specification
| Model | UPS-850GP |
| Power | 850VA/500W |
| Technology | Line Interactive |
| Input | 145V-275Vac/90Vac-140Vac±3%, 50/60Hz |
Output (Normal Model) | 220/230/240/110/120Vac+10%-15% |
Output (Battery Model) | 220/230/240/110/120Vac±10%, 50/60Hz |
| Wave Form | Step Wave |
| Efficiency | >90% |
| Transfer Time | <10ms |
| Battery Type | Maintenance-free Sealed Lead-Acid Battery,Leakproof |
| Battery QTY | 1x9Ah |
Backup Time (Half Load) | 10 Minutes |
| Charge Time | <5 Hours (90%) |
| LCD Status Display | Output Voltage, Normal, Fault, Battery, Overload , Battery Level |
| Audible Alarm | AC Unusual/Battery Low Voltage/Overload/Short Circuit/PCB Failed,Beep for 240Seconds |
| Interface Port | USB (Optional) |
| Protection | Surge /Flitering/High Voltage/Low Voltage/High Temperature/Short Circuit/Overload(120%-150%)
Tel/Fax/Modem port (Optional) |
| Regulatory Approvals | CE (LVD+EMC) |
| Unit Dimension (mm) | 325*126*220 |
| N.W. (kgs) | 7.4 |
Presentation
LCD display
 | OUTPUT VOLTAGE: Output voltage indicator. |
BATTERY LEVEL: Battery charge mode and battery capacity indicator. | |
NORMAL: Utility power in normal condition. | |
FAULT: Utility power unusual or other problem occur. | |
BATTERY: UPS transfer to backup or battery test mode. The buzzer emits alarm every four seconds. | |
OVERLOAD: UPS overload. The buzzer emits continuous alarm for 30 seconds. |

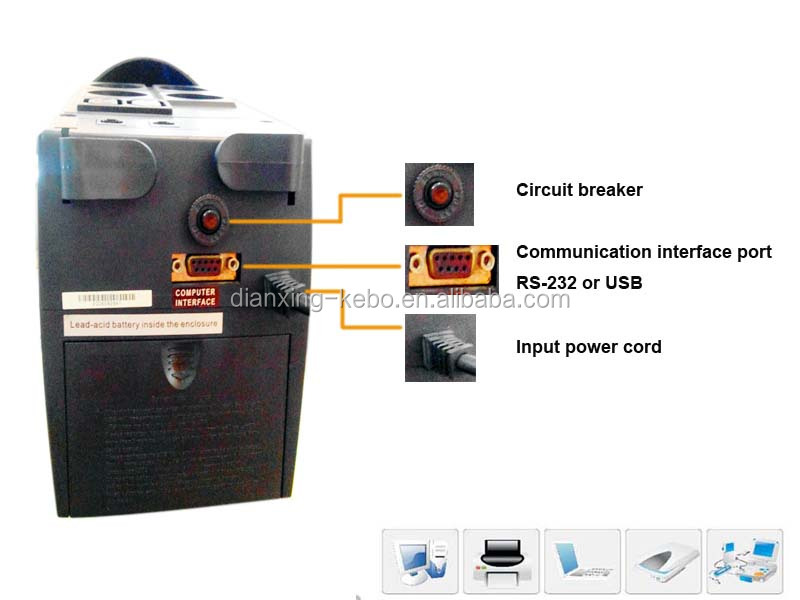

Real panel

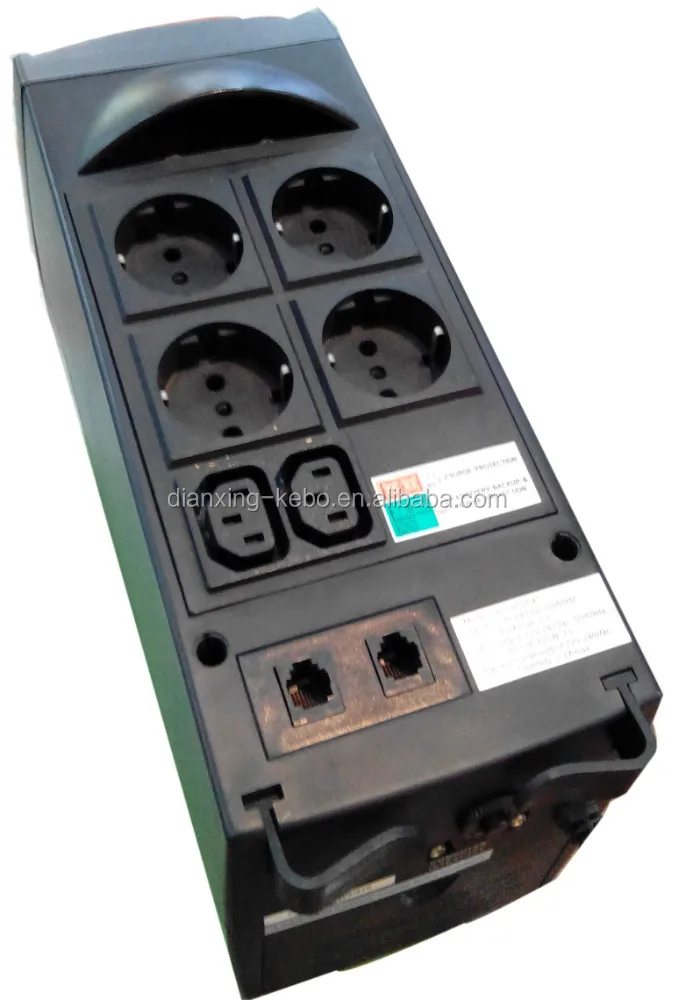

Input power plugs and Output sockets list
Certificate
Packaging & Shipping
| Package | 1pcs/innerbox/4pcs/carton | ||
| Carton size | 660*365*270mm | ||
| G.W./carton | 28.8kg | ||
| QTY/container | 20'1723pcs/40'3446pcs/HQ40'4000pcs | ||

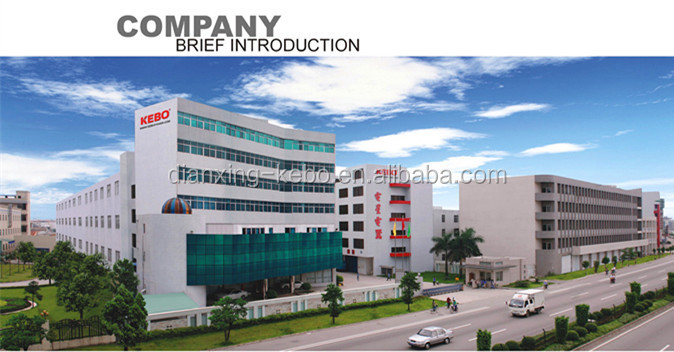

Company Information
KEBO Electrical Company Limited, was established in 1984, a professional manufacturer of Uninterruptible Power Supply (UPS) ranging from 500VA to 100KVA, single phase and three phase, offline and online, AC automatic voltage regulator (Voltage Stabilize) ranging from 500VA to 200KVA, relay type and servo motor type, DC to AC Inverter, including car inverter, modified sine wave and pure sine wave, ranging from 70A to 5000VA, Emergency Lights, Battery Chargers, and Automatic Voltage Switchers, Voltage Guarders (Surge Protector).
----A Factory with 6 production lines
----A Factory with 30-years History and Expertise in power supply
----A Factory with market presence in 95 countries.
----A Facotry with more than 450 ExperiencedWorkers
----A Factory with more than 32,000 square meters.
KEBO ELECTRCAL CO.,LTD (Hong Kong office )
ZHONGSHAN DIANXING ELECTRICAL APPL INDUSTCY CO.,LTD (China Factory)
Factory address: Anle Industry Zone,Dongfeng Town,Guangdong,China post code: 528425
Tel: +86-760-28132828-863;
Fax:+86-28161013
MB: +86-186-8810-3296
Web: www.kebopower.com
