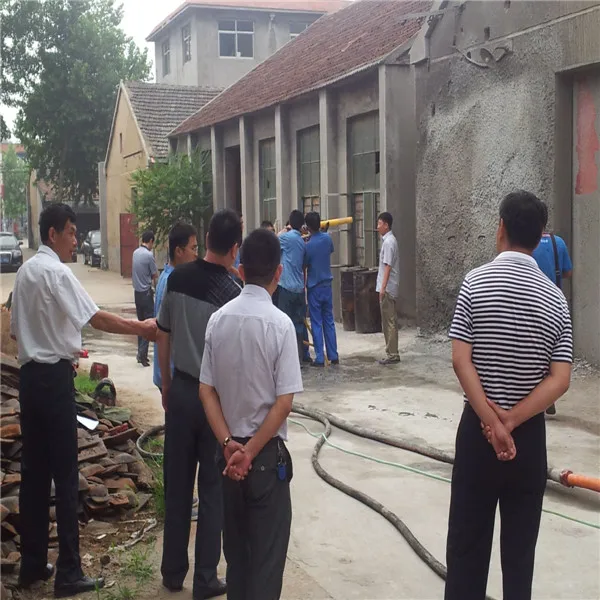

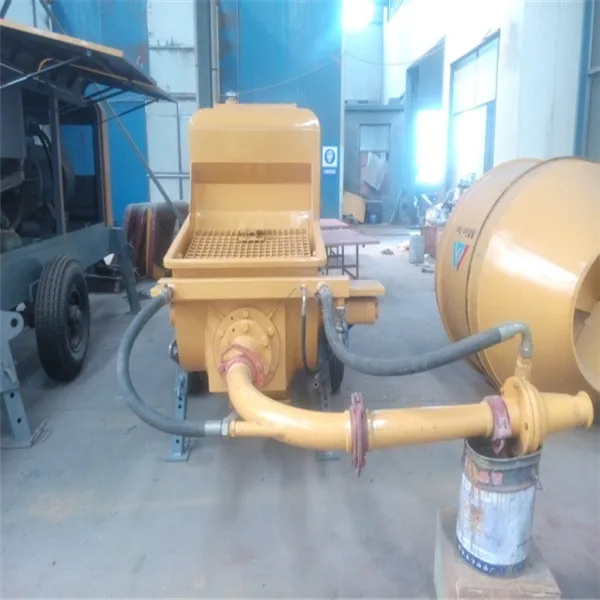

concrete and cement spray on the wall and with diesel engine power machine
- Category: Shotcrete Machine >>>
- Supplier: Taian Minle Machine Manufacture Co. Ltd.
Share on (1958676533):
Product Overview
Description

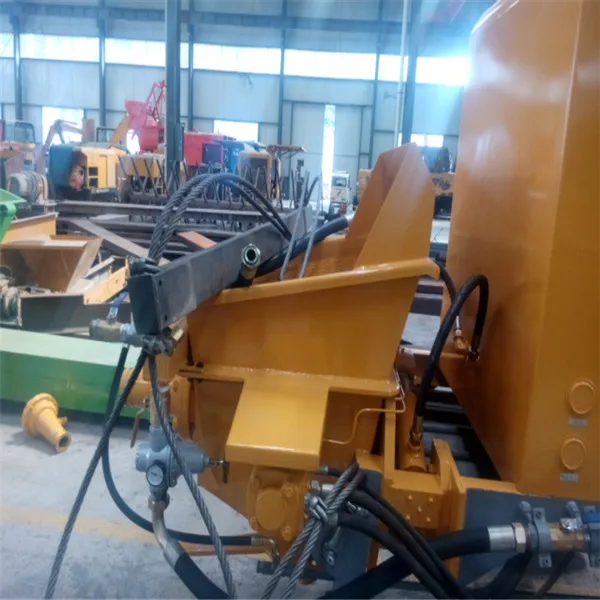

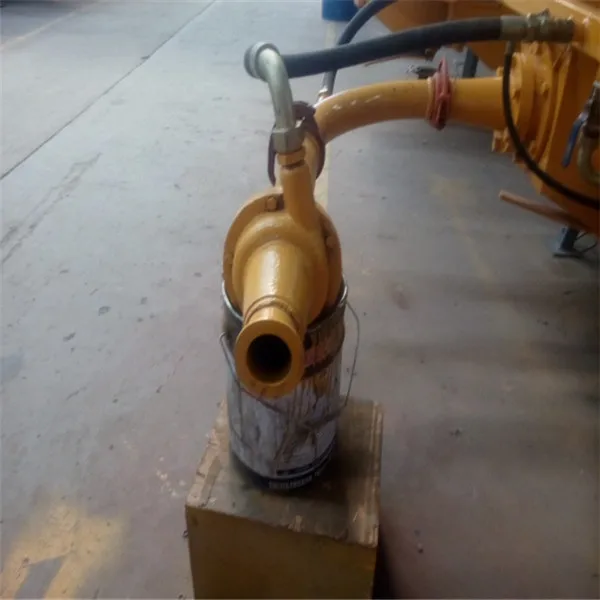

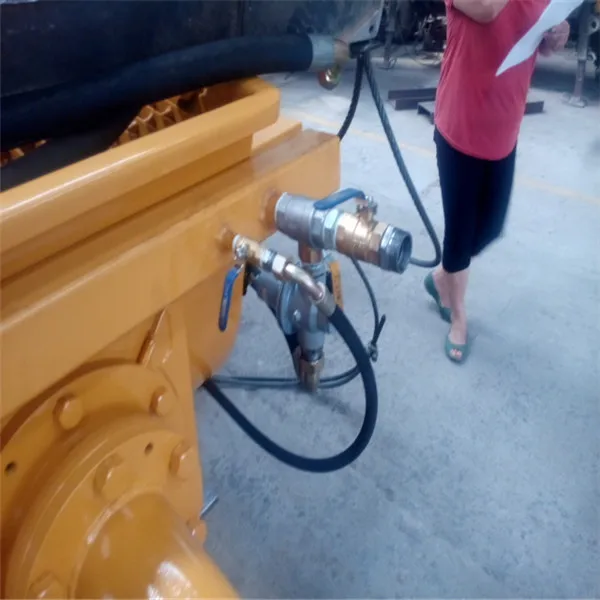

SPB7-G Wet shotcrete Concrete pump
1.Advantages
1) high pumping pressure and long transmission distance.
2) high efficiency, large displacement.
3) spare parts is not easy to loss, long service life.
4) simple and environment
5) multi-usage, it also can be used for wet spraying machine and concrete pump
2. Main Technical Parameters
Specification | Main cylinder diameter/Rod diameter | Mm | Φ80/Φ55-400 | |
Conveying cylinder diameter | Mm | 120 | ||
Distribution valve | S valve | |||
Max. theoretical concrete output | M3/h | 7 | ||
Max. theoretical outlet pressure | Mpa | 6 | ||
Hose Inner Diameter: | mm | 51 | ||
Slump allowable range | Cm | 8-20 | ||
Pumping Hopper capacity | L | 150 | ||
Filling height | mm | 940 | ||
Max Aggregate Size | mm | 20 | ||
Fine aggregate fineness modulus | mm | ≥0.45 | ||
Dust rate beside machine | <10mg/ m3 | |||
Rebound rate(In standard conditions) | Average<20% | |||
Max. Theoretical conveying distance | M | Horizontal 240 | ||
Vertical 130 | ||||
Whole weight | Kg | 1800±90 | ||
Dimension | L×W×H | mm | 2976*1210*1435(±1%) | |
Power System | Motor Model | YBK2-180M-4 | ||
Rated Power(Kw) | 18.5 | 18.5 | ||
Rated Votage(V) | 380/660 | 380/660 | ||
Rate Current (380v/660v) | 36.5/21.1 | 36.5/21.1 | ||
Rated Speed(r/min) | 1470 | 1470 | ||
Starting Mode | Y- | |||
Hydraulic System | Hydraulic System Mode | Open Curcuit | ||
Oil pump group | A10V045DFLR+G5-10-5-A15S-R | |||
Pumping Pressure(Mpa) | 19±0.5 | 19±0.5 | ||
Hopper mixing pressure(Mpa) | 12±0.5 | 12±0.5 | ||
Hydraulic fuel tank effective capacity(L) | 100±25 | 100±25 | ||
Air Compression | System Wind Pressure( Mpa) | 06-07 | 0.6-0.7 | |
Working Wind Pressure( Mpa) | 0.4-0.6 | 0.5 | ||
Blast Consumption( m3/min) | Approximately 10 | |||
Accelerator pump batching system | liquid accelerator dosage | 0-6% | ||
Drive mode | Hydraulic | |||
Power(Kw) | 0.55 | 0.55 | ||
