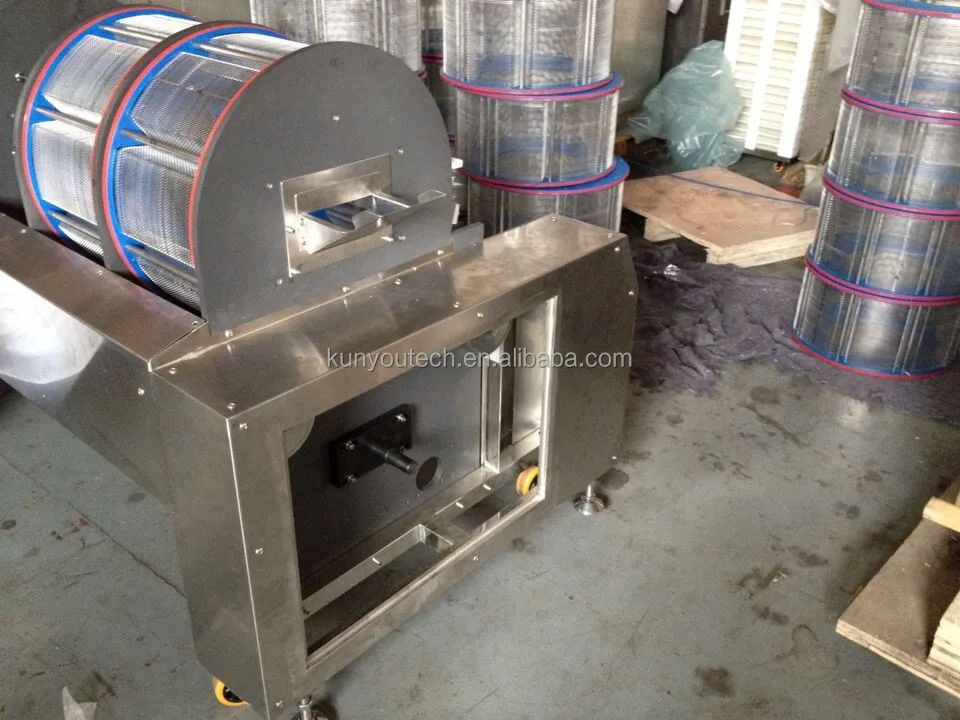

Easy Lift Sfotgel capsule Tumble Dryer drying machine TD 4 with small basket 526*282

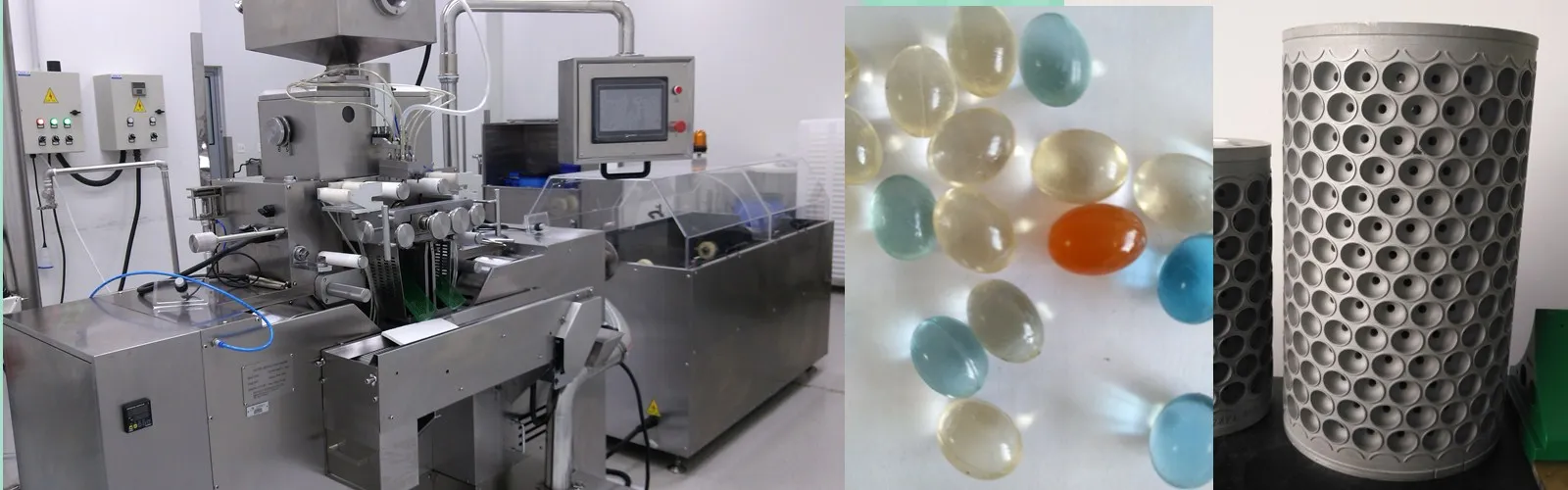

Beijing Kun You Pharmatech Co., Ltd. devotes itself to manufacture softgel encapsulation line, tumble dryer, softgel mould, softgel sorting machine, softgel auxiliary equipment, paintball production line, and related technique R&D.

We also accumulated rich experience of softgel encapsulation technique. We have many sets of high-precision CNC and auxiliary equipments, and our professional design, technology, production and service personnel, enable us to produce high performance equipment, mould and top quality service. We are not only a equipment and mould supplier, but also a turn-key solution and formula provider.Easpcially in veggie gel capsule.

Kun You is keeping good cooperation relationship with companies from USA,Swissland, Germany, Canada, Russia, Mexcio, Vietnam, Turkey, Brasil, India, etc., in the meantime, our products and service have been exported to those regions too.

Feature and Advantage

We pay great attention to the combination of design and application, and focus on improvement of production efficiency and stability. The major advantages of our tumble dryer are as below:

1. Basket:

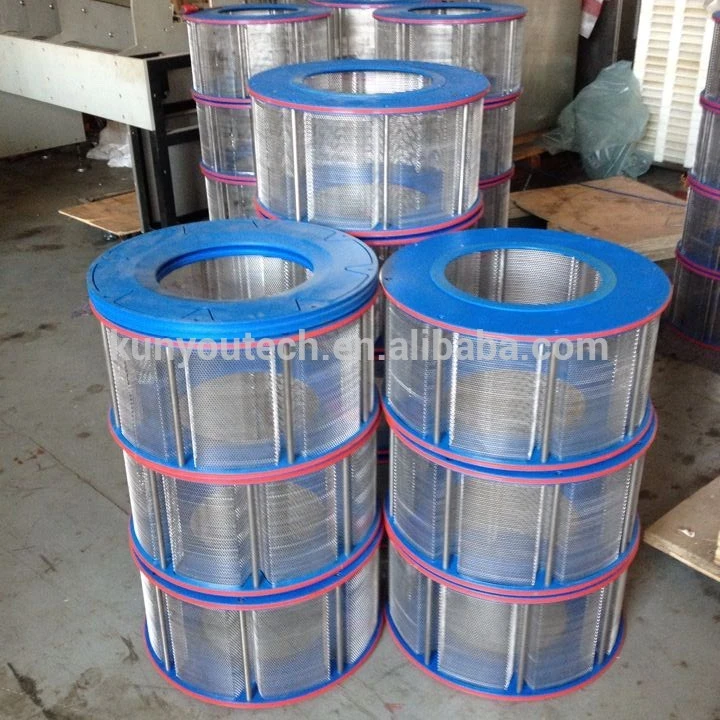

1.1 Basket is the most important part of tumble dryer, net of basket is made from SS316 , meet GMP requirement. The special fabrication processing ensures the inner wall of basket is smooth and burrs free. Capsules will not be damaged or turn into black color.

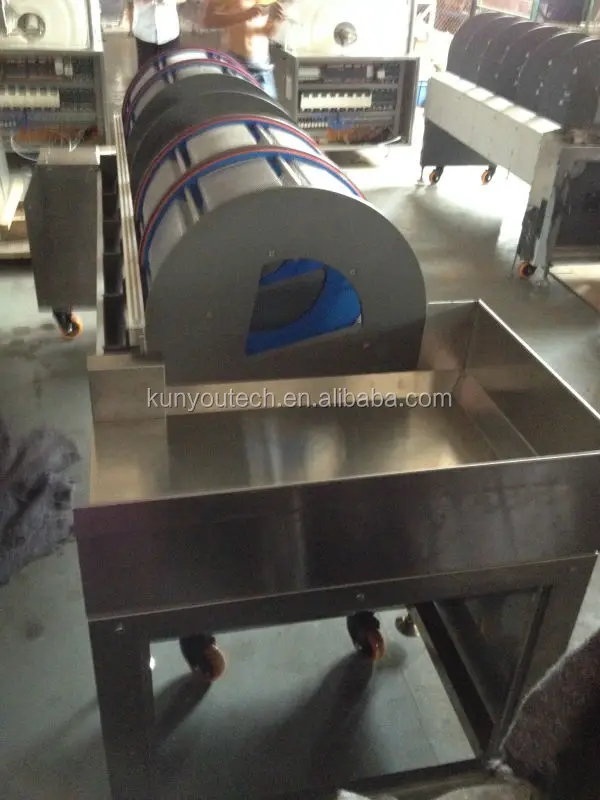

1.2 The outlet of tumble dryer with shaft control door, . Capsules will come out smoothly and will not stick on it.

1.3The end part and gear of the basket are made from rubber belt , the friction coefficient is super low, thus avoid adhesion with capsules.

1.4 The frame of basket is in compact design, rigidity is high, the construction is stable.

1.5 With PLC control modes. Under auto control mode,  basket will rotate in one direction or stop, the roteate speed is adjustable.

1.6 Easy lift and easy clean.

1.7 Can be moveable

2. Electrical Parts

2.1 All the contactors, relays, breakers, switches and knobs are Schneider brand. Control system adopts PLC control.

2.2 There’s a static electricity guiding device on each basket.

2.3 The safe protection function will ensure basket stop rolling when the cover is open, and back to rotate after close the cover.

2.4 All basket equipped with an independent drying fan.

2.5 Our machine has an unique full-start function, this function is very useful when need to restart the machine in case of accidental power cut.
