Aiger Industrial Water Filter and Industrial Centrifugal Filters and Centrifugal Water Filter

Product Overview

Description

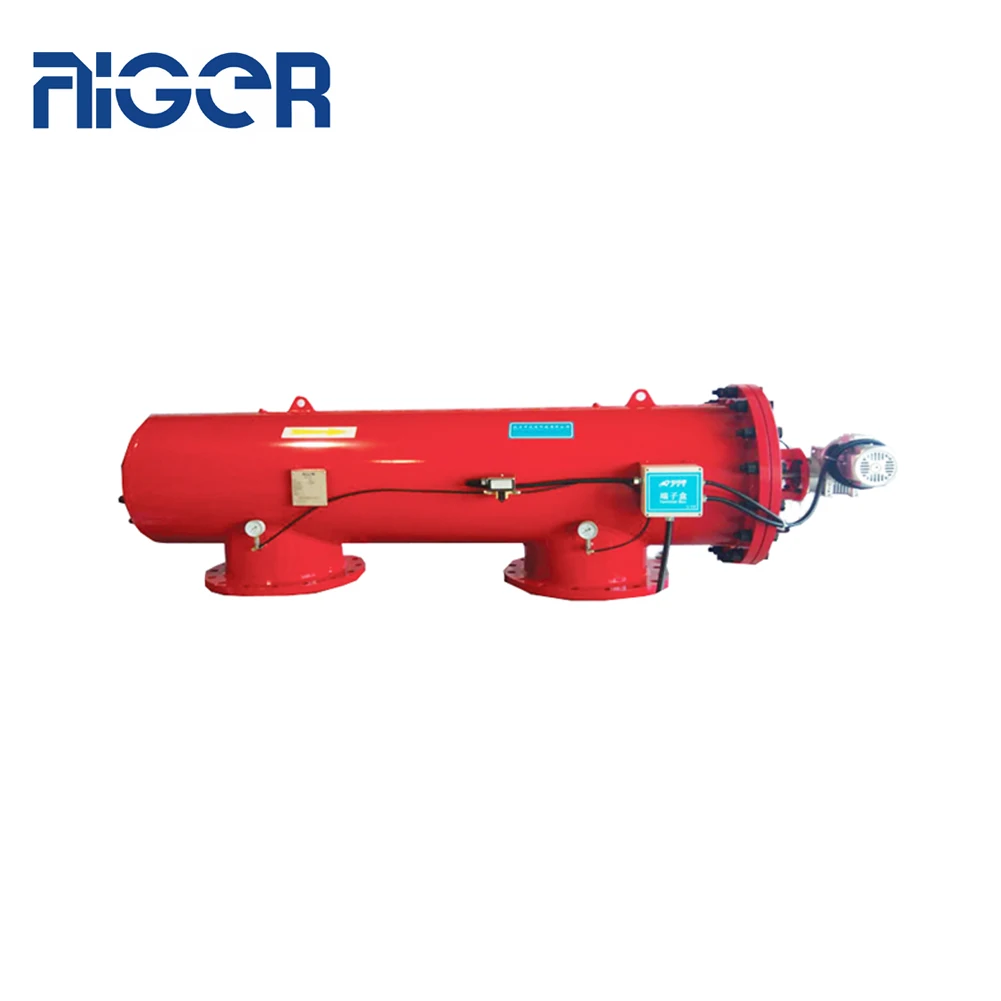

Industrial Water Filter and Industrial Centrifugal Filters and Centrifugal Water Filter



1. Characteristics

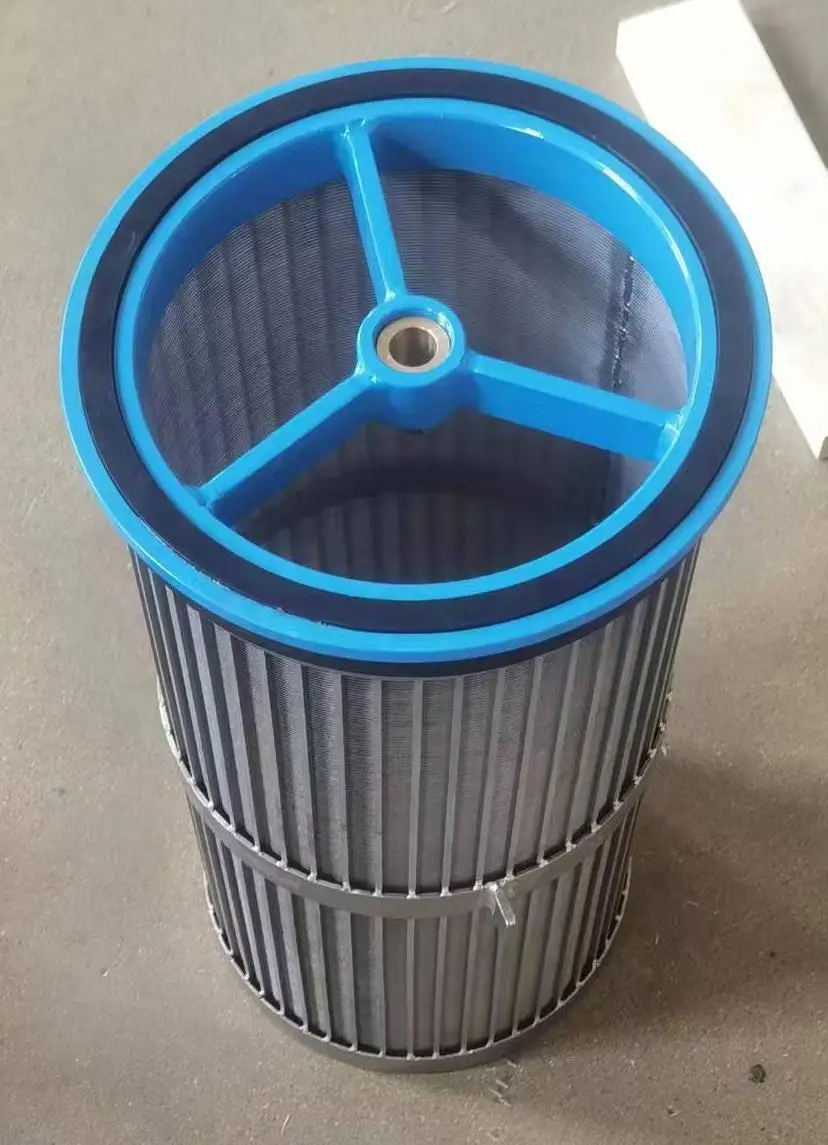

Industrial Water Filter and Industrial Centrifugal Filters and Centrifugal Water Filter is a horizontal electric brush type filter screen structure, SS304 wedge screen. Industrial Water Filter and Industrial Centrifugal Filters and Centrifugal Water Filter is suitable for harsh environment, high oil content, dirt load in the water, single machine processing flow is 2400 m3/h.The motor driven stainless steel brush in the filter cavity rotary filtering net, cleaning dirt, the pollutant through the sewage discharge valve.

The Filtering Process

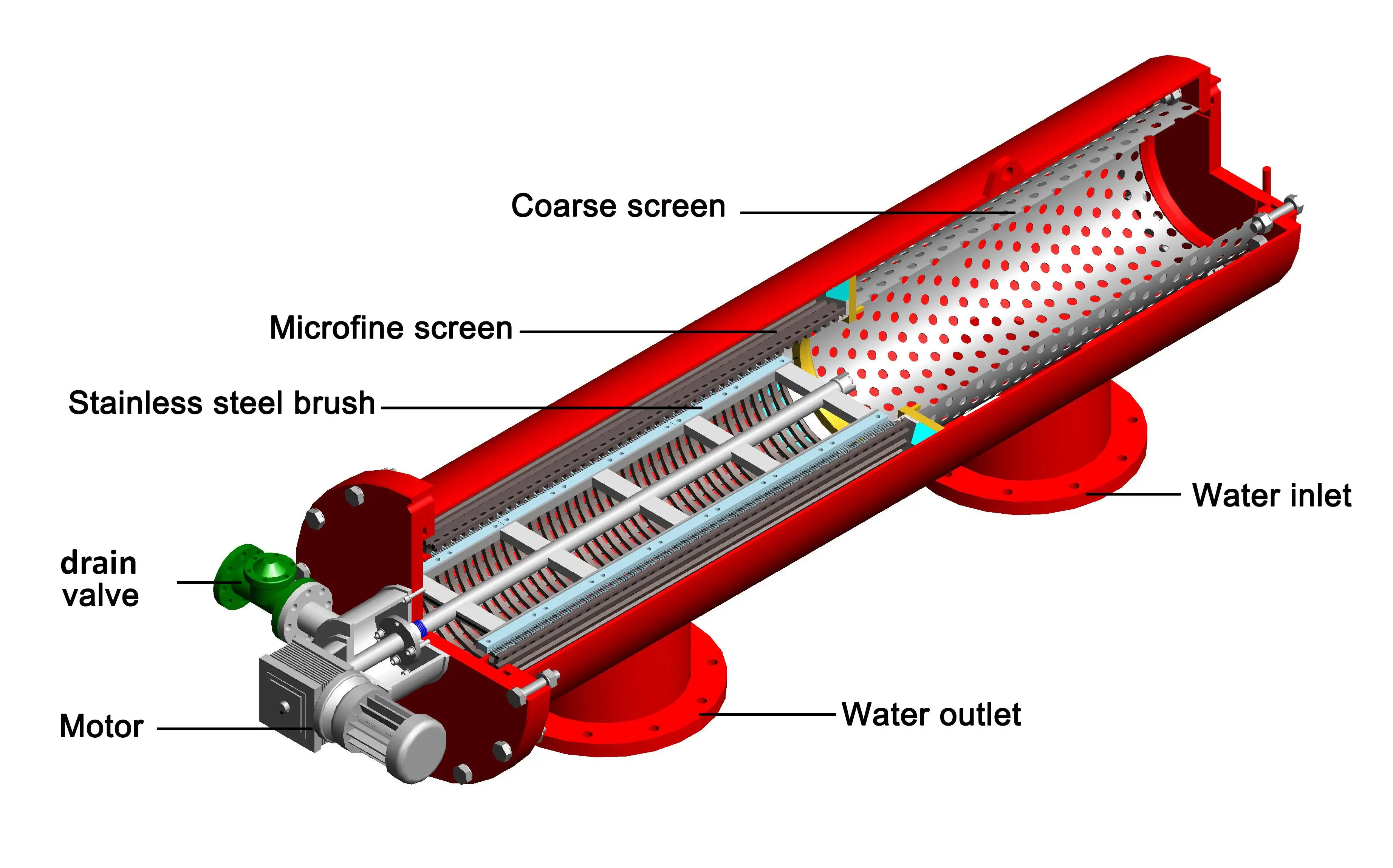

Raw water enters the filter inlet through the coarse screen which protects the cleaning mechanism from large particles. Then water passes through the fine screen, trapping dirt particles which accumulate inside the filter.

Clean water flows through the outlet.
The gradual dirt buildup on the inner screen surface causes a filtration cake, with a corresponding increase in the pressure
differential across the fine screen. A pressure differential switch senses the pressure differential and when it reaches the
pre-set value, the cleaning process begins.

The Self Cleaning Process

Cleaning of the filter is carried out by the brush which spirals across the screen; The Drain Valve opens and the Motor rotates the stainless steel brushes which sweep the inner surface of the cylindrical screen. The particles trapped on the screen are dislodged by the brushes and flushed out the drain valve.
During the self cleaning process, which takes between 30 seconds, filtered water continues to flow downstream.

The Control System

    Two types of control boards are available for the A500 filters: PLC/Timer. The self cleaning cycle begins under any one of the following conditions:
    1.Receiving a signal from the Pressure Differential Switch
    2.Time interval parameter set at the control board
    3.Manual Start

2. Specification

Our company can manufacture the Industrial Water Treatment Stainless Steel Self Cleaning Filter according to the user's requirements of size,material (eg.carbon steel, stainless steel), color and other special requirements.









3.Technical parameters



•Pressure loss:<0.01 Mpa

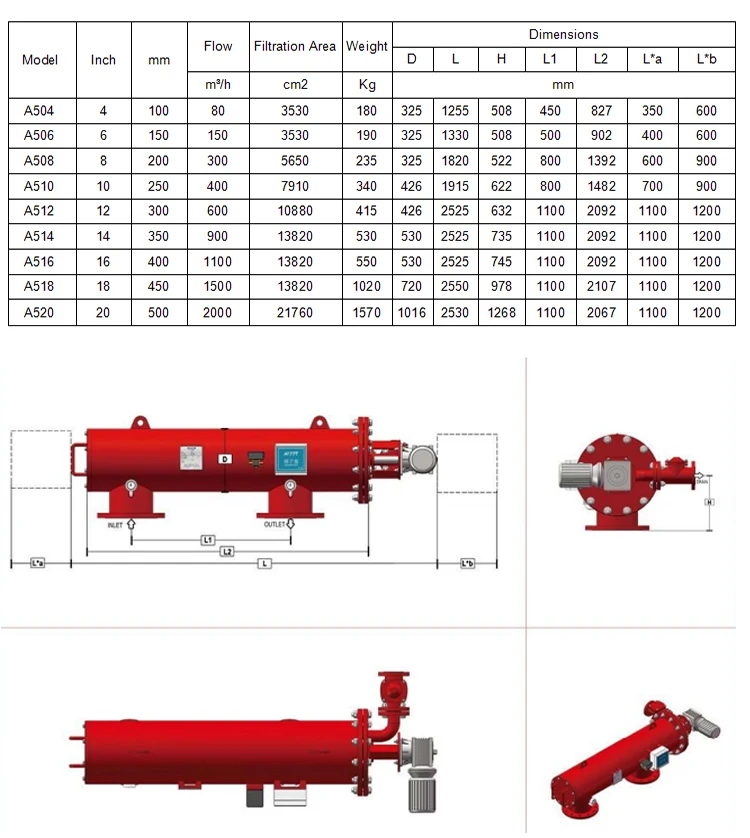

4. Installation drawing









 5. Our company

Our company was established in 1998, which locate in Beijing International Information Industry Base, Huilongguan Town, Changping District, Beijing, China, it is the National high-tech enterprises.

For 15 years, we relies on strong technical R&D strength, excellent production capacity and high quality after-sale service to win a majority of customers trust and support.





6. FAQ

1. Are you maufacturer on water flter  ?

Yes ,We are maufacturer and we have a strong team ,who have profession engineers ,with rich experience .They will design a best solution for you .



2. Can you tell me your main market ?

We have worldwide customers : Australia ,Thailand ,Korea ,  Vietnam ,USA ,and so on .



 3.Can you give me more contact information ?

Tel:+86 (10)57465017
Cell Phone:+86 15801399632
Skype:carrie1228519
Contact Name: Carrie Zhang(Sales manager)
