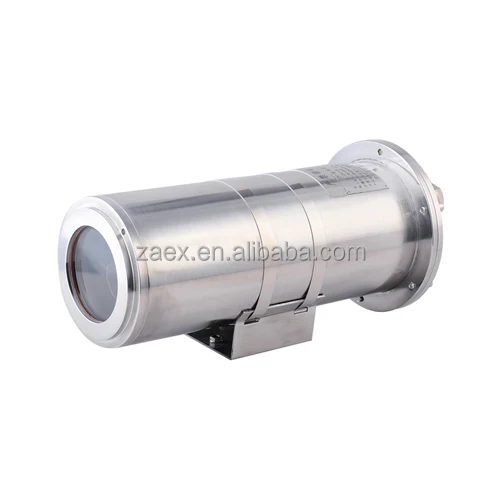

OEM Security Marine Corrosion Proof Explosion proof Camera Case for Hazardous Area

 ZAF100B series l Marine Grade Corrosion Proof Explosion proof camera case  for thermal imaging camera, protect camera against explosion, fire, widely used in harsh environment, industrial area, high corrosion area, marine.

with Germanium window with AR/DLC coating for thermal vision .

 it is Exd type,which lines to GB3836.2, fit for gas zone 1, zone2. Dust zone 20, 21, 22.

ZAF100B CCTV camera housing, its series's explosion proof marking is Exd II CT6/DIP A20 TA, T6.

ZAF100B explosion proof CCTV camera housing, it is IP68 rate for all weather proof.

ZAF100B explosion-proof housing can load thermal camera for industry hazardous area surveillance.

Main Features

Explosion proof CCTV camera housing:

Stainless steel 304/ 316L housing
Double ex-proof marking:EXd & DIP
explosion proof/ flame proof/ corrosion proof enclosure
ingress protection: IP68
ir glass window for thermal camera

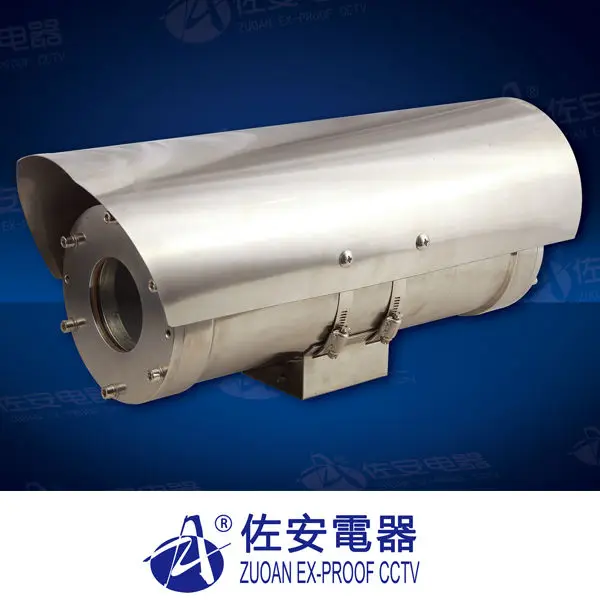

sunshiled protect camera against sunlight, hot,dust, water
wiper system version is available
Wide voltage:AC85~265V
Inner cooling module for high temperature operating place



Marine Corrosion Proof Explosion proof CCTV camera case applications:



With stringent certifications, explosion-proof CCTV housed cameras enable safe, effective surveillance for chemical sites, oil and gas facilities, food processing plants and numerous other hazardous environments. such as Chemical factory, petrochemical processing plant, pharmaceutical plant, Oil refinery plant, Gas station,Oil tank truck, Natural gas project,

Marine, offshore/ onshore oil drilling platform, coal mine, Grain storage, winery storage, fertilizer storage ect.





Product Parameter:



Model	ZAF100A-S-H	ZAF100B-S	ZAF100-IR
Atmospheric pressure	80KPa~106Kpa	80KPa~106Kpa	80KPa~106Kpa
Ambient Temperature	–25°c~+60°c (-13°~140°F)
Relative Humidity	≤95% (+25°c)	≤95% (+25°c)	≤95% (+25°c)
Ex-proof mark	CNEX:  ·Ex d IIC T6  /·DIP A20 TA, T6
CNEX certificate no.	· CNEX certificates no: CNEx 12.0006
Ingress Protection	IP68	IP68	IP68
Voltage Input	AC85-220V,AC24V, DC24V,DC12V, optional
Power supply (within)	AC85-265V	AC85-265V	AC85-265V
window glass	Tempered glass for visible light Zinc selenide with AR/AR coating for thermal vision Germanium with AR/DLC coating for thermal vision
Overall dimension LxWxH	420*195*194mm 16.5x7.7x7.6in	420*195*194mm 16.5x7.7x7.6in	420*195*194mm 16.5x7.7x7.6in
Material	SS316L enclosure for harsh environment, marine industry
Auto-cooling	optional	optional	optional
Wiper	yes	yes	yes
wiper decoder	yes	yes	yes
lens decoder	yes	yes	yes
Control	RS485	RS485	RS485
control protocal	Pelco-D/Pelco-P	Pelco-D/Pelco-P	Pelco-D/Pelco-P
output	AV/ fiber/ twisted-pair/H.264 network	AV/ fiber/ twisted-pair/H.264	AV/ twisted-pair
Brackets and Pan& tilt	ZAZ100-B,  bracket for ZAF100A,100B, 102, 103,1031,1032,105,106 series ZAZ104-B, bracket for ZAF104 ZAY200B, pan and title for ZAF100A,100B,102, 106 series ZAY210, pan and tilte for ZAF 103,1031, 104,105 series.

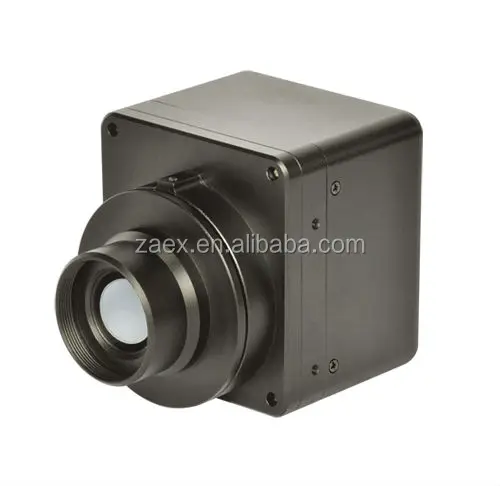

thermal imaging camera:



detector	uncooled FPA	uncooled FPA
resolution	160*120 384*288 640*480	384*288 640*480
pixel pitch	25μm	17μm
lens	5mm,9mm,13mm,19mm, 25mm,50mm,75mm,100mm	5mm,9mm,13mm,19mm, 25mm,50mm,75mm,100mm
start time	6s	3s
electrnoic zoom	384*288, 2X 640*480, 2X,4X,8X	384*288, 2X 640*480, 2X,4X,8X
size	160*120,& 384*288, 48.5*49*51mm 640*480 , 69*58*57 mm	44.5*44.5*37.5 mm 44.5*44.5*43.25 mm





Accessories:

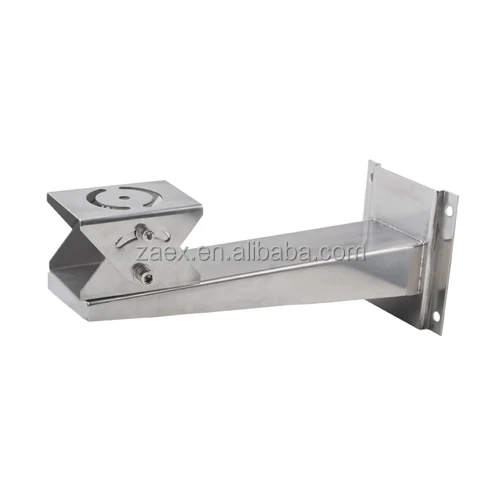

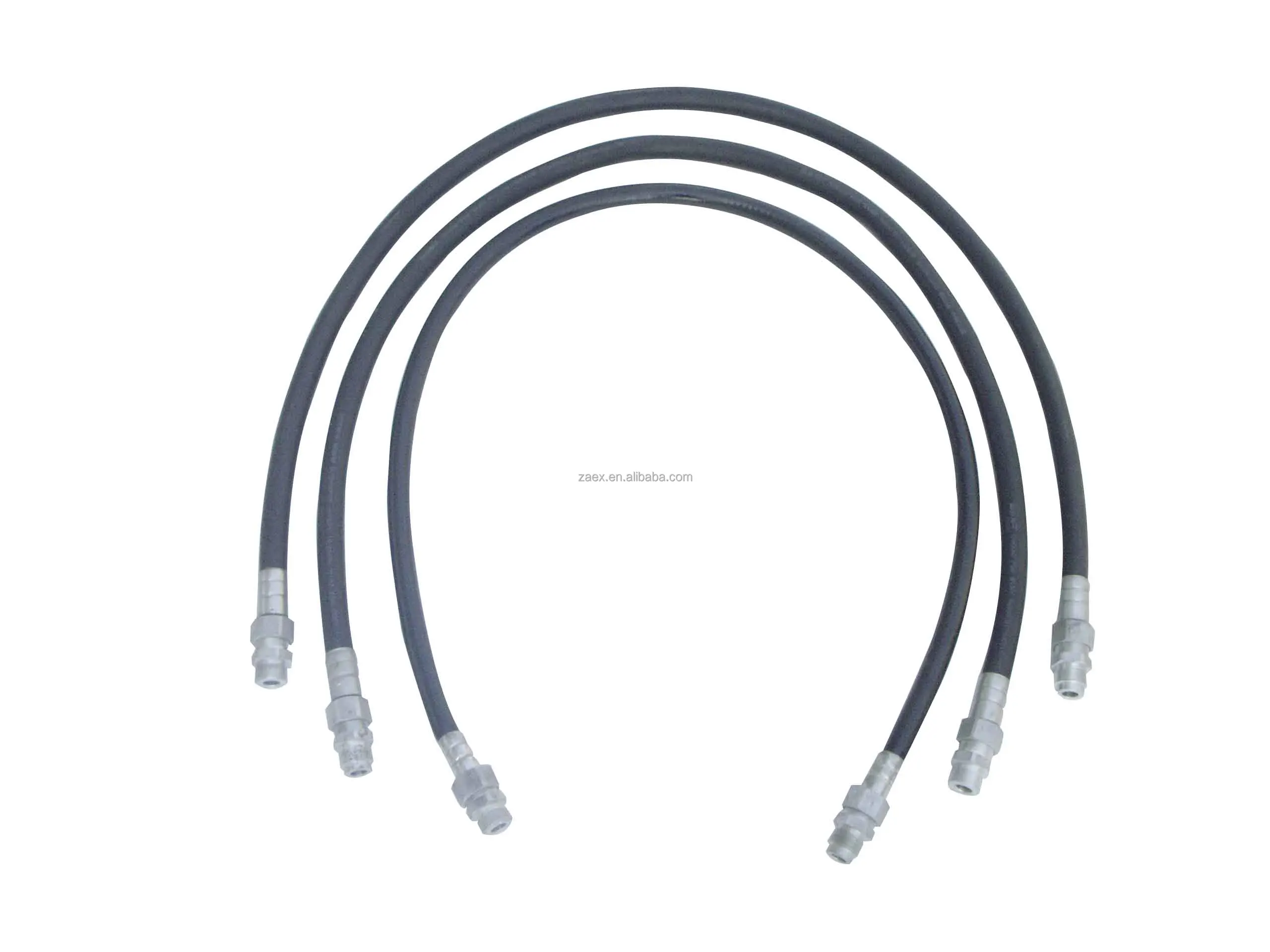

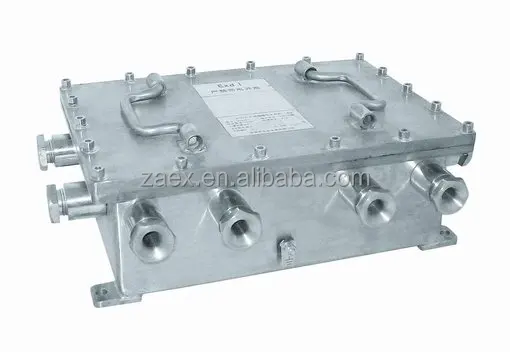

    Explosion Proof Junction Box                         Wall Mounted Bracket                          Explosion Proof Flexible Tube







    Explosion Proof Monitor                             Explosion Proof Controller                           Explosion Proof Pan & Tilt
