aluminum foil tape reinforced fireproof duct insulation

Product Overview

Description

Aluminum Foil Tape



ITEM MNO.: FT-18/FT-22/FT-25/FT-30/FT-36/FT-40

Aluminum Foil Tapes + Solvent Acrylic Adhesive



Size&Package: 0.05*50m/roll 24roll/CTN; 0.075*16m/roll 16rolls/CTN

Size: 0.05*50m/roll 24roll/CTN; 0.075*16m/roll 16rolls/ct

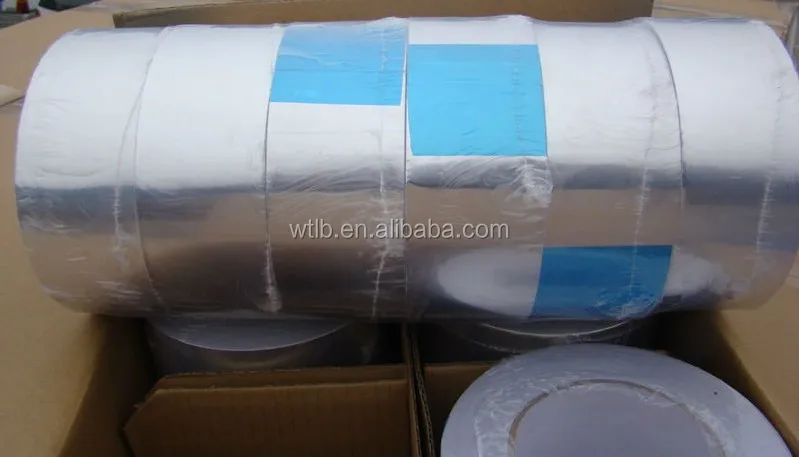

Packing: 0.05*50m/roll 24roll/CTN; 0.075*16m/roll 16rolls/ct



Thermal Insulation Tapes	Description	Backing	Adhesive	Thickness Micron	Adhesion N/25mm	Tensile N/25mm	Elongation %	Service Temp. °C
FT-18	Foil: 18u / Solvent Acrylic Adhesive	Foil 18u	Solvent Acrylic	55	18	35	3	-30 ~ +`120
FT-22	Foil: 22u / Solvent Acrylic Adhesive	Foil 22u	Solvent Acrylic	60	20	40	3	-30 ~ +`120
FT-25	Foil: 25u / Solvent Acrylic Adhesive	Foil 25u	Solvent Acrylic	65	20	45	3	-30 ~ +`120
FT-30	Foil: 30u / Solvent Acrylic Adhesive	Foil 30u	Solvent Acrylic	70	20	45	3	-30 ~ +`120
FT-36	Foil: 36u / Solvent Acrylic Adhesive	Foil 36u	Solvent Acrylic	76	20	50	3	-30 ~ +`120
FT-40	Foil: 40u / Solvent Acrylic Adhesive	Foil 40u	Solvent Acrylic	80	20	55	3	-30 ~ +`120
FT-45	Foil: 45u / Solvent Acrylic Adhesive	Foil 45u	Solvent Acrylic	85	20	65	3	-30 ~ +`120
FT-50	Foil: 50u / Solvent Acrylic Adhesive	Foil 50u	Solvent Acrylic	90	20	75	3.5	-30 ~ +`120
FT-75	Foil: 75u / Solvent Acrylic Adhesive	Foil 75u	Solvent Acrylic	125	20	100	5	-30 ~ +`120

Products:

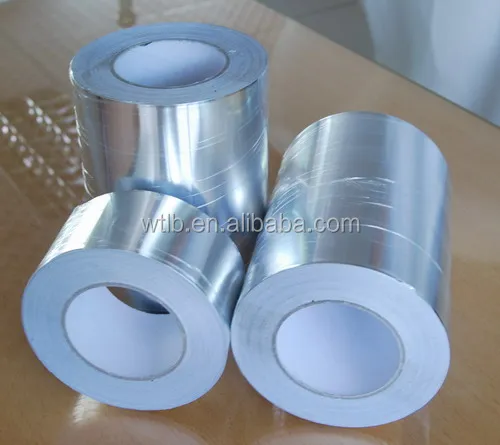

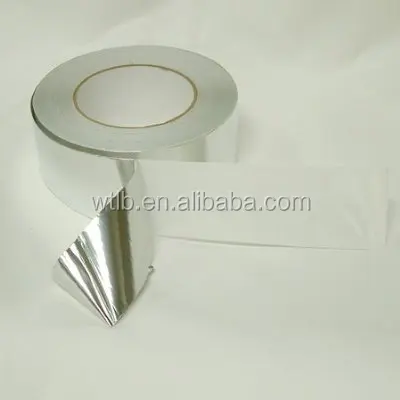

Aluminum foil tape:

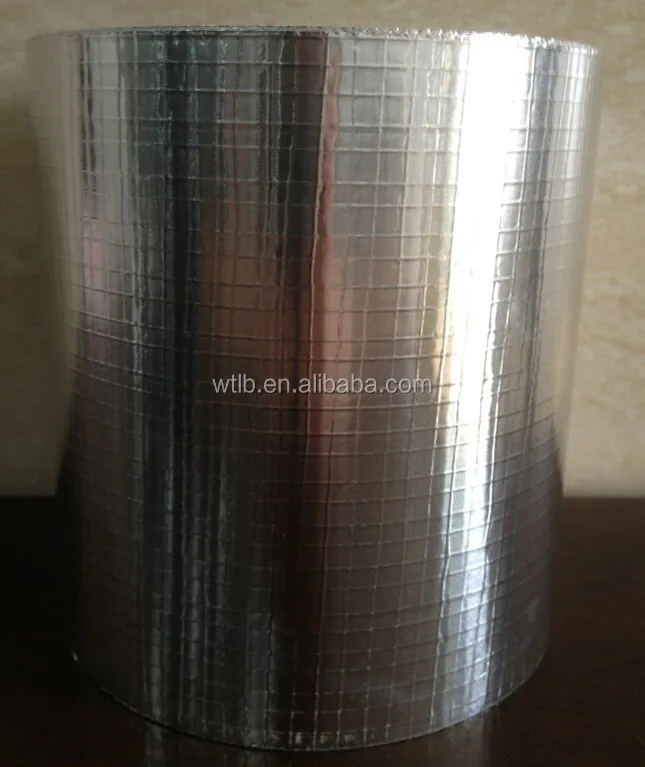

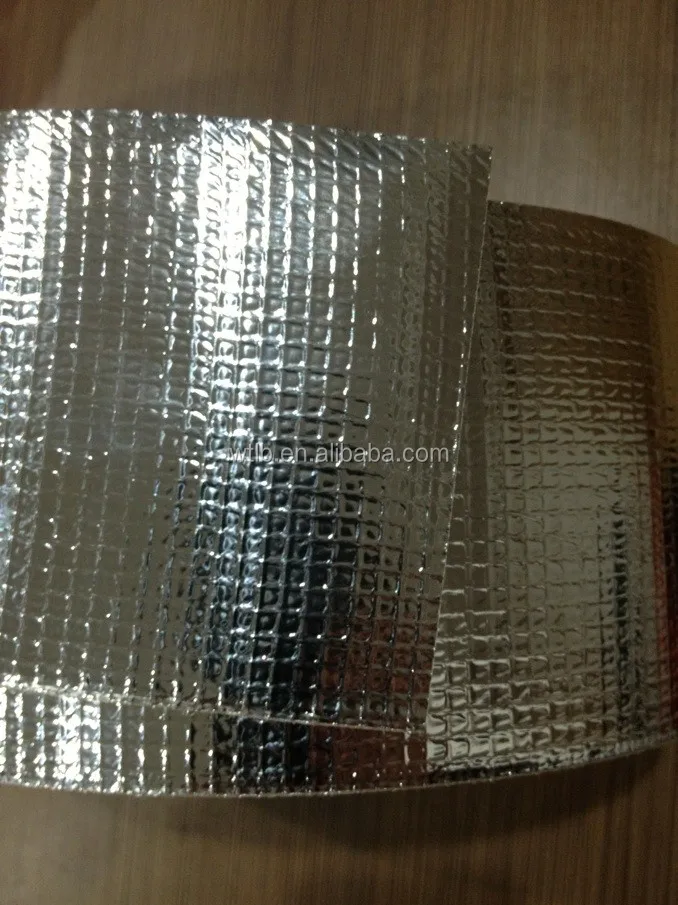

 aluminum foil reinforced fiberglass tape:
