Automatic yarn winding machine plastic extruders PP woven bag making machine
- Category: >>>
- Supplier: Zhejiang Nanyi Plastic Machinery Co. Ltd.
Share on (1960665050):
Product Overview
Description
Products Description
Automatic yarn winding machine plastic extruders PP woven bag making machine
Model No. | Layer number of spindle | number of spindle | dimension of bobbin (DxL)(mm) | power of winding motor | linear speed of tape winding | Installing dimensions | Weight |
NYS-STL-Ⅱ/190 | 5 | 190 | 38x230 | 9 | 50-160 | 5000x1500x1580 | 2800 |
NYS-STL-Ⅱ/240 | 5 | 240 | 38x230 | 11 | 50-160 | 6200x1500x1580 | 3600 |
NYS-STL-Ⅱ/290 | 5 | 290 | 38x230 | 14 | 50-160 | 7500x1500x1580 | 4300 |
NYS-STL-Ⅱ/390 | 5 | 390 | 38x230 | 17 | 50-160 | 10500x1500x1580 | 5800 |
NYS-STL-Ⅱ/430 | 5 | 430 | 38x230 | 19 | 50-160 | 11000x1500x1580 | 6500 |
NYS-STL-Ⅱ/480 | 5 | 480 | 38x230 | 22 | 50-160 | 12000x1500x1580 | 7200 |
NYS-STL-Ⅱ/520 | 5 | 520 | 38x230 | 24 | 50-160 | 13000x1500x1580 | 7800 |

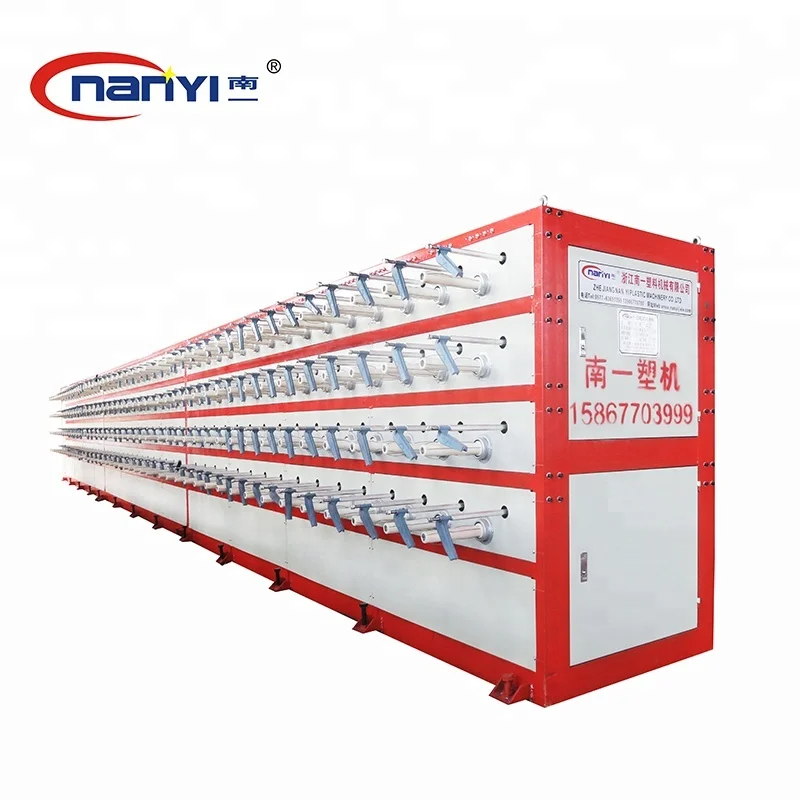

This cam winder is matching plastic extrusion tape machine,the lubrication of the reciprocating guide screw adopts electronic timer to control the quantity of oil. Technology of 5-layers and 4-layers winding is applied, tape-guiding head is inlaid with hard alloy, which is endurable.Main Technical Parameters:
Reciprocating Length: 200mm
Max Diameter of Tape: 120mm
Width of Tape: 1-4mm
Thickness: 0.03-0.1mm
Reciprocating Frequency: 15-40tims/min
Range of Adjustable Voltage: 100-200v
Size of Bobbin: Φ38x230mm
Type of Force Motor: SYLJ68-4
Power Drive Motor: 1.5-3kw
Reciprocating Length: 200mm
Max Diameter of Tape: 120mm
Width of Tape: 1-4mm
Thickness: 0.03-0.1mm
Reciprocating Frequency: 15-40tims/min
Range of Adjustable Voltage: 100-200v
Size of Bobbin: Φ38x230mm
Type of Force Motor: SYLJ68-4
Power Drive Motor: 1.5-3kw
Application& Flow chart
Company Profile
Certifications
Transportation&Packaging
FAQ & contact us
1. Are you trading company or manufacturer?
A: We are manufacturer.
2. What certificate do you have?
A: We have ISO9001, SGS, CE certificate.
3. What's the main market of your company?
A: we have customers all over the world.
4. What can you buy from us?
A: Plastic Tape Extrusion Line,Circular Loom,Automatic Cutting and Sewing Machine,Laminating Machine,Printing Machine.
5. How long is your machine's warranty period?
A: All our machine have one year guarantee.
6. How dose your factory do regarding quality control?
A: We have a special QC department in charge of product's quality.
7. What is your delivery time?
A: Normally, It needs about 45 days. The exact time depends on production management.
8. Can we visit your machine operation in your factory?
A: We have own plastic making company, you can see the machine operation.
9. How do we solve the machine problem after your engineer leaving?
A: Generally speaking, there will be no problem after finished installation, if any problems, you can contact our sales at any
time. Our engineer will take the solution video according to your description.
10. Where is your factory located? How can we visit there?
A: Our factory located in Chuiyang Industrial Zone, Aojiang town, Wenzhou City, Zhejiang, China
You can by air to Wenzhou Airport and by High-speed rain to pingyang Station.
We welcome all friends ro visit us for future cooperation!
2. What certificate do you have?
A: We have ISO9001, SGS, CE certificate.
3. What's the main market of your company?
A: we have customers all over the world.
4. What can you buy from us?
A: Plastic Tape Extrusion Line,Circular Loom,Automatic Cutting and Sewing Machine,Laminating Machine,Printing Machine.
5. How long is your machine's warranty period?
A: All our machine have one year guarantee.
6. How dose your factory do regarding quality control?
A: We have a special QC department in charge of product's quality.
7. What is your delivery time?
A: Normally, It needs about 45 days. The exact time depends on production management.
8. Can we visit your machine operation in your factory?
A: We have own plastic making company, you can see the machine operation.
9. How do we solve the machine problem after your engineer leaving?
A: Generally speaking, there will be no problem after finished installation, if any problems, you can contact our sales at any
time. Our engineer will take the solution video according to your description.
10. Where is your factory located? How can we visit there?
A: Our factory located in Chuiyang Industrial Zone, Aojiang town, Wenzhou City, Zhejiang, China
You can by air to Wenzhou Airport and by High-speed rain to pingyang Station.
We welcome all friends ro visit us for future cooperation!
