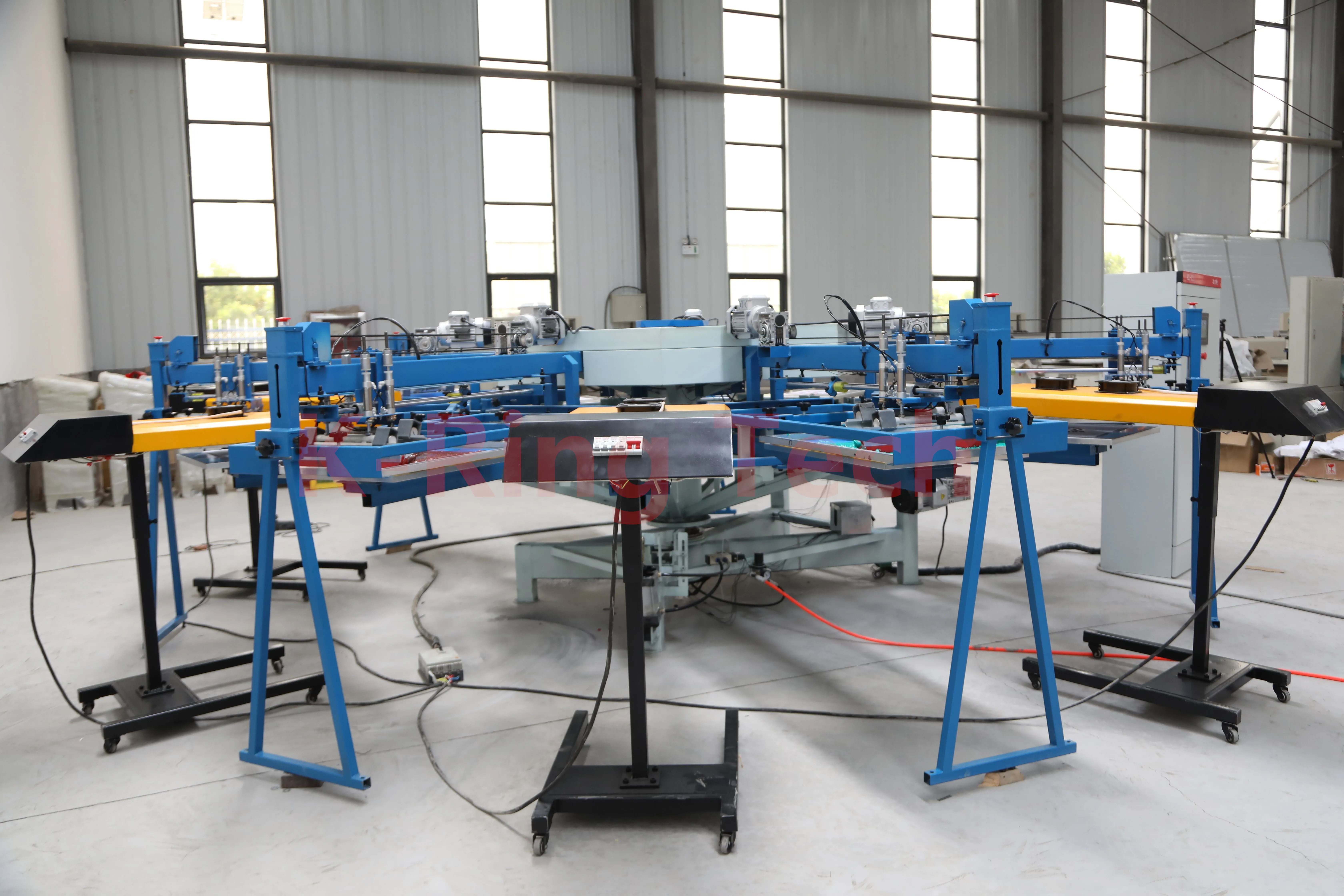

Multi colors Automatic carousel rotary silk screen shirts printing machine for t shirt/garments/textiles
- Category: >>>
- Supplier: Jinan K-Ring Technology Co. Limited
Share on (1960915804):
Product Overview
Description
Product Overview

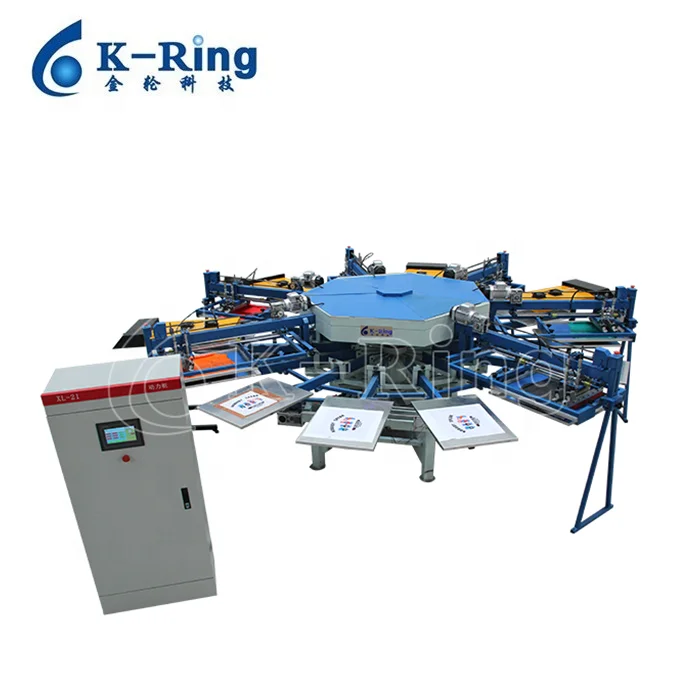

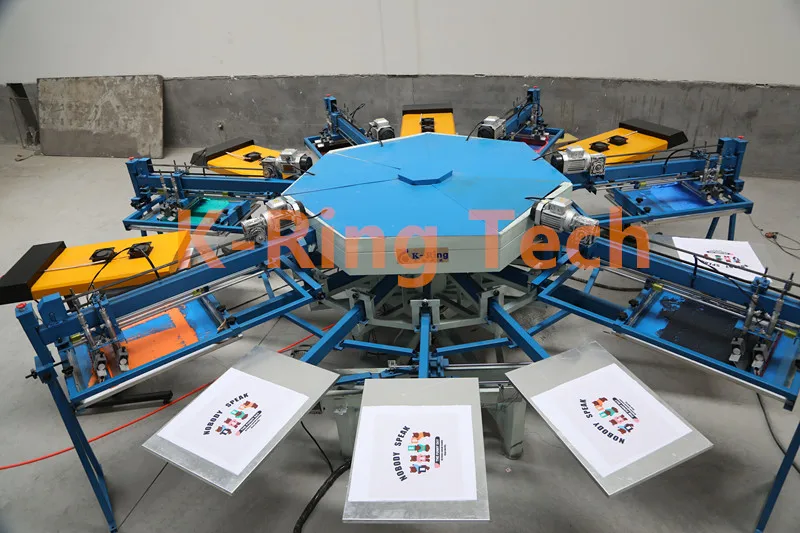

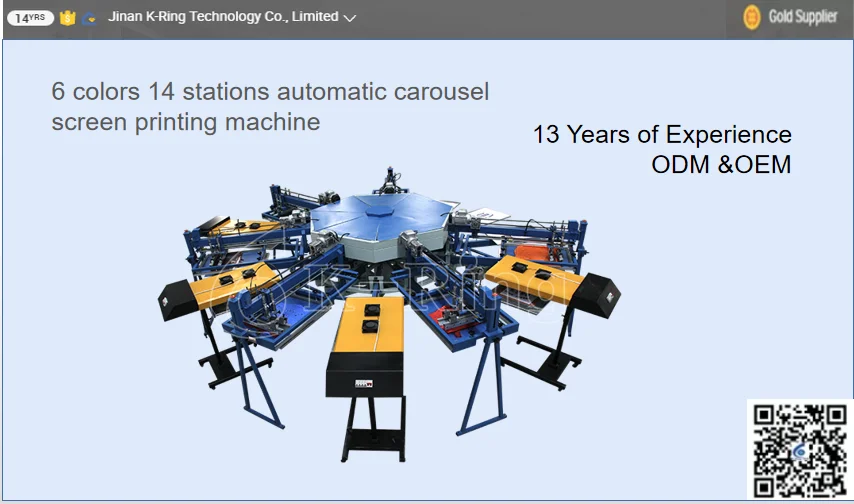

Fully oval automatic t shirts carousel textile rotary silk screen printing machine
Features:Automatic model KR6/14A is our high-tech automatic textile silk screen printers. Aimed for higher production output and faster recovery of investments. Automatic rotation, automatic scraping, automatic lifting structure of platen, high screen printing precision, adjustable pressure and speed of repeated overprint, suitable for various printing requirements.
The machine adopts computer program control and pneumatic control. Electric control rotation, pneumatic control table version up and down, to achieve machine speed. Printing and squeegee is pneumatically controlled, which can avoid errors caused by circuit printing. Printing accuracy is higher and machine operation is more stable. 3-person operation, maximum output 800 pieces per hour.
The machine adopts computer program control and pneumatic control. Electric control rotation, pneumatic control table version up and down, to achieve machine speed. Printing and squeegee is pneumatically controlled, which can avoid errors caused by circuit printing. Printing accuracy is higher and machine operation is more stable. 3-person operation, maximum output 800 pieces per hour.
Product Paramenters
Model | Auto silk screen printing machine KR6/14A | Auto silk screen printing machine KR8/16A | ||
1. Print Color | 6 | 8 | ||
2. Stations: | 14 | 16 | ||
3.Max. print Area: | 450×600/mm | 500x700mm | ||
4.Standard Pallet Size | 500×700/mm | 600x800mm | ||
5.Max screen frame install size: | 700x1000mm | 700x1100mm | ||
6.Max thickness of printing object: | <300mm | <300mm | ||
7.Printing speed: | 400-800pcs/hour | 400-700pcs/hour | ||
8.Working Air: | 0.4Mpa | 0.4Mpa | ||
9.Total air gas consumption: | 0.6Mpa 30L/PCS | 0.6Mpa 30L/PCS | ||
10.Total Power: | 7kw | 8.2KW | ||
11.Machine voltage: | 380V | 380V | ||
12.Machine Size: | 4.6mx4.6mx1.5m | 5.2X5.2X1.5m | ||
Note: these info are for reference,other requirement can be customized | ||||
Details Images

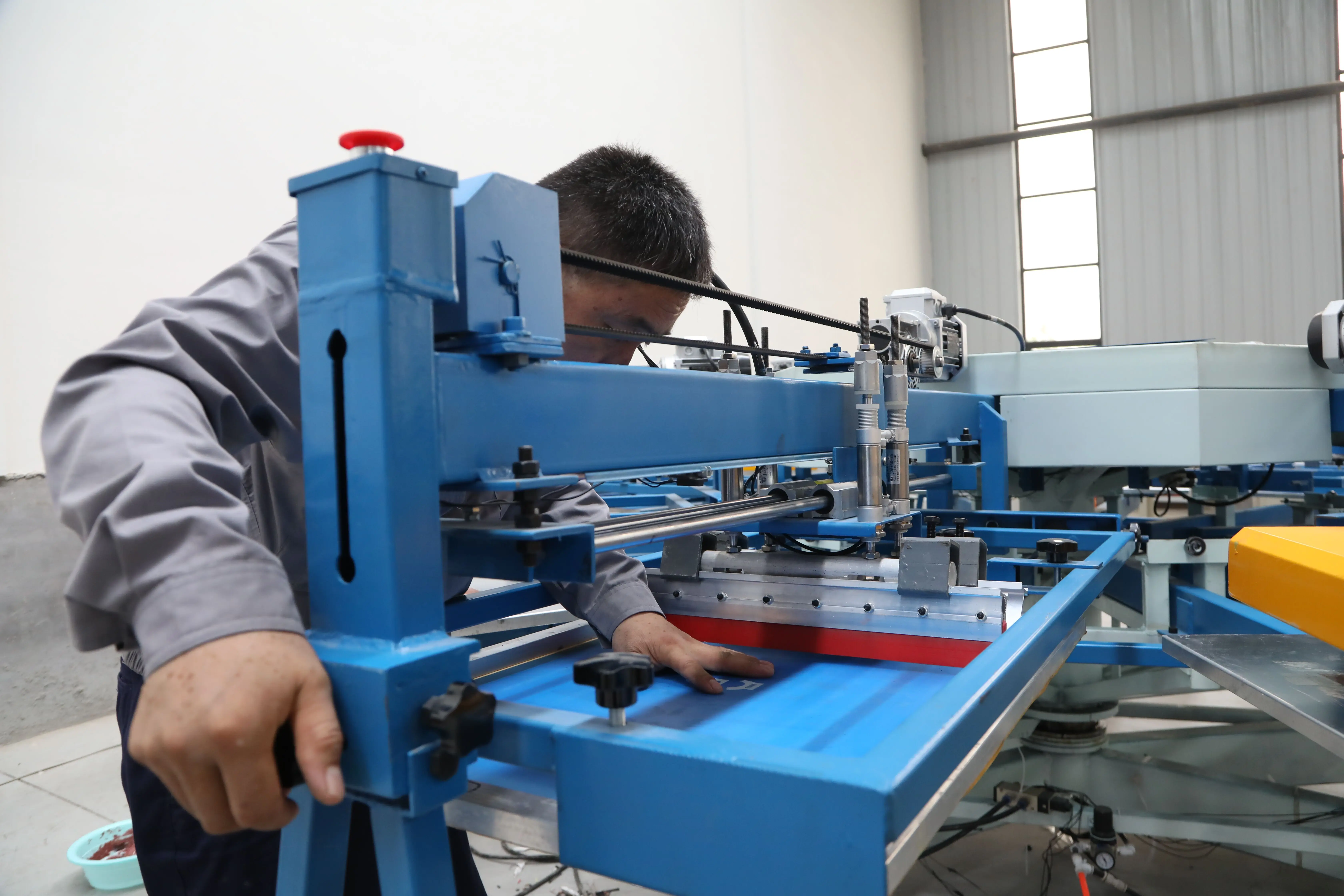

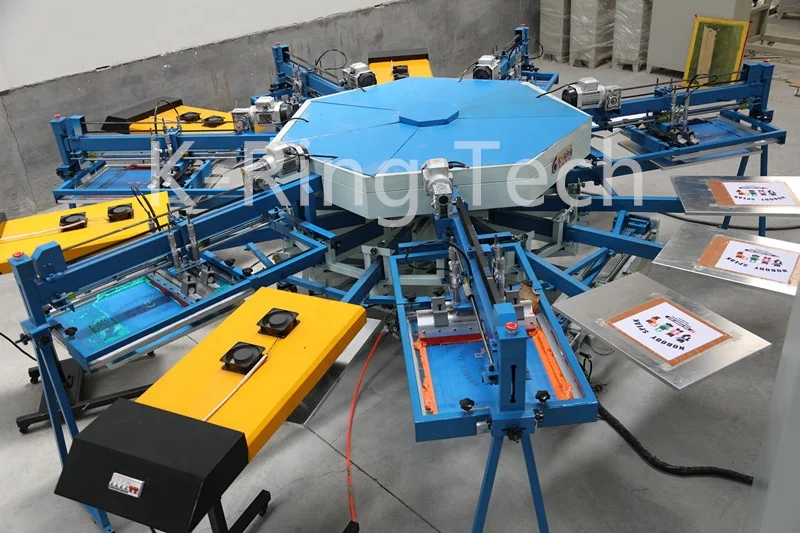

The machine adopts pneumatic control for printing and squeegee, Printing accuracy is higher
Touch screen control each printing head, can real each head more times printing and squeegee . Support English language.
Provide matching flash dryer with the printing machine. Option accessories. If need this items, we provide in cost price.
Printing samples
SIMILAR PRODUCTS
Company Profile
FAQ
Q1:What is the machine body materials?
A1:It is cast iron
Q2: If the rotation of the machine is controlled by electric?
A2: Yes, Rotation, up and down are all controlled by electricity .Pneumatic scraping.
Q3: If the machine can set the repeat scraping for each color?
A3: Yes. It can set on the screen.
Q4: Machine delivery time:
A4:Usually it is 25 days
