Умная Система подземной парковки автомобиля SEWO, система управления парковкой
- Category: Vehicle Equipment >>>
- Supplier: Shenzhen Sewo Science & Technology Co. Ltd.
Share on (1961332286):
Product Overview
Description
Product Description
SEWO Intelligent Underground Car Parking Sensor System Car Park Guidance Management Systems
System Features:
The parking Guidance System (PGS) is an effective way to figure out the problem and help driver to find the parking space quickly. In cities, large scale car parks with hundreds/thousand of spaces are more and more common; however, still very often(especially during busy hours) we have trouble parking carscircle around with no guarantee to park. Emerge as time require.SEWO Parking Guidance System (PGS) in designed to pinpoint available parking spaces and lead drivers to park, reduce the time doing parking and maximizecar park usage.
Ultrasonic Sensor and extended Bay Indicator and Installed to each parking space to detect/indicate presence of vehicle; the information is picked up by Data Collector, process by Centre Processor, and then released to LED Display. By telling drivers availability information before their entry to a car parking lot and which direction to take in order to find one afterwards, we make parking a simple & comfortable experience for them.
Advantages
1. Improve traffic flow with drivers guided immediately to parking space, save time and reduce fuel consumption;
2. Optimize human resources in terms of more efficient staffing of parking personnel based on more accurate forecasting of parking facility utilization;
3. Improve comprehensive management of the whole carpark and build up a good brand image of property management;
4. Reduce human resource cost of the property management..
5. Easily realize parking reservation service;
6. Accurate statistic analysis of daily, monthly and annual parking data.
1. Improve traffic flow with drivers guided immediately to parking space, save time and reduce fuel consumption;
2. Optimize human resources in terms of more efficient staffing of parking personnel based on more accurate forecasting of parking facility utilization;
3. Improve comprehensive management of the whole carpark and build up a good brand image of property management;
4. Reduce human resource cost of the property management..
5. Easily realize parking reservation service;
6. Accurate statistic analysis of daily, monthly and annual parking data.
Specification
Model | SEWO-CW5 |
Transmission distance | 1000m |
Communication | RS485 |
cable | UTP,STP |
working voltage | DC24V |
connector | RG45 |
working temperature | -25—70℃ |
Working Environment | indoor, underground |
Display | LED Display |
How does it work?

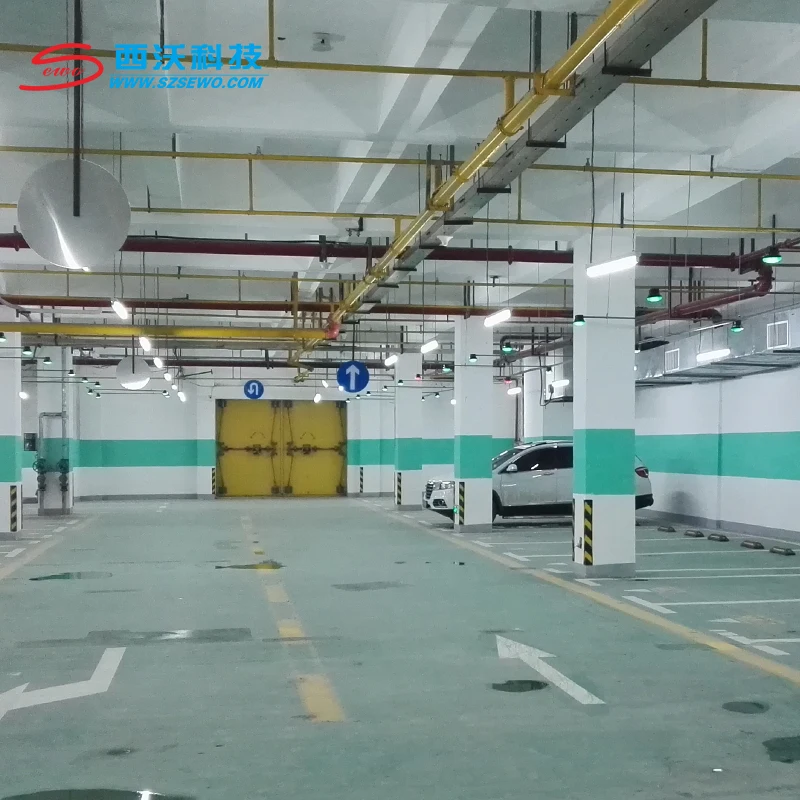

A. Vehicle sensors are installed at each stall to detect and indicate real-time occupancy. A red LED indicates the stall is
occupied, and a green LED indicates the stall is available.
B. The APGS system continuously and automatically updates parking information on dynamic signs to direct patrons to available parking stalls.
C. Dynamic signs are installed in the building helix. Drivers can effortlessly know where to go once enter into the parking lot
with just an easy glance of the Dynamic Signs which tells how many parking slots are available in each direction/ zone/ floor.
D. Real-time parking status is displayed on computers running APGS software. With visualized graphic user interface, parking management becomes easier than ever. The status of each sensor, dynamic sign, and relevant gates can be monitored and manually controlled through this interface effortlessly. The software could export statistics to avail parking analysis and management.
occupied, and a green LED indicates the stall is available.
B. The APGS system continuously and automatically updates parking information on dynamic signs to direct patrons to available parking stalls.
C. Dynamic signs are installed in the building helix. Drivers can effortlessly know where to go once enter into the parking lot
with just an easy glance of the Dynamic Signs which tells how many parking slots are available in each direction/ zone/ floor.
D. Real-time parking status is displayed on computers running APGS software. With visualized graphic user interface, parking management becomes easier than ever. The status of each sensor, dynamic sign, and relevant gates can be monitored and manually controlled through this interface effortlessly. The software could export statistics to avail parking analysis and management.

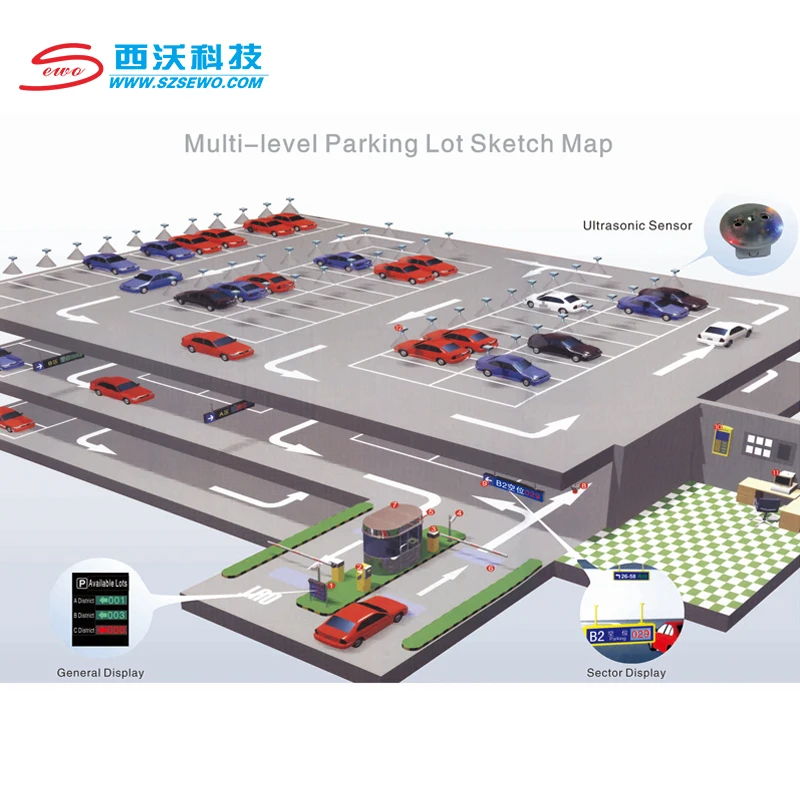

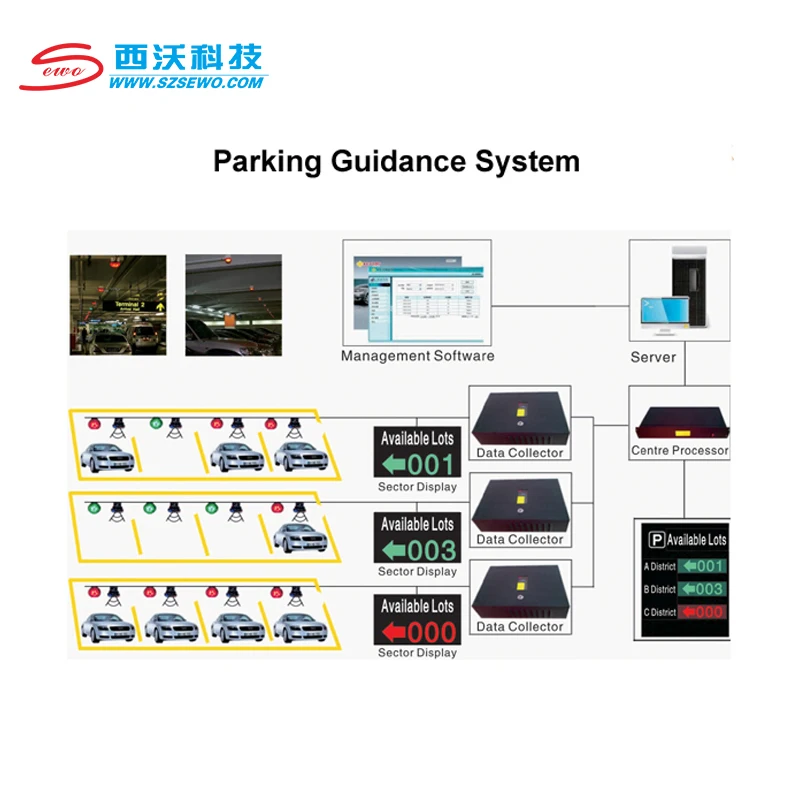

The Working Principle of SEWO CW5 Parking Guidance System

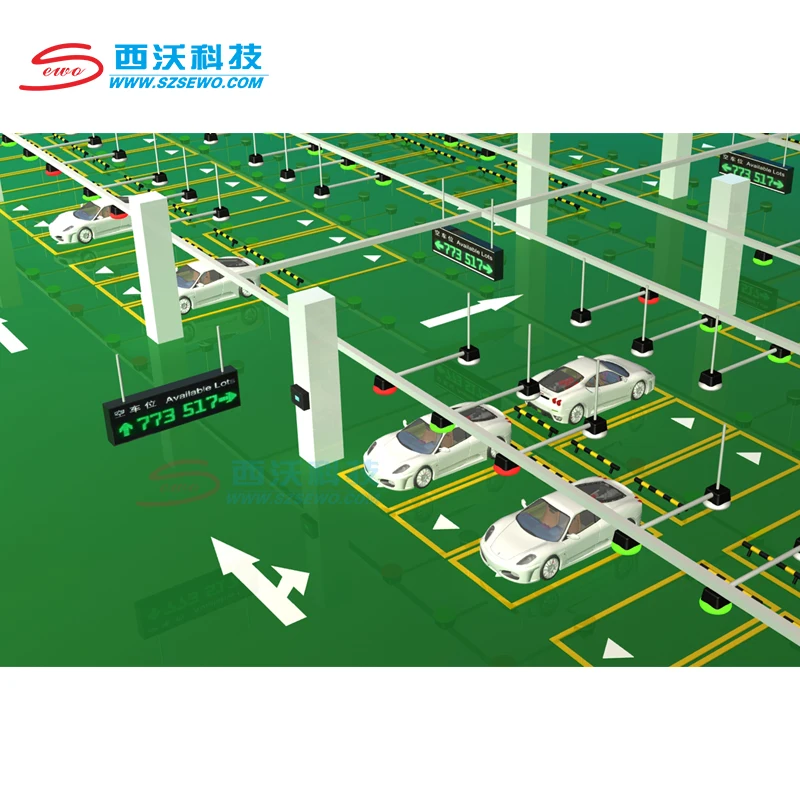

----- The Ultrasonic sensor and Bay Indicator are installed on top of each parking slot. detect and Indicate the presence of the parking space
----- Data colllector picks up the information from the ultrasonic sensors----- Central controller completes the data processing then send the processed parking space data to every LED sector display in the carpark to display the information of available parking space
----- LED sector display shows how many parking space available and the directions
----- Software shows the real-time parking space information
----- General display installed near the Entrance to show the total parking space information inside the parking system\t

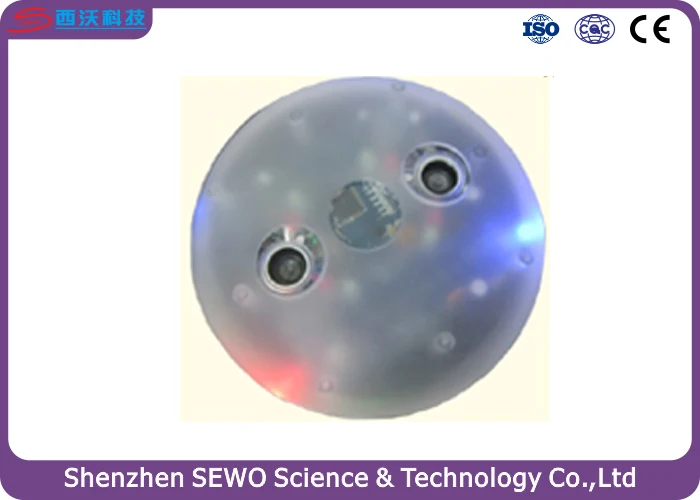

1- Ultrasonic Sensor
Ultrasonic detection unit installed right over middle of parking space to monitor presence of vehicle and provide real-time information to PGS system

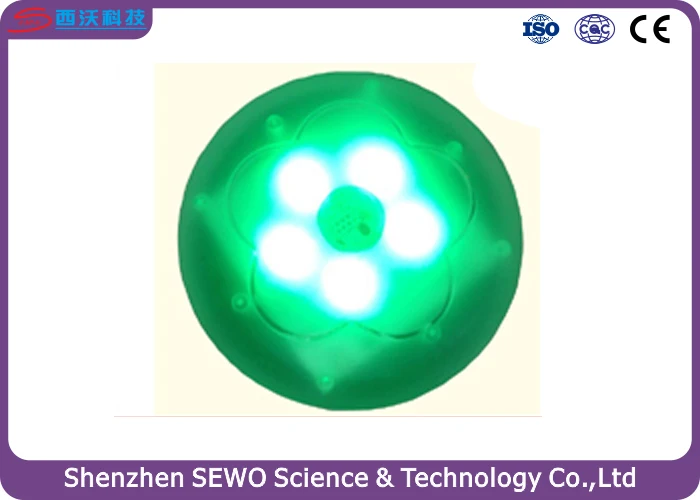

2- Bay Indicator
High brightness LED indicator controlled by Ultrasonic sensor to show occupancy of each parking space by different color illumination. Red Color indicates occupied. Green indicates Available and Blue means this space is special for disabled

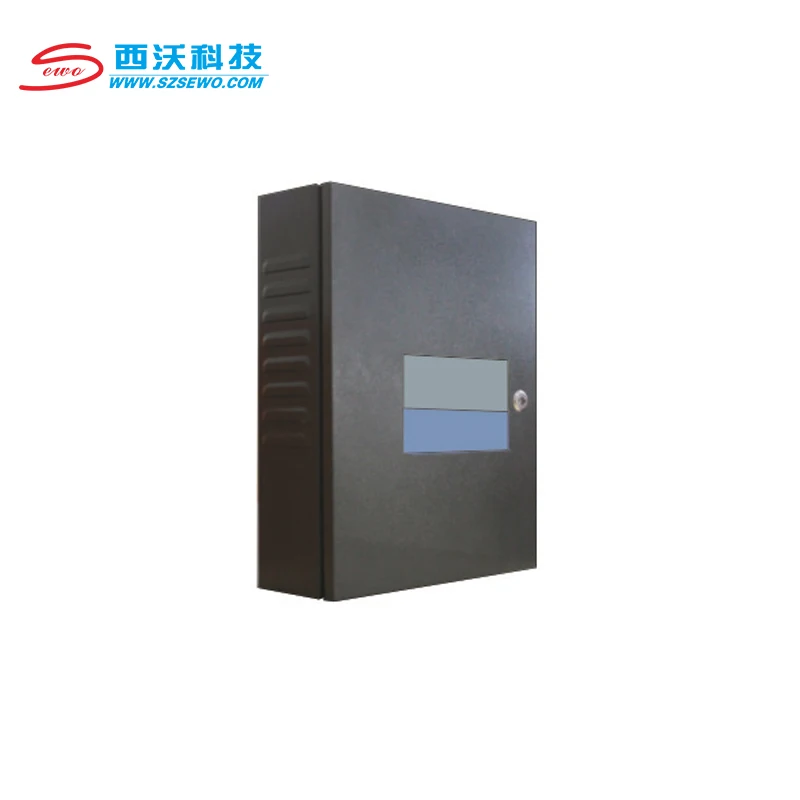

3- Data Collector
Data collector serves as a bridge connecting centre processor to Ultrasonic and LED display. It picks up sensor information and transfers to centre processor. And helps to transfer availability information from centre from centre processor to LED display

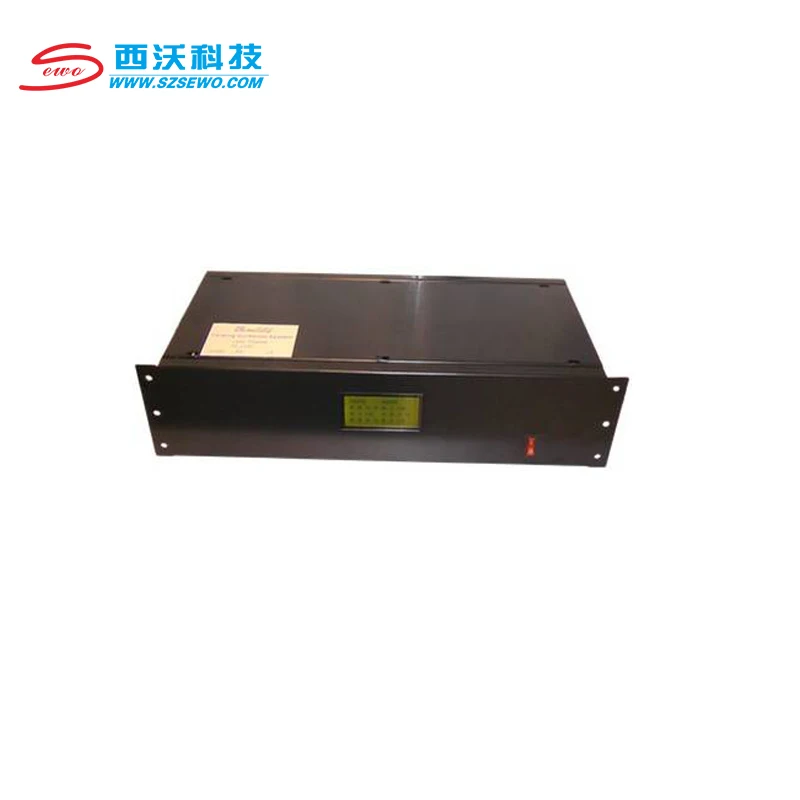

4 - Centre Processor
It’s core of SEWO PGS system which deals with data processing. Information storage and release. I centre processor manages 60pcs Data collectors (3600pcs sensors)

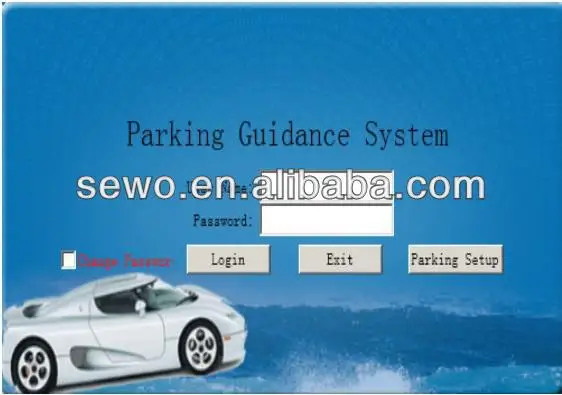

5- Management Software
Multilanguage graphical application developed based on W7 and SQL database software with intuitive UI. Simplified operation & complete functions

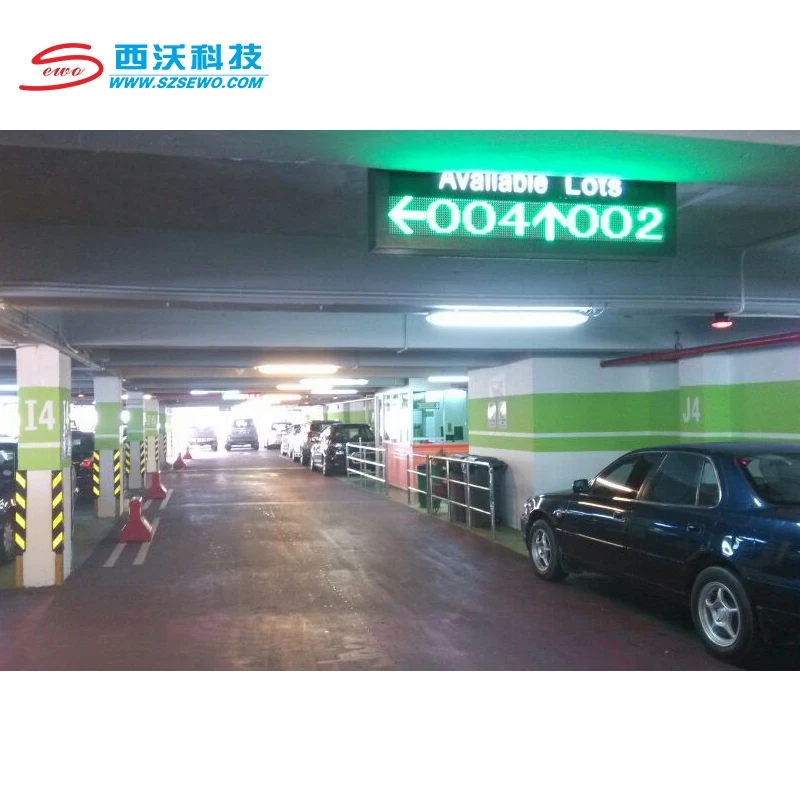

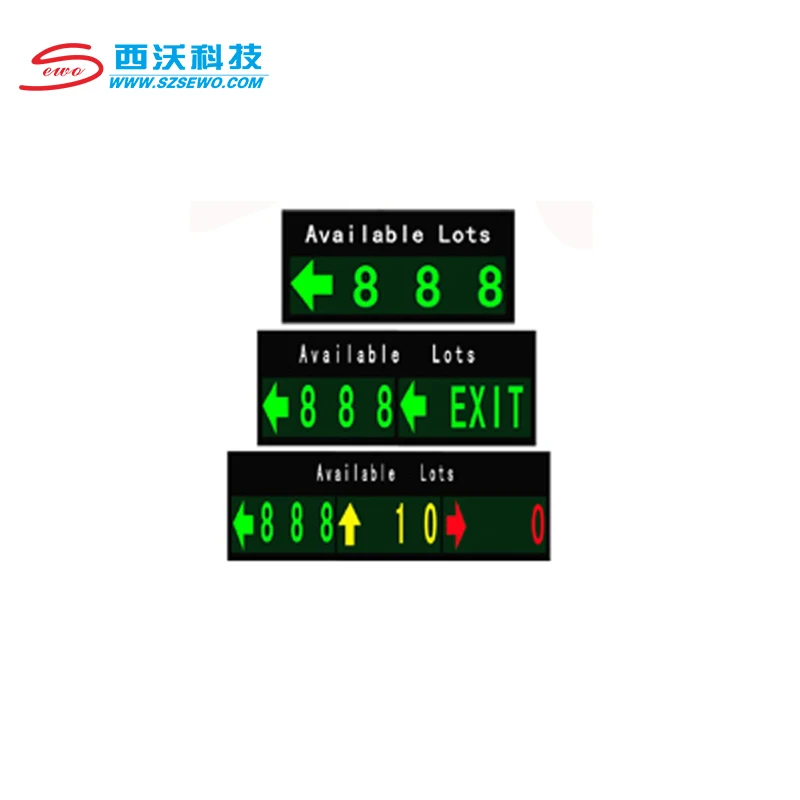

6- Sector display
Sector display at corners & Intersection shows which direction to take in order to fine one. Color modules such as Red. Green. Blue are used to differentiate parking types and lead drivers to the right place

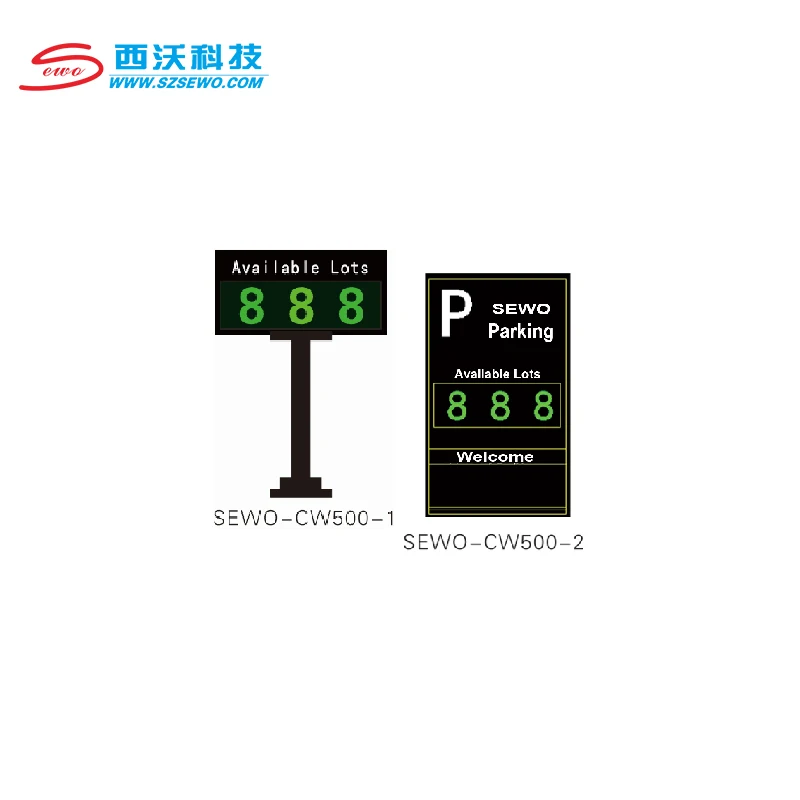

7-General Display
First component greeting drivers at a car parking equipped with SEWO PGS. General LED Display at entrances shows how many spaces are available in each floor
Quality Assurance
Company Profile
Shenzhen Sewo Science & Technology Co., Ltd.
Shenzhen Sewo Technology Ltd. Is a professional high-tech enterprise, which integrates the development, manufacturing, marketing , and service of Smart Parking Management System, Flap Barrier, Tripod Turnstile, Swing Gate, Parking Guidance System, Barrier Gate, Parking Lock, Access Control Systems and other related security products.
Our company pays much attention to bringing and developing new technique and products since the foundation in 2003. Our brand “SEWO” has also ranked among the top 10 famous brands of car parking systems and facilities in China. With nearly ten years to steady development, our R &D team has strong capacity to be committed to continuously creating high quality products and service. With the first-class production equipment, technical quality and service, we won the trust of customers and the market recognition. Our products have been well used by customers from enterprise institutions, infrastructure enterprises, government institutions, transportation enterprise, housing districts, commercial organizations,etc.
With our exquisite technology and strict quality testing system, we passed “CE” and “ ISO9001:2008” international quality assessment standards. We have established many branch offices and gained much agents at home. Our sales and service network spreads all over the world. We also have extensive sales channels in Southeast Asia, the Middle East, Africa, Europe, and America.
With our belief of “Sincerity is essence of enterprise; High quality is the way of existence”, we will keep on endeavoring to make cost-effective intelligent parking system products in China. We warmly welcome customers or agents all over the world to join us to construct an intelligent , safe, convenient and harmonious society.
Our company pays much attention to bringing and developing new technique and products since the foundation in 2003. Our brand “SEWO” has also ranked among the top 10 famous brands of car parking systems and facilities in China. With nearly ten years to steady development, our R &D team has strong capacity to be committed to continuously creating high quality products and service. With the first-class production equipment, technical quality and service, we won the trust of customers and the market recognition. Our products have been well used by customers from enterprise institutions, infrastructure enterprises, government institutions, transportation enterprise, housing districts, commercial organizations,etc.
With our exquisite technology and strict quality testing system, we passed “CE” and “ ISO9001:2008” international quality assessment standards. We have established many branch offices and gained much agents at home. Our sales and service network spreads all over the world. We also have extensive sales channels in Southeast Asia, the Middle East, Africa, Europe, and America.
With our belief of “Sincerity is essence of enterprise; High quality is the way of existence”, we will keep on endeavoring to make cost-effective intelligent parking system products in China. We warmly welcome customers or agents all over the world to join us to construct an intelligent , safe, convenient and harmonious society.
FAQ
1, What is the strength of your company in this industry?
Our company pays much attention to bringing and developing new technique and products since the foundation in 2003. Our brand “SEWO” has ranked among the top 10 famous brands of car parking systems and facilities in China.
2, What is the advantage products of your company?
Shenzhen Sewo Technology Ltd. Is a professional high-tech enterprise, which integrates the development, manufacturing, marketing , and service of Smart Parking Management System, Flap Barrier, Tripod Turnstile, Swing Gate, Parking Guidance System, Barrier Gate, Parking Lock, Access Control Systems and other related security products.
3, How about the quality of your product?
With our exquisite technology and strict quality testing system, we passed “CE” and “ISO9001:2008” international quality assessment standards. Our company also has won many honors,such as “China Top 10 Parking Management System Supplier”, “AAA grade quality, service and prestige enterprise in China”, and so on. Professional R&D team has strong capacity to be committed to continuously creating high quality products and service.
4, How about some customization request?
We support OEM / ODM service , more than 20 years industry experience will bring appropriate design for you, no only products, but also a smart access management solution expert.
5, Do you have agency for after-sales service?
Any question about products , you can find our sales anytime. We will provide life-time technology support. We have established many branch offices and gained much agents at home. Our sales and service network spreads all over the world. We also have extensive sales channels in Southeast Asia, the Middle East, Africa, Europe, and America. We warmly welcome customers or agents all over the world to join us to construct an intelligent , safe, convenient and harmonious society.
6, How about the delivery time?
Regular products need 5-10 working days.
Usually the customized products need 15-20 working days, actual delivery time according to your product request.
Usually the customized products need 15-20 working days, actual delivery time according to your product request.
