Expressway Noise Arrester Clear sound proof Acrylic noise protection barrier panel

Product Overview

Description

Sound Barrier Wall

Noise Fences (also known as Noise Barriers, Acoustic Barriers, Noise Walls or Sound Barrier Walls) have been made of a number of different materials over the years.  Noise barriers are solid obstructions built between noise sources, be it highway noise or air conditioning equipment,that are designed to be “line of sight” interruptions between the noise source and the receiver.

Technical features:
Impact strength: 850J/m ,the impact strength of solid PC sheets is 250 times
that of glass, 20-30 times of PMMA sheet
Light transmission: 80%-90% for different thickness of clear color

UV resistance:with our 50μm thickness UV layer ,the sheet can filter 99% ultraviolet radiation in sunlight
Specific gravity: 1.2 g/cm
Coefficient of thermal expansion: 0.065 mm/m^oC

Temperature: -40^oC to 120^oC

Heat conductivity: 2.3-3.9 W/m^{2   oC}
Tensile strength: >60N/mm²
Flexural strength: 100N/mm²
Modulus of elasticity: 2,400mPa
Tensile street at break: >65mPa
Elongation at break: >100%
Specific heat: 1.16J/kg^k
Heat deflection temperature: 140^oC
Soundproof index:6mm--29dB,8mm--31dB,10mm-32dB 12mm--34dB

Common specification

Noise Fences Panel thickness: 80mm, 100mm,120mm

Noise Fences Size: 2500x500x80mm, 2500x500x100mm, etc.

Noise Fences Metal plate thickness: 0.5-1.2mm

Noise Fences H-post: 100x100x6x8mm, 125x125x6.5x9mm, 150x150x7x10mm, 175x175x7.5x11mm.

Noise Fences Flange plate: 250x250x10, 300x300x10, 350x350x10, 400x400x10mm etc.

Noise Fences Panel type: shutter type, punching type.

Noise Fences post bottom load design value:

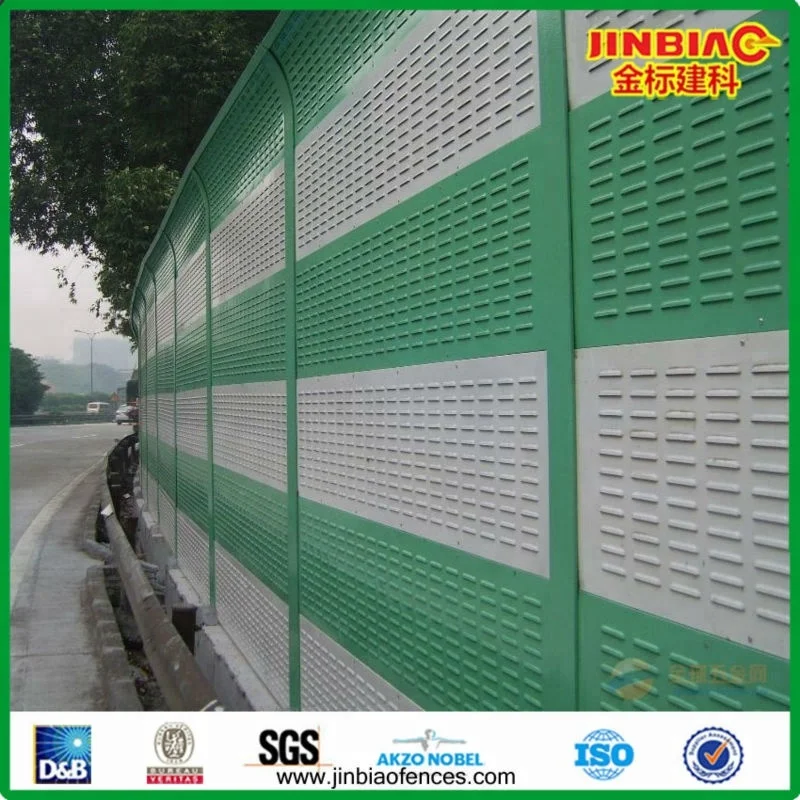

Micropore outdoor Noise Barriers

Shutter Outdoor Noise Barriers

PC Sheet Outdoor Noise Barriers

                                                                                                                                                                                                      >>>Buy Now

2.Detailed Description

1.    Non-Flammability: GB8624 grade A

2.    Waterproof :Resistant to deformation in wet environments

3.    Sound proof:

4.    Strength: Bendable and impact resistant

5.    Weight: 35kg/m²

6.    Temperature Maintenance

7.    Environmental Friendly;

8.    Installation: Easy to cut, saw, nail, paint and veneer

Noise barrier  Panel thickness: 80mm, 100mm,120mm

Noise barrier  Size: 2500x500x80mm, 2500x500x100mm, etc.

Noise barrier  Metal plate thickness: 0.5-1.2mm

Noise barrier  H-post: 100x100x6x8mm, 125x125x6.5x9mm, 150x150x7x10mm, 175x175x7.5x11mm.

Noise barrier  Flange plate: 250x250x10, 300x300x10, 350x350x10, 400x400x10mm etc.

Noise barrier  Panel type: shutter type, punching type.

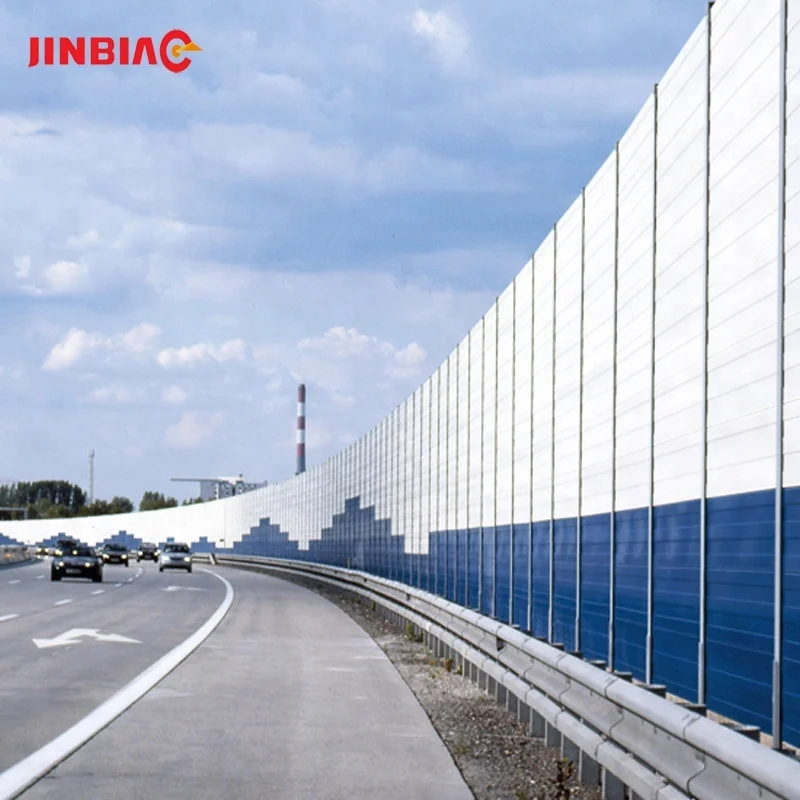

Some transportation noise barrier applications include:

> Highways and Bridges

> Structure-Mounted

> Railroads

> Distribution Facilities

> Transit Hubs / Intermodal

> Airports

                                                                                                                                                                       >>>Buy Now

                                    Related Product

                                                                                                 >>>Buy Now

Welcome to Contact Us :

We are manufacturer.

Welcome you to visit our factory.

Any time,any questions,pls feel free to contact me.
sales manager l Fence manufacturer l Hebei Jinbiao Construction Materials Tech Corp., Ltd.
P.O. Box 053600, Development Zone, South Of Anping County, Hengshui, Hebei, China

                                                                            >>>Buy Now

FAQ

1. Why Choose JinBiao Group?

a. largest manufacturer in Hebei

b. professional design team

c. Strict quality control

d. prompt delivery

2. We know little about the noise barriers, which items needed to get the quote?

Don't worry about that, we have professional technical person, just need supply the height, length, place to use, we'll make the suitable design for you.

3. Beside the specification, how to install noise barriers?

This is also not a problem, we will make the darwing for your reference, if needed, video can be taken for you.

4. How can you guarantee the delivery time?

we have many advanced machines to prepare the material and make detailed production schedule, if the order very urgent, our workers can be keep working in three shifts.

Sound Barriers (also known as Noise Walls, Noise Barriers, Noise Fences or Sound Barrier Walls) have been made of a number of different materials over the years.  Noise barriers are solid obstructions built between noise sources, be it highway noise or air conditioning equipment,that are designed to be “line of sight” interruptions between the noise source and the receiver.
