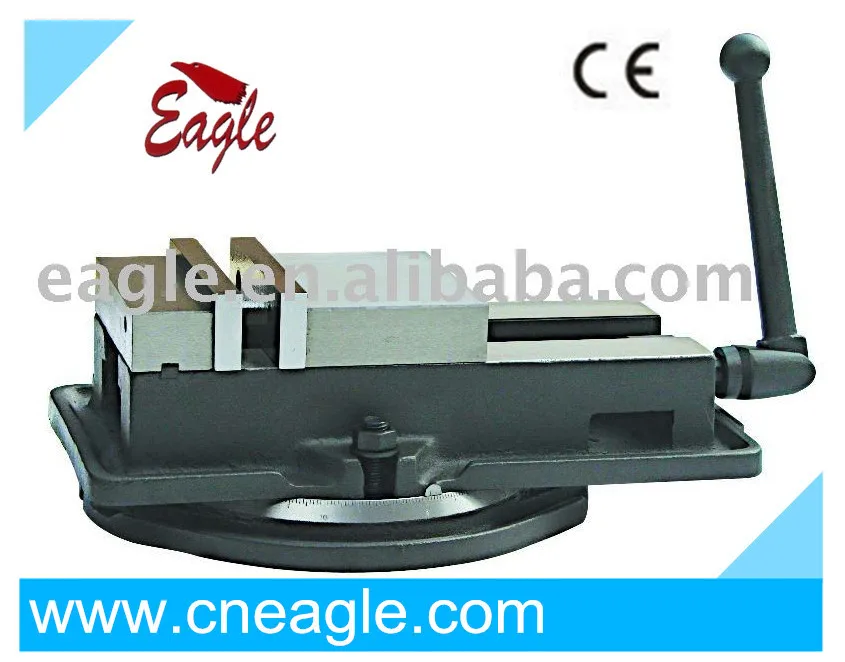

QM Series Accu-lock Milling Machine Vise with Swice base

Description:
1. It is one of main attchments for milling. drilling machine, it is particularly suitable for the finishing of precision parts.
2. The accuracy of vice(parallelism and squareness) is 0.025mm/100mm.
3. The special segment in the movable jaw forces the vertical pressure downward when the horizontal pressure works, so that this jaw does not lift the workpiece.
4. Four positions allow extra capacity to change opening of jaw.
Specifications:



Item NO	Model	Width of Jaw(mm)	Height of jaw(mm)	Max opening (mm)	G.W/N.W(kg)	Packing size(cm)	Packing
541052	QM16100	100	32	100	14/13	36*24*14	Carton
541045	QM16125	125	40	125	21/20	42*27*15	Carton
541053	QM16160	160	45	170	31/30	45*31*18	Carton
541054	QM16200	200	50	230	49/48	56*35*20	Carton
541051	PL160-1	160	45	200	33/32	49*31*17	Carton

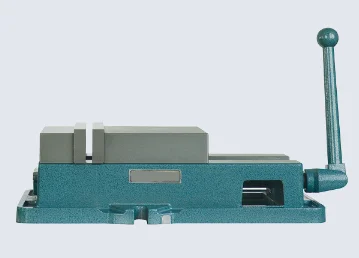

PS: If you need Accu-lock Machine Vice without swivel base, pls tell us, thank you.
