100W High Voltage Film Resistor For High Voltage Test
- Category: >>>
- Supplier: Xianyang Qinhua Special Electronic Components Co. Ltd.
Share on (1961612861):
Product Overview
Description
Product Description
TECHNOLOGY PARAMETERS:
Parameters | Cap d (mm) | 70℃ Rated Power (W) | Resistance Range (Ω) | Resistance Tolerance (%) | Limiting Voltage (KV) | Temperature Coefficient (PPM) | |
Contour Dimensions (mm) ΦD*L | 16*90 | M5 | 30 | 5~2G | ±1~±10 | 25 | ≤±150 (25℃~125℃) |
27*100 | M5/M6 | 40 | 10~5G | 30 | |||
27*133 | M5/M6 | 50 | 10~10G | 45 | |||
27*160 | M5/M6 | 60 | 20~10G | 58 | |||
27*180 | M5/M6 | 70 | 20~10G | 62 | |||
27*200 | M5/M6 | 80 | 50~10G | 68 | |||
27*210 | M5/M6 | 90 | 50~10G | 82 | ≤±250 (25℃~125℃) | ||
27*260 | M5/M6 | 100 | 50~10G | 100 | |||
27*310 | M5/M6 | 150 | 50~10G | 130 | |||
60*154 | M8 | 150 | 50~10G | 55 | |||
42*210 | M8 | 200 | 50~10G | 82 | ≤±400 (25℃~125℃) | ||
42*270 | M8 | 250 | 50~10G | 110 | |||
60*180 | M8 | 250 | 50~10G | 62 | |||
37*310 | M8 | 300 | 50~10G | 130 | |||
FEATURES:
1.A metal glazed film is deposited on a high grade ceramic body, tinned electrolytic copper wires are welded to the end-caps.
2. Technology: Metal glaze.
3. The resistors are coated with green lacquer which provides electrical, mechanical, and climatic protection. The encapsulation is resistant to all cleaning solvents.
4. High pulse loading capability.
5. High power.
100k ohm resistor
TECHNOLOGY STANDARD:
1.GB/T5729-2003/IEC60115-1:2001
2.Q/QH1618-2007

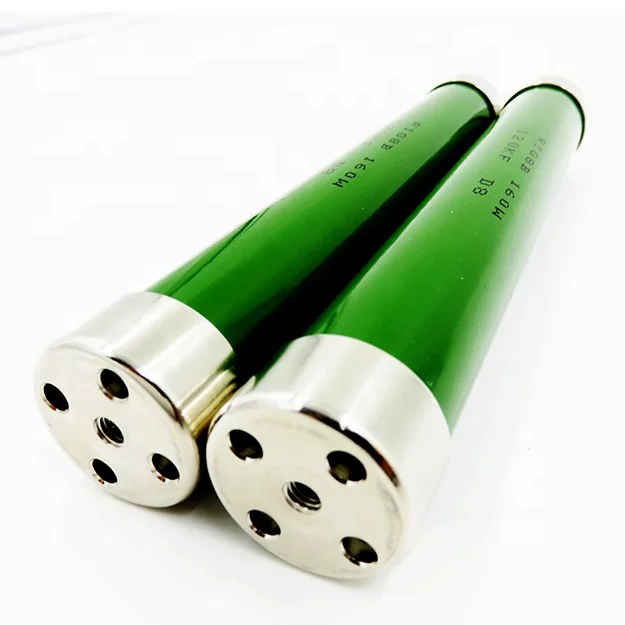

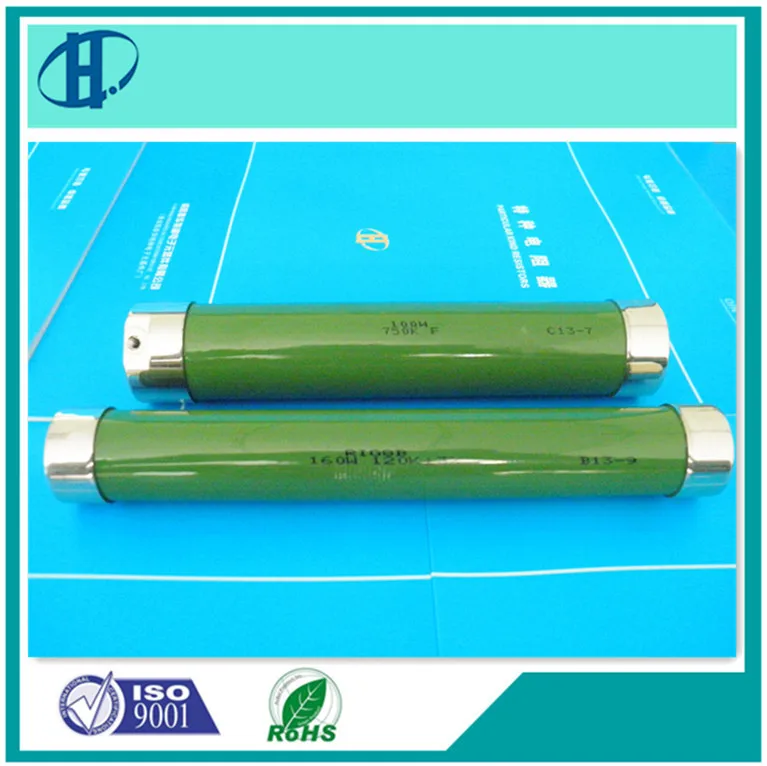

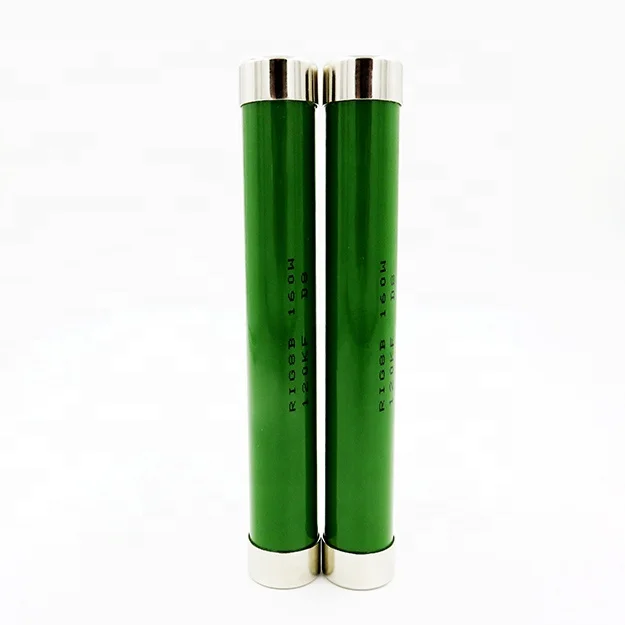

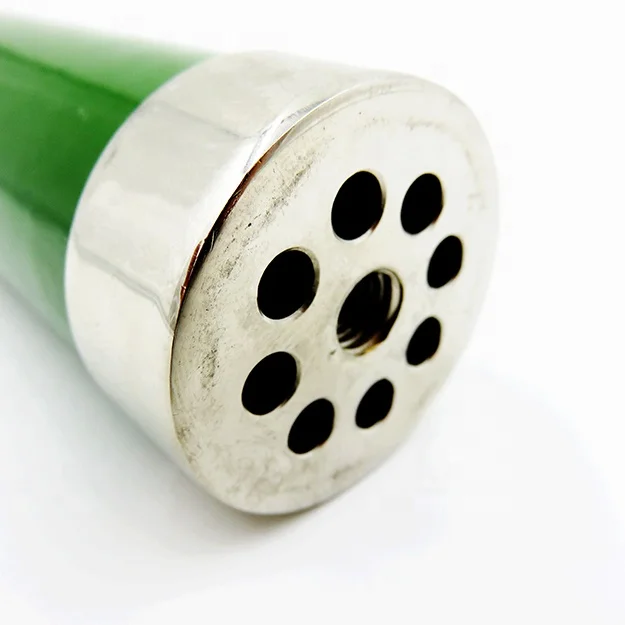

PRODUCT PICTURE:
N

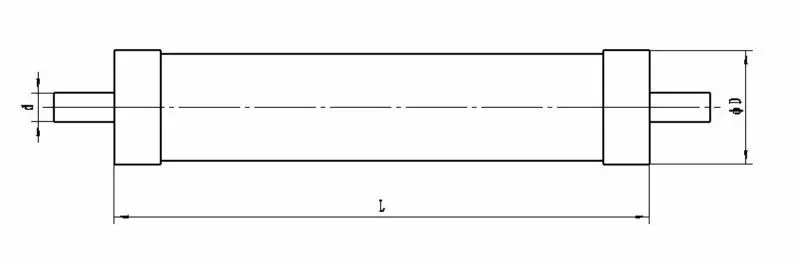

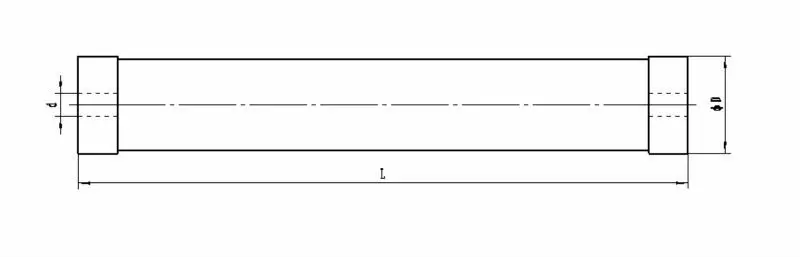

Note:The mark in detail drawing is changed according to the resistance of the product.
APPLICATIONS:
1. Where high resistance, high stability and high reliability at high voltage are required.
2. Safety component in combination with high voltage.
3. High voltage transformer.
4. High voltage bleeders.
5. Cascade switches.

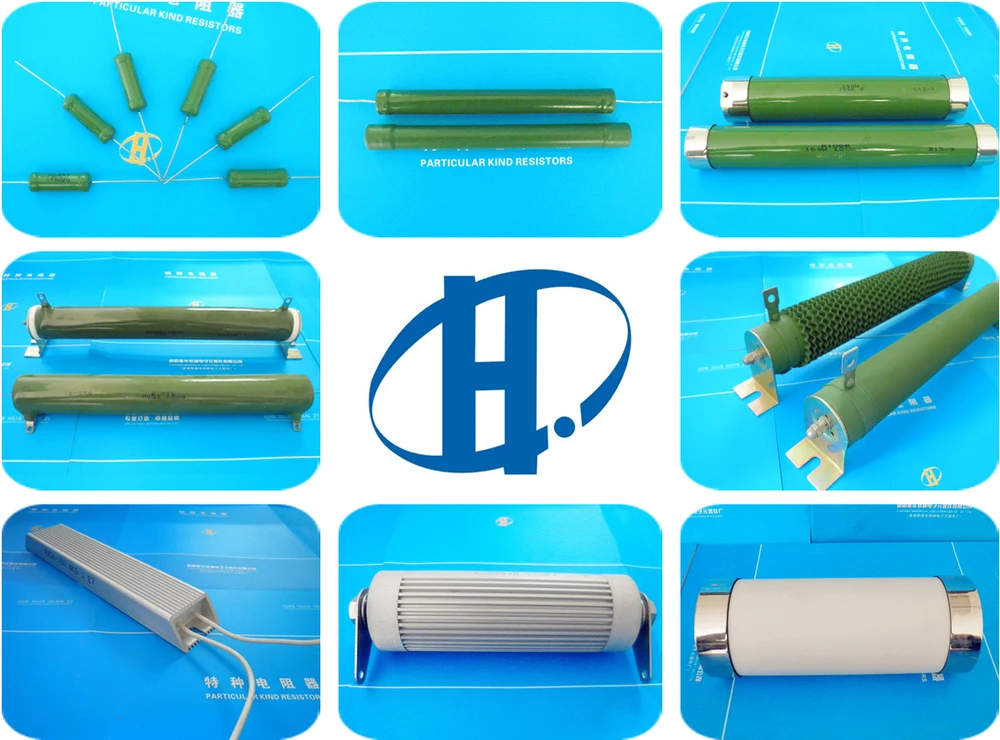

MORE PRODUCTS:
e mark in detail draing is changed according to the resistance of the product.
RIG8B Chief Testing
Chief Testing Items & Testing Result of CNAS Laboratory Authentication
| Test item | Test condition and Performance index request | Testing result |
| Temperature coefficient | Test the resistance value at normal temperature and normal temperature added 100°C,calculate per °C resistance value change rate;Test condition:+25℃~+125℃;Performance index request:TCR≤±400PPM/℃ | (5.7~377)PPM/℃;Qualified |
| Short time overload | Test condition:4 x rated voltage, for 60 seconds (1 minute);100W:1.7MΩ-13.20KV;2.1MΩ-16.6KV;3.3MΩ-26.40KV;5.5MΩ-44.00KV;150W: 6.6MΩ-52.80KV.Performance index request:Without burning; Surface insulation breakdown, no arcing and carbonization | Qualified |
| Overload | Test condition:The resistor in following conditions keep 15s,100W:1.7MΩ-29.10KV;2.1MΩ-32.40KV;3.3MΩ-40.62KV;5.5MΩ-52.40KV;150W: 6.6MΩ-70.36KV.Performance index request:ΔR≤(±1%)R | 100W:ΔR:(0-0.49)%R;150W:ΔR:(0.15-0.20)%R; Qualified |
| Vibration | Test condition:10Hz-500Hz,amplitude A=0.75mm or accelerometer a=98m/s*s,for 6h,recycled every 10 min.Performance index request:ΔR≤(±2%)R | ΔR:(-0.06-0.12)%R;Qualified |
| Temperature fast changed | Test conditon:keep 30min in (-55±3)℃, then warming to (125±3)℃,keep 30 min. 5 cycles.Perfoemance index request:ΔR≤(±1%)R | ΔR:(-0.10-0.06)%R;Qualified |
| 70℃ durability | Test condition:in(70±2)℃,with rated voltage keep 96h.Performance index request:ΔR≤(±1%)R | ΔR:(0-0.62)%R;Qualified |
| Steadydamp-heat | Test condition:T:(40±2)℃,t:96h.Performance index request:ΔR≤(±2)%R | ΔR:(0-0.38)%R;Qualified |
Packaging & Shipping
Packaging:
1.Encapsulated with plastic film first; 2.With a foam box packaging second;
3.Then use carton packaging. 4.Last use wooden box.
Note:According to the difference of the contour dimensions,the packaging will be different.
Please in kind prevail.
Shipping:
We use large international logistics companies, such as EMS,DHL,FedEx,TNT,UPS, Whose logistics services guaranteed to provide the waybill number, tracking cargo information at any time.
Why choose us
How to choose the suitable supplier for your need?
The three basic principles of choosing resistor:
- Choose the resistor executed high standard and produced by which production line of manufacturer is certificated by certification body.
Our company have got GB/T19001-2008 and ISO9001:2008 Quality Management Systems Certificate on Dec 2010.
- Choose the resistor produced by manufacturer which have best technology, best quantity, best efficiency, best price and best price.
Our company have 4 working shops, 3 production lines, 40 workers, 13 technicists, 5 salesmans for resistor for your need.
- Choose the manufacturer which can meet above requirements, then order resistors.
Our company will provide suitable resistors for your need.

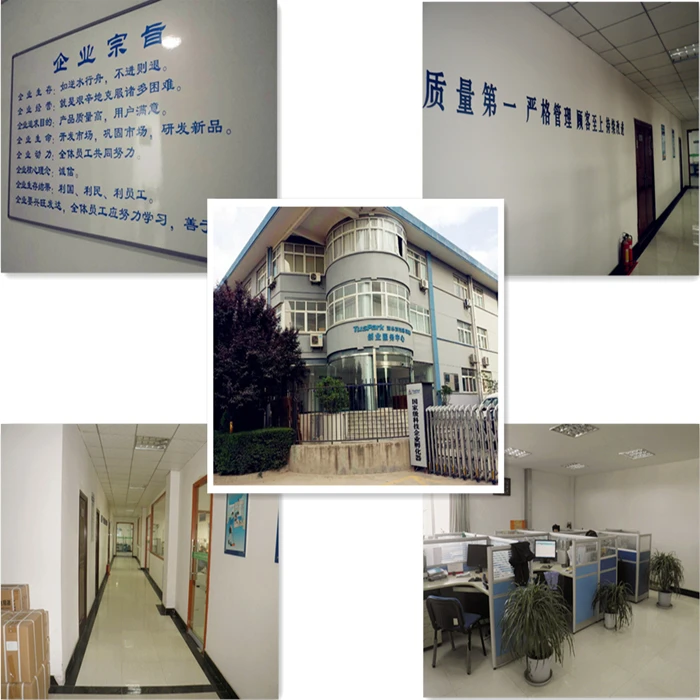

Company Profile
Xianyang Qin Hua Special Electronic Components Co., Ltd have founded in 2000. We mainly produce: High voltage high power metal glaze film resistor; High frequency large current oxide film resistor; Painted or glazed/ porcelain shell or aluminum shell series wire wound resistor; High voltage high power wind cooled/ oil cooled resistors cabinet. In December 2010, our company have got GB/T19001-2008 and ISO9001:2008 Quality management Systems Certificate.
The factory

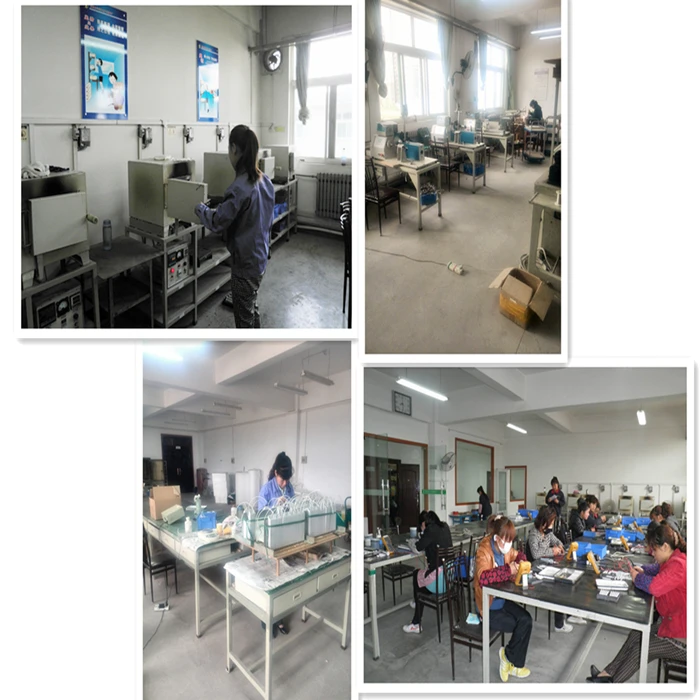

Working Shop

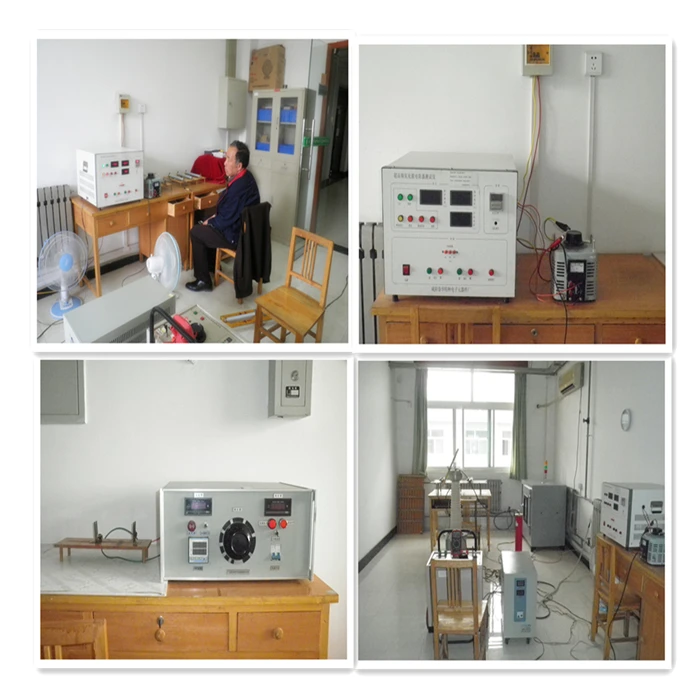

Testing Room
Welcome to visit our factory!
QUESTIONS AND ANSWER
1. Payment?
Excuse me, our company only receive production and delivery after paying total payment. If one order more than 2000USD, production after 50% advance payment can be received, pay 50% balance before delivery.
2. Delivery time?
The custom-made resistor is no inventory, because we produce resistor according to requirement of customers. It will take some time to produce. Normal production cycle is:5~7 working days per 1000 pieces of high voltage resistor; 15~20 working days per 100 pieces of oxide film resistor; 10~15 working days per 500 pieces of wire wound resistor.
If there are special situation, negotiate when communicating.
3. Whether offering sample?
Our company can offer samples for customers. In general case, the samples are not free, because little quantity add the cost. If there are special situation, negotiate when communicating.
4. About the price and discount?
Because of exploiting the overseas market, the price we send to customer is concessional, lower than homeland. If one order more than 5000USD, it will be 1%~2% discount at total payment. For long term cooperation customer, if annual purchase more than 30000USD, it will be executed value engineering, more concessional for customer.
5. Warranty period?
One year, from the date of leaving factory.
6. Technical assistance?
Our company can provide long free technical assistance. Our technicist can discuss the technical problem with customer about resistor, until solved questions.
7. Freight?
All the price is excluding freight. The customer will pay the freight.
More details, please connect us.
