Product Overview
Description
Water Flow Meter

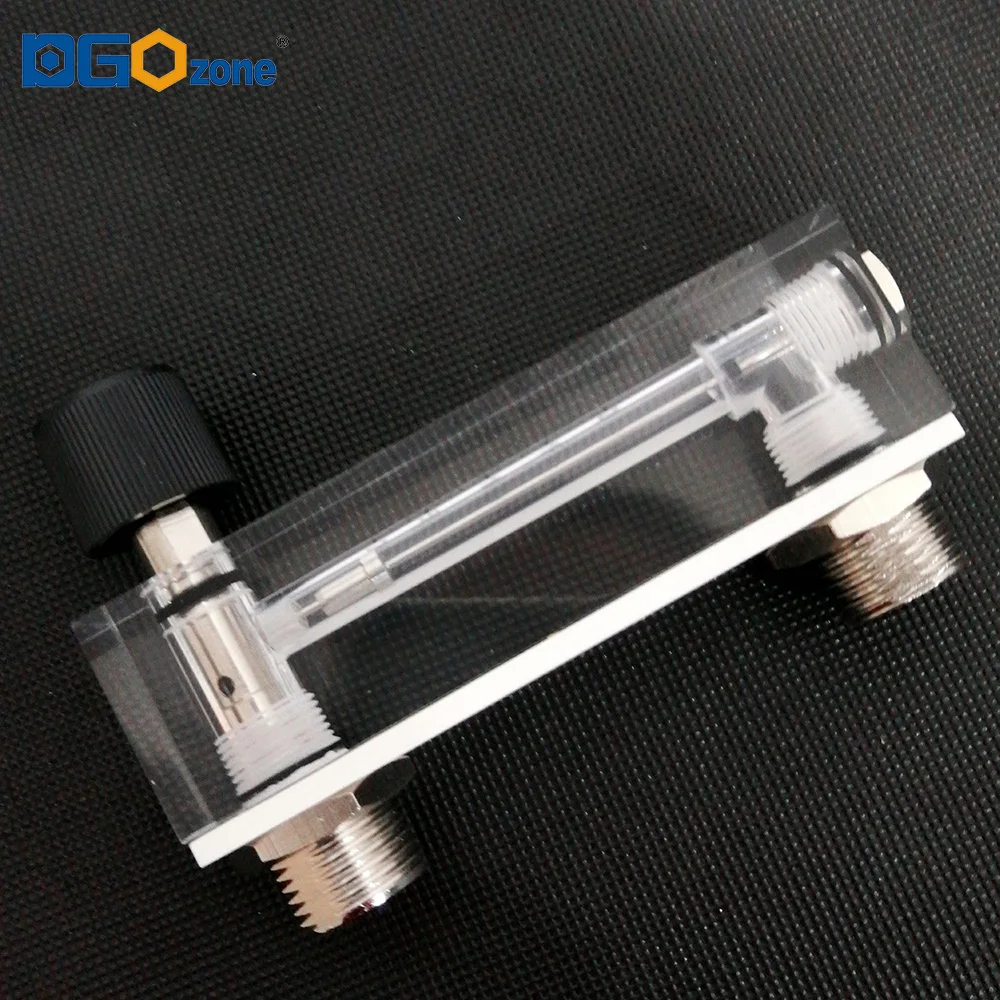

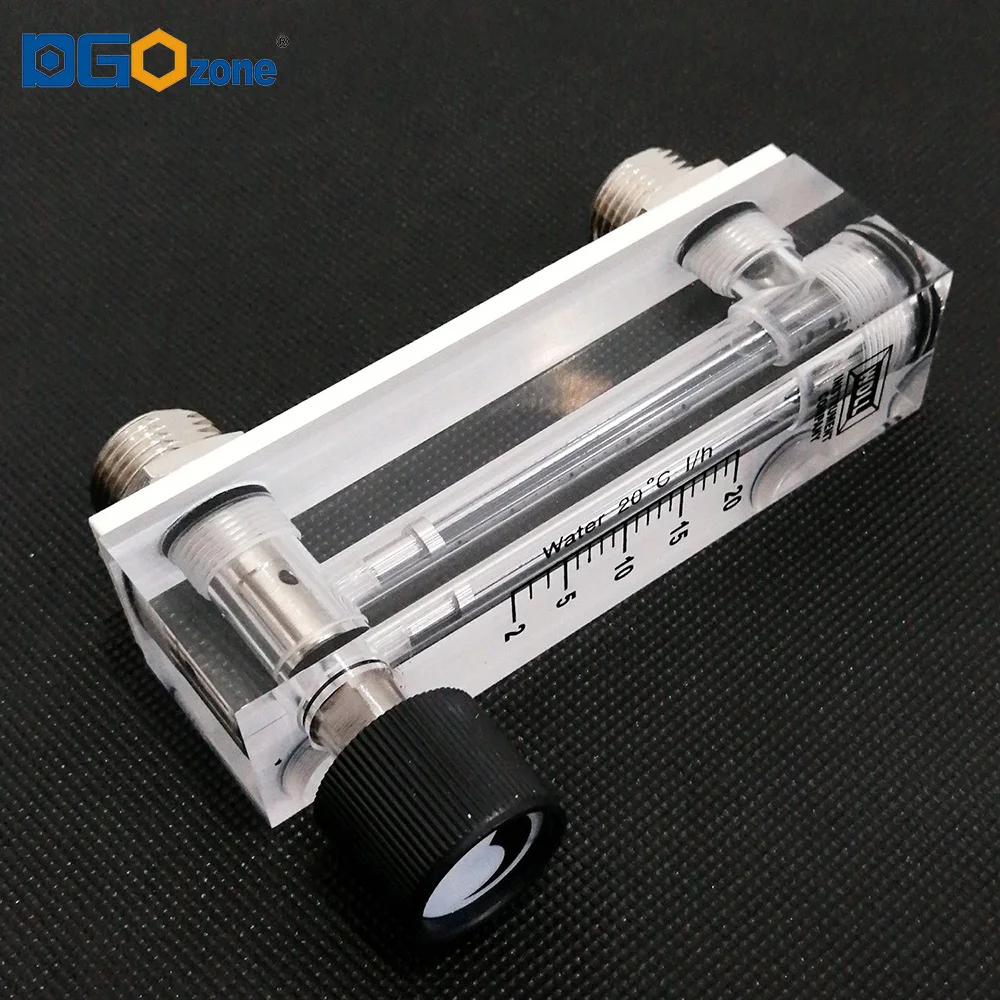

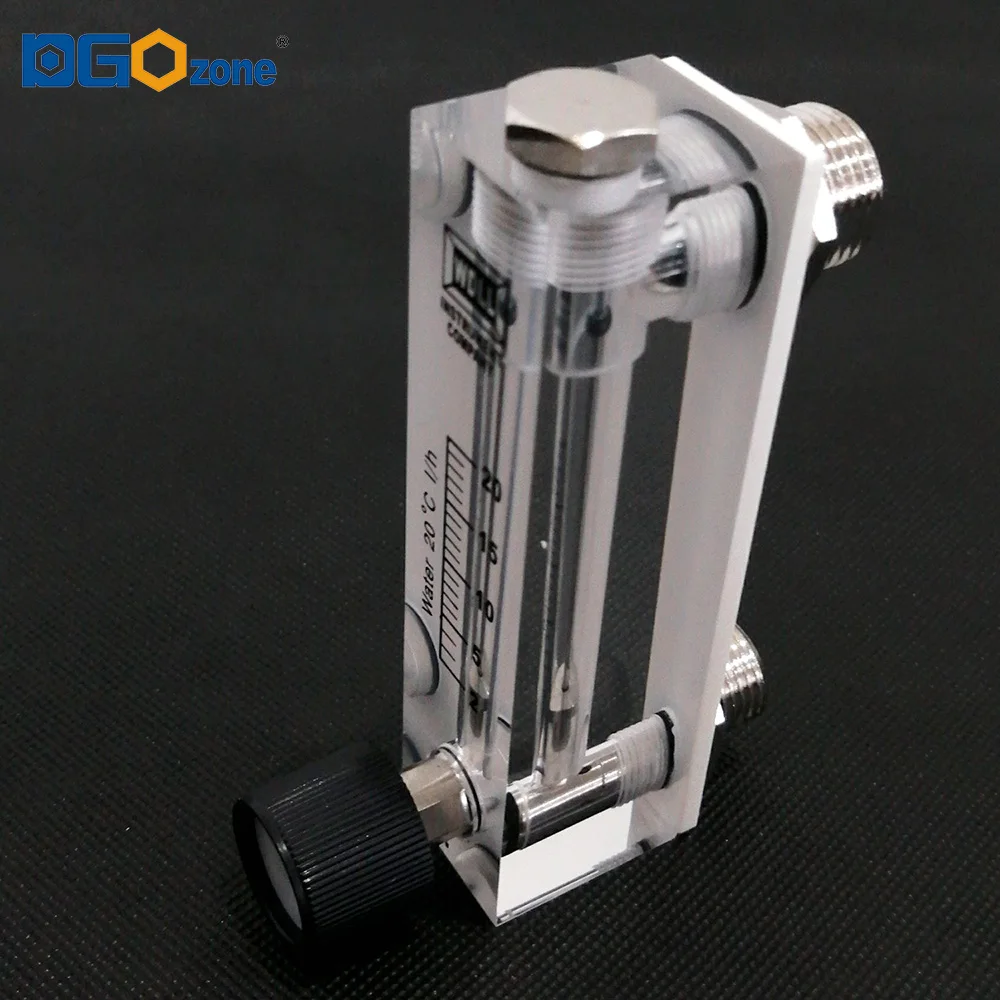

High performance acrylic panel water flow meter KHL-0802M-V

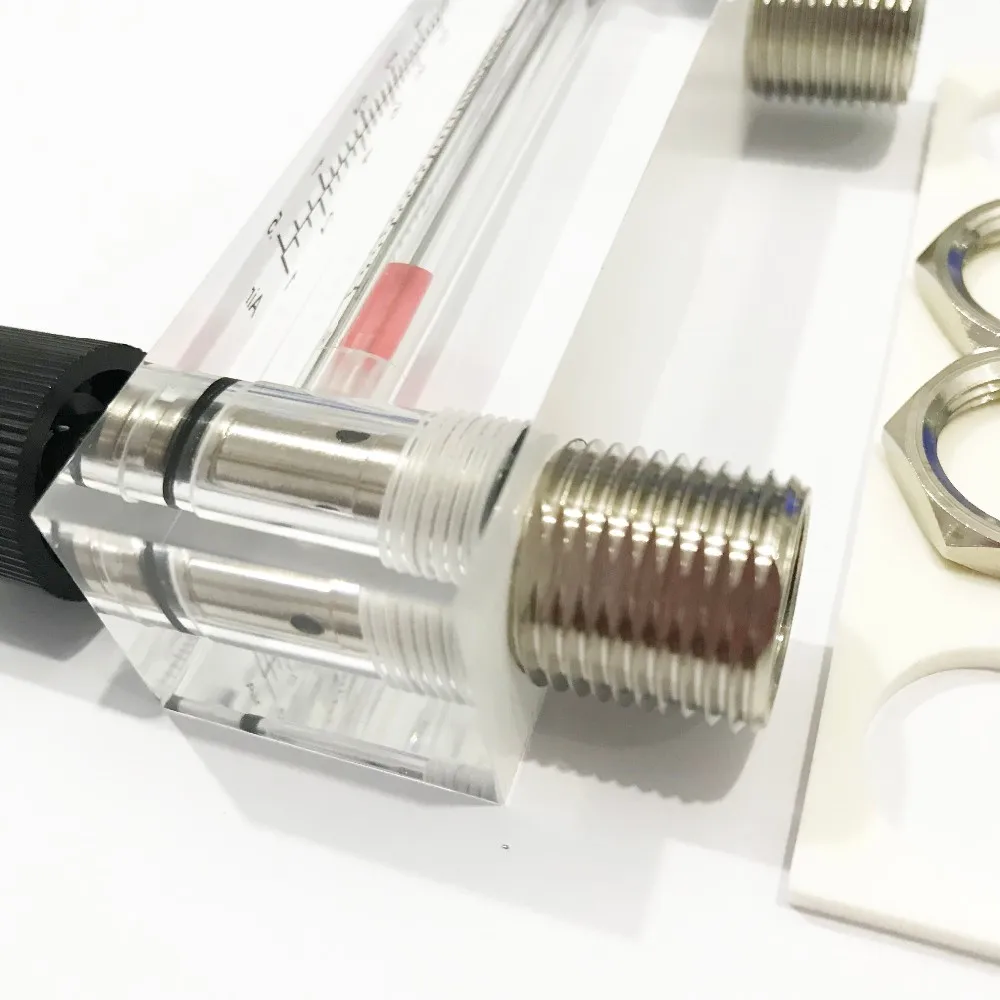

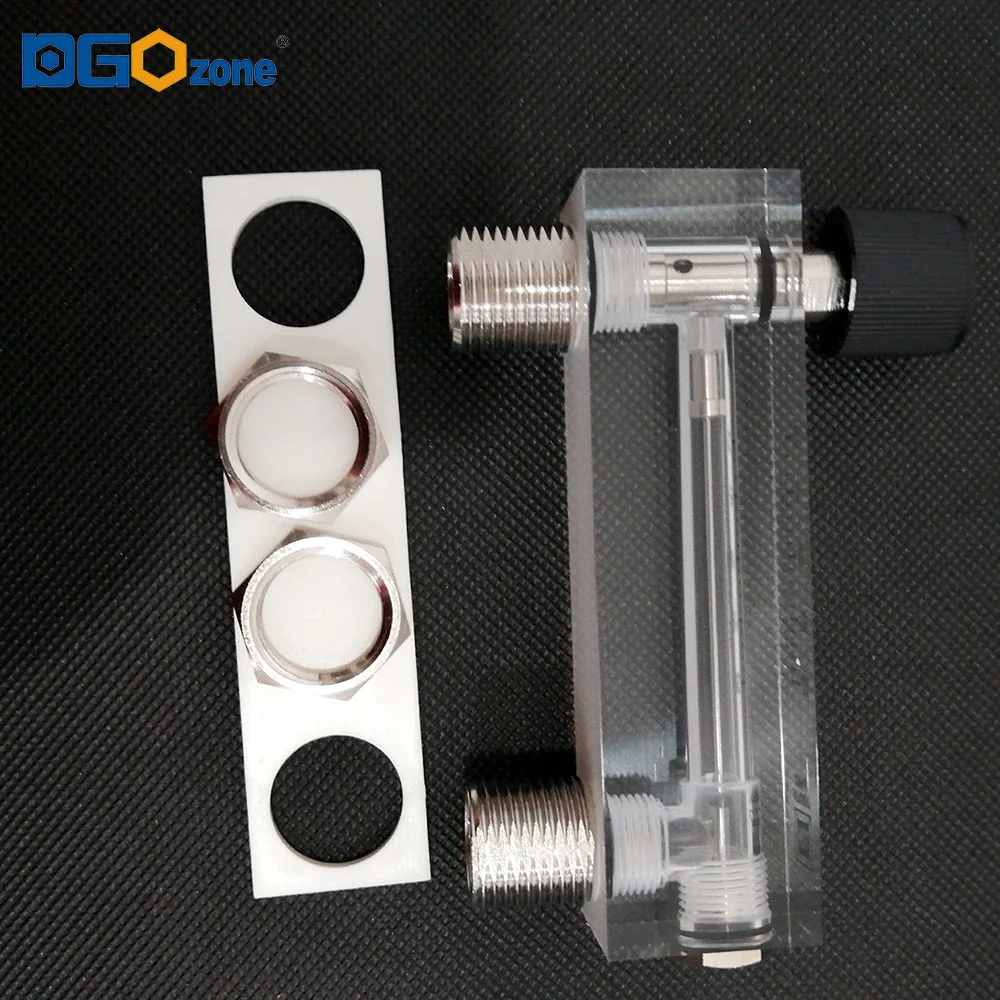

KHL-0802M-V(2-20L/H) Panel water flow meter features bezel type mounting that can be quickly installed from the front of the instrument panel, with adjustable valve, simple, compact and portable, unbreakable and long life span. Besides, 316L stainless steel regulating valve and copper fastening screw make it durable.
Fastening Screw:Copper
Flow Meters

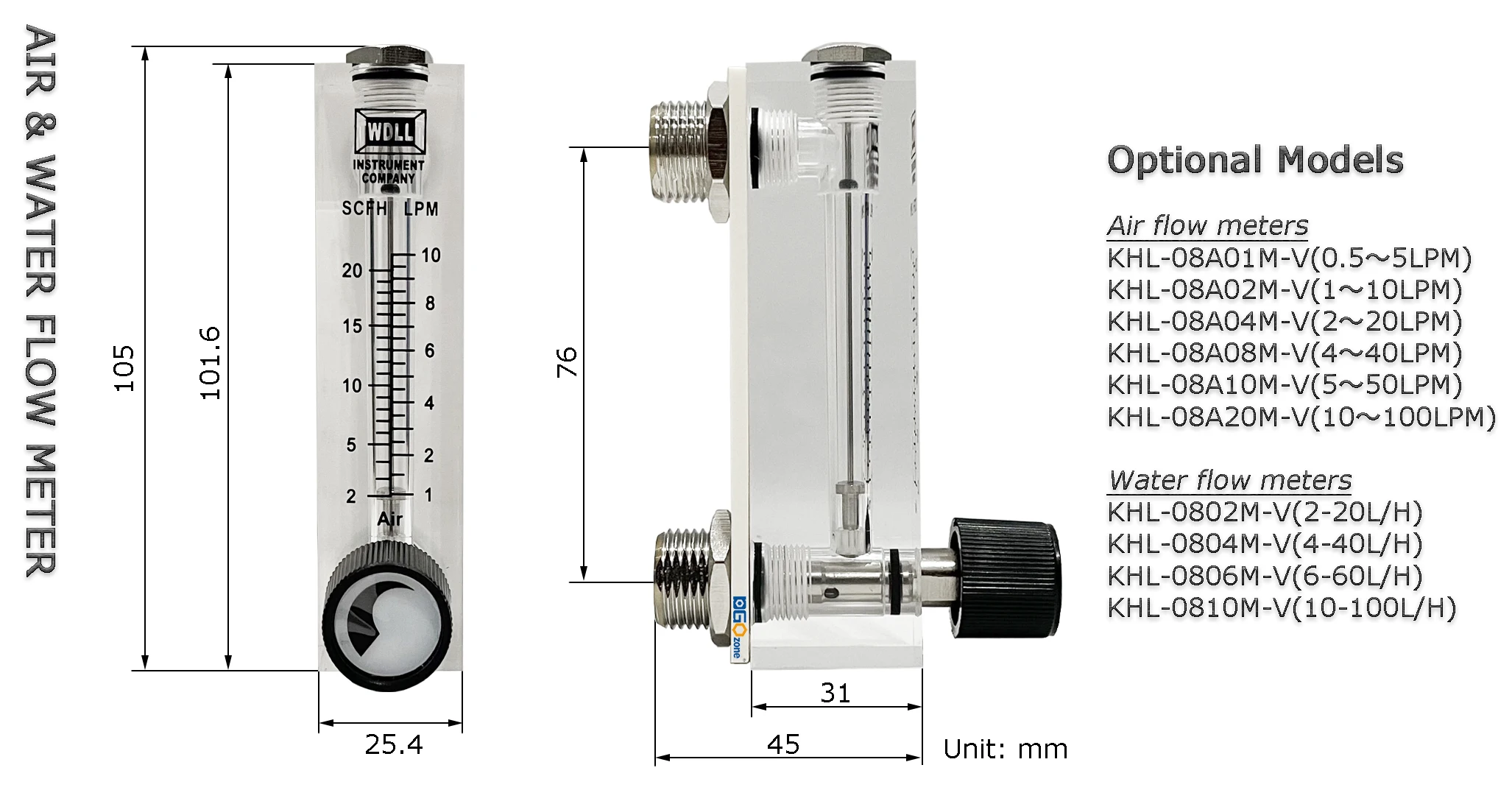

--------------------------------------- Air or Water Flow Meters ----------------------------------
Model/Items | Measuring range | Medium | Remark | |||
KHL-08A01M-V | 1~10SCFH/0.5~5LPM | Air | With Valve | |||
KHL-08A02M-V | 2~20SCFH/1~10LPM | |||||
KHL-08A04M-V | 4~40SCFH/2~20LPM | |||||
KHL-08A08M-V | 10~80SCFH/4~40LPM | |||||
KHL-08A10M-V | 10~100SCFH/5~50LPM | |||||
KHL-08A20M-V | 20~200SCFH/10~100LPM | |||||
KHL-0802M-V | 2-20L/H | Water | ||||
KHL-0804M-V | 4-40L/H | |||||
KHL-0806M-V | 6-60L/H | |||||
KHL-0810M-V | 10-100L/H | |||||
A). Accuracy: ±4%FS B). Multiplicity: ±0.25%FS C). Maximum pressure: 1MPa/150psig D). Maximum temperature: 80℃/176°F E). Basal body: Acrylic F). Float ball: 316L G). Guide rod: 316L H). Fastening Screw: Copper I). O-ring: Silicon rubber | ||||||
----------------------------------------- Oxygen Flow Meters---------------------------------------
Models/Items | Measuring range | Medium | Remark | |||
KH-OF05 | 0-5 L/Min | Oxygen | With Valve | |||
KH-OF15 | 1-5 L/Min | |||||
KH-OF011 | 0.1-1 L/Min | |||||
KH-OF210 | 2-10 L/Min | |||||
KH-OF0510 | 0.5-10 L/Min | |||||
KH-OF0514 | 0.5-14 L/Min | |||||
KH-OF425 | 4-25 L/Min | |||||
A). Accuracy: ±5% B). Body: Acrylic C). Float ball: Agate D). O-ring: NBR E). Nozzle: Brass F). Fastening Screw:Brass G). Regulating valve: 316L stainless steel | ||||||
FEATURES
1) Low installation costs with easy mounting .
2) Long operation life with durable construction.
3) Precision molding enables high repeatability.
4) White back on the flow tube allows for better visibility of the float increasing reading accuracy .
5) Side printed scale graduations allows for instantaneous flow reading saving time.
6) Compact bodies require minimal panel space freeing valuable space.
APPLICATIONS
• Medical equipment
• Air samplers
• Gas analyzers
• Pollution monitors
• Chemical injectors
• Cabinet purging
Plastic Rotameter
Big measuring range water flow meter plastic rotameter 10000l/h water flowmeter
Different type and size to choose
Diameter(mm) | Model | Measuring range | ||
Long Tube | Short Tube | |||
15 | KHL-ZS15 | 2-20L/H | 5-50L/H | |
10-100L/H | 10-100L/H | |||
16-160L/H | 16-160L/H | |||
25-250L/H | 25-250L/H | |||
40-400L/H | 40-400L/H | |||
60-600L/H | 60-600L/H | |||
100-1000L/H | ||||
25 | KHL-ZS25 | 100-1000L/H | 100-1000L/H | |
160-1600L/H | 160-1600L/H | |||
250-2500L/H | 250-2500L/H | |||
300-3000L/H | 300-3000L/H | |||
32 | KHL-ZS32 | 0.4-4m³/H | ||
0.6-6m³/H | ||||
1-10m³/H | ||||
Model | Size (mm) | Match with Hose (mm) | ||||||||||
Long Tube | Short Tube | |||||||||||
L | D1 | D2 | L | D1 | D2 | |||||||
KHL-ZS15 | 280 | 20 | 45 | 202 | 20 | 45 | 15 or 20 | |||||
KHL-ZS25 | 380 | 32 | 68 | 226 | 32 | 60 | 25 or 32 | |||||
KHL-ZS32 | 288 | 40 | 74 | 32 or 40 | ||||||||
