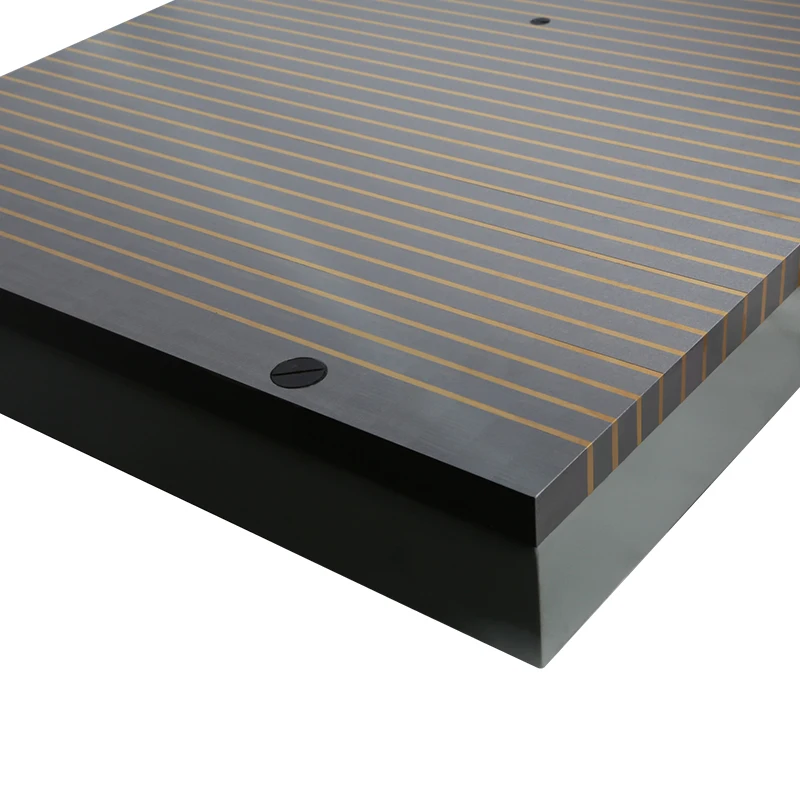

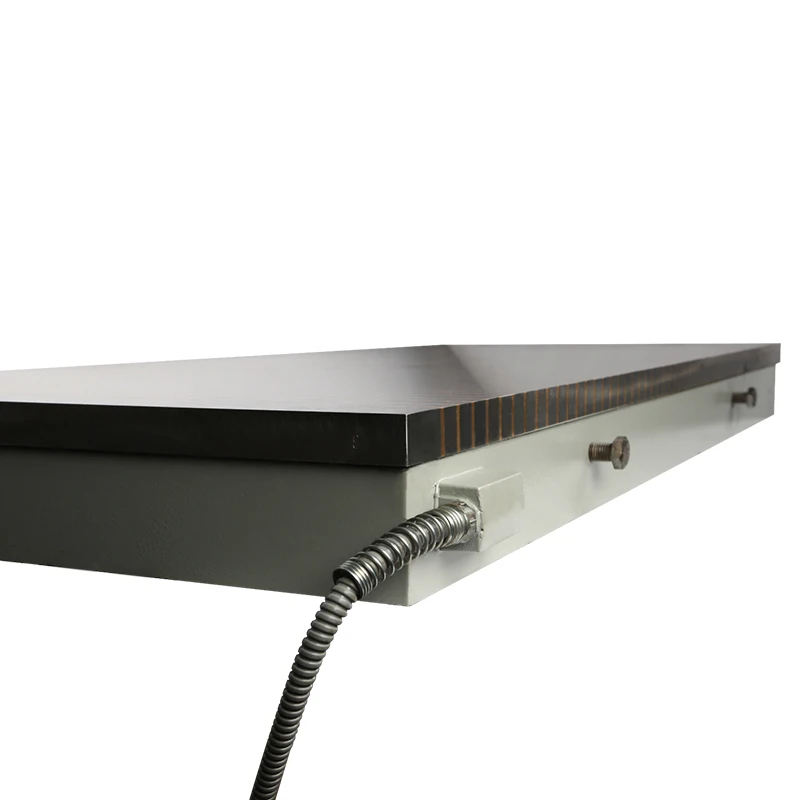

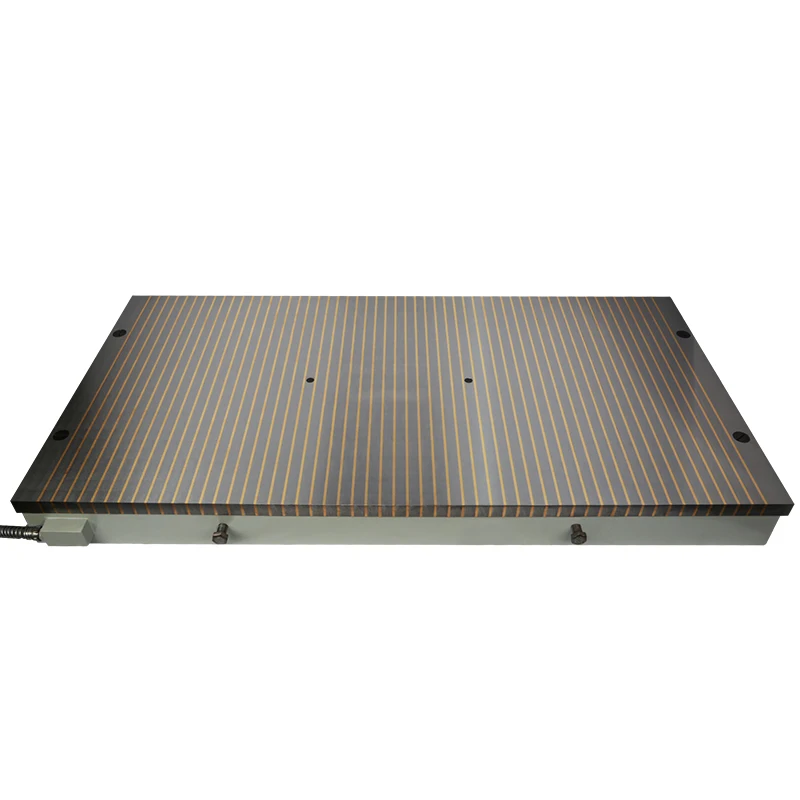

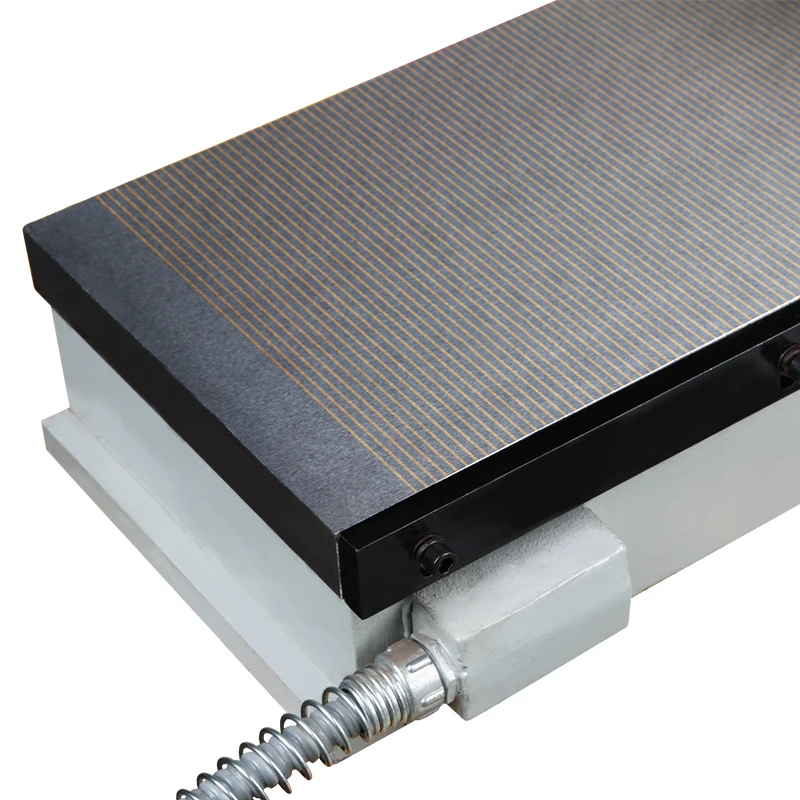

Lishuai CE Certification Rectangular Electromagnetic Chuck Custom Size Available

Product Overview

Description

Rectangular Electromagnetic Chuck in All Size

The main uses and characteristics

1. It ‘s a type of magnetic workholding device for surface grinder machine and milling machine.Used for sucking magnetic conductivity workpieces to fixed position and grinding processing.

2 .The suction force is well-distributed, positioning reliable, easy to operate. Can be installed in surface grinder machine or milling machine directly, it is a kind of ideal magnetic fixture .

3.It’s suitable for processing medium strength grinding, the suction force is≥100N/cm2

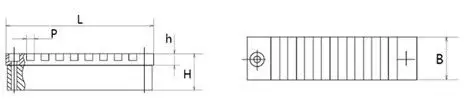

The main structure and parameters

No.	Name	Type	L (mm)	B (mm)	H  (mm)	Panel Height(h)	Pole Pitch (P)	Rated Current (A)	Rated Power (W)	Net Weight (KG)
1	X11 Ordinary  Electromagnetic Chuck	X11 200*630	630	200	105	30	18+4	1.1	120	65
2		X11 300*680	680	300	108	30	18+4	1.4	154	115
3		X11 300*1000	1000	300	108	30	18+4	1.4	154	155
4		X11 320*1000	1000	320	108	30	18+4	1.6	176	175
5		X11 320*1250	1250	320	108	30	18+4	2.5	275	220
6		X11 320*1600	1600	320	110	30	18+4	2.5	275	285
7		X11 320*2000	2000	320	110	30	18+4	2.8	308	360
12		X11 400*800	800	400	108	30	18+4	1.5	165	175
13		X11 400*1000	1000	400	108	30	18+4	2.2	242	230
14		X11 400*1600	1600	400	110	30	18+4	3.9	429	355
15		X11 400*2000	2000	400	110	30	18+4	5	550	450
16		X11 500*800	800	500	108	30	18+4	2.2	242	220
17		X11 500*1000	1000	500	108	30	18+4	2.5	275	275
19		X11 500*1500	1500	500	108	30	18+4	4	440	415
20		X11 500*1600	1600	500	110	30	18+4	4	440	450
21		X11 500*2000	2000	500	110	30	18+4	5.6	516	560
22		X11 600*1000	1000	600	108	30	18+4	3	330	335
23		X11 600*1500	1500	600	110	30	18+4	5.8	638	500
24		X11 600*1600	1600	600	110	30	18+4	6	660	530
25		X11 600*2000	2000	600	110	30	18+4	6.8	748	670
26		X11 630*1000	1000	630	110	30	18+4	3.4	374	410
28		X11 630*1500	1500	630	110	30	18+4	5	550	690

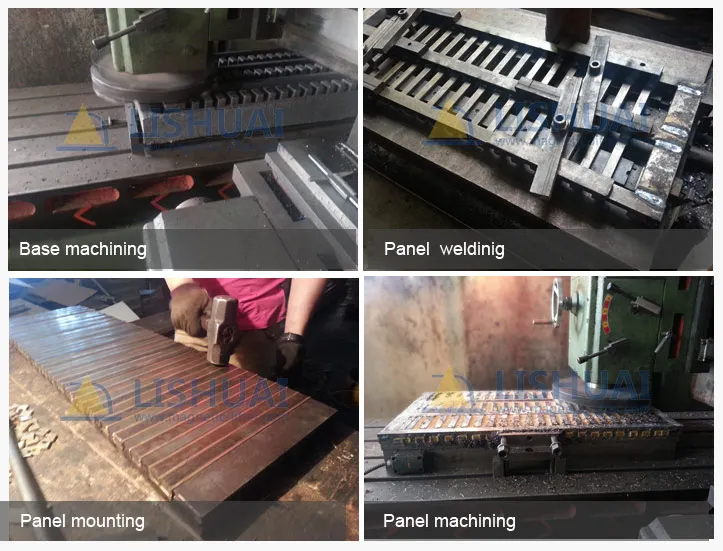

Electromagnetic chuck procedure



Controller Unit
