PS foamed picture frame making machine

Product Overview

Description

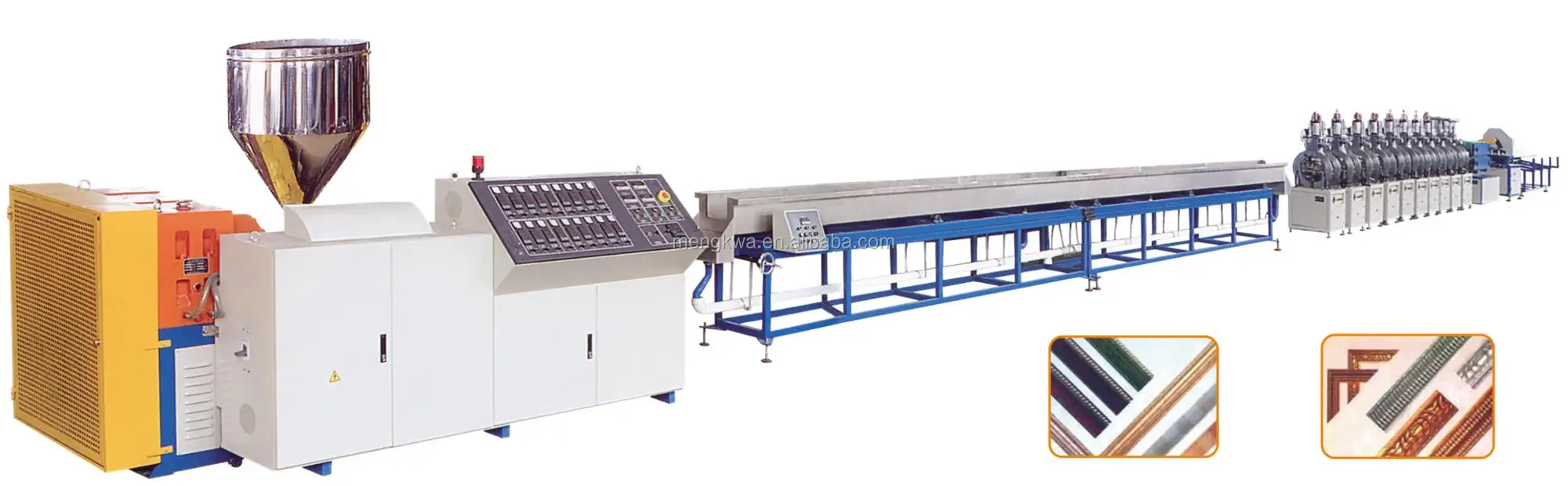

PS foamed picture frame extrusion line



Application & Features:

PS Foamed profile extrusion line. consists of single extruder,  cooling water tank. hot stamping machine, haul-off unit  and stacker. The line  is with imported ABB AC inverter control. imported RKC temperature meter etc. and features of good plasticization. high output capacity, and stable perormance etc.

the hot stamping machine sytem combined foreign technology, by the hot stamping embossing method, transfer the coating layer form the film to the PS foamed profile. The machine with good appearane, stable peformance, accurate & easy operation. By adjust the embossing wheel the machine can work on various of different profles. Working together with the main extruder and other extrusion down steam equipmnts. this iline is popular as the latest devloped producing line.



 Main technical parameter:

model	YF1	YF2	YF3	YF4
Extruder	SJ65	SJ90	SJ100	SJ120
Co-extruder	SJ35	SJ45	SJ45	SJ45
Products width	3inch	4inch	5inch	6-inch
Hot stamping machine	8sets	10sets	10sets	12sets
Speed	2-6m/min	2-6m/min	2-6m/min	2-6m/min
