Factory Price Floor Cutting And Grooving Production Line
US $300000-$350000
laminated wood floor equipment double end tenoner
- Category: Floorboard Making Machinery >>>
- Supplier: Suzhou Hotjin Precision Machinery Co. Ltd.
Share on (1963149740):
Product Overview
Description

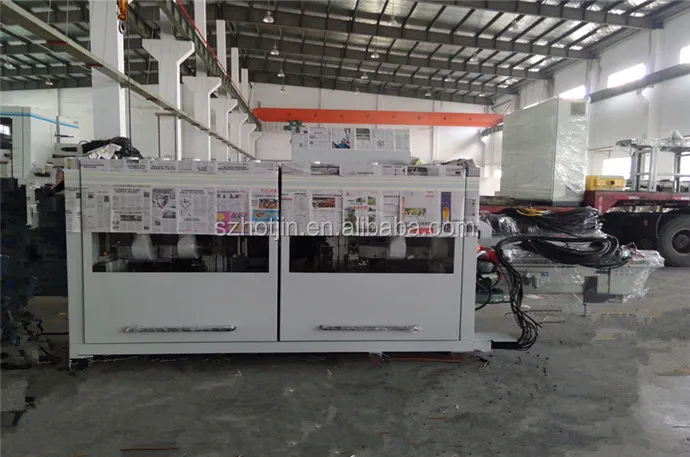

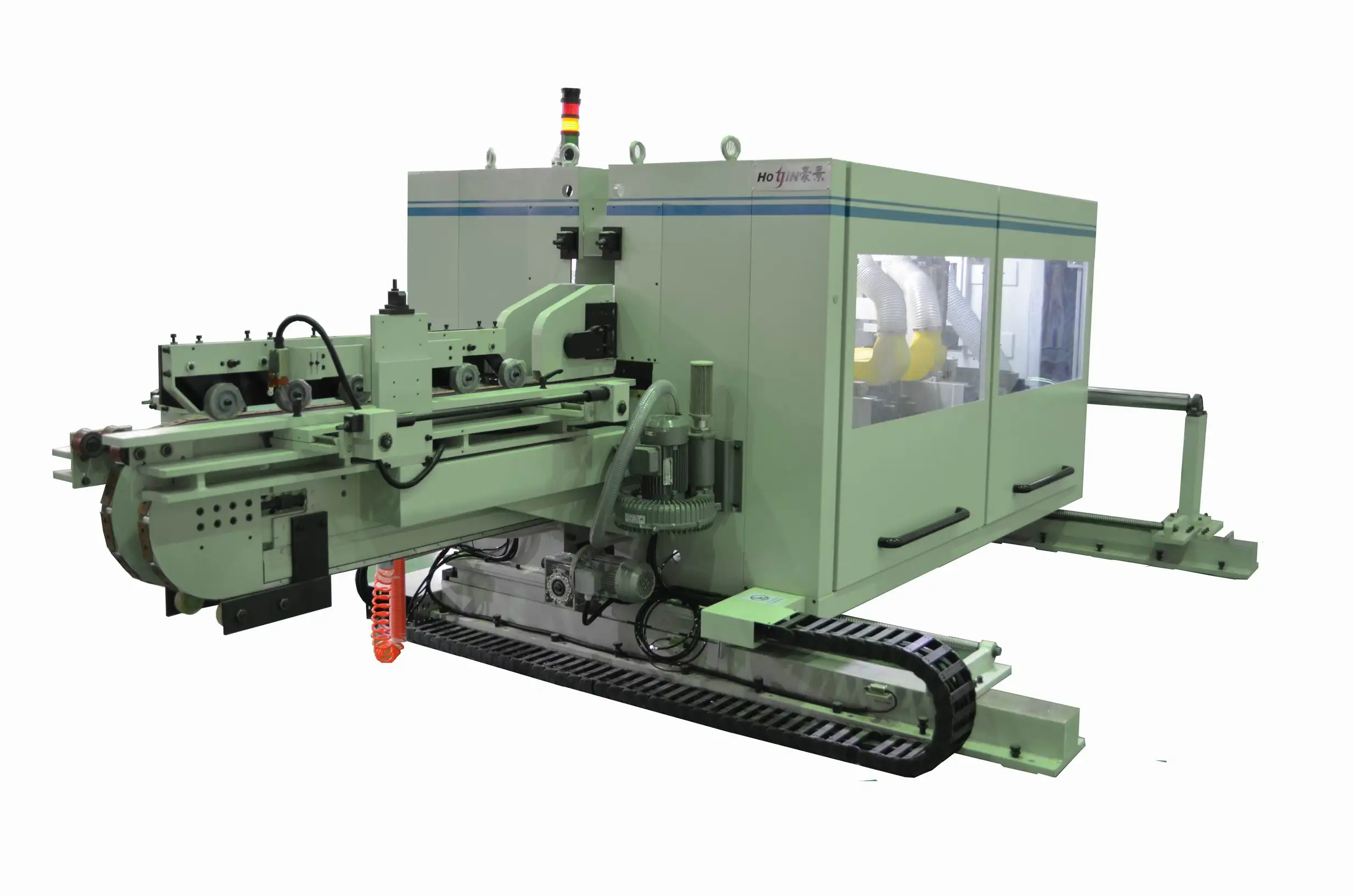

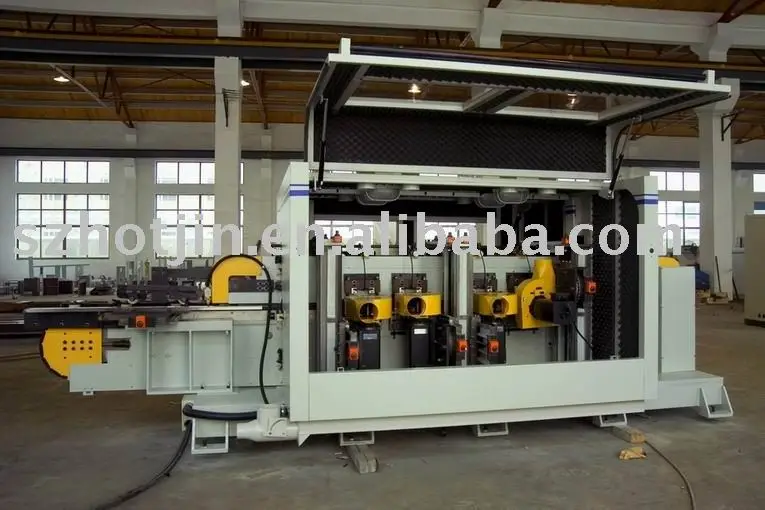

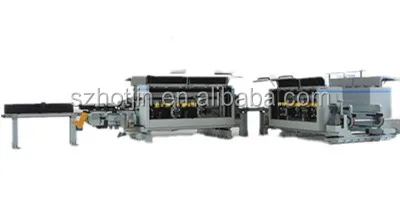

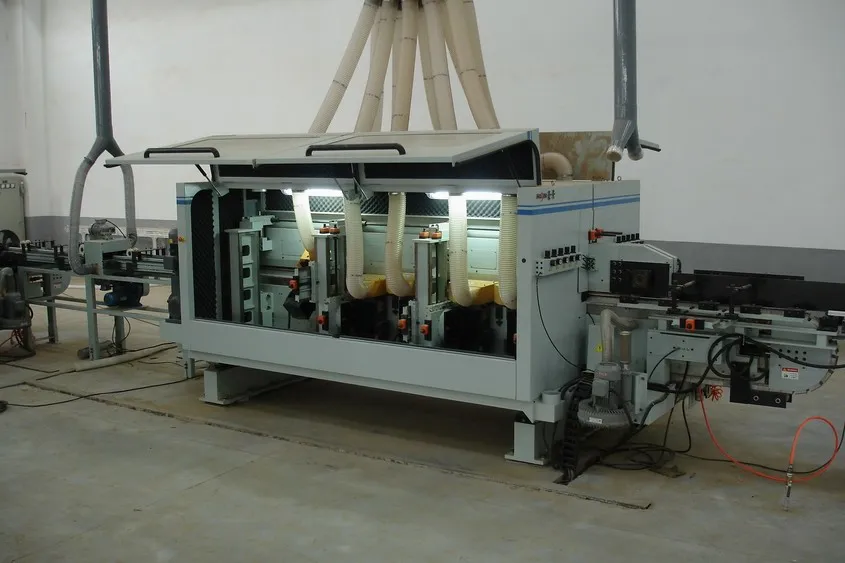

Solid Wood double end tenoner machine is mainly used in the forming and
processing of the long side of laminate flooring and multi-layer wood composite
floor. Each cutter axis can rotate according to different processing needs, so as to
meet various complex clips. Monorail features in good stability and small working
width, etc. , thus it has different working stations as required, i.e., precutting,
forming, finishing, chamfering and clipping ,etc.
| LTO2-8A | 8-axis longitudinal monorail | ||
| double end tenoner machine(economical) | |||
| Working width(mm) | 120-200 | Rotate speed of cutter shaft(rpm) | 6000-6400 |
| Working thickness(mm) | 6-15 | Power of feeding motor(kw) | 5.5 |
| Feeding speed(m/min) | 30-50 | Gross weight of equipment(kg) | 6000 |
| Power of station 1(kw) | 4 | Axis dia.of station 1-5(mm) | Belt axis40×60 |
| Power of station 2(kw) | 4 | Sweep-up dia.of cutter cover(mm) | 120 |
| Power of station 3(kw) | 4 | Sweep-up dia.of driver chain(mm) | 100 |
| Power of station 4(kw) | 3 | Cutter dia.(mm) | 180-220 |
| Height of working surface of table(mm) | 1100 | ||
| Remark:1.Monorail adopted for conveyance. | |||
| 2.Our company reserves the right to make further technical improvement. | |||
