speed controller 4913988 for generator control panel

Product Overview

Description

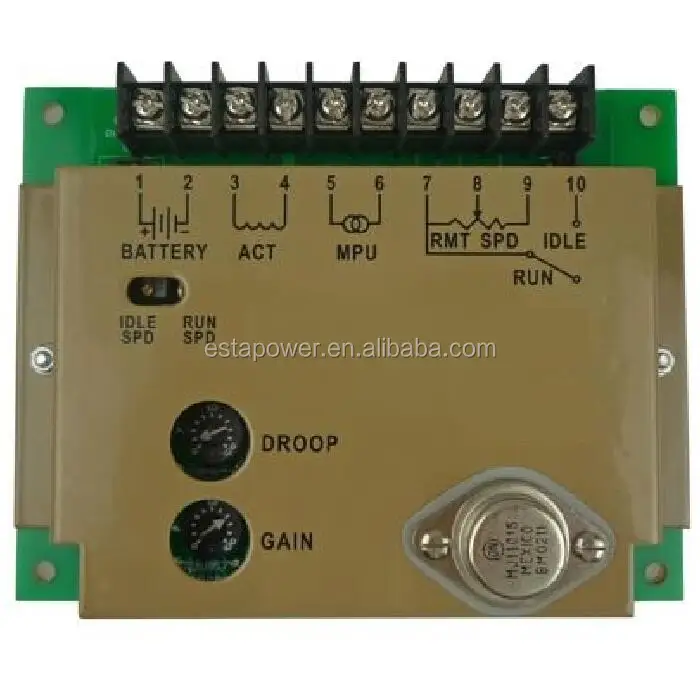

 Speed controller 4913988 for generator control panel







Supply:	12 or 24V DC Battery Systems
Actuator Current Range:	Min. 2.5 Amps, Max. 10 Amps continuous
Speed Sensor Signal:	0.5~120 V RMS
Operating Ambient Temperature Range:	-40°C ~ 85°C
Relative Humidity:	up to 95%
Speed Range:	1K-7.5K Hz continuous
Speed Trim Range:	± 200Hz
Gross Weight:	0.85KG
PACKAGE SIZE:	155mm*155mm*55mm









another  Speed  Controller :

4914090

4914091

4913988

3044195

3062323

3032733

3044196

3062322

3098693

3037359
