Plastic Concrete Slab Roof Ladder Scaffolding

Product Overview

Description

                        Plastic Concrete Slab Roof Ladder Scaffolding







XMWY

A construction building material manufacturer in China,mainly products consisting of steel formworking mainbeams, steel formwork sub beams for slab,heavy duty scaffold, quick lock scaffoldings, formwork props,steel shoring props,quick stage scaffoldings, scaffolding indoor support,scaffolding steel beam,scaffolding verticals and standards,modular scaffoldings,galvanized steel scaffolds.











Plastic Formwork Panel For Concrete
Item	Length(m)	Width(mm)	Height(mm)	Thickness(mm)	Weight(kg)
NO.1Main Beam	2.68-4.39	65	69	2	20.8
NO.2Main Beam	2.28-3.68	65	69	2	17.6
NO.3Main Beam	1.77-2.88	65	69	2	13.55
NO.4Main Beam	1.17-1.78	65	69	2	8.8
Sub Beam	1.15	60	50	2	3.25
	0.8	60	50	2	2.35
	0.4	60	50	2	1.25







Characters:



1.Main beam is telescopic and different sizes can link together,so its length can suits all kinds of construction structure.

2.The connection among beams is firm and steady and the installation work is simple and easy.

3.There are lightening holes on the main and sub beams,the holes not only can decrease the weight of the beams but also make the connection more steady and safe.

4.Without any woods,the whole-steel structure can re-use for hundreds of times,so our products will truely save your construction spending and improve your working efficiency.

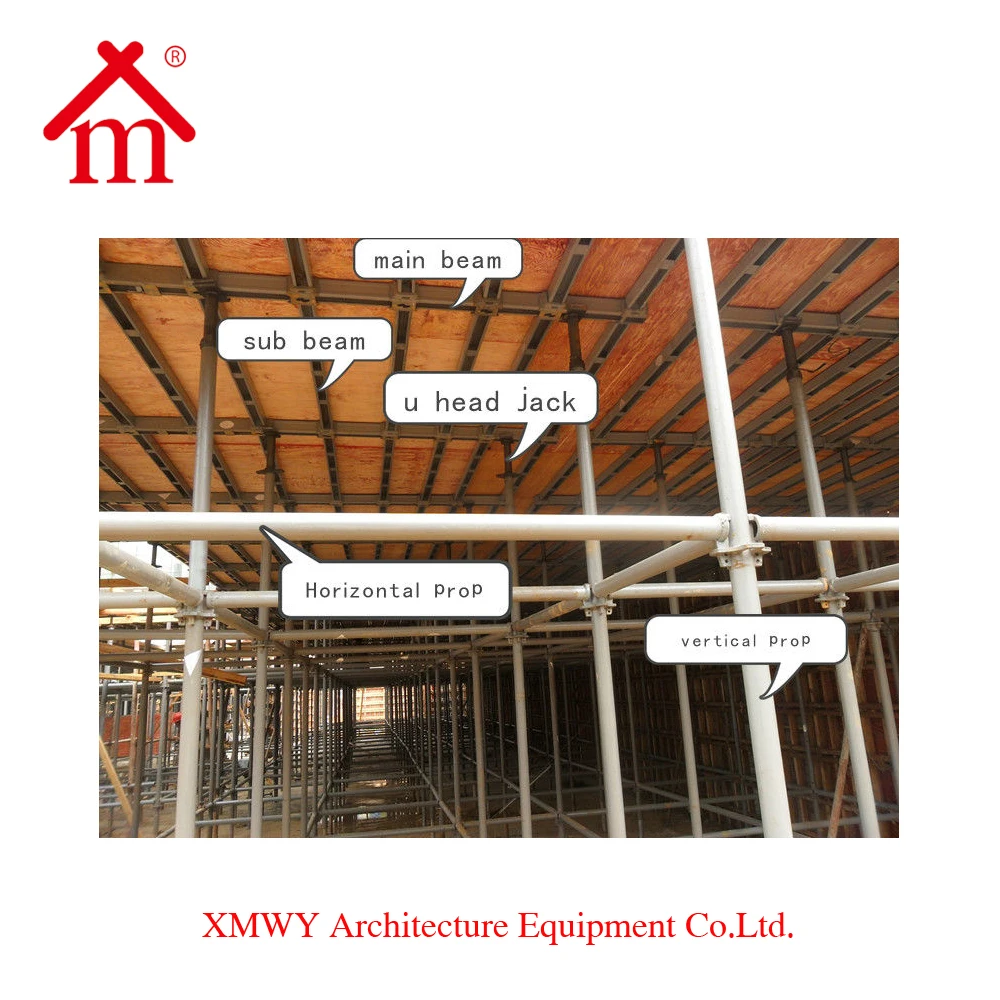

5.The main beams and vertical props combine with seamless steel pipe U-head screw which not only make the structure can bear more weight but also more stable.



6.The light structure of Horizontal props can save matertials and building spendings.The combination between props is more steady and safe.

7.Comparing with traditional timbers beam structure,our products are more precise at size and building structure.









  According to the customer's request , suitable for shipment





We can supply the shape , size , length that you need. Hope to build a long-term cooperation with you . If you want to know more about our products , contact me , we can show you how to operate our new scaffolding.
