Food Level Walk in Freezer with CE

Product Overview

Description

Cold Room, Blast Freezer, Refrigerator Room

Parameters:



Item	Cold Room
Brand name	Yuyan
Room size	L X W X H (m) will be customized
Temperature range	+5 to -5C (This temperature range is for keeping Vegetable, Fruit, Egg, Soft Drink and etc.)
	-10 to -25C (This temperature range is for keeping Meat, Seafood, Ice Cream Vegetable and etc.)
	-30 to -45C (This temperature range is for blast freeze, like fresh fish and meat, kitchen)
Insulation PU panel	Thickness: 50mm, 75mm, 100mm, 120mm, 150mm, 175mm, 200mm
Color steel sheet/ stainless steel sheet	Thickness: 0.4mm, 0.5mm, 0.6mm
Type of door	swing door/ sliding door/ rotating door/ self-returning door
Cooling system: compressor	Bitzer (Germany brand)
	Copeland (Amreican brand)
Cooling system: evaporator	air cooler (local brand)
Cooling system: refrigerant	R22/ R404A
Accessories	silicon, light, wire, copper pipe, expansion valve
Package	customize
Payment terms	T/T, L/C, western union
Delivery time	10-15 days after deposit
Warranty	1 year
Service	technicial support and accessories supply



Details:

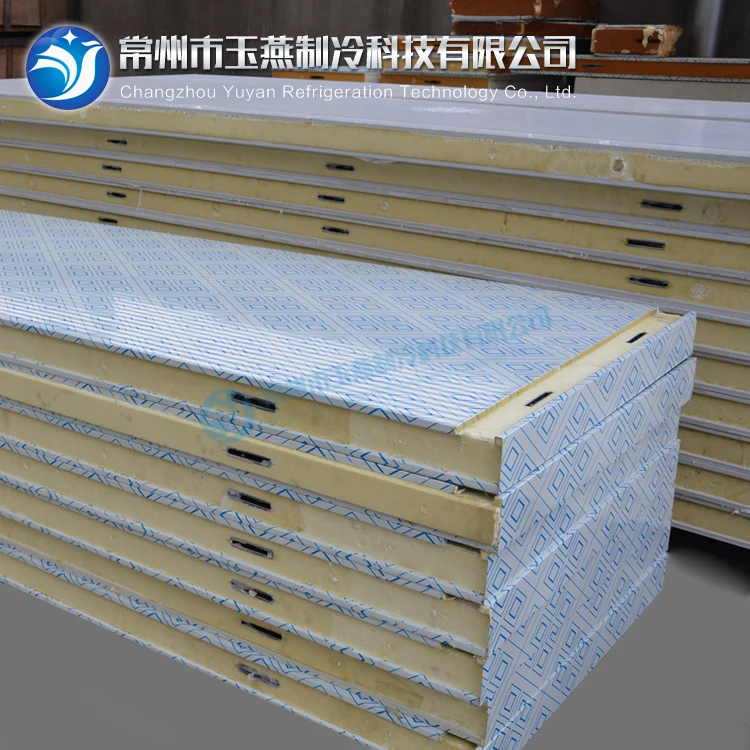

PU sandwich panels for cold room

Thickness: 50/75/100/120/150/175/200mm

Steel thickness:0.4/0.5/0.6mm

Density :40-42KG/M3

Connection : Cam lock. Very easy to assembly and disassembly.

Width and Length: The length can according to your cold room dimension , standard width is 1000mm.

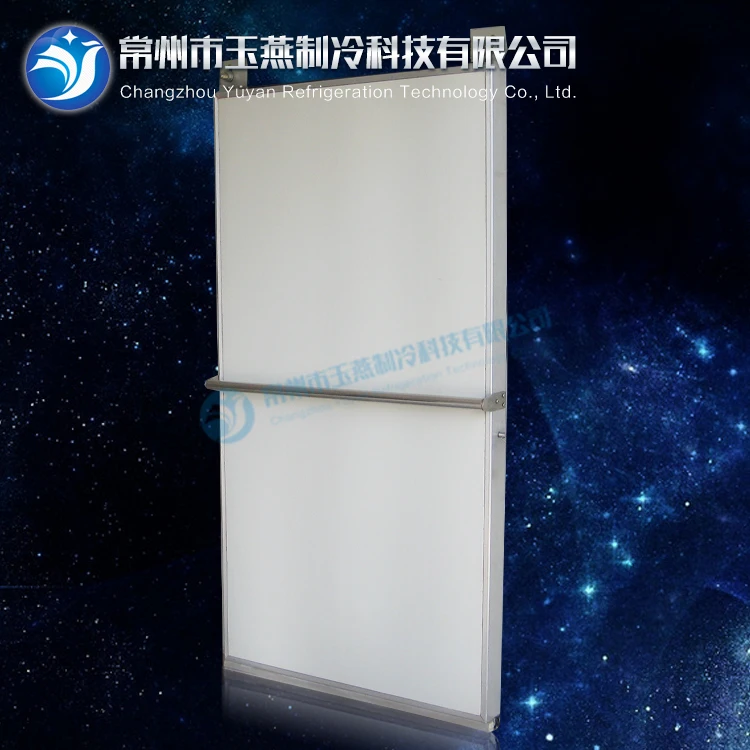

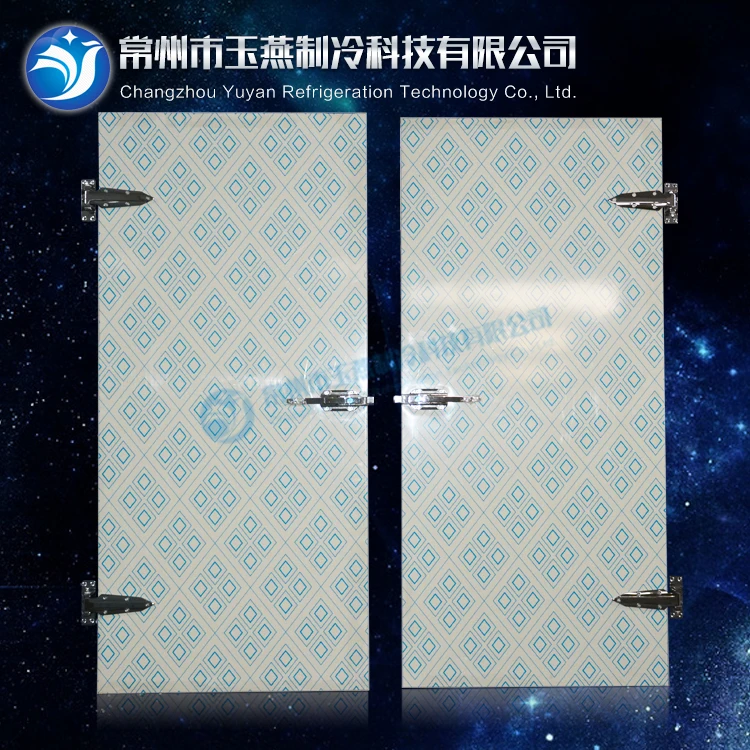

                                           Swing Door                                                 Sliding Door



1.Durable hardware and attractive hinges                                 4.Door heater wire
2.Better airtight performance                                                     5.Safety release handles
3.Aluminum or stainless steel railings                                        6.Customer-made and lightweight

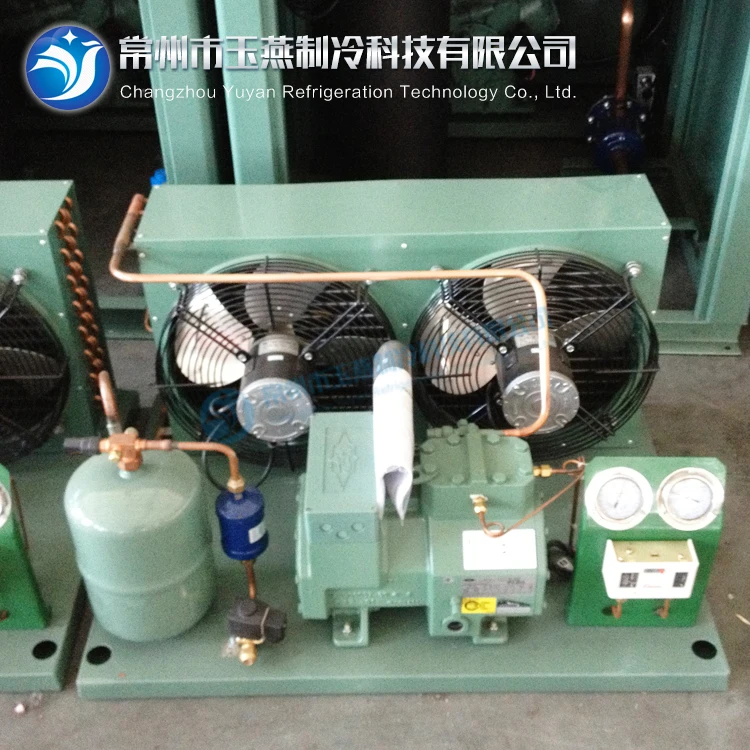

Bizter condensing unit
(1) Temperature range: -60C to +20C (-60F to +68F) are all available. But the temp. Range better no more than 15 degree.
(2) Size: Customize.
(3) Functions: Fresh-keeping, freezing, quick-freezing, fire-proof, explosion-proof, air-conditioning are all available.
(4) Fully automatic control system.
(5) Easy to install and dismantle
(6) Temperature Alarm
(7) Data Logger
(8)PLC electric control (LG, SIMENS, OMRON...Famous parts)
(9) Refrigerant: R22, R404A

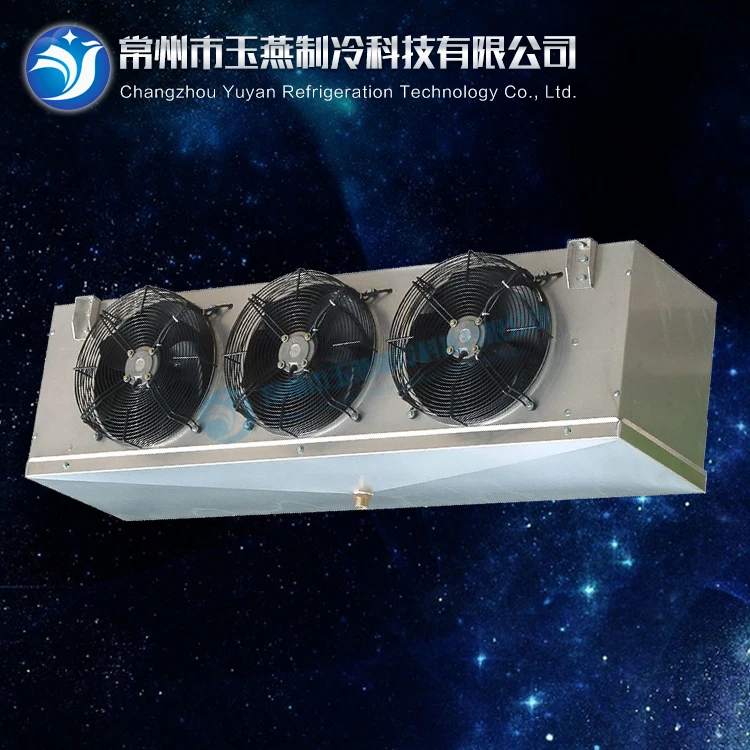

Evaporator:
1.High Quality Competitive Evaporative Air Cooler,Air cooled Evaporator
2.High efficiency coiler design: Small-sized spiralcopper tube
3.New-style wavy fin: aluminum, coated aluminum plate andmagnaliummaterial.
4 Choices: aluminum coated zinc plate,electrostaticpower painting plate and 304 stainless steel plate
5.Fan motor:external rotor motor withhigh efficiency and low power.

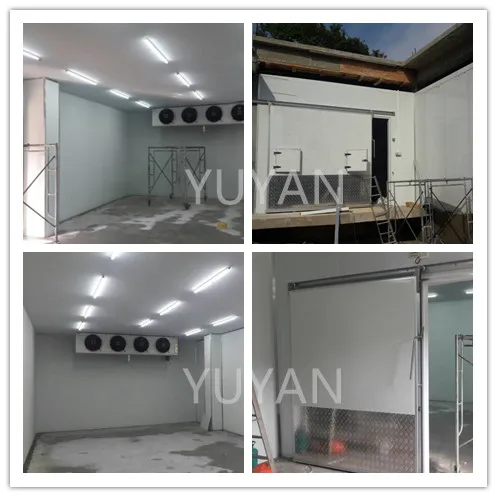

Project in Sri Lanka:
