ПК/ABS телефон/payphone/Койн телефон/промышленный телефон дешевый gigaset телефон

Product Overview

Description

China Xlong PC/ABS telephone/payphonr/coinphone/industry phone cheap  gigaset handset  specifications



1.vandal resistancy



2. good call transmission of the matching phone



3. Antiquet style, Retro design

4. Crystal clear voice

5. Noise reduction, Environmental protection

6. Pick up/hand up button



7. With Voice control button



8. Supply with a 3.5mm plug



9. Allows access to phone functions when making calls



10. magnet or reed switch in handset is available



11. Surface Rubber paint, soft touch



12. High quality speaker



13.special engineering plastic or ABS telephone handset with cord



14.high quality stainless steel armored cord and hook manufactured by ourselves can be matched



15.Noise reduction, Environmental protection



16. Reduce 96% radiation



17.cheap and safe  gigaset handset



18.  Mixed color,customized printed



19. retro classic style   telephone handset with cord



20. the use of special explosion-proof handle housing PC / ABS plastic.



21. integrated structure, flame retardant, does not burst at minus 40 degrees.

22. metal hose are made of imported 304 stainless steel, specified material of wire can be used according to customer



request .



23. high-strength tensile steel cable built in the handset , tensile strength ≥ 250kg.

24. the use of movable coil, puncture-resistant and high-fidelity transmitter and receiver, can also be noted in the selection of



       the electret requirements, anti-noise microphone, GB/T15279-2002 meets the requirements of 4.2.



25. CE and ISO 9001 approved



26. .range: can be used in chemical, explosion-proof telephones, telephones mines, anti-noise telephones, telephones ship,



prison telephones, public IC, coin machine, waterproof and dustproof telephone, self-service terminals and various other



communications equipment



technical parameters



main features	1.Handset body made of speical engineering plastic  PC
	2.Vadanl resistant, Good for fire resistance and hand feeling
	3.Pierce-proof and hi-fi transmitter and receiver
	4.Good call transmission of the matching phone, 4.2-in-GB/T15279-94-compliant
Service condition	1.Temperature: -30~+50°C      Relative humidity: ≤95%
	2.Atmospheric pressure: 80~110 kPa
	3.Ambient noise: ≤60dB      Explosion marking: ExdibBT6
	4. Working frequency: 300~3400 Hz      Level of protection: IP65
Transmission performance	1.SLR:5 ~ 15 dB
	2.RLR:- 7 ~ 2 dB
	3.STMR:≥ 7 dB
Customer choice	1.Magnets or reed  swith in handset is available.
	2.Armoured cord and coil cord are available
	3.Handset body can be made in red,yellow,blue
	4.Matt or brilliance of handset body is available.
	5.The length of armoured cord (90cm normally) is flexible, Diameter of the tube: φ8.4φ7.8φ6.5
	6.the length of standard coiled cable is 250mm when it is relaxed.
	7.Connector can be chosen according to connector series or designated by customer.
handset package	1.package:25pcs /ctn
	2.carton demension:430*380*390mm

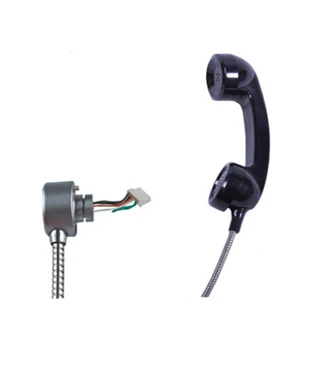

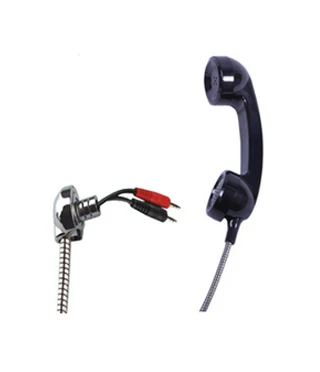

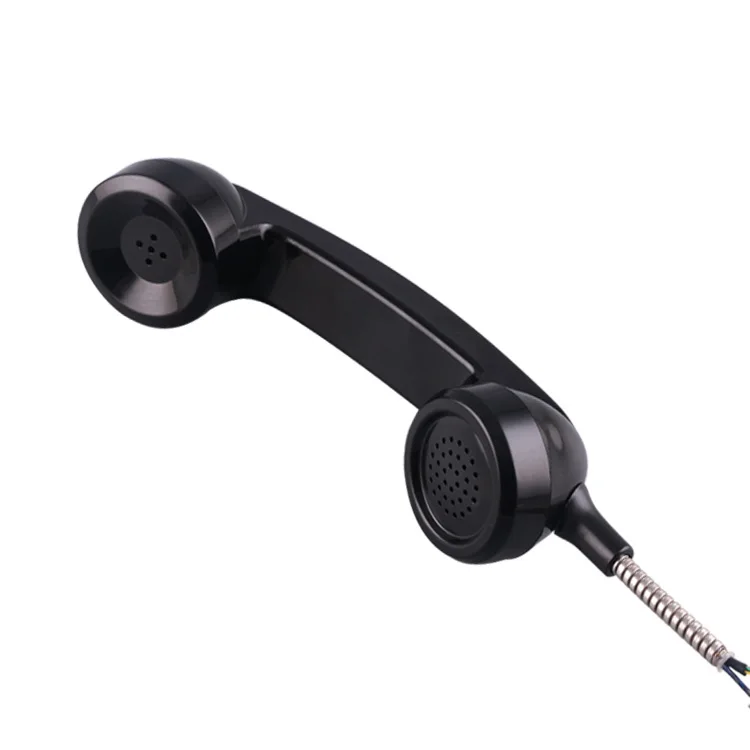

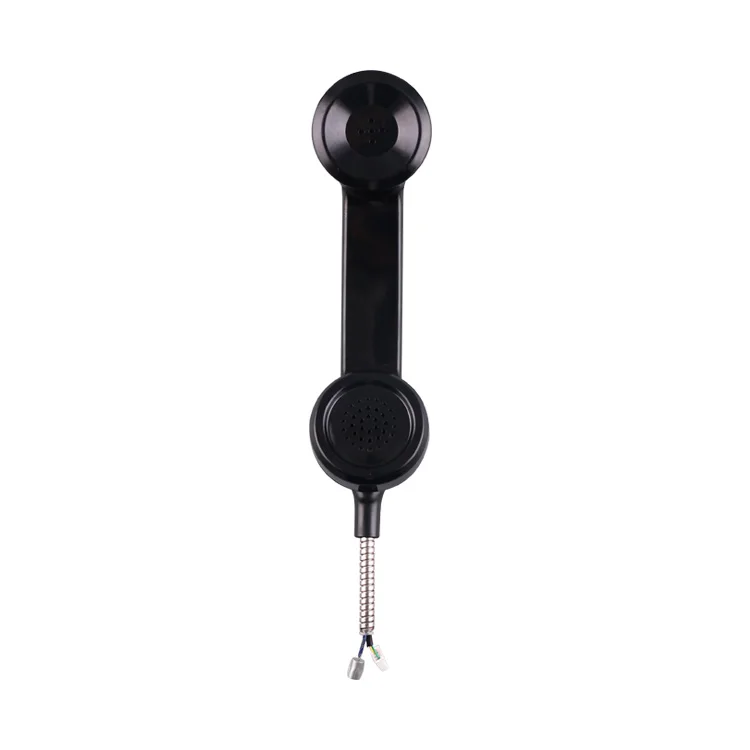

detail photos

Application context



factory photos





package

certifications

main customers
