Car oven for water based paint booth with CE

Product Overview

Description

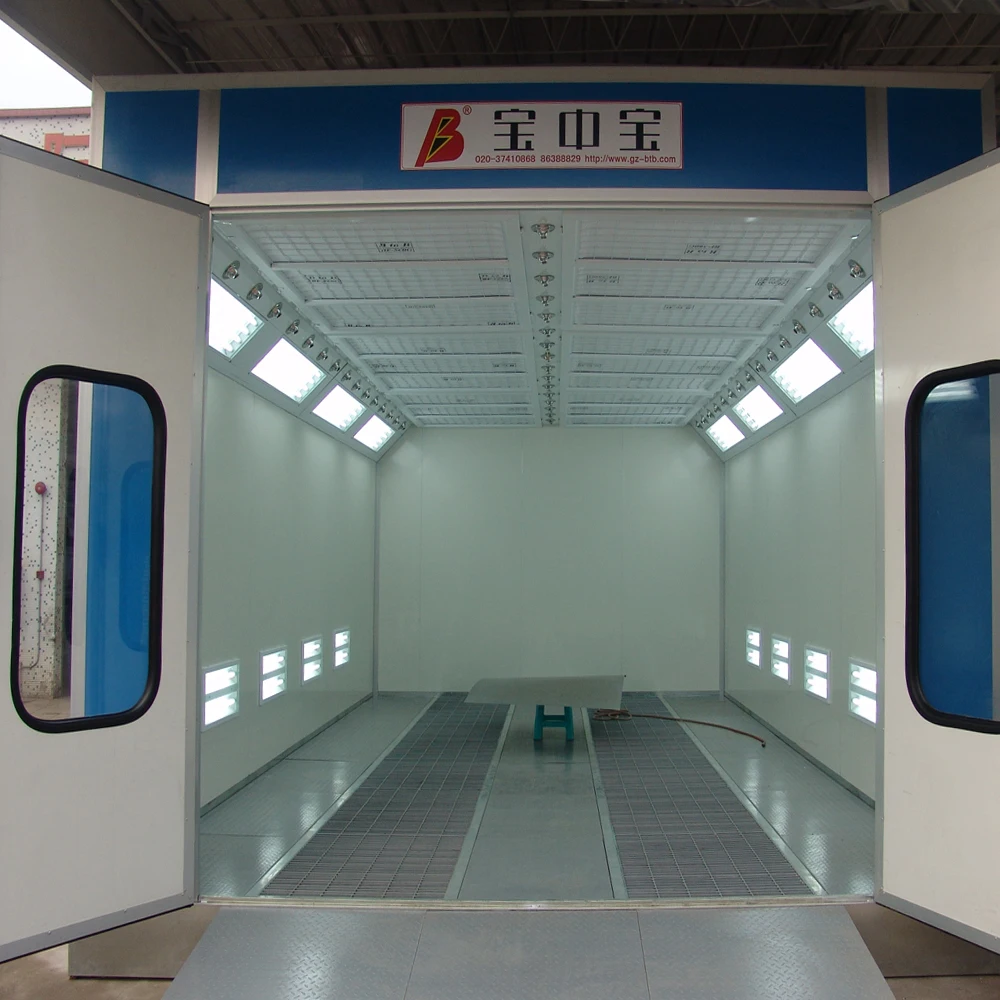

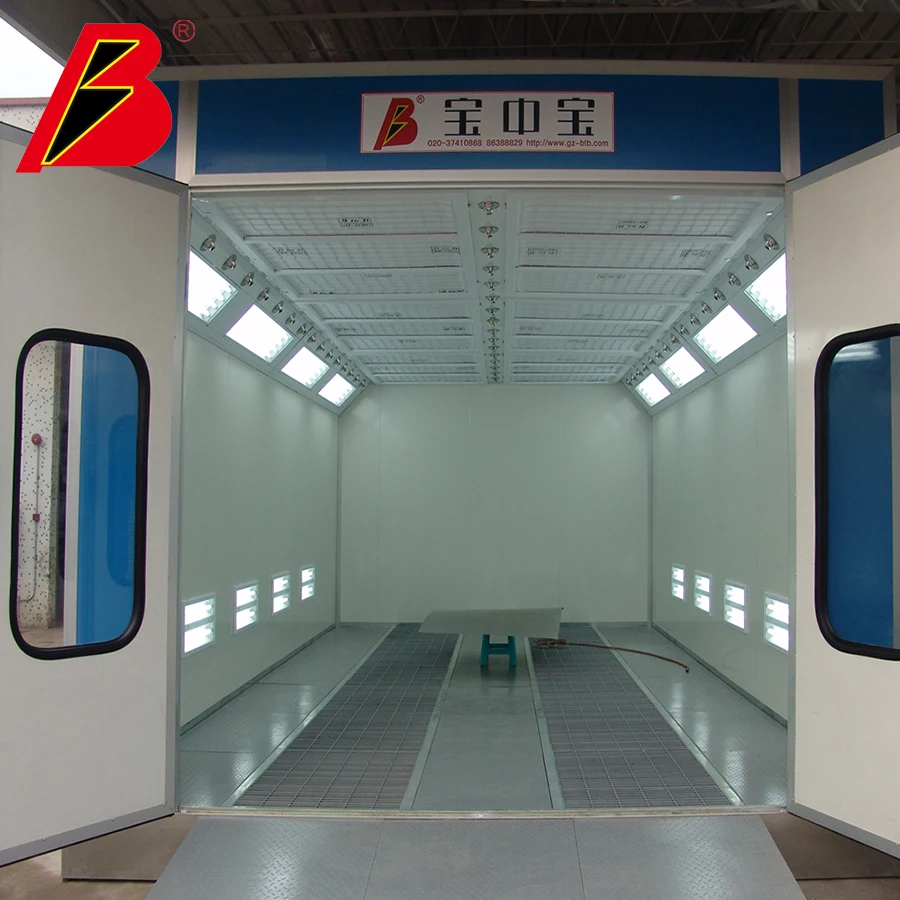

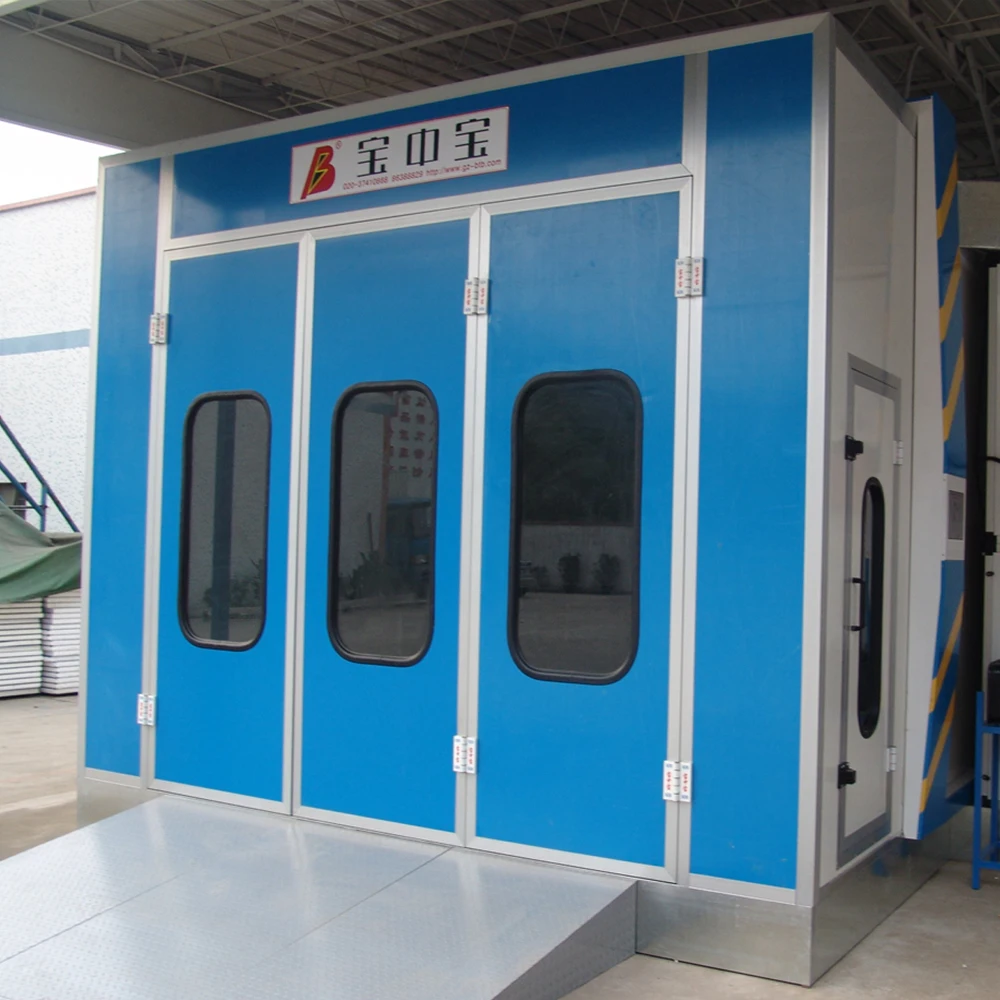

Car oven for water-based paint booth with CE



1	Exhause fan	7.5
2	Fan start method	Y/detal
3	Componets of control box	Siemens or Schneider brand
4	Ceiling filter frame	6pcs
5	lighting	New Led light
6	Duct adjustable damper	1 pcs yes
7	Thickness of door color steel	0.6mm
8	Glass of door window	tempering glass
9	Thickness of basement	Most is 1.2-1.5mm,double layer heat exchanger
10	Thickness of ducting	0.8mm
11	Thickness of roof cover	0.8mm
12	Thickness of heatexchanger	1.5mm
13	Thickness of chimney	0.8mm
14	Volumetric weight of EPS(panel)	18
15	Metal inside the fan cabinet	Rock wool
16	active carbon exhause	Yes



Outside dimension:7046*5896*4175mm(L*W*H);

Inside dimension: 7000*4000*2650mm(L*W*H);

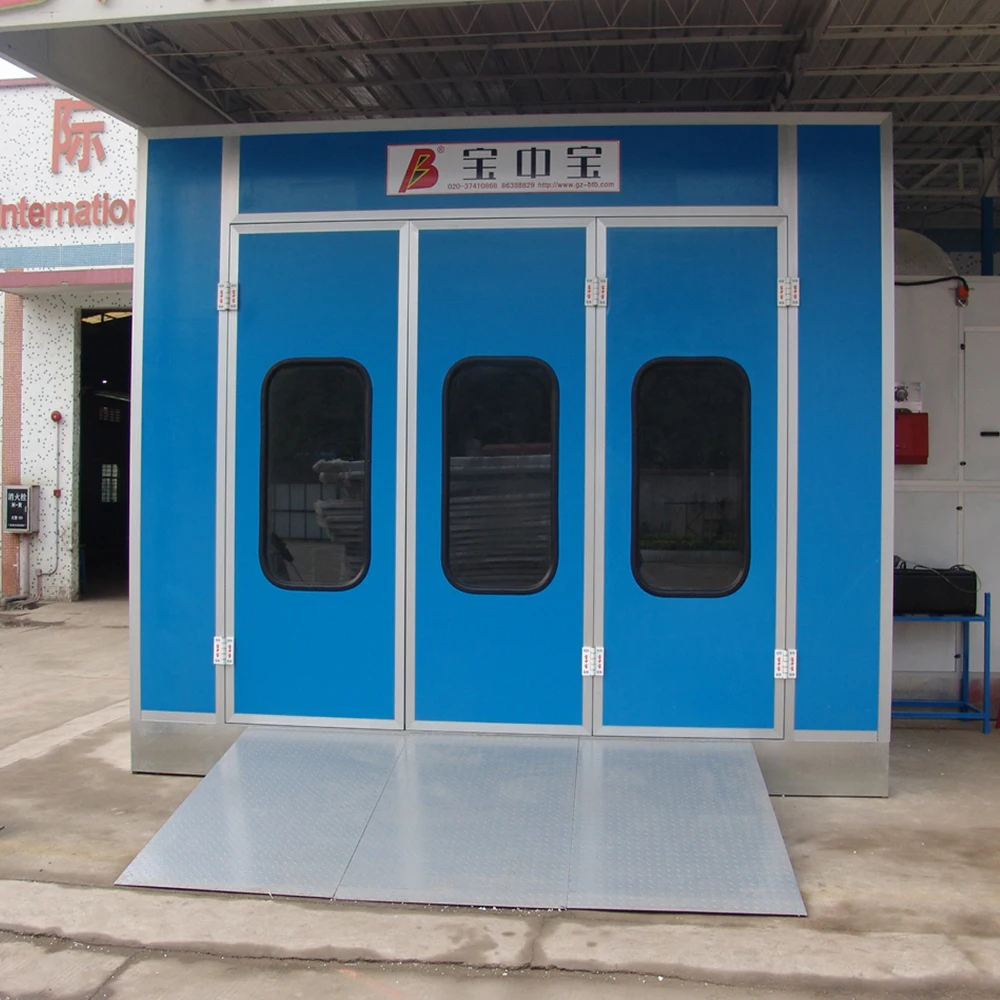

Front door dimension: 3000*2600mm(W*H);

Working door dimension: 650*1800mm(W*H);

Total Power : 26KW

Cabin System:

1) Wall board : EPS colorful steel skin board, wall panel : 70mm thick, ceiling panel:50mm thick rock-wool panel. The side door with a pressure lock which will automatically open when the pressure inside is over-pressure.

 2) full grids, adjustable height, galvanized steel sheet construction, three embossed steel ramp

3)The circulation system covers a set of automatic valve and two sets of manual valve. Manual adjustment valves are placed in inhaling and exhaust duct to control airflow volume and adjust pressure. A stainless steel trapezoid hood and a stainless cone hood.

Inlet Fan	Model:          YDW4.5L	Outlet Fan	Model:          YDW4.82-6.3EL
	Blower Capacity:      24000m3/h		Blower Capacity:     30000m3/h
	Power:           4kw		Power:           11kw
	Quantity:        2 sets		Quantity:        1 set

Water-borne Paintging System

36pcs ceiling nozzles and 2 corner dryers for the water-borne painting system.

Purification System:

dual filtering structure, the primary filter can capture granules larger than 10μm. Ceiling filter can capture granules bigger than 4μm.the whole purification system has capacity of large volume of dust. Its filtering rate reaches 98%.air pressure balance gauge, TSP≤1.2mg/m3

Heat System:

1)    Italy Riello RG5S diesel burner, heating capacity is 260000Kcal/h, 20N damper motor

2)    Heating exchanger,stainless steel, argon arc welding,heating exchange tate 85%

3)    Max temp:80℃, heating time :6-10min(20-60℃), fuel consumption:6-8kg/vehicle

Lighting System:

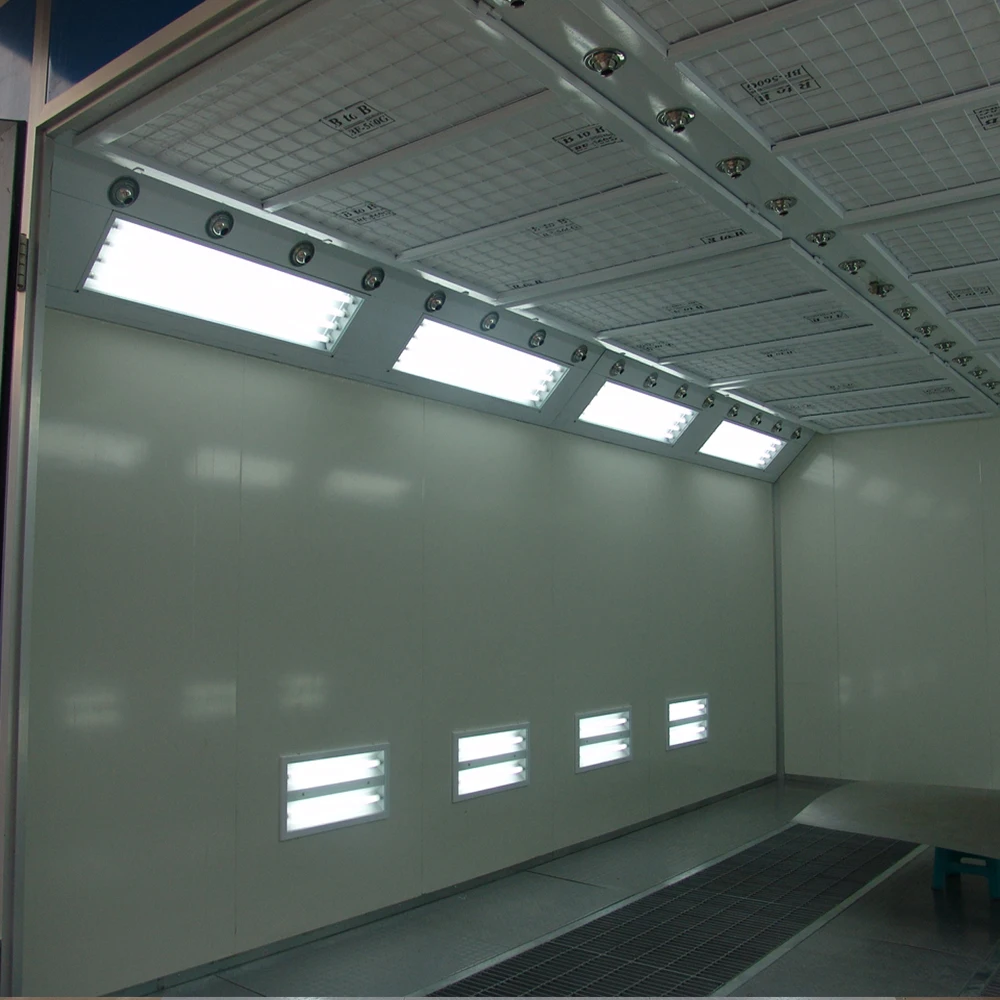

Ceiling Lights: 32Pcs x36W Philips lamp; bottom light : 32pcs 20w Philips lamp, 1100Lux

Controlling System:

PLC digital controlling, soft touching button, spray & baking switch, light switch, emergency stop, breakdown alarm

Environmental System :

No-pump water curtain for mist filtering device can reduce more than 98% of the fog without the trouble of replacing drying-method filter by fully mixing fog, water and air, and ensure a qualified exhaust according to the relevant state standards
