MVSC/D180 Series Solenoid Valve
- Category: >>>
- Supplier: Ningbo Airtop Pneumatic Hydraulic Co. Ltd.
Share on (1965859675):
Product Overview
Description
Banner
Product Description
- As a professional solenoid valve manufacturer,AirTOP Pneumatic & hydraulic has a wide range of solenoid valves widely used in many sections of the industrial control systems.
- AirTOP solenoid valve have zero differential valves,plastic solenoid valves,high pressure solenoid valves,etc.
MVSC/D180 Series Solenoid Valve
Specification
Model | MVSC/D-180-3E1,E2 | MVSC/D-180-4E1.E2 | MVSC/D-180-4E2C.P.R |
Way Number | 3 | 5 | |
Valve Type | 2 Position | 2 Position | 2 Position |
Joint Pipe Bore Size | G1/8 | ||
Operating Fluid | Air | ||
Working-Pressure Range | 1.5~8kgf/cm2 | 2~7kgf/cm2 | |
Max. Pressure Resistance | 10kgf/cm2 | ||
Effective Section Area | 12mm2 | 12mm2 | 9mm2 |
Answer Time | 30ms | ||
Around Temperature | 5-50℃ | ||
Orientation Voltage | AC110V, 220V (50/60) Hz, DC24V | ||
Power Consumption | AC=3.7/3.1VA DC=2.9W | ||
Allowed Pressure Range | ±10% | ||
Insulation Class | F Class | ||

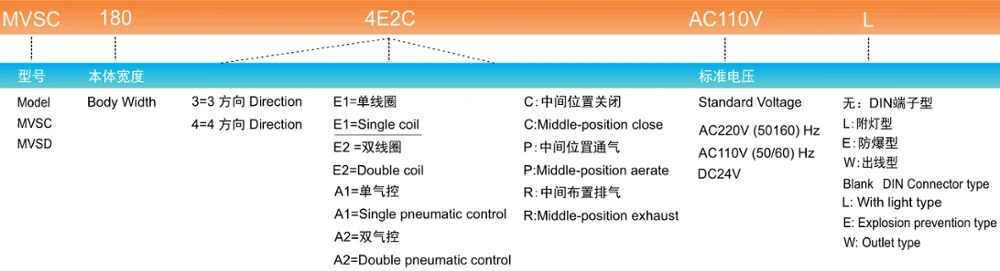

Ordering Code

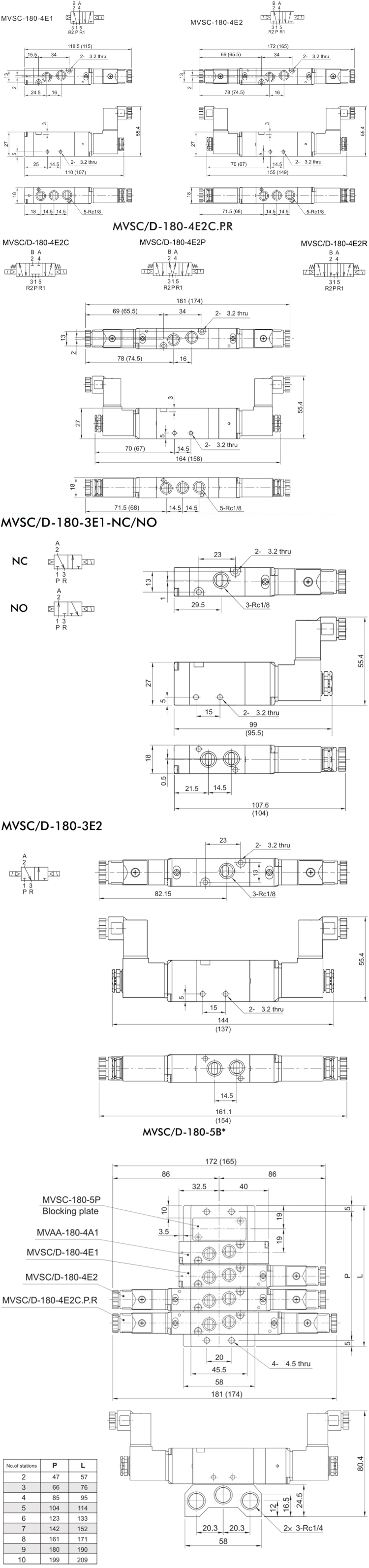

Dimension

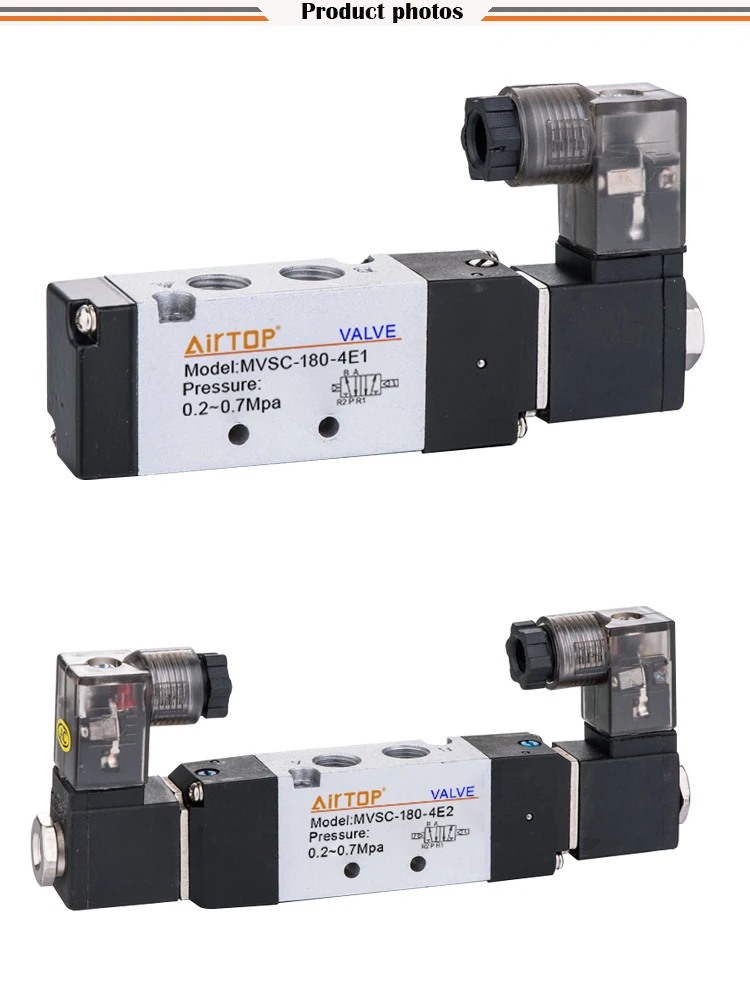

Product Photos
