Low Price Full Automatic Brine Pool Refrigeration Block Ice Machine on Sale

Details of SHARE block ice machine

• How the block ice machine works

1. Freezing period - ice forms in the rows of ice cans which are put into  big brine tank full of brine water,  after heat exchange with refrigerant flowing around the brine tank, temp of brine water would drop as low as about - 20 degree, meanwhile, fresh water in ice cans become chill and start freezing due to heat absorbed by brine water .
2. Thawing period - when freezing period is finished, rows of ice cans will be hoisted  and put into thawing tank ,and warm water inside would melt outer edge of  block ice within 3minutes.

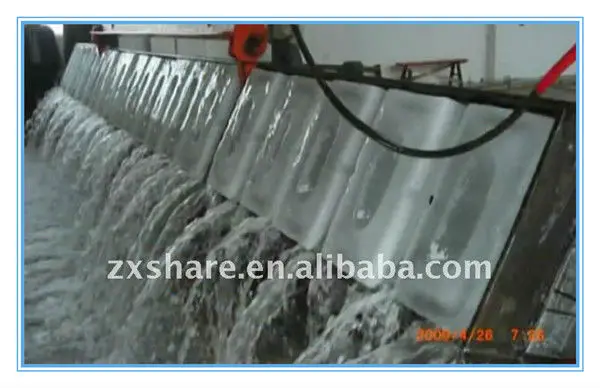

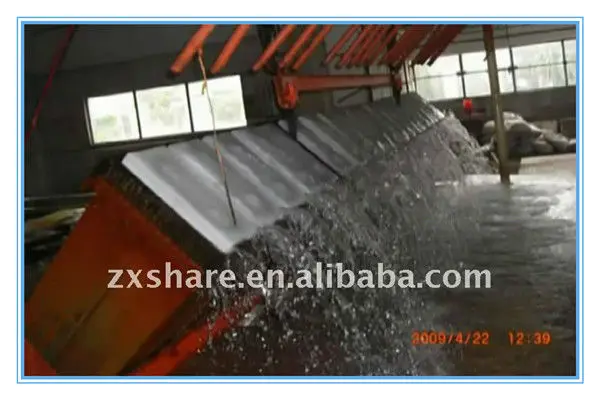

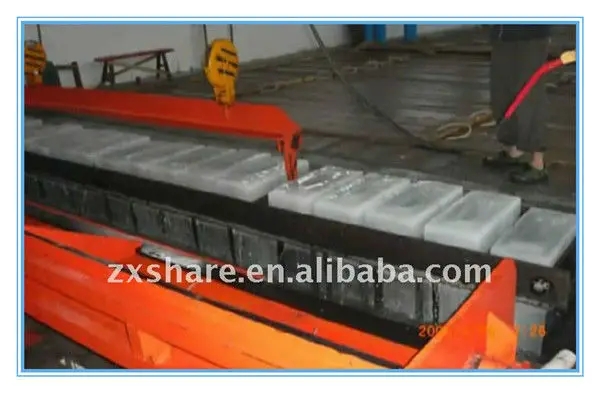

3. Ice dumping period - ice cans will be hoisted by crane row by row and put them on the dumper until ice slide out .

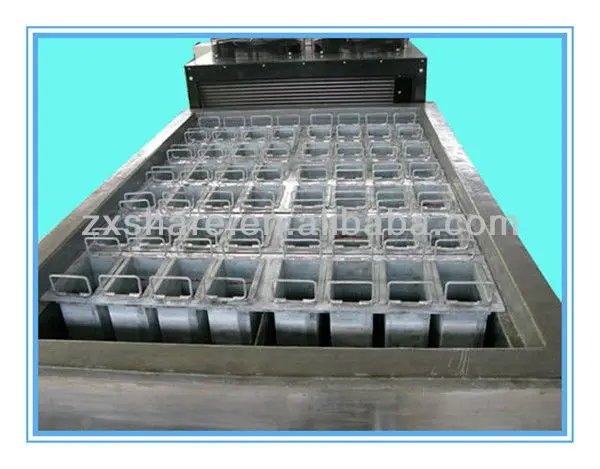

•  Ice cans

Ice can of block ice machine are made of stainless steel or galvanized steel with thickness of 1.5mm or 1.6mm

1.  Can is designed with top area bigger than the bottom in order to dump block ice easily ,
2.  Ice can is made of galvanized sheet or stainless steel, anti-rust ,corrosion prevention
3. Adopted thick galvanized sheet  with top weilding craftmanship, intensity guaranteed.

 Other size can also be offered according to your need

• Features of share  block ice machine

1.Applying stainless steel and digital control system.
2.Applying European compressor, with efficient evaporator for middle and low temperature.
3.Excellent water cool system and air cool system for choice.
4.Applying environmental refrigerant, stable working for many years.
5.Applying bevel door design which is more convient for taking out the ice.
6.Ice thickness is adjustable
7.Standard power supply:220V/ 50Hz Refrigerant:R404A /R22

• Basic parameter

                                              Ice block machine

 Application of block ice machine

1.Ice factory at ports and docks;
2.Fresh preservation and cooling of aquatic products;
3.Fresh preservation of aquatic products and foods during line haul;
4.Temperature reduction and cooling in specific fields;

5.Ice sculpture;
6.Edible ice for restaurant ,coffee house......

Block ice machine application

 Cooling project for Jerusalem Ice and Snow festival designed by SHARE

 Pre-sale and after sale service

1. 72 hours trouble-free operation before delivery

2. On-site training service

3. One to one service

4. 24-hour rapid response

5. 7 * 24-hour telephone support

6. Engineer available to service overseas

 Technique data of block ice machine

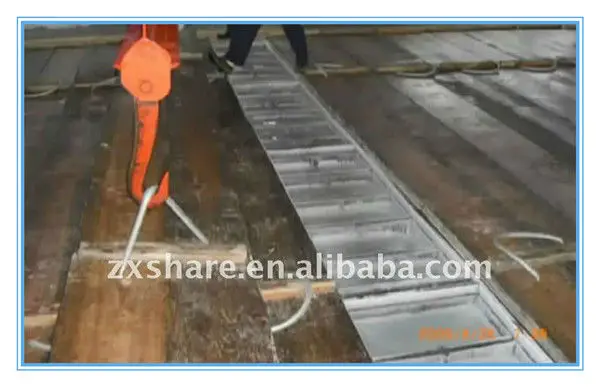

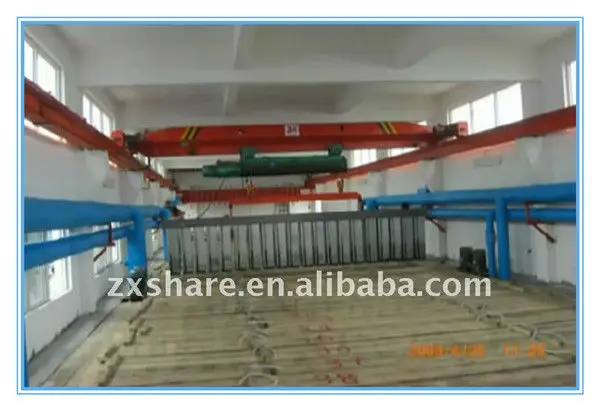

 Pictures of block ice machine we build for customers.

     block ice machine picture

    block ice machine picture

     block ice machine picture

      block ice machine picture

    block ice machine picture

• Buying guide

So if you are interested in our block ice machine, please let me know:

the daily output you want, your voltage, ambient temperature and water temperature and the ice weight you want, 10/15/20/25/50/100kg. I will surely give you the best price.
