HSS Imperial Metric No.70 Keyway Broaching Tool Set

Product Overview

Description

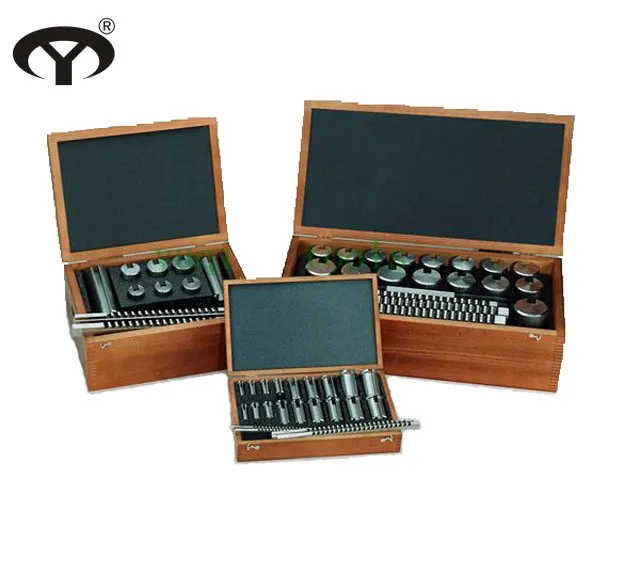

Our Broach Sets feature the most common combinations of Metric Keyway Broaches (2mm-18mm) and Bushings (6mm - 65mm)



No. 60 Metric SetEDP No. 44497	Keyway Sizes	Broach Style	Bushing Diameters (Bore Sizes)
The most common metric keyway combinations for small keyway and bores. 2 Broaches and 3 Bushings = 6 keyway combinations. Collared A Bushings
	2 , 3	A	6, 8, 10

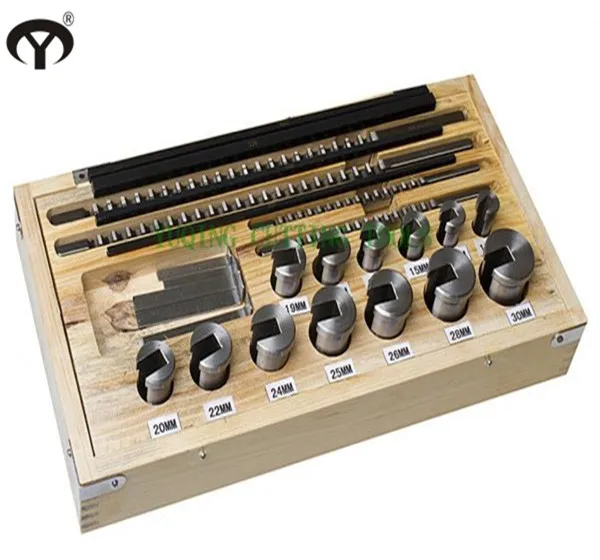

No. 70 Metric SetEDP No. 44498	Keyway Sizes	Broach Style	Bushing Diameters (Bore Sizes)
Our most popular metric Broach Set. 4 Broaches and 13 Bushings = 26 keyway combinations. Collared B1 and C Bushings
	4 , 5	B1	12, 14, 15, 16
	6 , 8	C	18, 19, 20, 22, 24, 25, 26, 28, 30

No. 80 Metric SetEDP No. 44499	Keyway Sizes	Broach Style	Bushing Diameters (Bore Sizes)
The most common metric keyway combinations for medium-sized keyways and bores. 3 Broaches and 12 Bushings = 36 keyway combinations. Plain D Bushings
	10 , 12 , 14	D	32, 34, 35, 36, 38, 40, 42, 44, 45,46, 48, 50

No. 90 Metric SetEDP No. 44500	Keyway Sizes	Broach Style	Bushing Diameters (Bore Sizes)
The most common metric keyway combinations for large keyways and bores. 2 Broaches and 8 Bushings = 16 keyway combinations. Plain E Bushings
	16 , 18	E	52, 54, 55, 56, 58, 60, 62, 65
