Chinese CATV rf 5 1000MHz 3 way splitter

Product Overview

Description

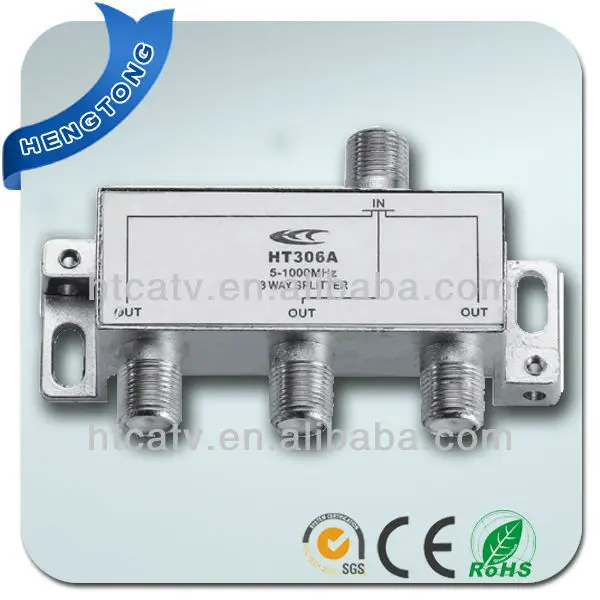

Chinese CATV rf 5-1000MHz 3 way splitter



ITEM		TYPE
	MHz	204	306	306U		408	610	811
Insertion Loss (dB)	5-10 MHz	≤3.5	≤5.7	≤3.5	≤6.8	≤6.8	≤8.9	≤10.6
	11-65 MHz	≤3.6	≤5.6	≤3.6	≤7.0	≤7.0	≤8.8	≤11.0
	66-750 MHz	≤3.8	≤6.1	≤3.8	≤7.5	≤7.5	≤9.9	≤11.5
	750-1000 MHz	≤4.0	≤6.3	≤4.0	≤7.8	≤7.8	≤10.2	≤12.0
Mutual Isolation (dB)	5-10 MHz	≥25	≥25	≥25		≥25	≥25	≥25
	11-65 MHz	≥28	≥26	≥28		28	≥28	≥28
	66-750 MHz	≥28	≥26	≥28		≥28	≥28	≥28
	750-1000 MHz	≥25	≥25	≥25		≥25	≥25	≥25
Return Loss (dB)	5-10 MHz	≥18	≥18	≥18		≥18	≥18	≥18
	11-65 MHz	≥20	≥20	≥20		≥18	≥20	≥20
	66-750 MHz	≥20	≥20	≥20		≥20	≥20	≥20
	750-1000 MHz	≥18	≥18	≥18		≥18	≥18	≥18







   1) 5-1000MHz Bandwidth,120dB EMI



   2) low insertion loss, High return loss and isolation



   3) Zinc alloy die-cast housing,tin or nickel plated



   4) Solder back housings,machine threaded,flat F-ports, 75Ω



   5) Capacitor at all ports provides effective DC voltage blocking



   6) Compliant with SCTE spliter guidelines



   7) CE Certified



   8) -6dB













 1.Careful Quality assurance and good after-sale service.



 2.Safe Packing: All the producuts were packaged in standard export carton



 to make sure long transportation safety.



 3.Certificates:CE



 4.Delivery Details:Professional delivery team

.

 5.OEM ODM welcome.





Please do not hesitate to contact me if you have any question , i will do my best jobs for you.
