High Temperature K Type OMEGA Thermocouple Connectors

Product Overview

Description







I .Name:   HMPW Mini Thermocouple Connectors

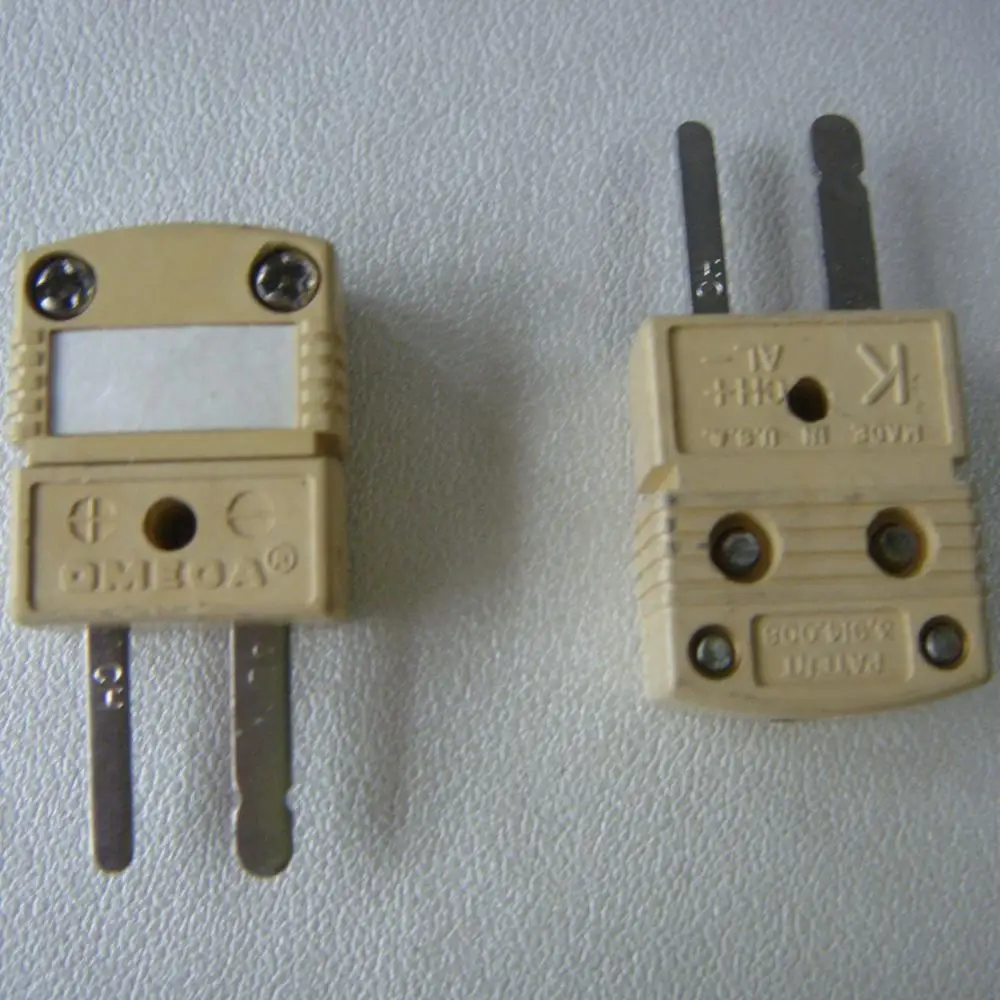

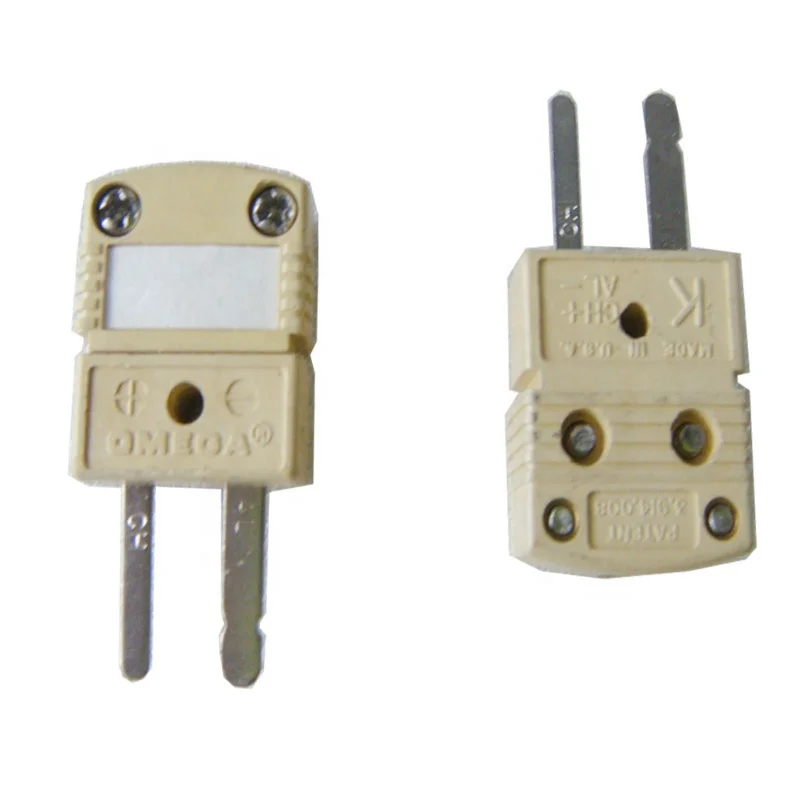

Liquid Crystal Polymer, w/ window, K thermocouple type, male/female connector pair



HMPW for Liquid Crystal Polymer w/Window



II.  HMPW Thermocouple Connector Specifications



1.Mini Thermocouple Connectors

2.Type:K type connector

3.Economical Hollow-Pin Design connnector

4.Write-on Window on the thermocouple connector

5.Male and Female connector

6.  Liquid Crystal Polymer Connectors -29 to 260C

7.Quick Connector



III.Thermocouople Connector Installation:



Installation Note: for HMPW-x-F
When using the rivet hole as a hold down point the maximum screw size is 3-48-NC or M2.5 x .45
Maximum Torque Value is 2 pounds-force inch or .230 kilogram-force meter .





IV Thermocouple Option Descriptions



Option Descriptions
(1)	Thermocouple Calibration
	K for K Thermocouple J for J Thermocouple T for T Thermocouple E for E Thermocouple R/S for R/S Thermocouple U for Uncompensated Thermocouple N for Nicrosil-Nisil Thermocouple
(2)	Connector Type
	M for Male Only F for Female Only MF for Male/Female Pair
