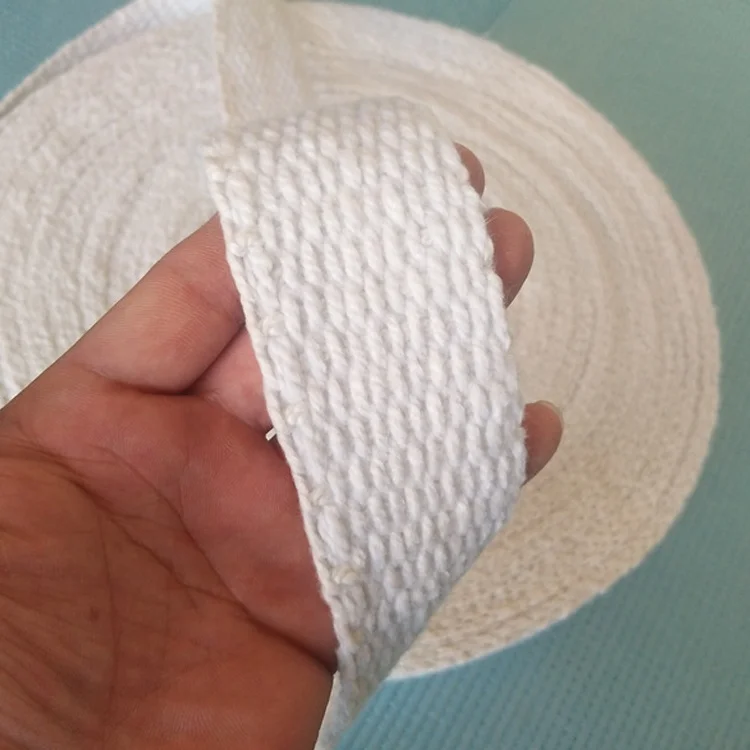

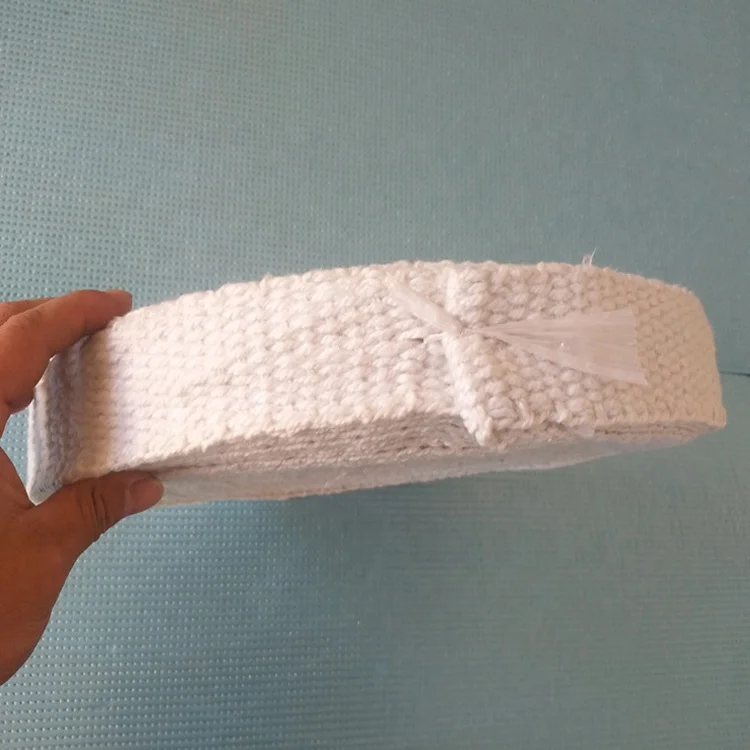

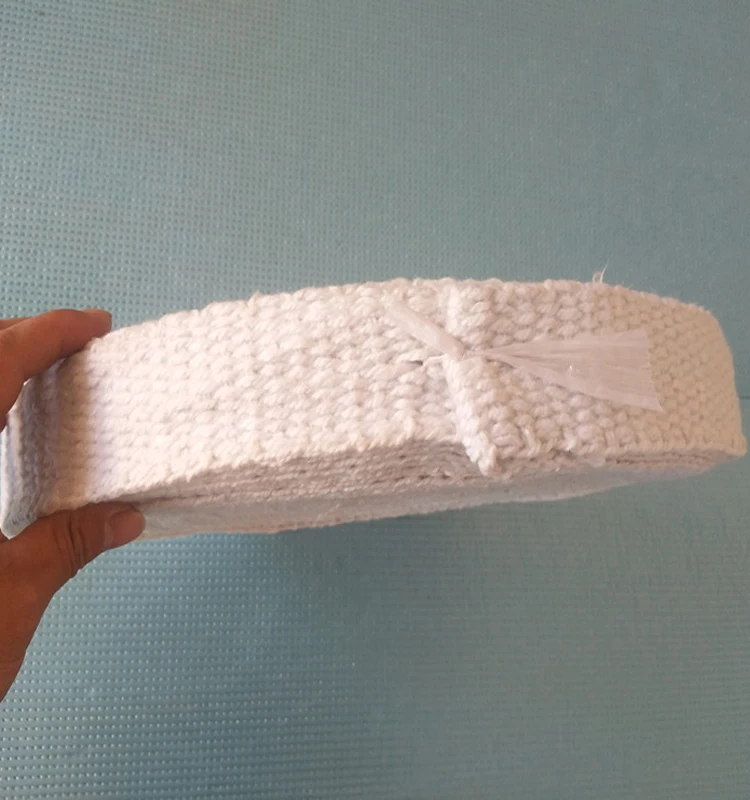

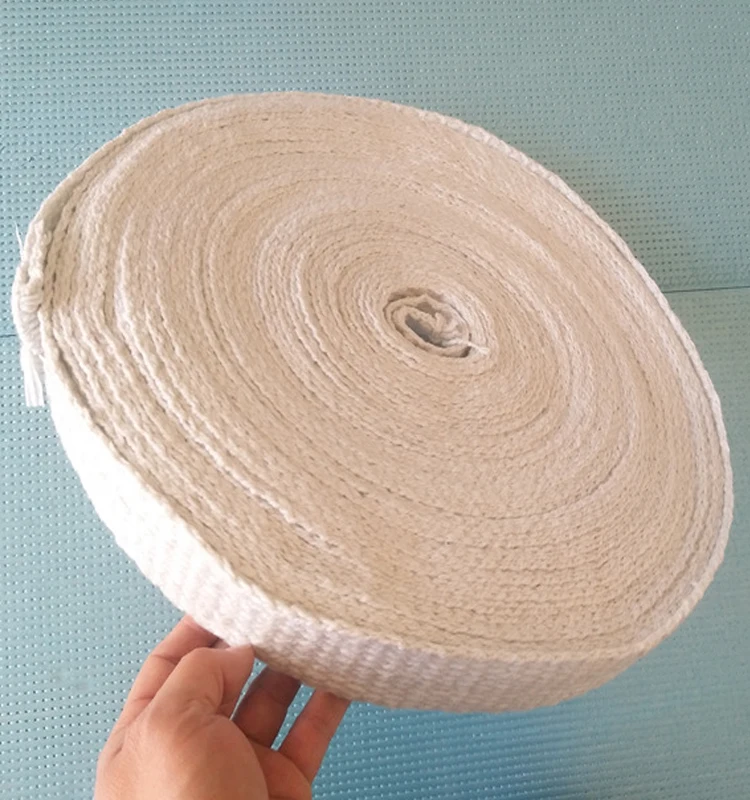

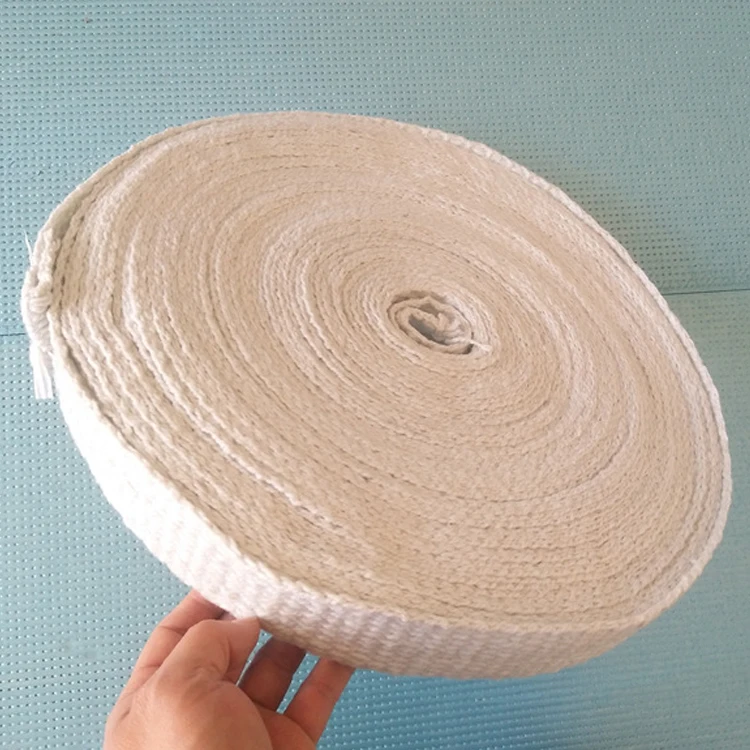

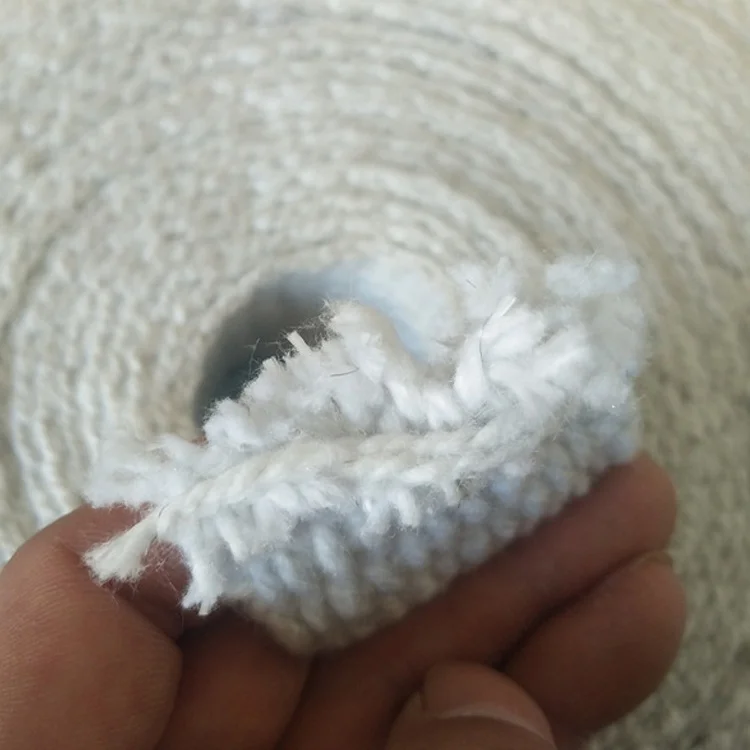

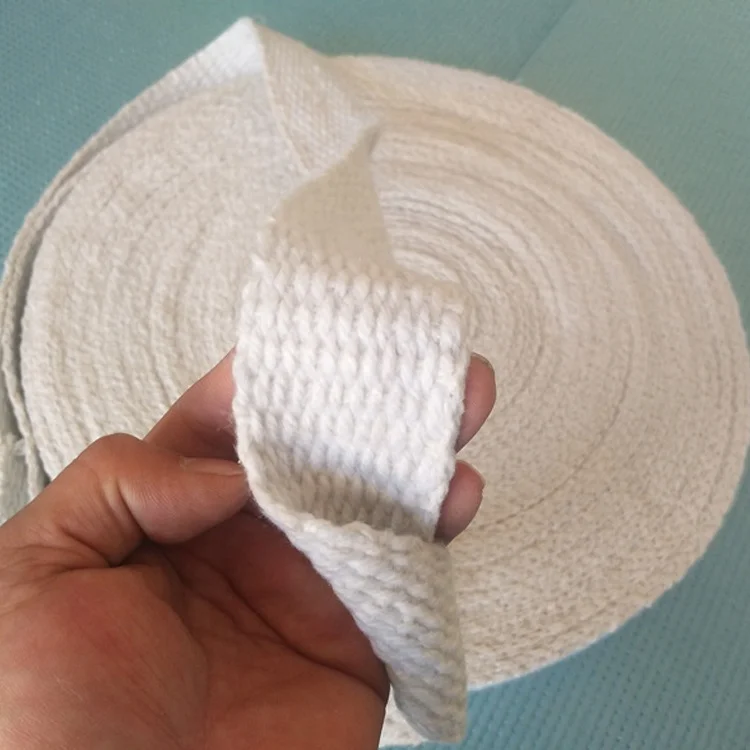

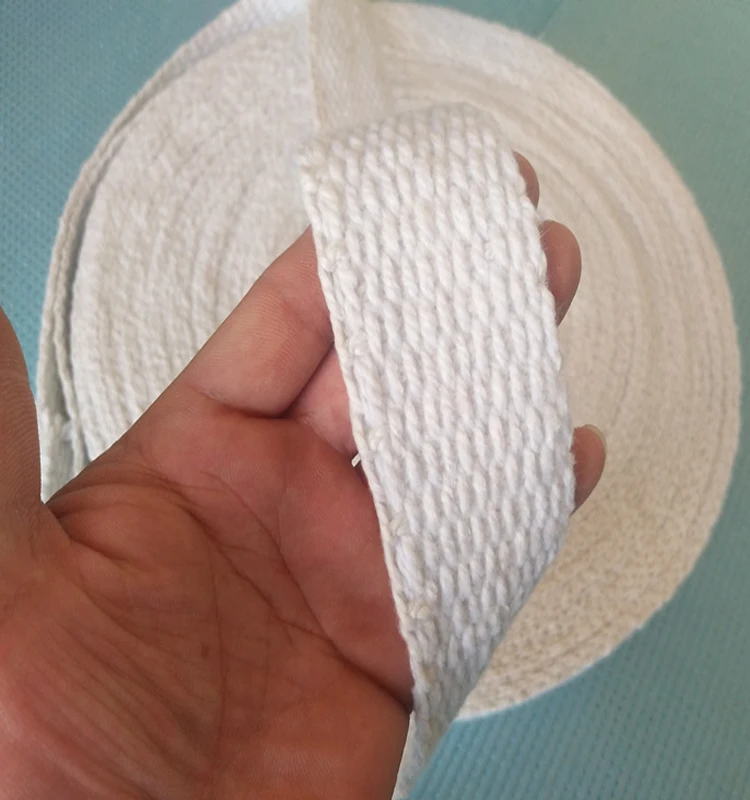

Ceramic Fiber Tape is a woven tape made of our high quality ceramic fiber yarns. It can be used for high temperature applications up to 1000°C. The tape is reinforced with fiberglass filament, and optional stainless steel wire. It contains a certain amount of binder material which is normally burned at lower temperature and does not affect the insulation property.
Application
Idea for protective and insulating covers or shields, cable or pipe wrapping, expansion joints, high temperature seals or gaskets. The product has been widely used in welding, foundry works, aluminum and steel mills, boiler insulation and seal, exhaust systems, shipyards, refineries, power plants, and chemical plants.
Specification
Item No.
Thickness
Width
Length
Reinforced
Weight Per Roll
TCR2900G-2-25-30
2mm
25mm
30m
Glass yarn
0.83kg
TCR2900G-2-50-30
2mm
50mm
30m
Glass yarn
1.65kg
TCR2900G-2-75-30
2mm
75mm
30m
Glass yarn
2.48kg
TCR2900G-2-100-30
2mm
100mm
30m
Glass yarn
3.3kg
TCR2900G-3-25-30
3mm
25mm
30m
Glass yarn
1.05kg
TCR2900G-3-50-30
3mm
50mm
30m
Glass yarn
2.1kg
TCR2900G-3-75-30
3mm
75mm
30m
Glass yarn
3.15kg
TCR2900G-3-100-30
3mm
100mm
30m
Glass yarn
4.2kg
TCR2900S-2-25-30
2mm
25mm
30m
SS wire
0.86kg
TCR2900S-2-50-30
2mm
50mm
30m
SS wire
1.73kg
TCR2900S-2-75-30
2mm
75mm
30m
SS wire
2.59kg
TCR2900S-2-100-30
2mm
100mm
30m
SS wire
3.45kg
TCR2900S-3-25-30
3mm
25mm
30m
SS wire
1.1kg
TCR2900S-3-50-30
3mm
50mm
30m
SS wire
2.25kg
TCR2900S-3-75-30
3mm
75mm
30m
SS wire
3.4kg
TCR2900S-3-100-30
3mm
100mm
30m
SS wire
4.5kg
*Specific products could be made according to customers’requirements.
