Corrugated Metal Culvert Pipe Making Machine

Product Overview

Description

  Corrugated Metal Culvert Pipe Making Machine

This Corrugated Metal Culvert Pipe Making Machine is used for producing big diameter metal corrugated pipes. And the pipes can be used as supporting for grout when do the cement prefabricated, also for drainage, posttension, funcation pit, pile shell, etc

Corrugated Metal Culvert Pipe Making Machine is automatic and finished pipe is accurate.

Main technical data of Corrugated Metal Culvert Pipe Making Machine

No.	Item	Data
1	Diameter of tube	500~5000mm
2	Thickness of strip	2.0~3.0mm cold-strip steel
3	Width of strip	300mm
4	Decoiler	Automatic loading, hydraulic
5	Capacity of decoiler	Max. 5000kg
6	Locking type	Spiral locking
7	Corrugated specification	Width 76mm, height 25mm
8	Working speed	0~20m/min, adjustable
9	Cutting type	Plasma cutting
10	Driving system	Electric, hydraulic
11	Machine weight	10tons
12	Machine size (L x W x H)	Main machine: 4500 x 1600 x 1400mm Decoiler: 2500 x 1200 x 2000mm Unloading rack: 2000 x 1600 x 1400mm
13	Total power	44.5Kw
14	Voltage	380V/50Hz/3Ph
15	Control type	PLC

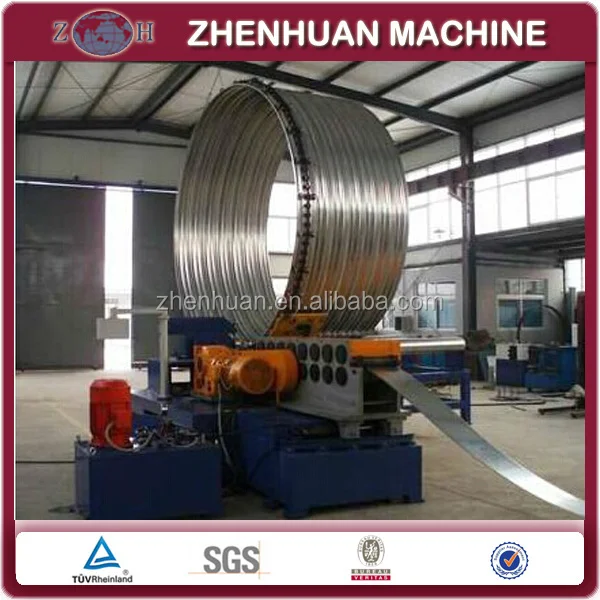

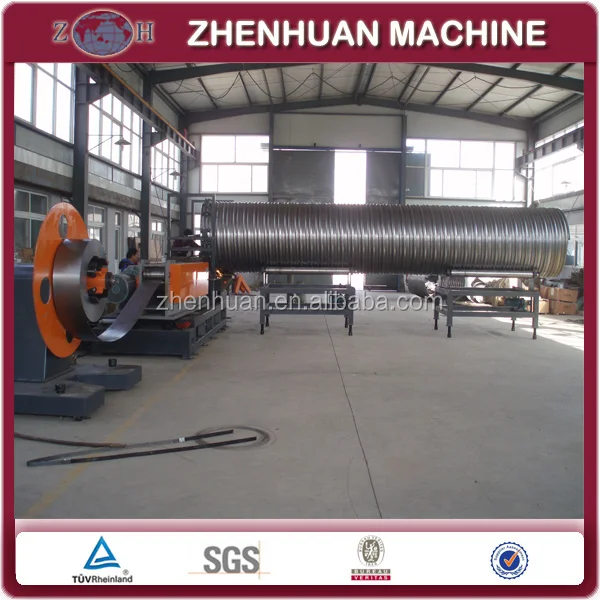

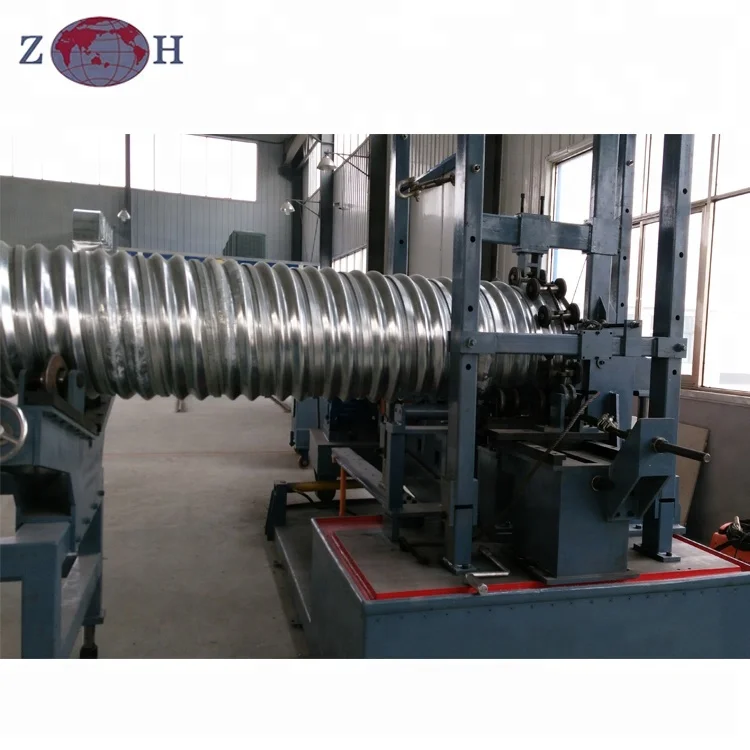

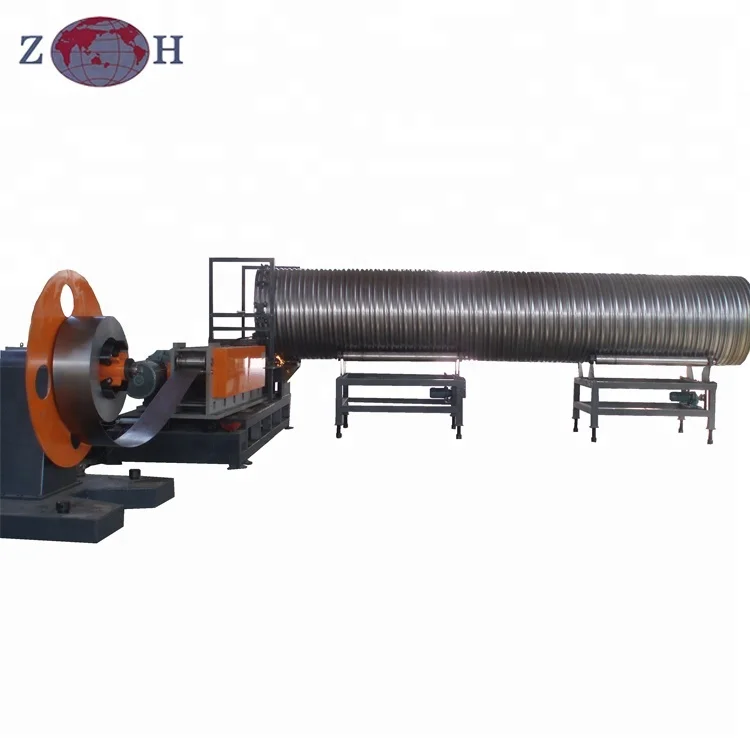

More photos of Corrugated Metal Culvert Pipe Making Machine

Our Nantong Zhenhuan Trade Co., Ltd. is specialized in machines more than 10 years, has certified by TUV, BV, SGS. Our company has good reputation and credit. We can provide you not only good quality Corrugated Metal Culvert Pipe Making Machine but also good after-sale service.

  Corrugated Metal Culvert Pipe Making Machine | Corrugated Metal Culvert Pipe Making Machine | Corrugated Metal Culvert Pipe Making Machine | Corrugated Metal Culvert Pipe Making Machine

Pls contact us for more information and service for Corrugated Metal Culvert Pipe Making Machine
