Wire Staple Pin/Paper Clip Making Machine

Product Overview

Description

Staple Pin Making Machine



The complete production line includes three sets of equipments.

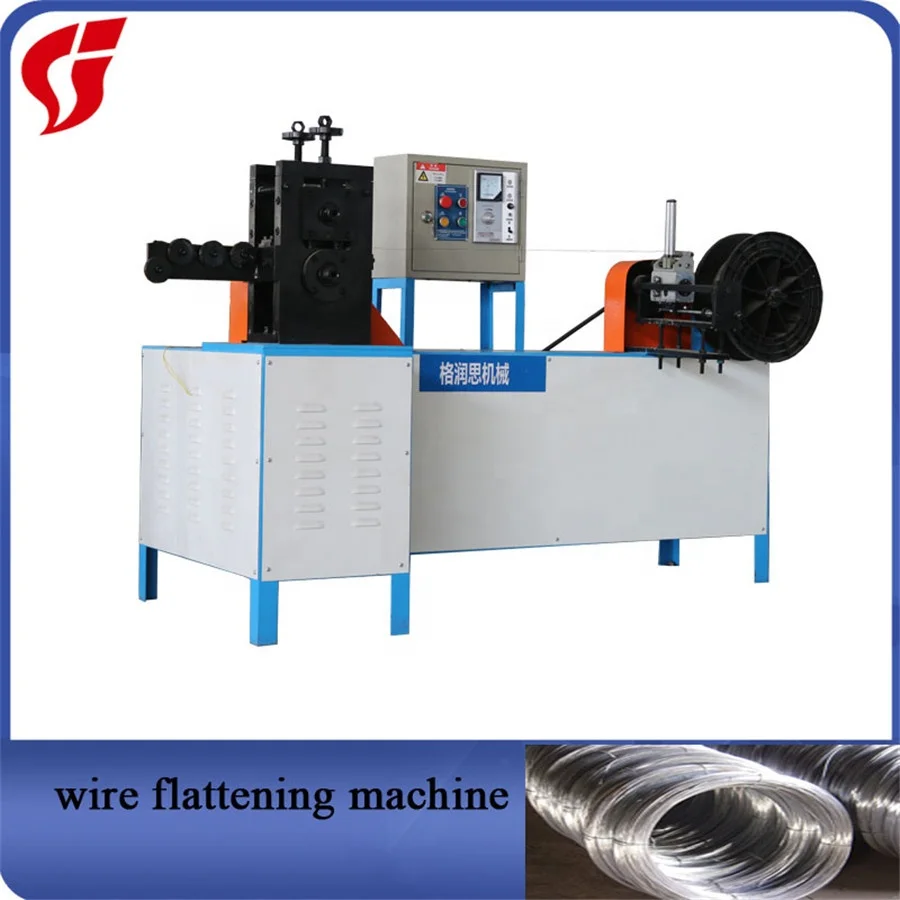

First step: wire flattener



to flatten the round wire into flatteded type.







max flattener wire diameter: 2.0mm



motor power: 2.2kw



speed: 0-300m/min



dimension: 2500*1500*1900mm3



weight: 600kg

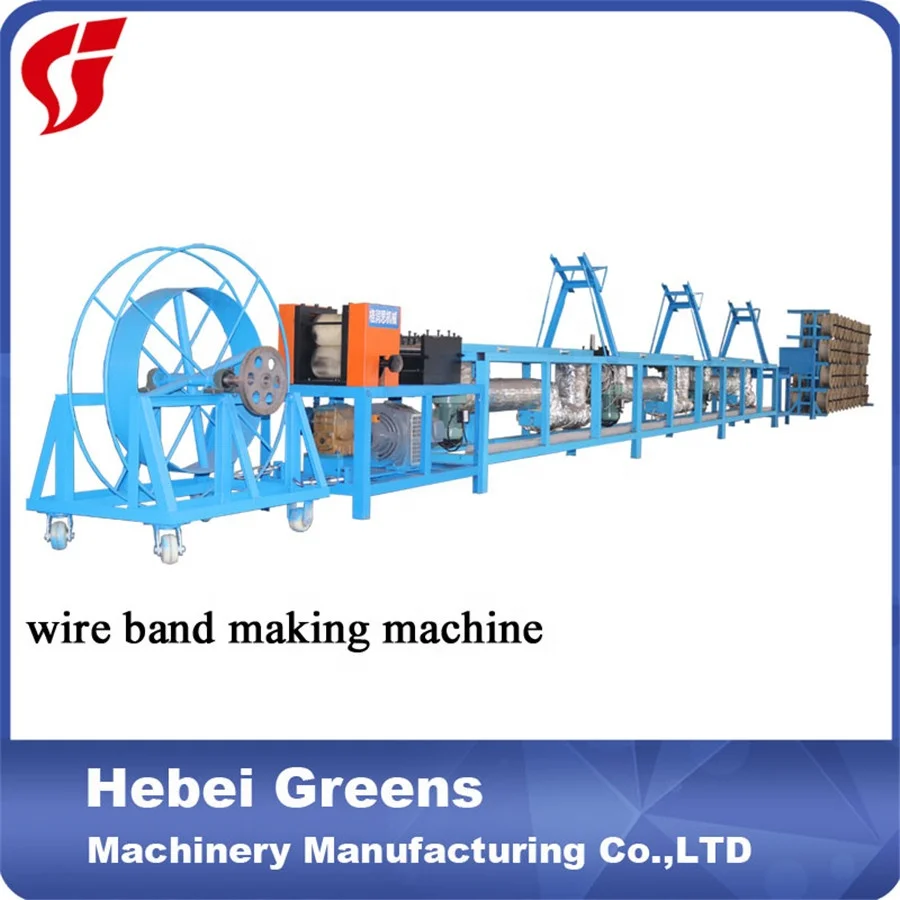

Second step: wire combining machine

To combine all the flattenen wire into wire band.







Motor power: 2.2kw



Heating power: 10.5kw



Rewinding wire speed: 0-15m/min



Max width of glue combiner: 0-150mm



Dimension: 25000*700*1500mm3



Weight: 1200kg



Temperature in heating room: 80 degree

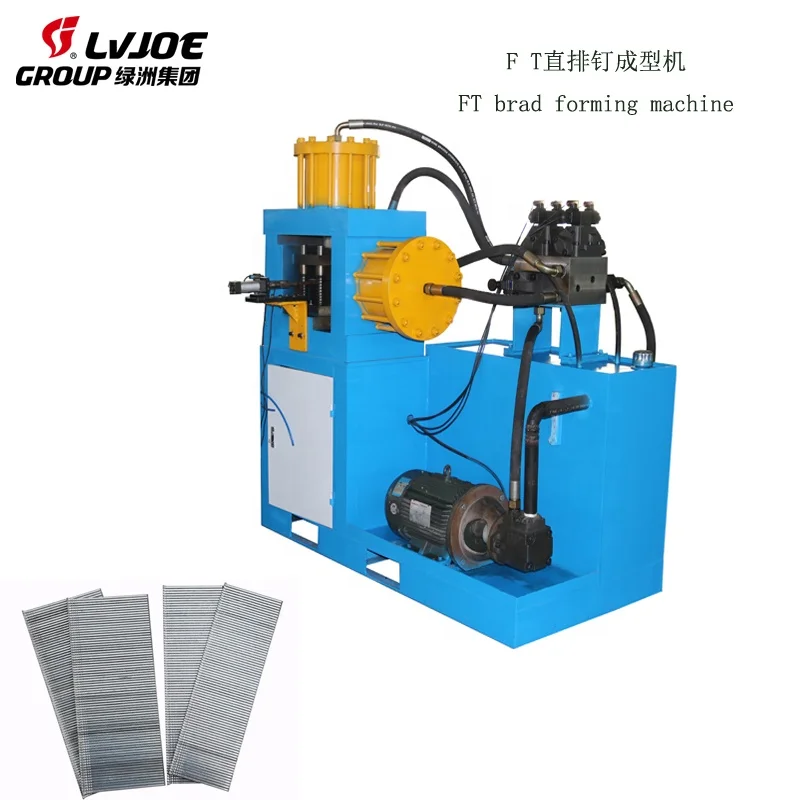

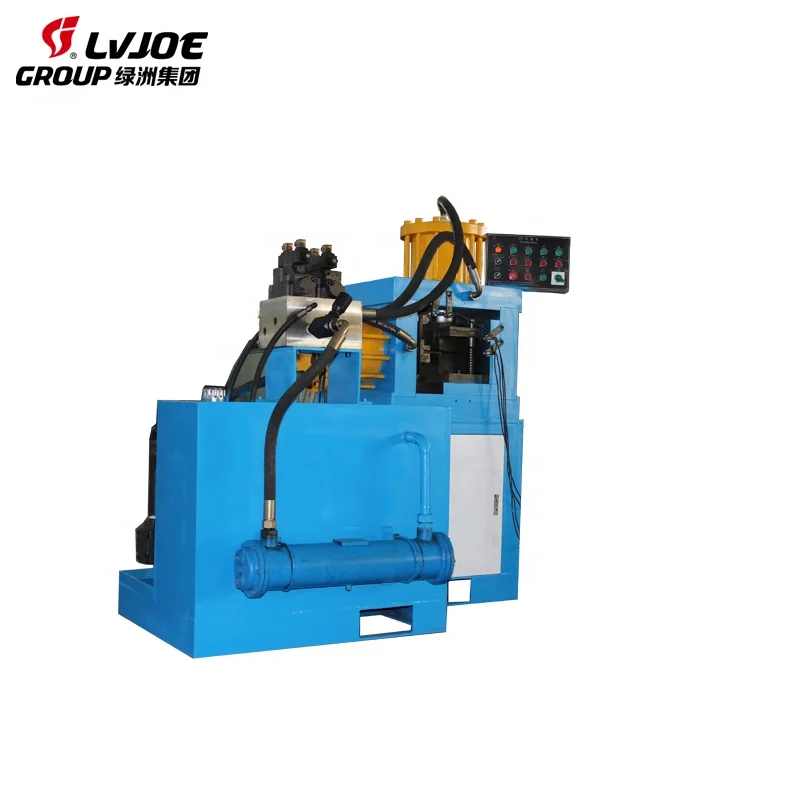

forming machine:

To form the wire band into F/T nails, J,N,K nails.





This machine combines hydraulic, pneumatic, and computer control.



Capacity: 120 pieces/min



Max length nail: 50mm



Motor power: 7.5kw



Dimension: 1200*1200*1500mm
