220V 4kg Mini Gold Casting Machine for Jewelry Casting

Product Overview

Description

220V 4kg Mini Gold Casting Machine for Jewelry Casting

JIU CHEN furnace is designed for handheld pouring directly from the specially designed crucible and tongs.
The crucible is grooved at the top for easy removal from the furnace using the specially designed tongs that are provided with the furnace.

JIUCHEN Gold Casting Machine  furnace meets the needs for individuals who are melting small to medium jobs. The unit is light and compact for easy travel.

Insulated lid holds heat in and keeps oxygen out for a cleaner melt.

We have professional packaging and shipping insurance so your purchase will arrive safely.

his package comes with all of these features listed:

This Furnace can be used for melting, casting, and pouring.

Melts Pure Jewelry grade Metals such as: Gold 8k-24k, Silver (coin,sterling,fine), Copper, and more.



If one customer order added up to 20units,we supply one new same furnace free during July to September,2014



MODEL	Int.Vol(L)	Acceptable Mass(kg)	Crucible Dim.(Øxh)(mm)	Power (kW)	Weight (kg)	Heating Speed (mins)
JC-K-110-1	0.14	1KG	Ø38X115	1	4	25-30
JC-K-110-2	0.23	2KG	Ø44X140	2	4.3	15-20
JC-K-220-1	0.32	3KG	Ø50X150	1	4.8	25-30
JC-K-220-2	0.34	4KG	Ø60X121	2	5	15-20





























One Furnace Unit delivery with:

Model JC-K-220-2(220V 2kw) Red,Blue ,Gray color is optional

1-1kg graphit crucible

1-crucible tongs.

1-replacement fuse.

1-insulating heat glasses.

1- gloves.

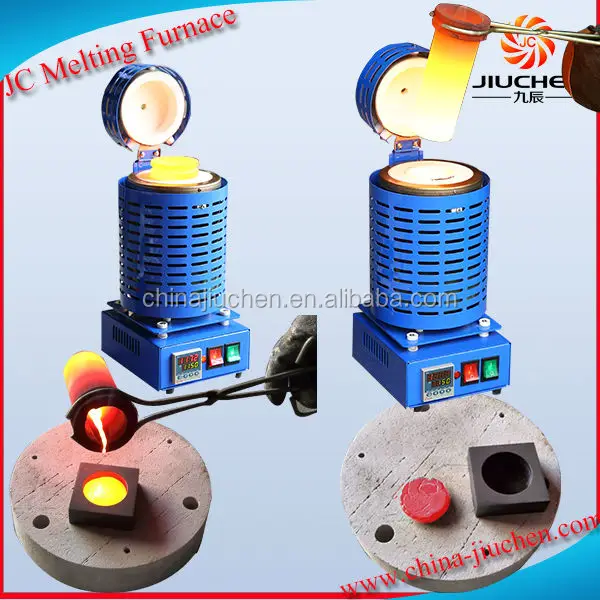

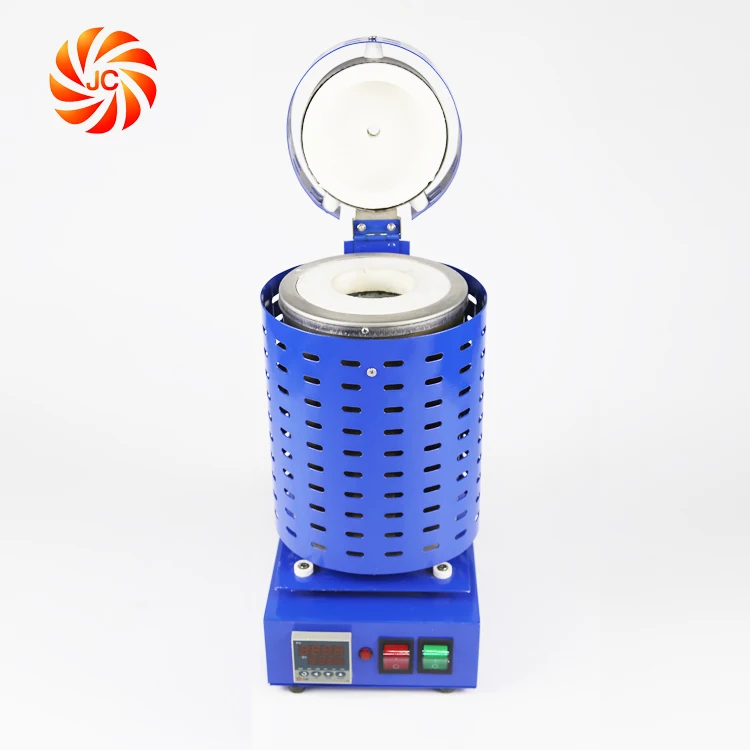

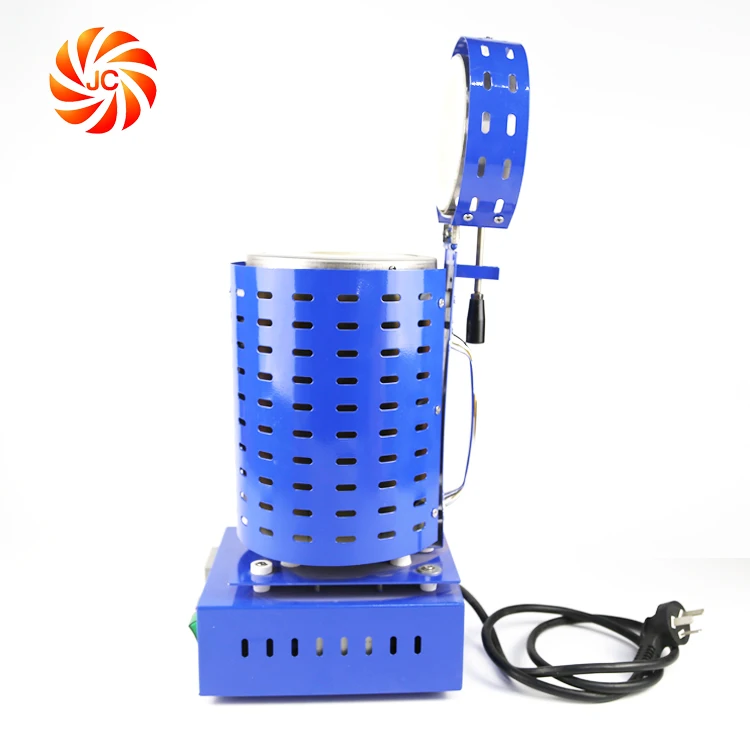

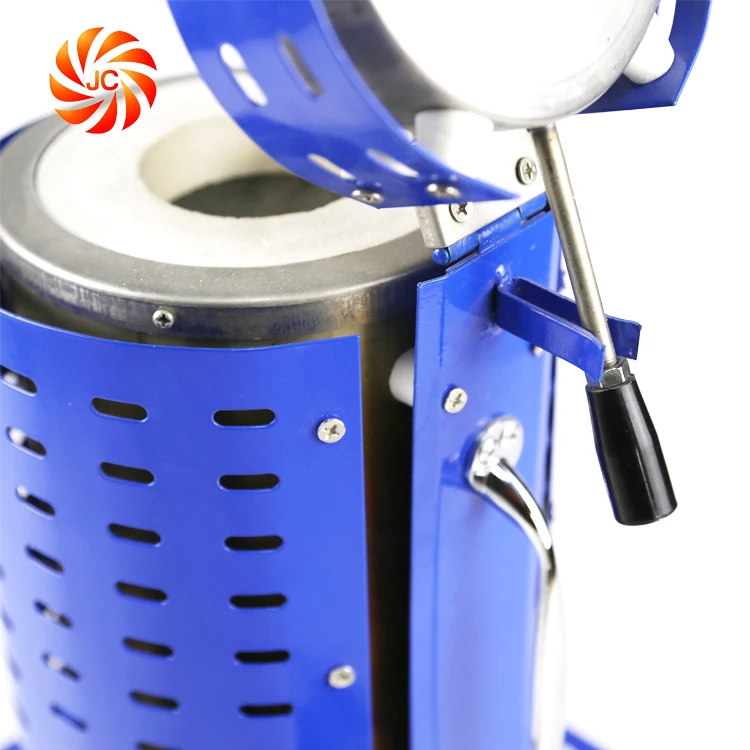

Gold Casting Machine Display

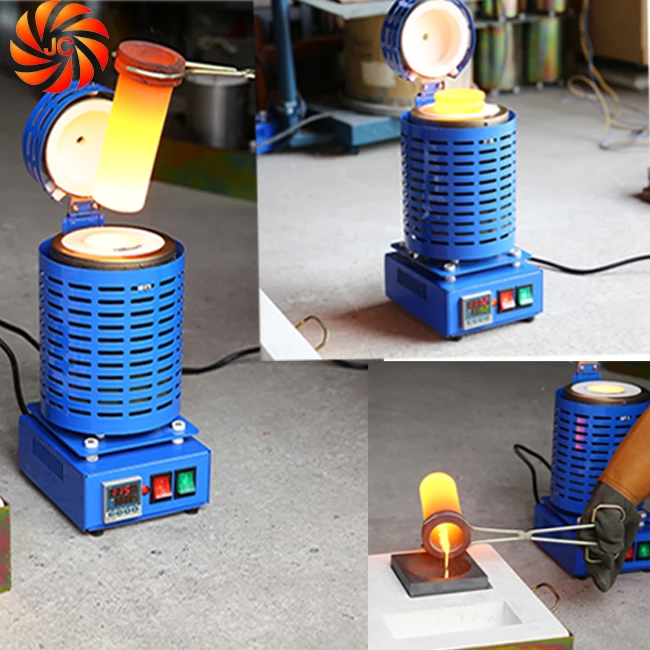

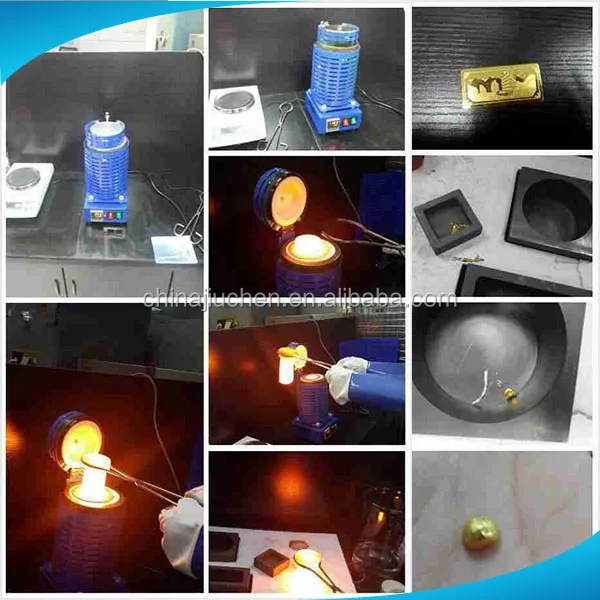

Gold bar melting Operating Process as follows

Step 1 Put gold bar into the crucible.

Step2 Heat up the furnace with 15 minutes

Step3. Take out the Melting crucible from the furnace,then put it on tray.

Step4.Pour slowly the gold liquid from the crucible.

Step 5.Wait the liquid cooling in the mould within several seconds.



Gold Casting Machine Instruction

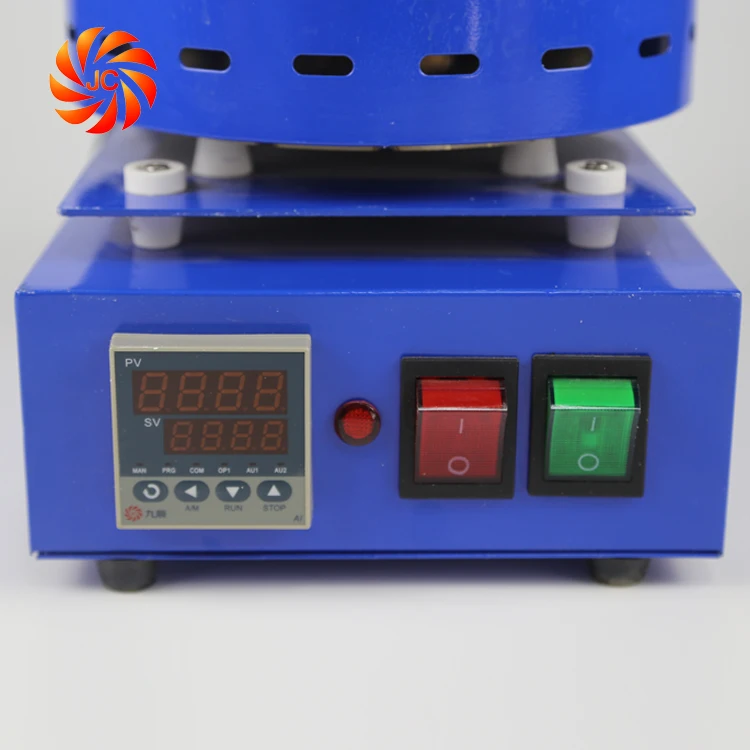

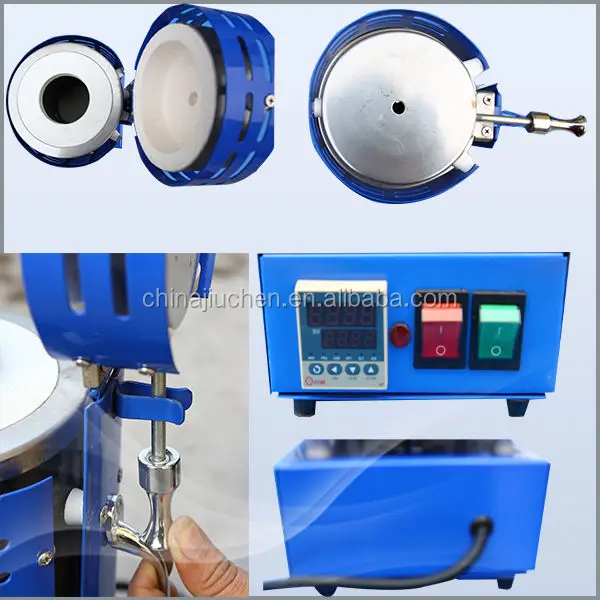

The furnace has two on/off switches: the GREEN switch turns on the temperature thermostat allowing you to set the desired melting temperature.

The RED switch turns on the heating element to start the melting process.







The thermostat has two digital read-outs: the bottom readout (SV) displays the setting you enter into the furnace. The top read-out (PV) displays the actual temperature inside the crucible during operation.

To set the desired melting temperature, turn on green on/off switch. Wait a few seconds; the bottom (SV) readout should show the default temperature setting of 1950°F.

To change the temperature setting, simply press the left arrow key to move the cursor to the proper desired digit and press the up or down keys to adjust it up or down. Adjust each digit to the desired setting.

When you are ready, place the metal pieces or grain in the crucible and set the crucible in the furnace. Close the lid.

Press the red button to start the melting process.

When the metal is molten and has reached casting temperature, turn off the red switch. Open the lid and pour the metal into your prepared flask.

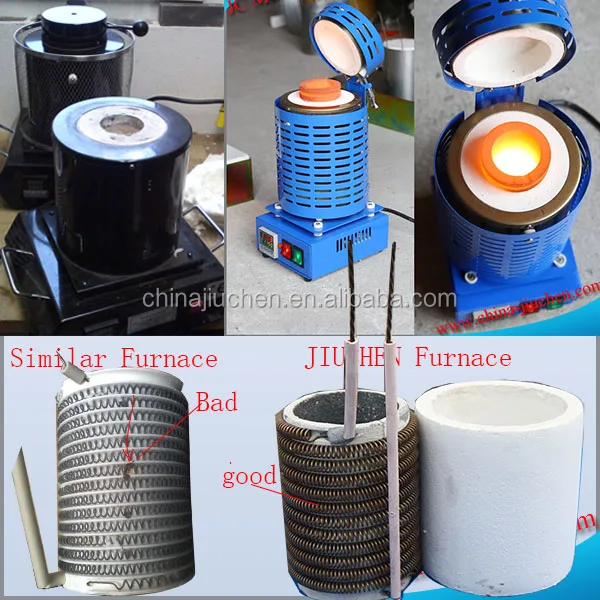

Difference Feature JIUCHEN with Other Similar Furnace



Items	JC Electric Furnace	Other Similar Furnace
Furnace chamber	Adopts new advanced SIC material with no crack no distortion under normal temp 1-1200 Degrees Celsius,which prevents disadvantage of short work life with tranditional ceramic fiber, quartz chambers.	Traditional chamber material:ceramic fiber, quartz with easy crack and distort after use 2-3 times,which easily lead to short circuit and reduce work life.
Heating Coil	Material: Fe-Cr-Ni alloys   Limited test temp up to 1600°C,make sure long continues continuous work time under normal 1200°C,which effectly extend furnace work life	Easy to crack after use 2-3times and lead to be out of work,it is very complicated process if replace coil singly,also many end users unable to replace it successfully by themselves.
Heating Speed	JC-K-110-1(110V 1Kw)  25-30Mins JC-K-110-2(110V 2Kw)           15-20Mins	25-45mins: Reheat:15-30mins Then need 10-15mins to complete finish the melting.
Working temp	1-1200  Degrees Celsius	1-1150  Degrees Celsius

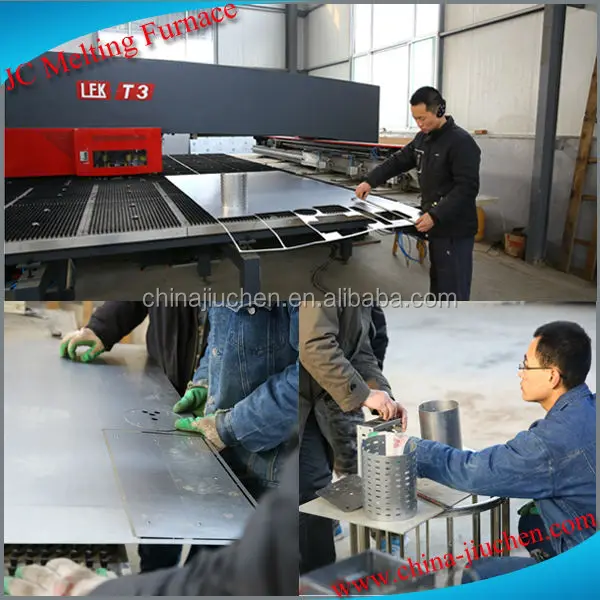

Gold Casting Machine Production Line Show

Gold Casting Machine Package

Gold Casting Machine  Related Certificate

Gold Casting Machine  Shipping

We can accept T/T,Paypal,Western Union,Escrow,the best and fast way is Paypal.

We choose DHL/Fedex/UPS usually takes about 3-5 working days to the destination,

We will send the goods within 3 working days after the full payment has been confirmed.

Warranty and Return:

All the products have been tested before ship out.

All products electrical parts have 1 year warranty,including temperature controller,relay, thermocouple,heating elements have 6 months warranty,including chamber,heating coil etc.

If there is no man-made problems,we will replace or repair for you freely.

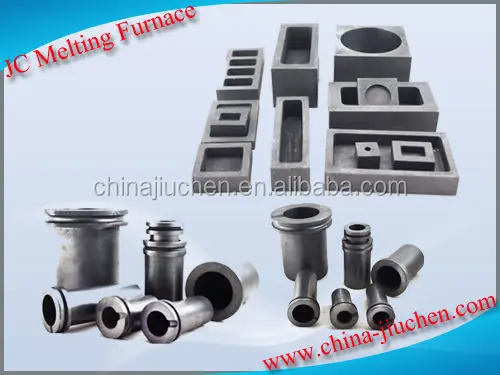

Fitting Graphite crucibles and Molds
