polythene HDPE Plastic Bag Making Machines HDPE Shopping Bag Making Machine

Product Overview

Description

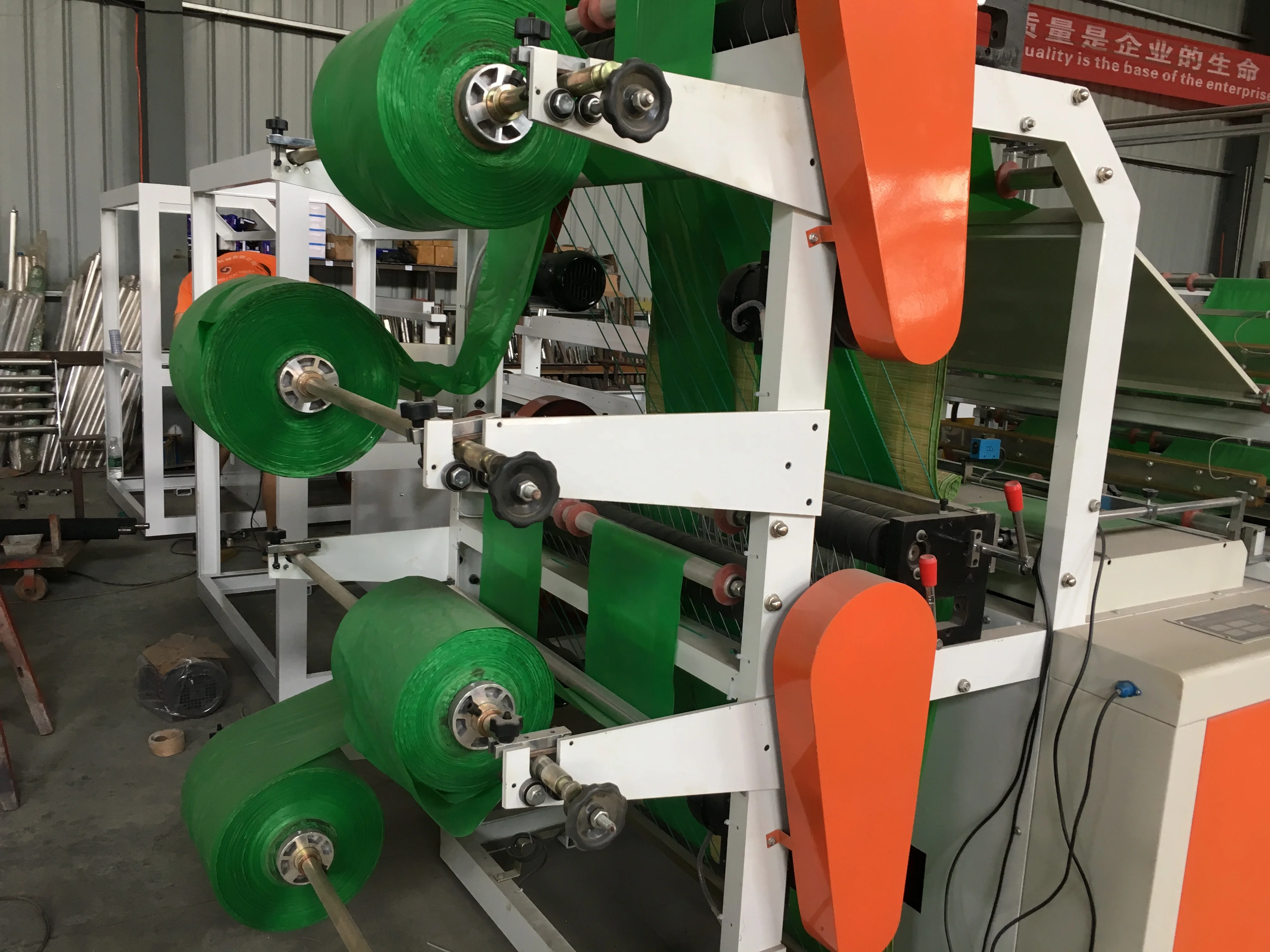

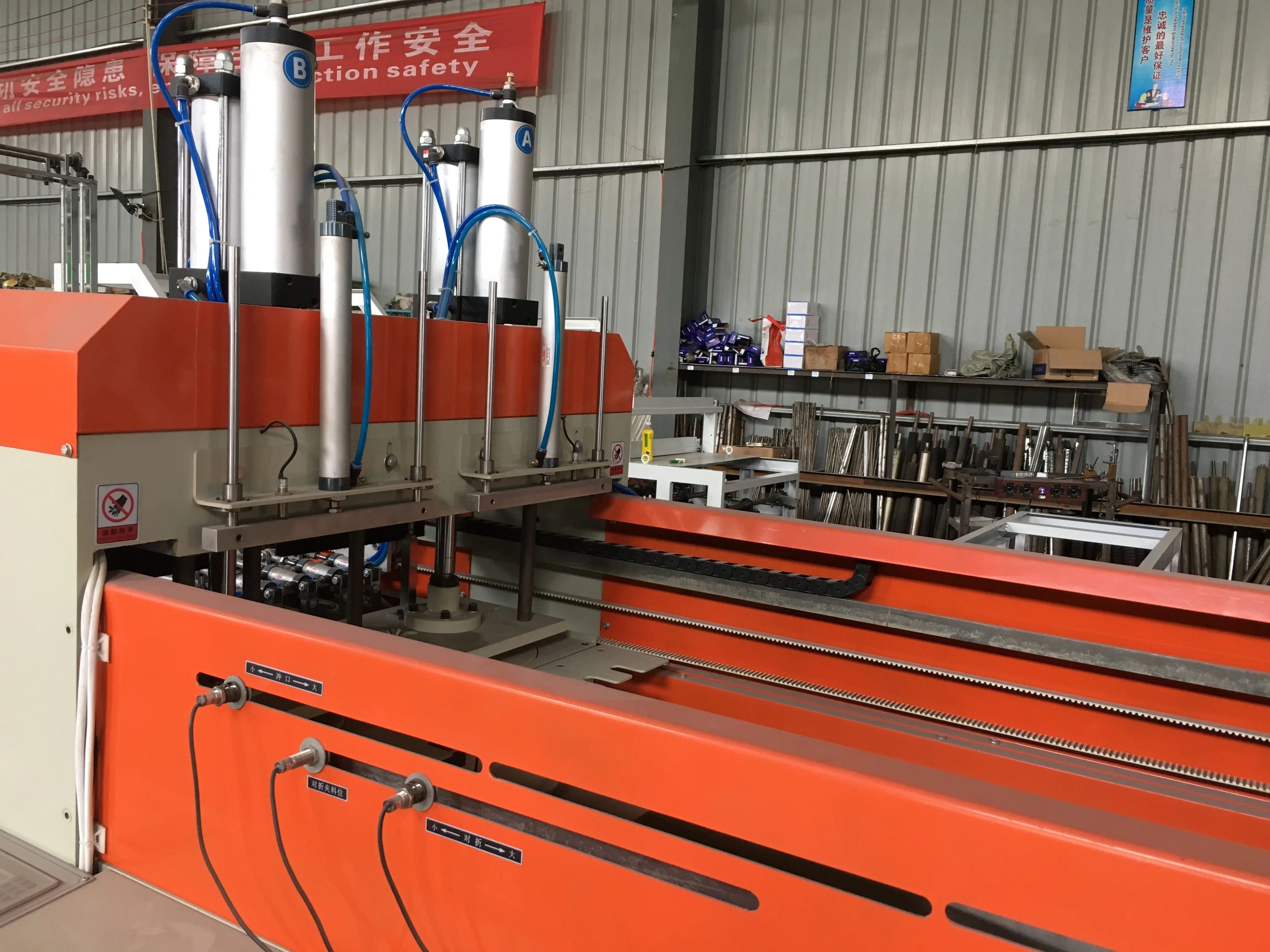

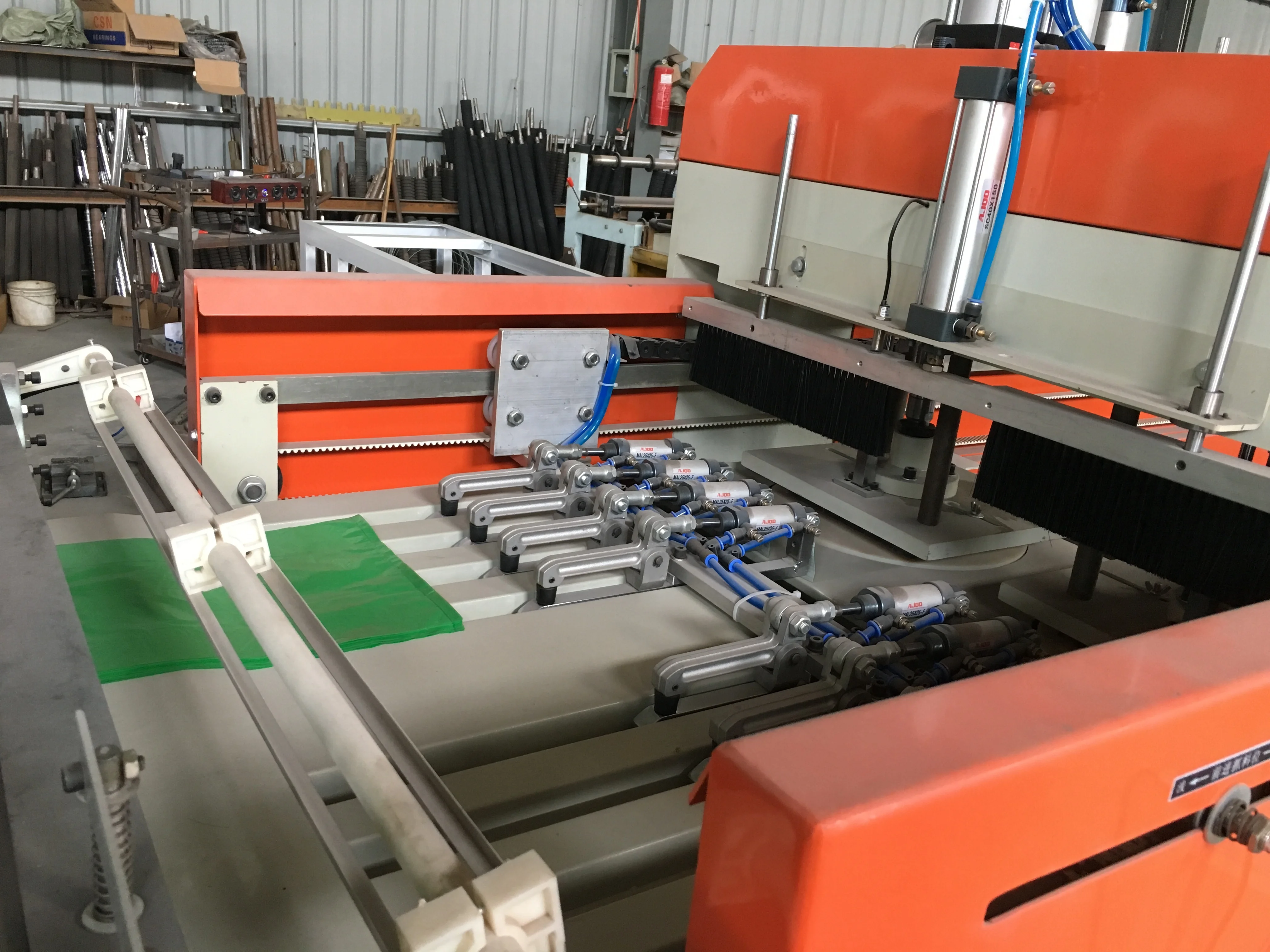

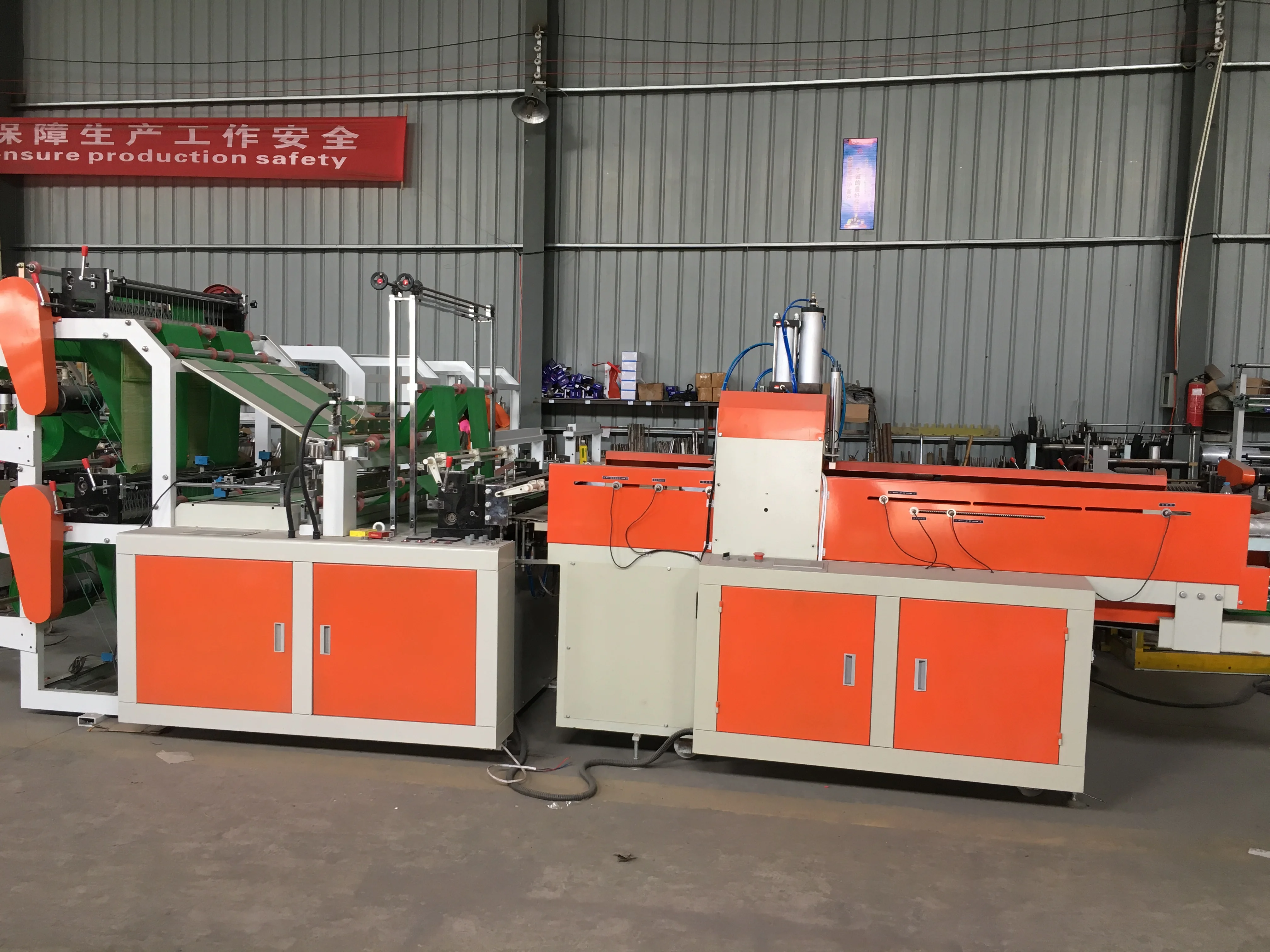

SHXJ-C800Plastic Bag Making Machine

Description:

This machine is suitable for producing HDPE and LDPEplastic film,It a adopts the servo motor discharge the materialin high speed and photocell to track the cuttinglPuncherialin high speed and photocell to track the cutting.Punch the “u”shape bag in one time and with such features.such as easy operation,high efficiency and high finished products.



Keyword:

Computer Control Auto Punching Bag-making Machine/vest bag making machine / shopping bag making machine/plastic bag machine.



Fuction:

1,The whole machine adopts microcomputer control and material pulling by stepping motor (servomotor control system can also

    be selected and equipped).

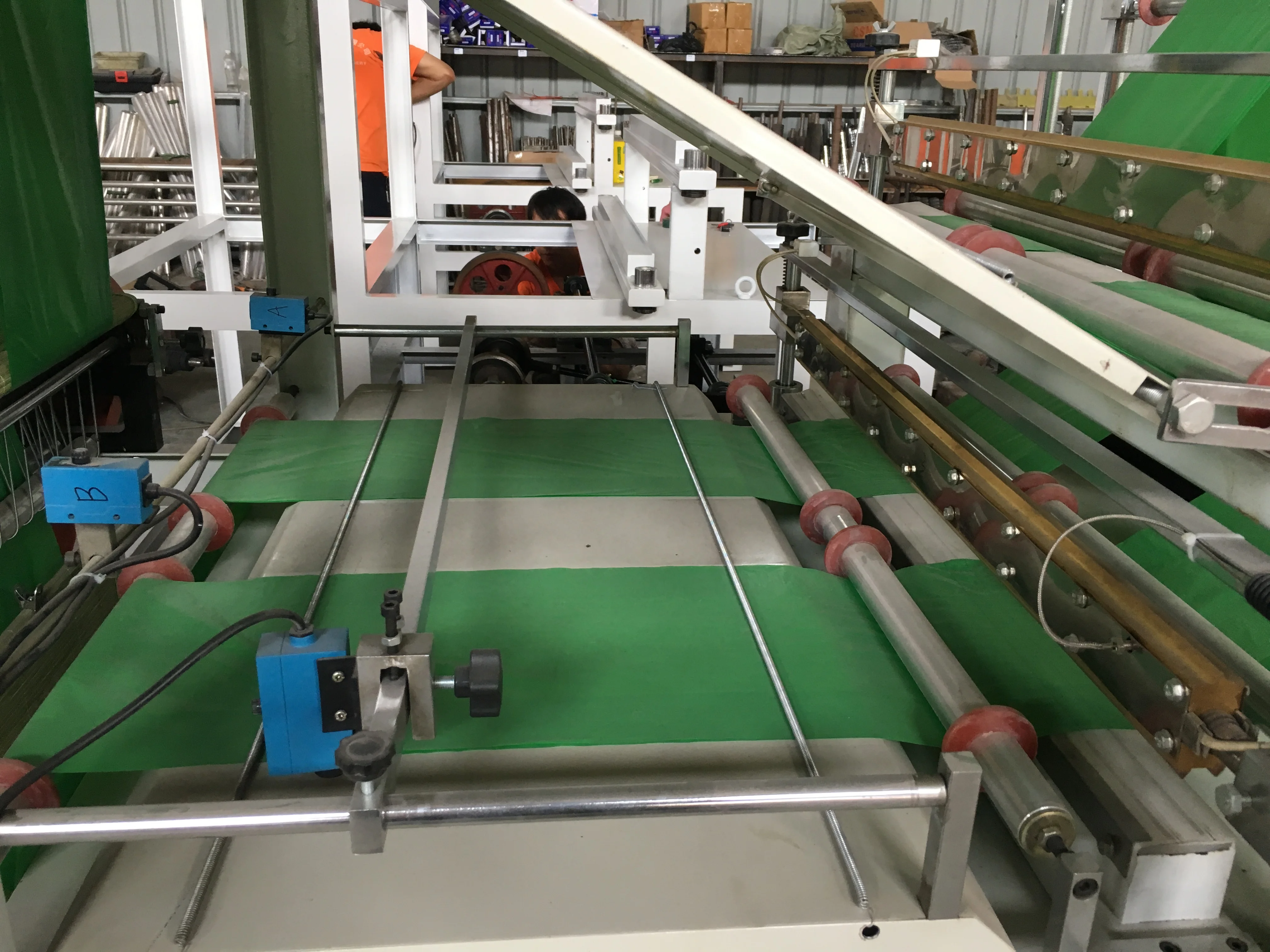

2,Arbitrary fixedlength accurate and stable step photoelectric tracking stopping automatically when the label is lost, photoelectric

    control feeding.



3, Automatic counting and set able counting alarm.

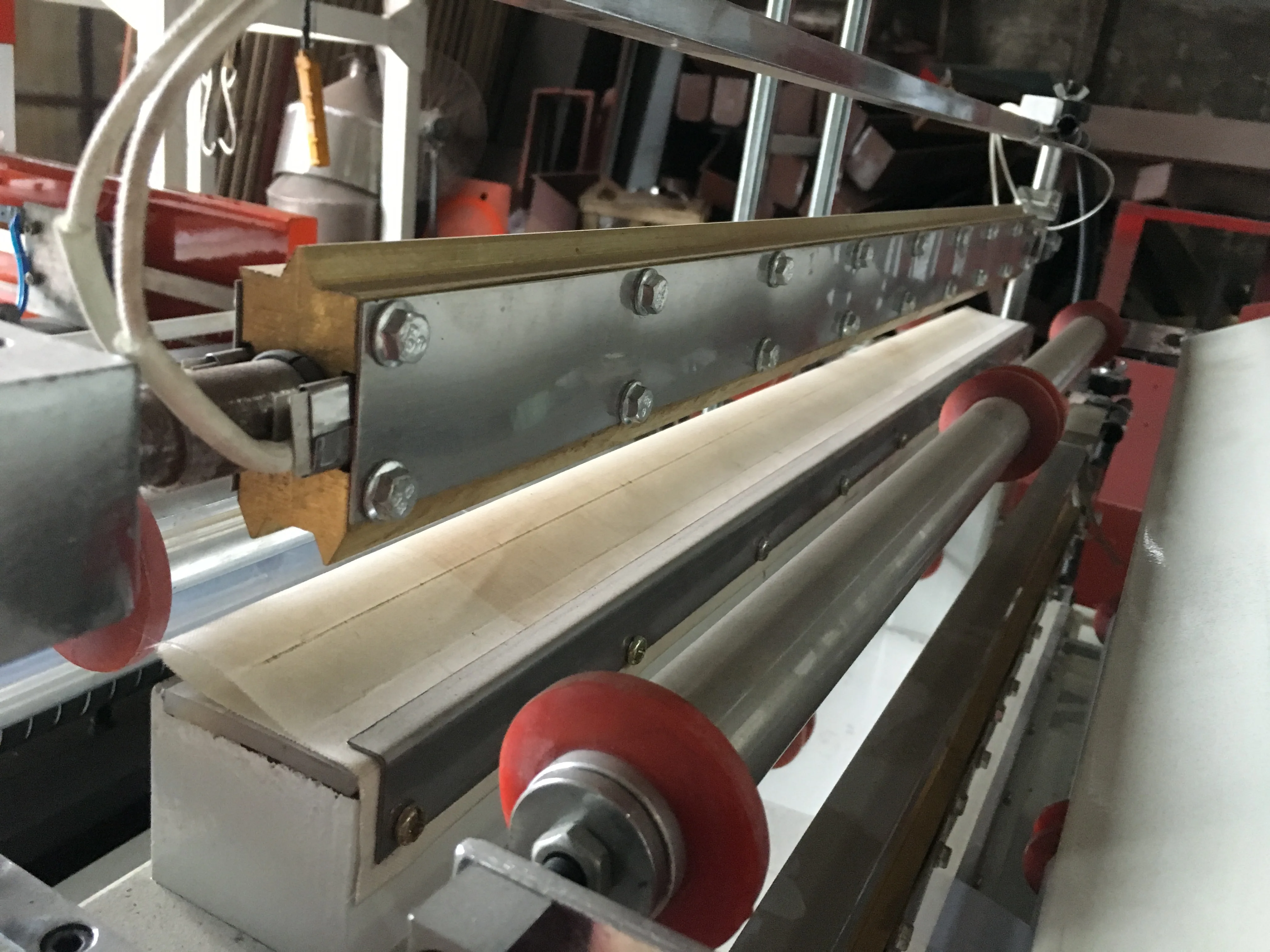

4,Automatic constant temperature makes the sealing of bag opening film and smooth.



5,Nonwoven printing material can make bags in double line by 4 rolls feeding ,making 4bags in one time



Main Technical Parameter:

Model	SHXJ-C600	SHXJ-C700	SHXJ-C800
Sealing and cutting width	150-260mm	180-310mm	200-360mm
Sealing and cutting length	300-650mm	300-650mm	300-650mm
Sealing and cutting thickness	0.015-0.04mm	0.015-0.04mm	0.015-0.04mm
Making bag speed	(50-100)*4	(50-100)*4	(50-100)*4
Air pressure power	5kg/Cm2	5kg/Cm2	5kg/Cm2
Motor power	1.5kw	1.5kw	1.5kw
Overall size	5000*1200*1800mm	5200*1300*1800mm	5400*1400*1800mm

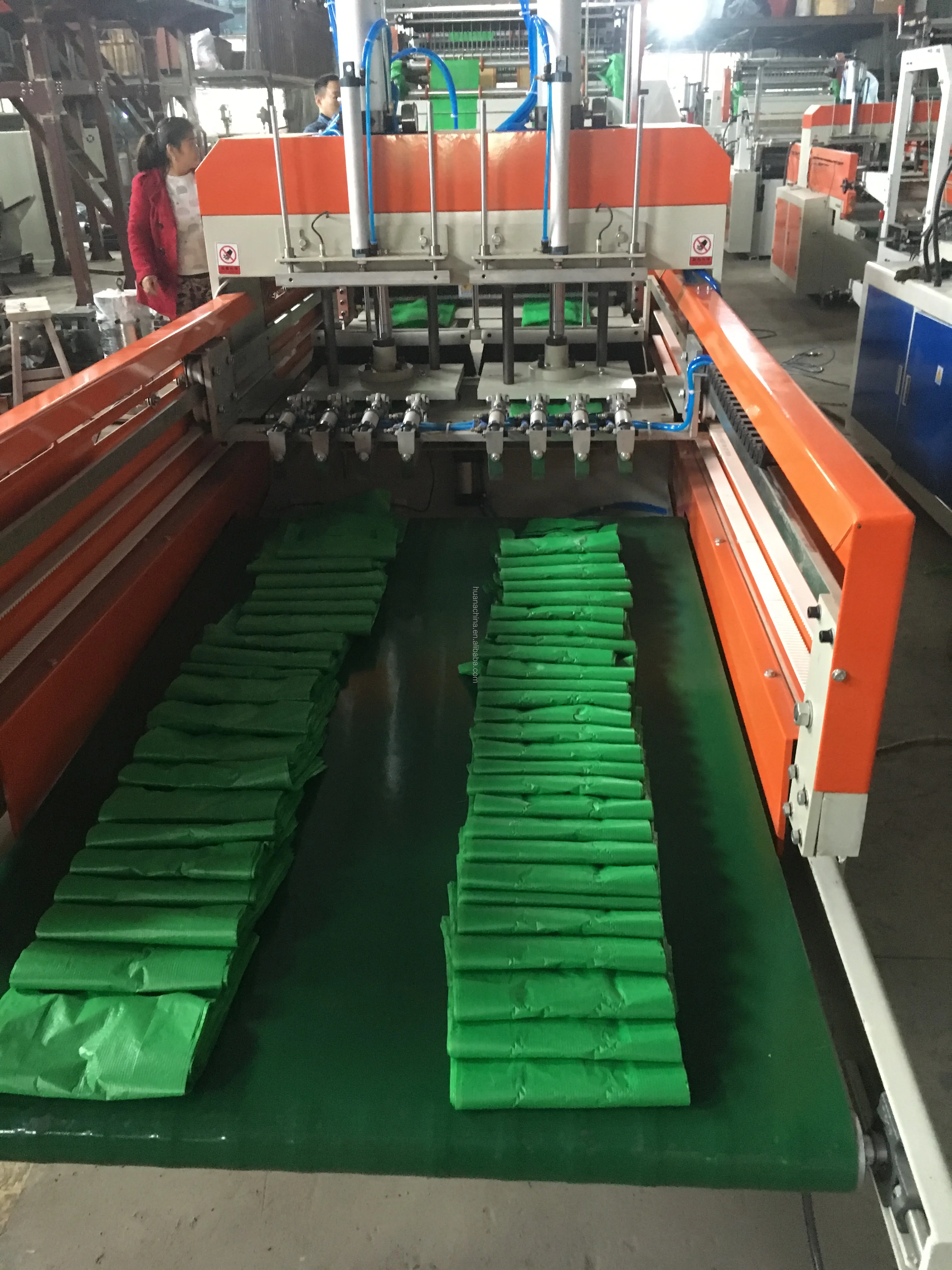

Sample Bags
