High quality High precision Competitive and dual work platform dispensing robots
High-quality High precision Competitive and dual-work platform dispensing robots
High-quality High precision Competitive and dual-work platform dispensing robots
High-quality High precision Competitive and dual-work platform dispensing robots

High quality High precision Competitive and dual work platform dispensing robots

Share on (1968697255):


Price:$5,000.00 - $5,300.00

Quantity:


Product Overview

Description



Products Description

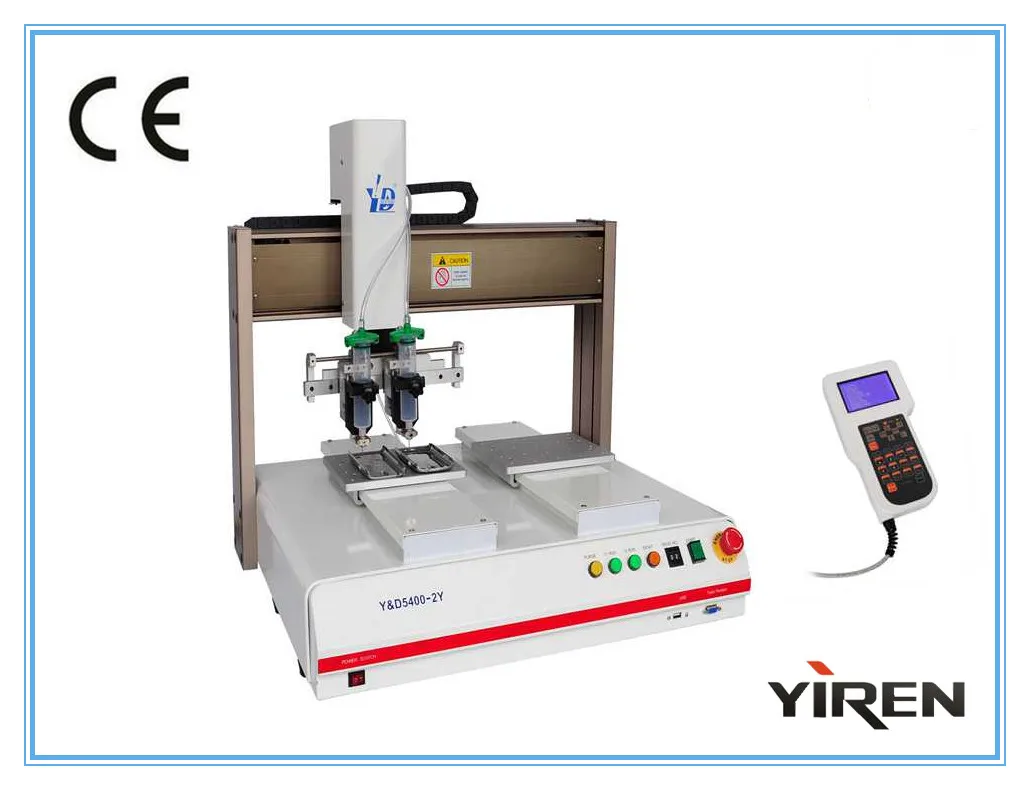

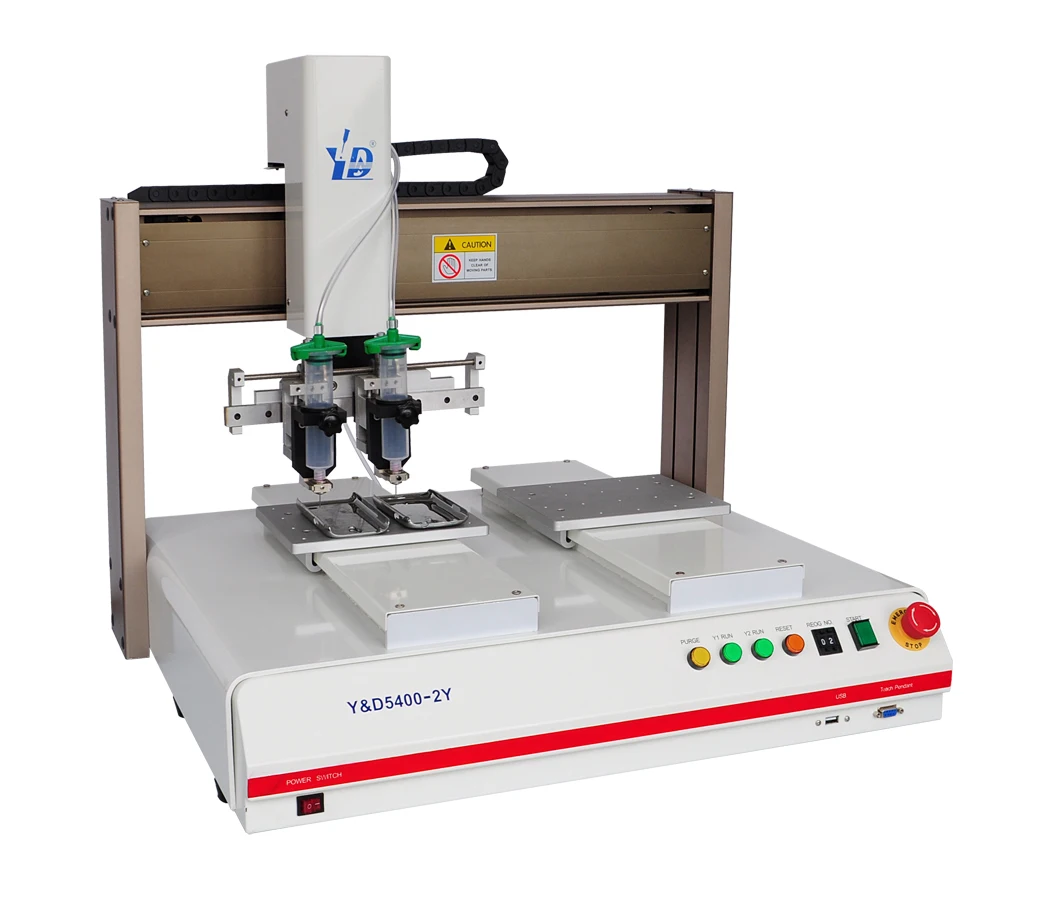

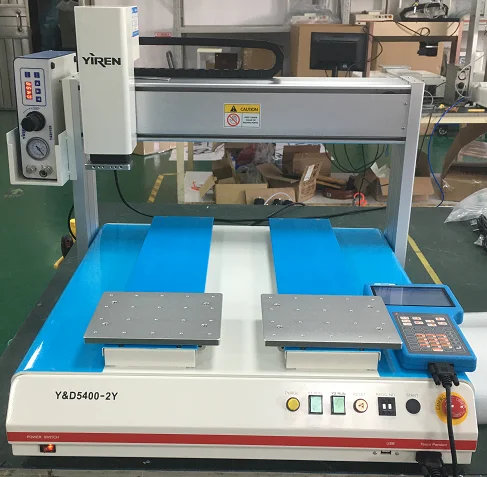

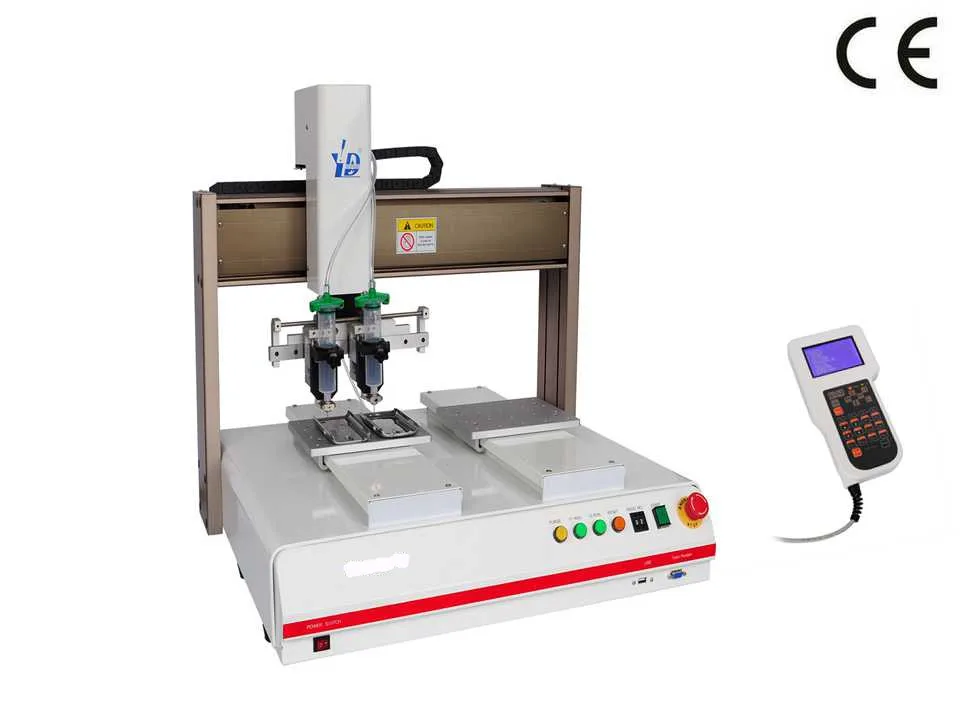

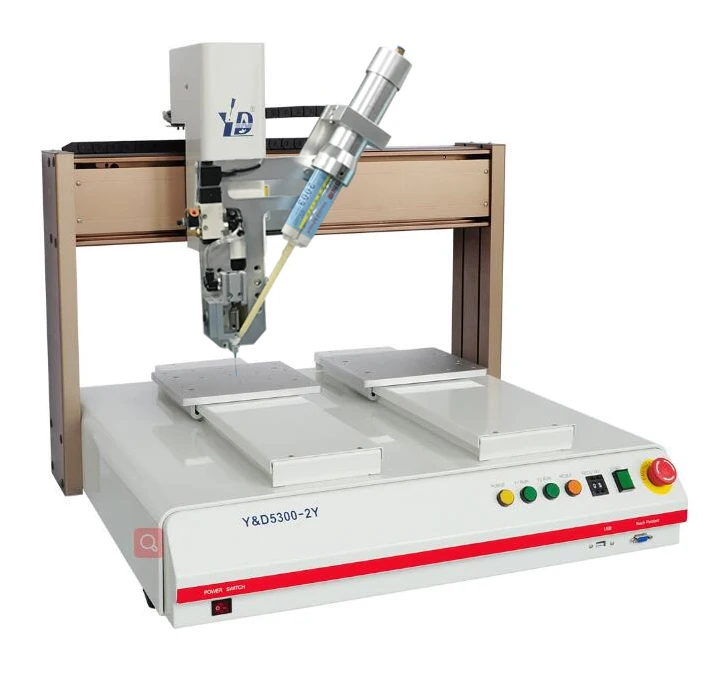

Y&D DUAL-WORK PLATFORM DISPENSING ROBOTS
The machine designed by dual-work platform structure, can control loop operation, save time of taking and putting, improve production efficiency. With point, line face, arc, circle, and irregular curve continuous interpolation and four axes linkage, and other functions.




Parameters:
Max Load Y/Z Axis
11KG/5KG
Speed X&Y/Z(mm/sec)
0.1-800/320
Resolution
0.01mm/Axis
Repetitive Positioning Accuracy
±0.02mm/Axis
Program Capacity
Min 100 group, 4000 points / group
Data Storage Type
CF Card
Motor System
Micro stepping motor
Control Method
PTP & CP
Interpolation Function
4 Axis
I/O Signals Port
8 Inputs/8 Outputs
External Control Interface
RS232
Program Display
LCD
Programming Method
Teach Pendant
Power Supply
AC90-260V  320W
Working Relative Hummidity
20-90% no condensation
Working Temperature
0-40℃


Details


Apply Glue:
UV glue, AB Glue, EPOXY (vinyl), white plastic, EMI conductive adhesive,
SILICON,Epoxy, instant glue, silver glue, red glue, solder paste, thermal compound, anti-solder paste, lacquer, screws fixed 'set
agent

Suitable for object:
mobile phone, computer casings, optical drives, printers, ink, clip, PC board, LCD, LED,
DVD, digital cameras, switches, connectors, relays, radiators, semiconductor and other electronic industry, uick-point connection
with the SMT devices / glue, clocks, toys, medical equipment required to liquid dispensing products.


Application
1. English Teach pendant operation, easy to learn and easy to understand;
2. With a draw point, line, surface, arc, circle. Irregular curves and three-axis continuous
interpolation functions such linkage;
3. Software with regional arrays, shift operations and other functions;
4. The glue size of the thickness, coating speed, dispensing time, stop time Jieke parameter setting glue, a glue
amount of stable, non-leakage Epoxy;
5. According to process needs, they may install table positioning PIN, glue gun or bottom heating
temperature control device


Features
1:)Dispensing area : 500/400/400/100
2:)Resolution of 0.01mm for precision dispensing
3:)USB port allows for data transfer between robot and PC
4:)No computer skills required
5:)Continuous path motion for accurate XYZ dispensing
6:)Available in three and four axis models
7:)Interpolates lines or arcs for three-dimensional dispensing
8:)Teach Pendant programmingachine Bottle Moulding Machine
PET Bottle Making Machine is suitable for producing PET plastic containers and bottles in all shapes.


Product packaging




Package & Terms
Package: Y&D standard package.
payment:100% T/T in advance after confirm the order
Shipping:DHL/TNT&Fedex express shipment


Exhibition




We will participate in Munich Fair every year to show our products and technologies and build our own brand with all our heart.


Company Profile


Company Strenghth
We are a professional manufacturer of dispensing equipment and liquid dispenser and all the accessories. Valve, pressure tank, cartridge, barrels, tips, dispensing pen, glue gun, connect and so on. Our main product including dispensing equipment and liquid dispenser. We also have gantry conveyor robot.






Competitive Advantages
* Professionalism,creativity,advanced fluid control technology.
* Established an unshakable position in the liquid control and dispensing production.
* Highly Vertical Integration Of Manufacturing.
* Worldwide Sales
* Advanced Engineering/ Development Capability.
* Good Material Management Programs.


OEM/ODM service offered
Our product could match with other accessories (valve, tank, cartridge) according to your actual situation or as your request. We are capable to manufacture dispensing equipment and liquid dispenser according to customer's drawings or samples. We are insisting on providing top quality products with competitive price. Please feel free to contact us. Welcome your inquiry.


For more information, please feel free to contact our sales, and we will give you a quick reply as soon as we get to know it.
