Mini Size Peltier ModuleTEFC1 03520

Product Overview

Description

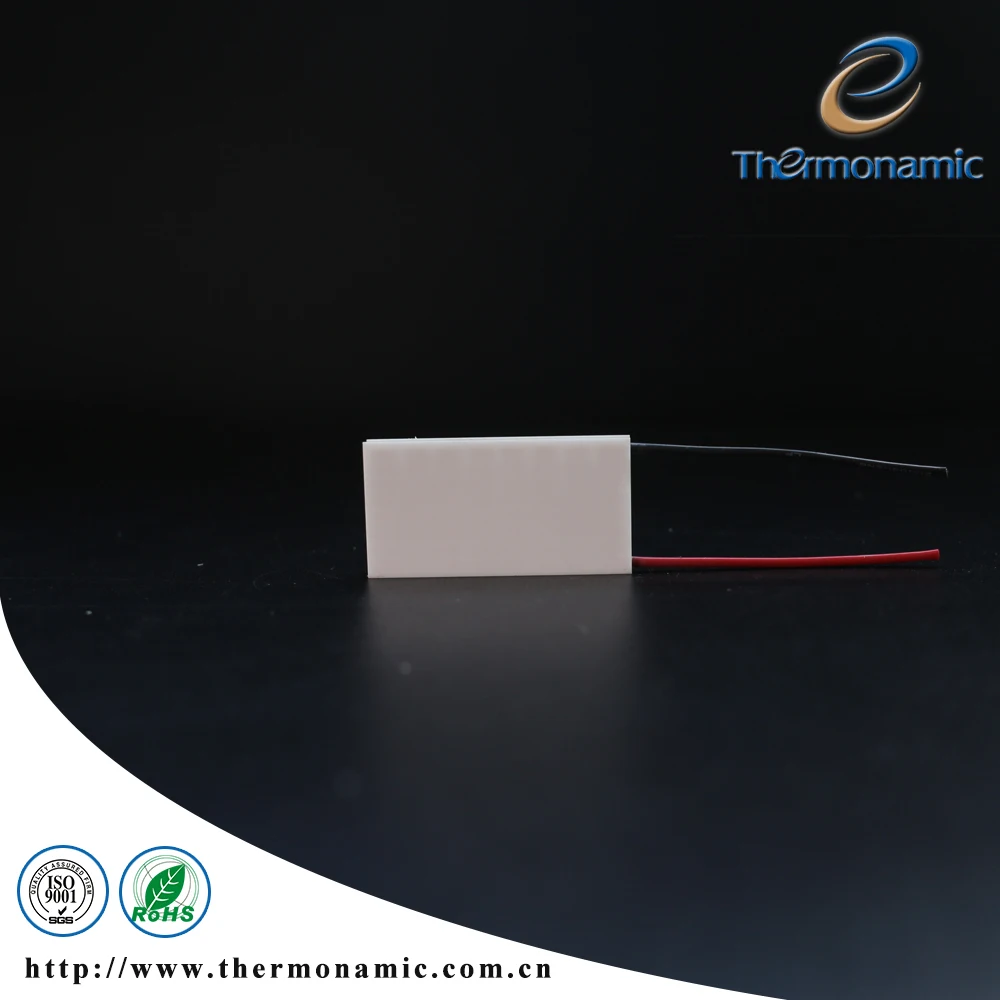

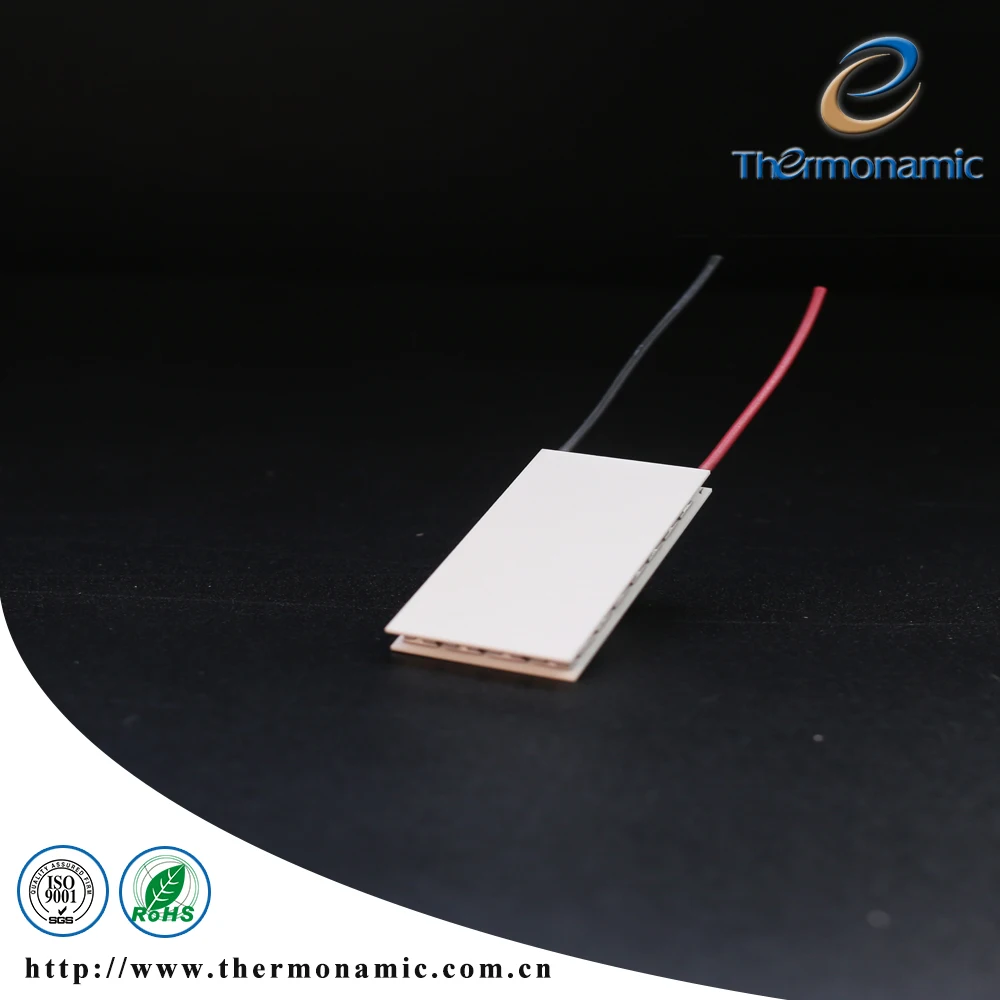

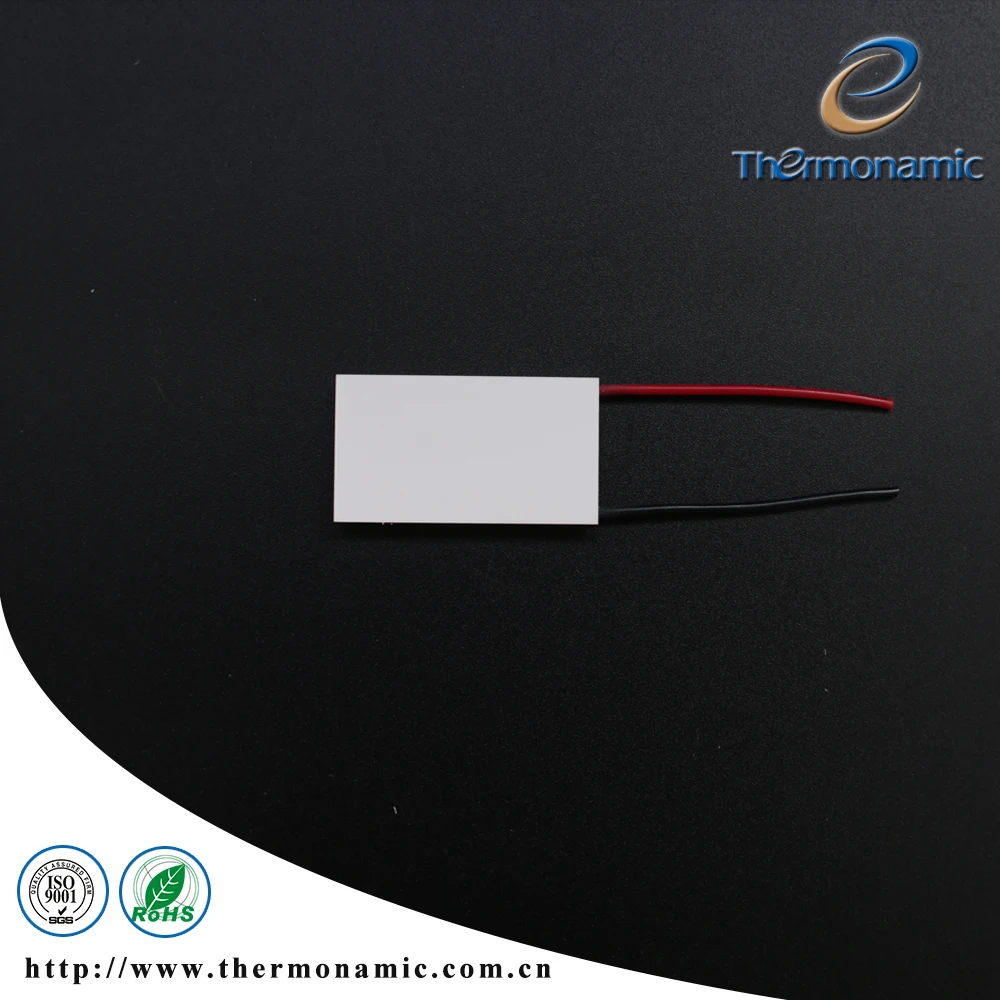

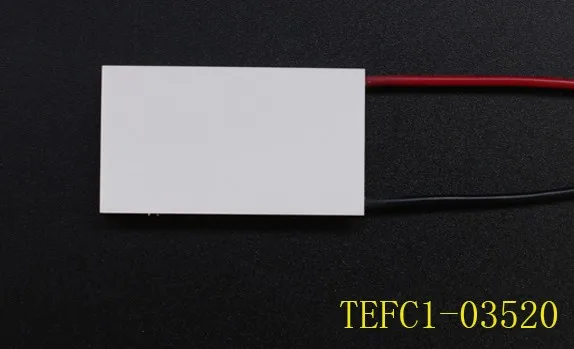

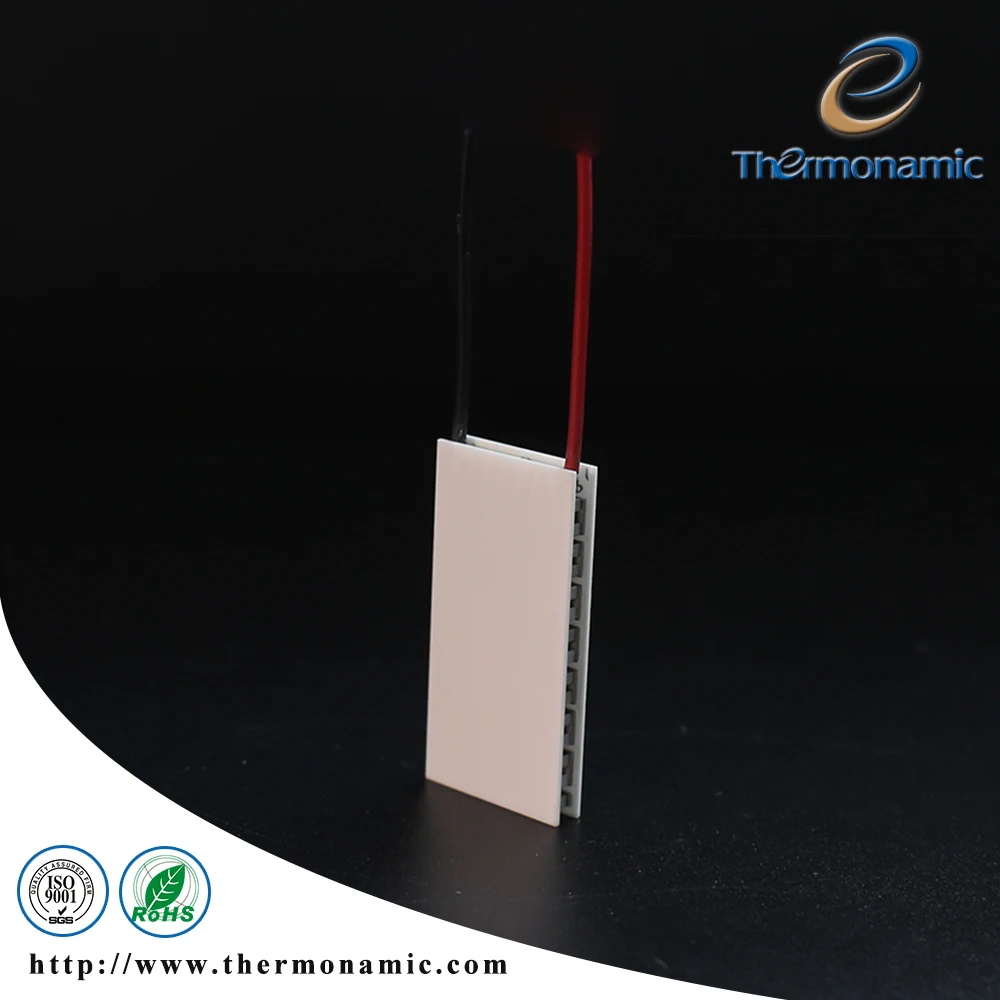

TEFC-Series Mini Size Peltier Cooling Module

TEFC-Series Mini Size Peltier Cooling Module



>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>   The 35 couples, 6 mm × 12 mm size module which is made of selected high performance ingot to achieve superior cooling performance and greater delta T up to 68℃, designed for superior cooling and heating up to 100℃/200℃ applications. If higher operation or processing temperature is required, please specify, we can design and manufacture the custom made module according to your special requirements.

<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<< Environmental friendly RoHS compliant Precise temperature control Exceptionally reliable in quality High performance High Temperature Differential No moving parts, no noise, and solid-state Compact structure Small in size, light in weight

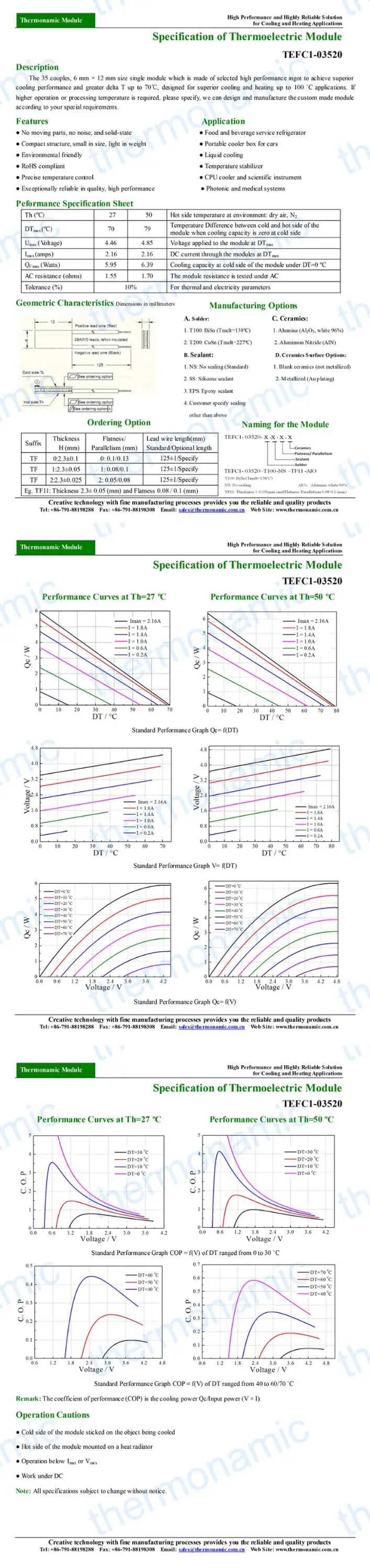

Performance Specification Sheet

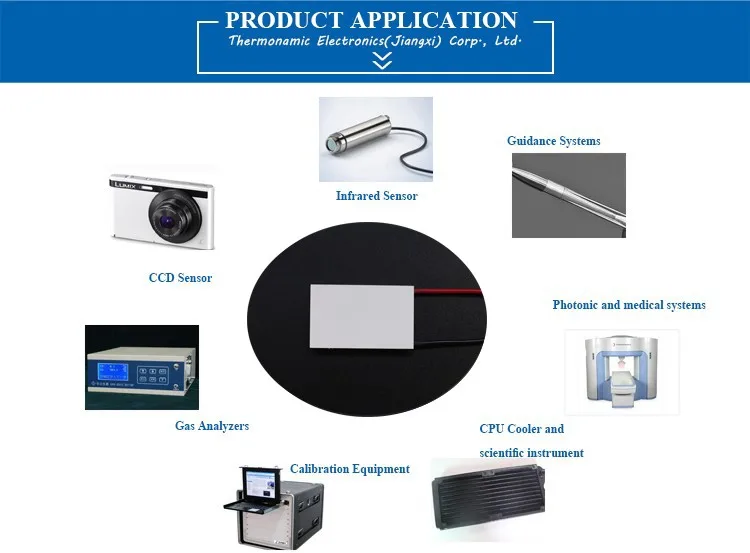

Application

1.Infrared (IR) Sensors

2.CCD Sensor

3.Gas Analyzers

4.Calibration Equipment

5.CPU cooler and scientific instrument

6.Photonic and medical system

7.Guidance Systems
