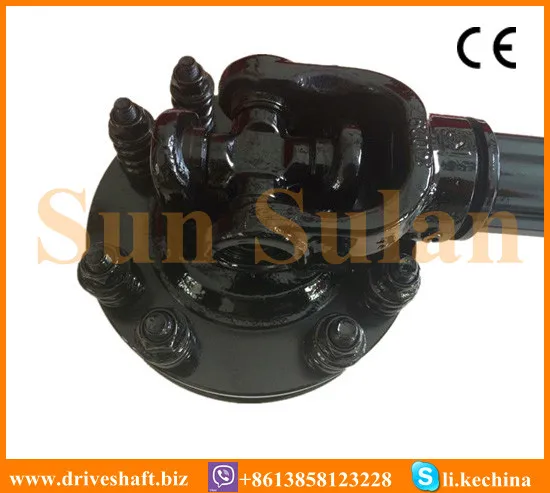

  • pto shaft friction clutch (Taper Pin) with CE Certificated

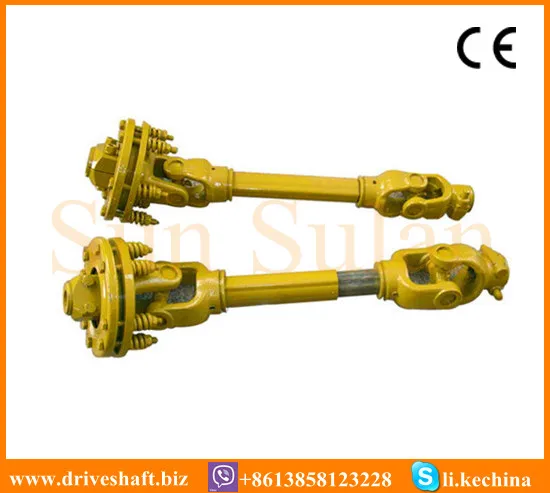

pto shaft friction clutch (Taper Pin) with CE Certificated
pto shaft friction clutch (Taper Pin) with CE Certificated
pto shaft friction clutch (Taper Pin) with CE Certificated
pto shaft friction clutch (Taper Pin) with CE Certificated
pto shaft friction clutch (Taper Pin) with CE Certificated

pto shaft friction clutch (Taper Pin) with CE Certificated

Share on (1968950122):


Price:

Quantity:


Product Overview

Description

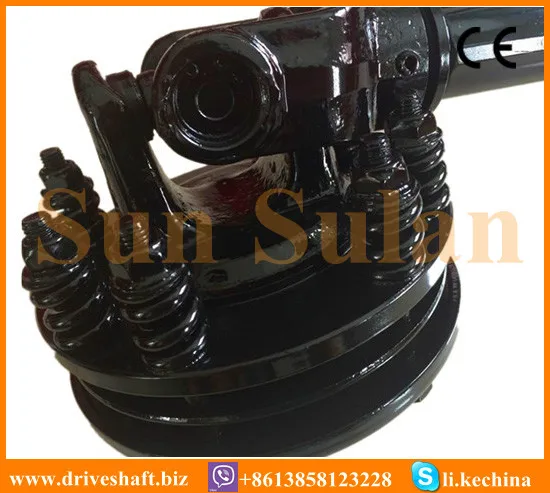

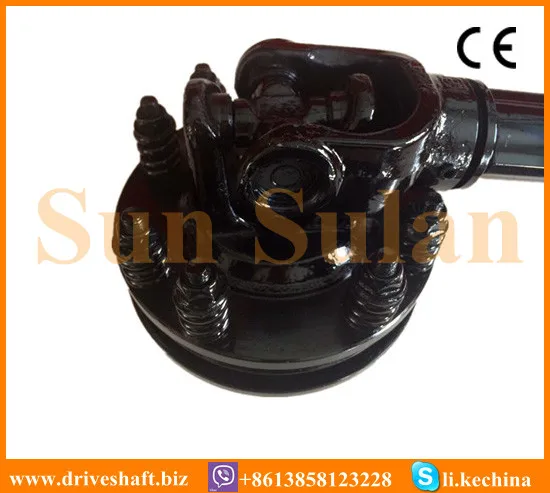

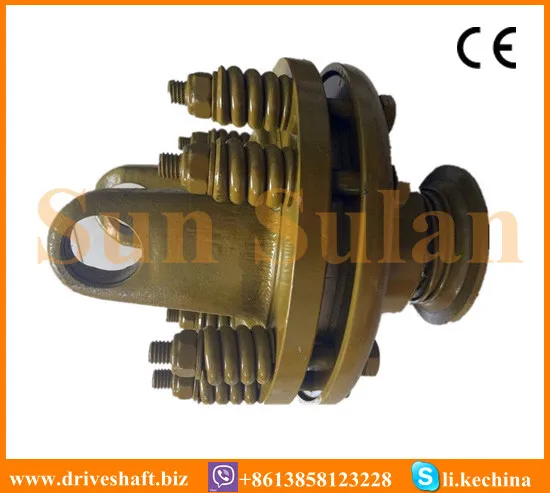

shaft023shaft049shaft021



Company Information





1.With CE certificate
2.Forged yoke


3.Use for 15-120HP


4.Multi-tooth spline. Specifications from the 1 3 / 8 "Z6, 1 1 / 8" Z6, 1 3 / 4 "Z6, 1 3 / 8" Z20, 1 1 / 8 "Z20, 1 3 / 4" Z20, 1 3 / 8 "Z21 , 1 1 / 8 "Z21, 1 3 / 4" Z21, etc., complete specifications are welcome.


 5.Triangle shaped tube, lemon tube, pipe welding fork Star,sqare tube .

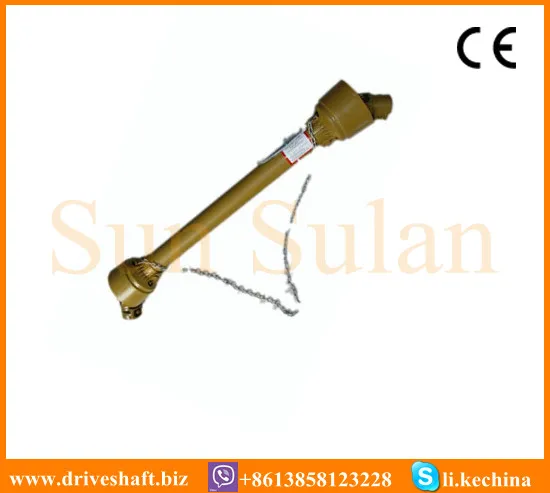

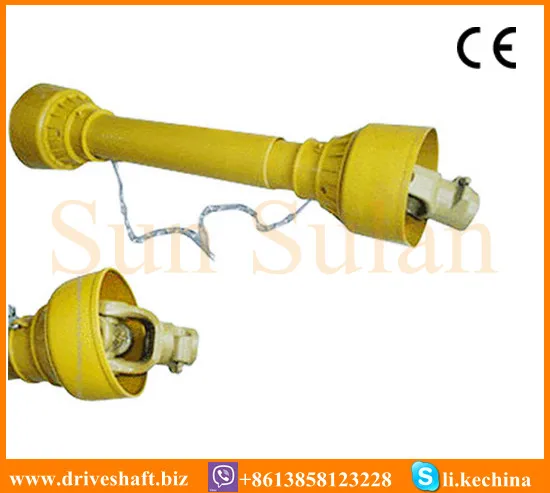

shaft080shaft072shaft067

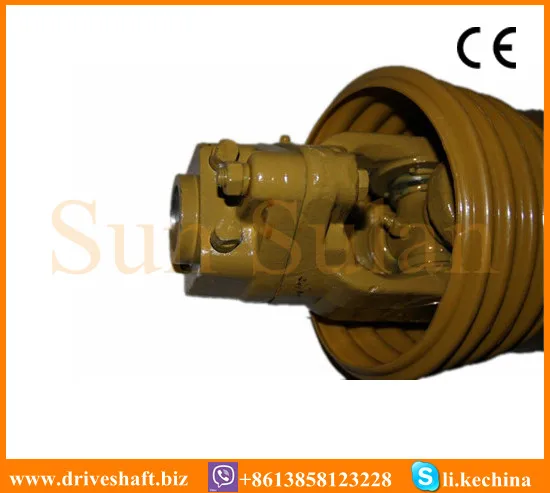

shaft069shaft019


PTO shaft's universal joint  Characteristics
1. Material: 20Cr or 20CrMnTi
2. Surface Hardness: 58-64HRC
3. Core hardness:20Cr: 25-45HRC / 20CrMiTi: 33-48HRC

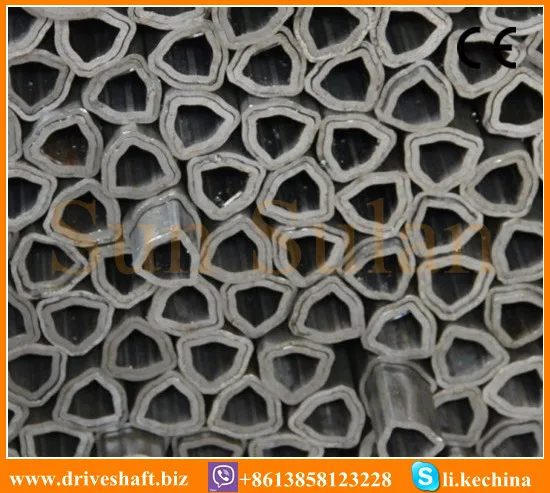

shaft073shaft072







PTO drive shaft for different brands of agriculture machinery, such as tractor Johndeer, case,and newholland































































































ItemCross journal  size540dak-rpm1000dak-rpm
Series 122mm54mm12KW16HP18KW25HP
Series 223.8mm61.3mm15KW21HP23KW31HP
Series 327mm70mm26KW35HP40KW55HP
Series 427mm74.6mm26KW35HP40KW55HP
Series 530.2mm80mm35KW47HP54KW74HP
Series 630.2mm92mm47KW64HP74KW100HP
Series 730.2mm106.5mm55KW75HP87KW18HP
Series 835mm106.5mm


70KW95HP110KW150HP
Series 3838mm102mm70KW95HP110KW150HP
