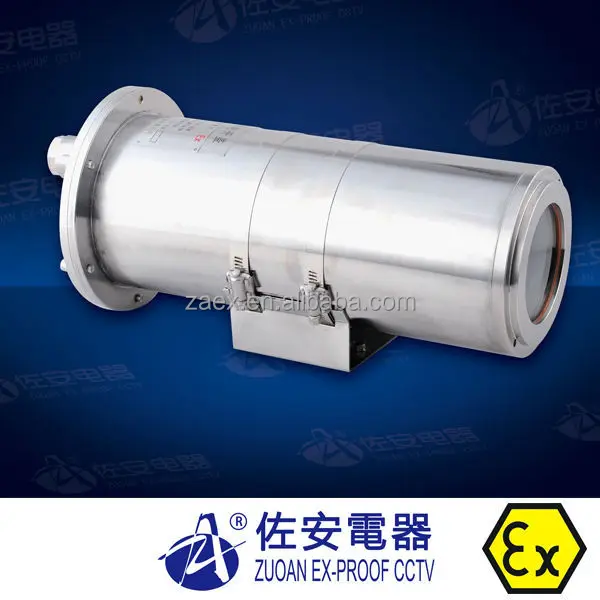

ZAF105 Explosion Proof Stainless Steel CCTV Camera Housing Manufacturers

Product Overview

Description

ZAF105 Explosion proof stainless steel cctv camera housing manufacturers

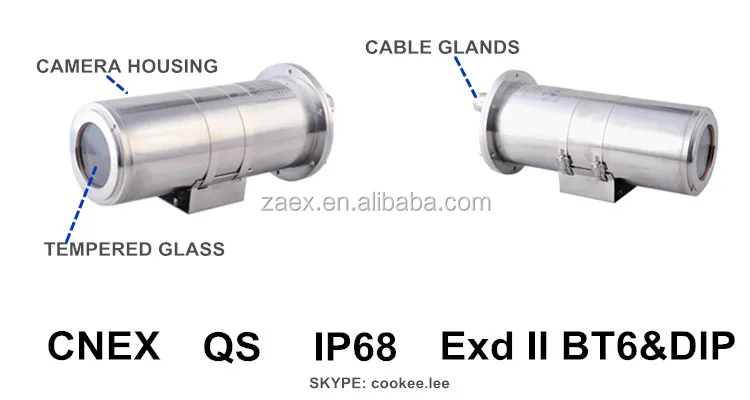

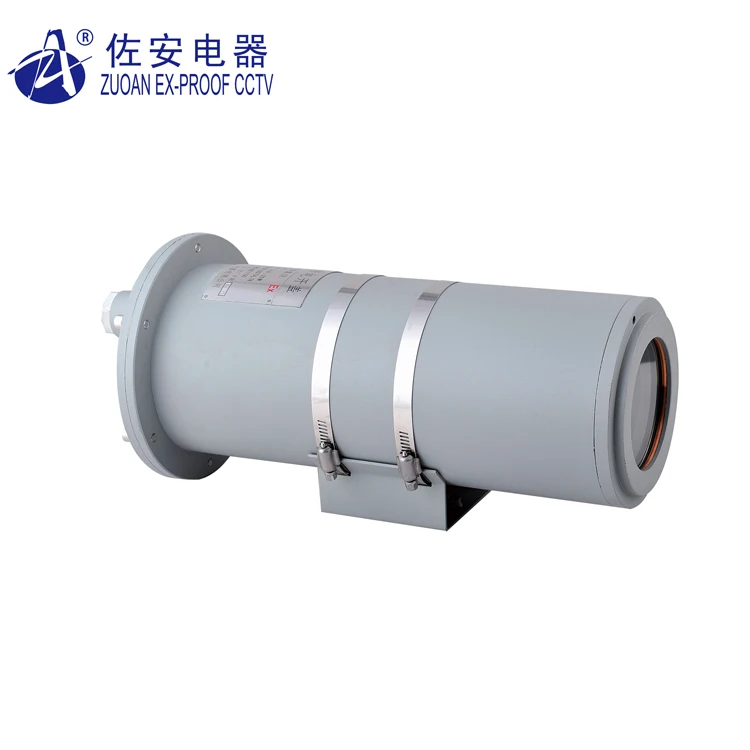

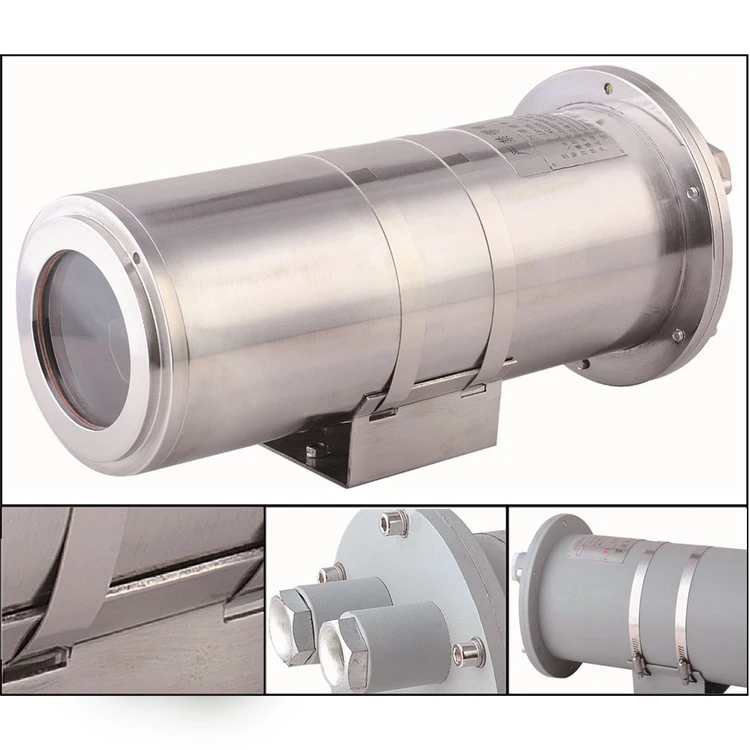

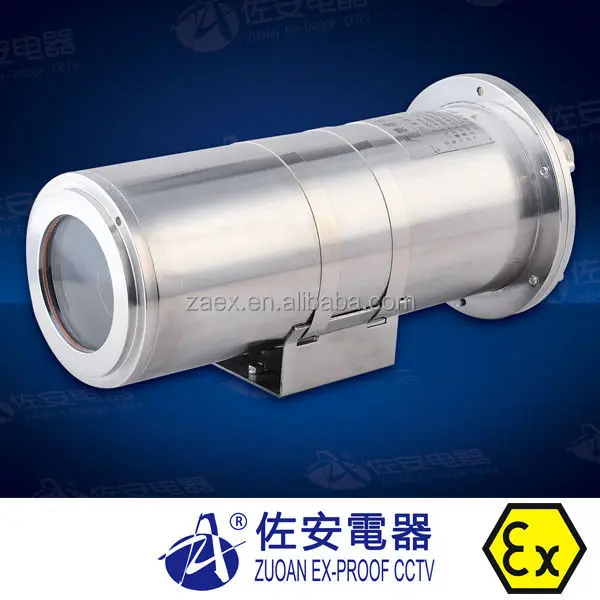

ZUOAN is a 8 years industrial CCTV camera housing manufacturer. ZAF105  series is a middle size of  stainless steel cctv camera housings/ cavity/ enclosure. it is Exd type,which lines to GB3836.2, fit for gas zone 1, zone2. Dust zone 20, 21, 22. ZAF102 series's explosion proof marking is Exd II CT6/DIP A20 TA, T6. its dust protection rate reaches to IP68, which means dust tight, and can protect agaist continuous immersion in water. ZUOAN camera housing adopts Stainless steel 304 or 316L material, which also named as corrosion proof CCTV camera, dust proof CCTV camera, weather proof CCTV camera, flame proof CCTV camera. ZAF105  housing/ enclosure surface also can be special treated, like electropolished, corrosion painting finish, according to customer requirement.  ZAF105  serise adopts 12mm thickness tempered window glass, which is fit for  indoor /outdoor mounting. ZAF105 series can be mounted on fixed brackets(model: ZAZ100-B)  for one point surveillance; it also can be mounted on rotating pan&tilt (model ZAY200B) for 128 points preset and auto patrol. At the housing end flange, there're 2 threaded holes for video cable and power cable. its size is G3/4 (inner diameter is 20mm). ZAF105 camera housing inner  Size: 260*70*70mm, net weight: 7.8KG 98% box cameras on the market can be installed in our stainless steel housing. Customers can offer camera and let us to make free  installation. on the other hand, ZUOAN also  offer integrated housing with  installed camera.





With stringent certifications, explosion-proof CCTV housed cameras enable safe, effective surveillance for chemical sites, oil and gas facilities, food processing plants and numerous other hazardous environments. such as Chemical factory, petrochemical processing plant, pharmaceutical plant, Oil refinery plant, Gas station,Oil tank truck, Natural gas project,

Marine, offshore/ onshore oil drilling platform, coal mine, Grain storage, winery storage, fertilizer storage ect.





Product Parameter:

Model	ZAF100B-S	ZAF102-S	ZAF104-S	ZAF105-S
Atmospheric pressure	80KPa~106Kpa
Ambient Temperature	–25°c~+60°c (-13°~140°F)
Relative Humidity	≤95% (+25°c)
Ex-proof mark	CNEX:    ·Ex dⅡC T6  /·DIP A20 TA, T6			CNEX: ·Ex dⅡB T6·DIP A20 TA, T6
CNEX certificate no.	CNEx 12.0006	CNEx 12.0004	CNEx 13.2140	CNEx 13.2138
Ingress Protection	IP66	IP66	IP68	IP68
Voltage Input	AC85-220V,AC24V, DC24V,DC12V, optional
Power supply (optional)	optional	optional	optional	optional
Tempered window glass	Φ 100x thick:8 mm (in),Φ 80x thick:12 mm (in)
Overall dimension LxWxH	420*180*160mm 16.5x7.1x6.3in	421*132*155mm 16.6x5.2x6.1in	313*140*145mm 12.3x5.5x5.7in	366*163*170mm 14.4x6.4x6.7in
Material	SS304 (industrical chemical factories, outdoors and so on)  SS316L(in highly corrosive areas such as marine, petrochemical, naval and offshore platforms)
Auto-cooling	optional	optional	no	no
Wiper	no	no	no	no
Len decoder	optional	optional	optional	optional

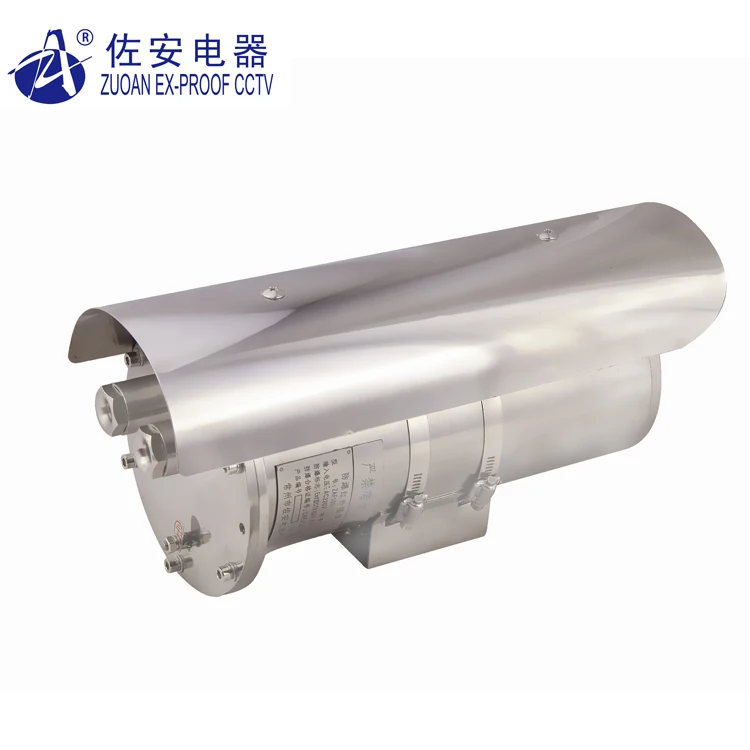

Sunshield	optional	optional	______	optional
Control	RS485	RS485	______	______
Control protocal	Pelco-D/Pelco-P	Pelco-D/Pelco-P	______	______
Output	AV/ fiber/ twisted-pair/H.264 network	AV/ fiber/ twisted-pair/H.264 network	AV/ twisted-pair	AV/ fiber/ twisted-pair/H.264
Brackets and Pan& tilt	ZAZ100-B,  bracket for ZAF100A,100B, 102, 103,1031,1032,105,106 series ZAZ104-B, bracket for ZAF104 ZAY200B, pan and title for ZAF100A,100B,102, 106 series ZAY210, pan and tilte for ZAF 103,1031, 104,105 series.
