Yuxing multi needle line quilting machine 64 inches
- Category: >>>
- Supplier: Dongguan Yuxing Machinery Equipment Technology Co. Ltd.
Share on (1969682473):
Product Overview
Description
High Speed Computerized Shuttle(lock stitch) Multi-needle Quilting Machine
YXS-64-3C
Product Description
Features:
- Designs overthrow adjuster for width-for width distortion adjustment.
- Speed can be reach to 800r/min.
- Includes 300 standard patterns, 960 patterns can be stored in computer.
- Computer system with self diagnostic troubleshooting capabilities.
Usage:garments,boots,bags,bedspreads,mattress thin pads, sleeping bags, and related products.
Important parameter:
Product Name | High Speed Computerized Shuttle(lock stitch) Multi-needle Quilting Machine |
Model | YXS-64-3C |
Size(L*W*H) | 3900*1200*1700mm |
Weight | 3100kg |
Quilting width | 1700mm |
Needle bar spacing | 3 inch between Bars 7.6cm |
Number of bars | 3 |
Quilting thickness | ≤50mm |
Sewing speed | 300-800r/min |
Output | 0-195m/hour |
Needle type | #16,#19 |
X-axis movement | 254mm |
Needle spacing | 25.4mm |
Stitch Sizes | 2-6mm |
Rated voltage(AC) | 380V/50HZ,/220V/60HZ |
Power | 3KW |
Power requirements | Customer power requirements available upon request. |
Special feature:
1.Adopt the advanced computer and mechanistic technology.
2.The needle bar running with needle bar frame,no need to add extra lube and avoid the materials be soiled by lube.
3.Needle bar frame structure is more firm and durable,so that the cost of maintenance is cheaper.
4.Saddling rack and roller are driven by servo equipment.
5.Principal axis uses the frequency conversion device.
6.Adjust speed by computer and the speed can reach 800r/min,the stitch can be set between 2mm-6mm.
7.360°random quilting and limitless multi-span and independent quilting.
8.Compensation function,an effective solution for looping pattern with thick material.
9.Advanced and practical testing upper thread broken techniques,the machine is auto-stop when thread is broken.
10.The infrared system,make your operate more safe.
11.Pattern editing is easy to learn.
12.Ringing notice when start machine.
Core machine parts:
Packaging & Shipping
All our machines are packed in elastic film or wooden case as required before shipping.The goods can be shipped 20 days after receiving advance payment.
Our Services
Guarantee: 1 year.
After-sale service: Engineer can send to customer factory for installation, and customer staff can come our factory for training for free.
CE and ISO9001:2008 approved.
Certificates:
FAQ
- Voltage:Our country's voltage is 380v/50HZ,220v/60HZ. Please be sure to tell us your country's rated voltage before shipping.
- Payment terms: TT:30% in advance, 70% was paid off before delivery.

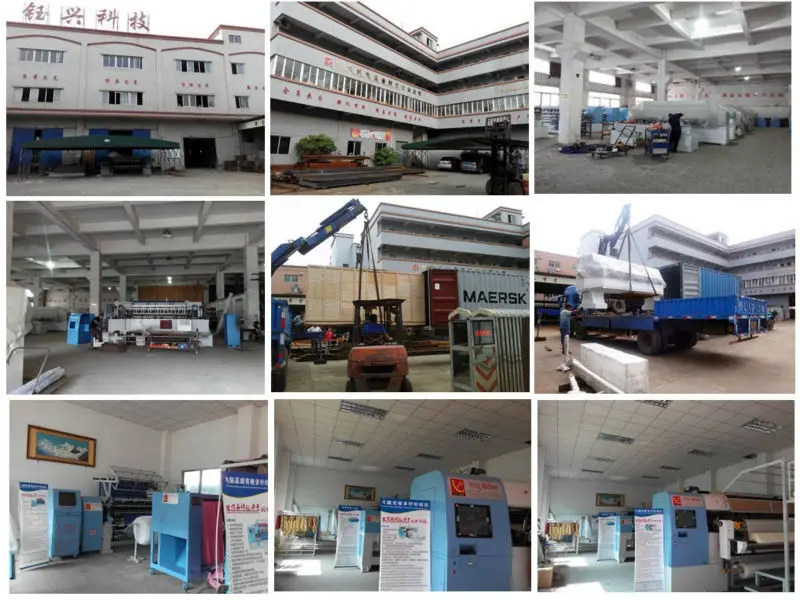

Company Information
Our company is specialized in manufacturing computerized multi-needle quilting machine,computerized non-shuttle multi-needle quilting machine,cutting machine and bobbin winding machine,more than 10 kinds of products.
It passed the ISO9001 Quality Management System,and was honored as "Private Scientific and Technological Enterprises" by Dongguan city Science & Technology Bureau and Dongguan City Intellectual Property Bureau.Yuxing machines get a high credit standing at the correlative industry.
We always insist the tenet of "Honest Business,Credit First".In the condition of fierce competitive market,we make progress and get innovation constantly.We firmly believe high quality and good service are the best support for users' trust.
Welcome to visit our factory any time!^_^
