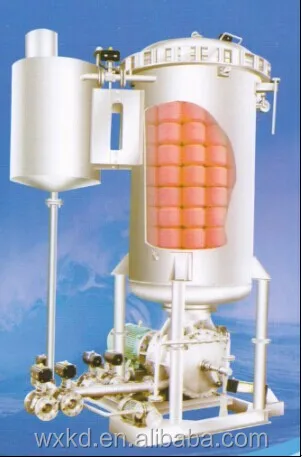

DF241A series high temperature high pressure dyeing machine

Product Overview

Description

DF241A series high temperature high pressure dyeing machine





 1. Application

It is used at high temperature for dyeing or pretreatment and after-treatment of package yarns made of polyester or blended fibers. It can also be used at normal temperature for dyeing and pretreatment and after-treatment of package yarns made of cotton, hemp, acrylic, wool.





2. Main Feature

 1.  Integral type heat exchanger, centrifugal pump and 180 ^o Plate type reversing arrangement.  No external circulation piping. Saving 20% space.

 2.  Highly efficient energy saving external new type heat exchange.

 3.  The main pump motor is controlled by frequency inverter and the flow volume can be adjusted sleeplessly to obtain the dyeing synchronization required by technological curves.







 3. Parameter and Specification



1.Capacity	12-1500Kg
2.Design pressure	0.44MPa
3.Max. Working pressure	0.4MPa
4.Design temperature	140 degree
5.Max.Working Temperature	135 degree
6.Heating rate	about 30 minites(Saturated steam pressure0.7MPa)
7.Cooling rate	about 20 minites(cooling water pressure0.3MPa)
