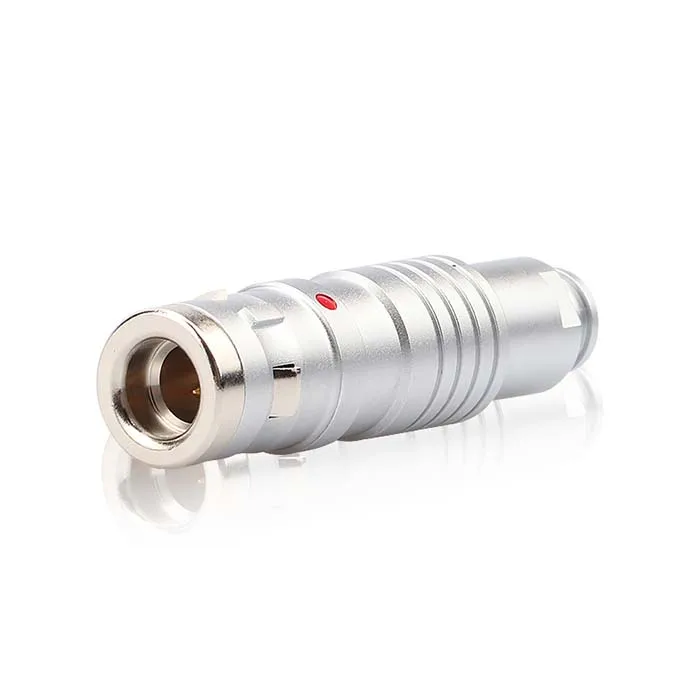

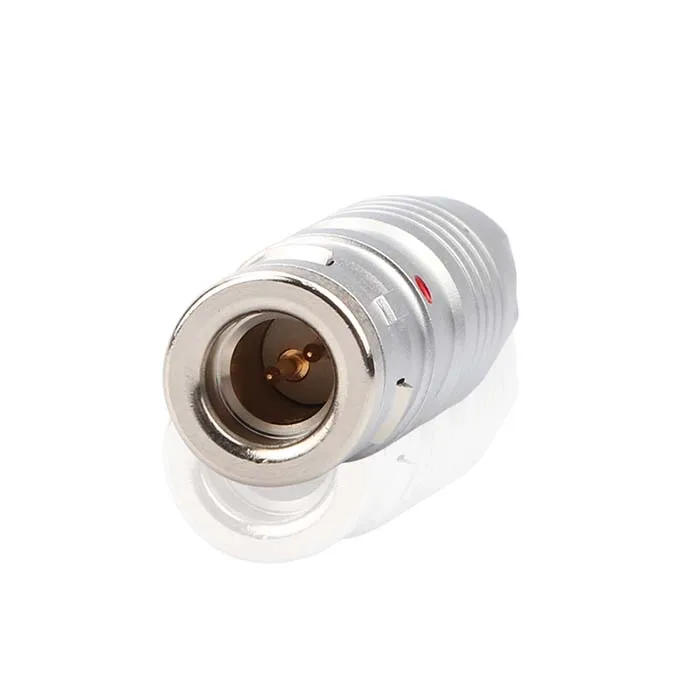

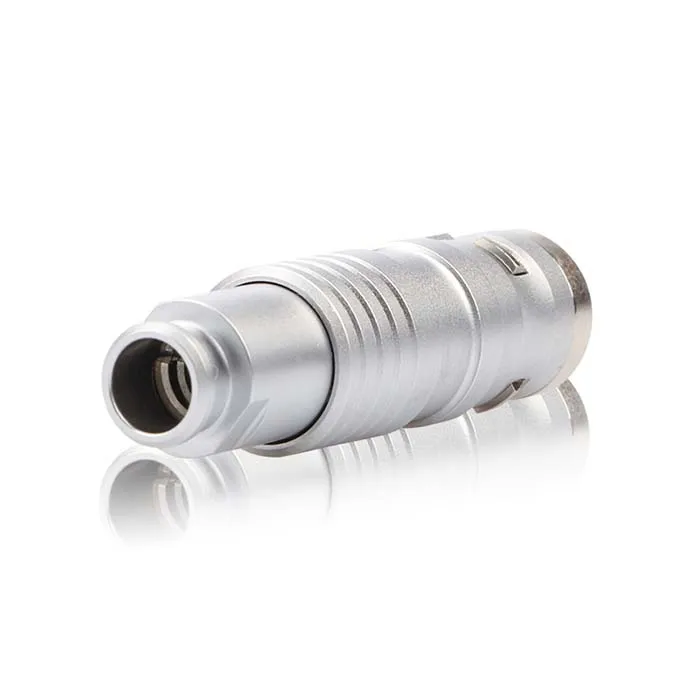

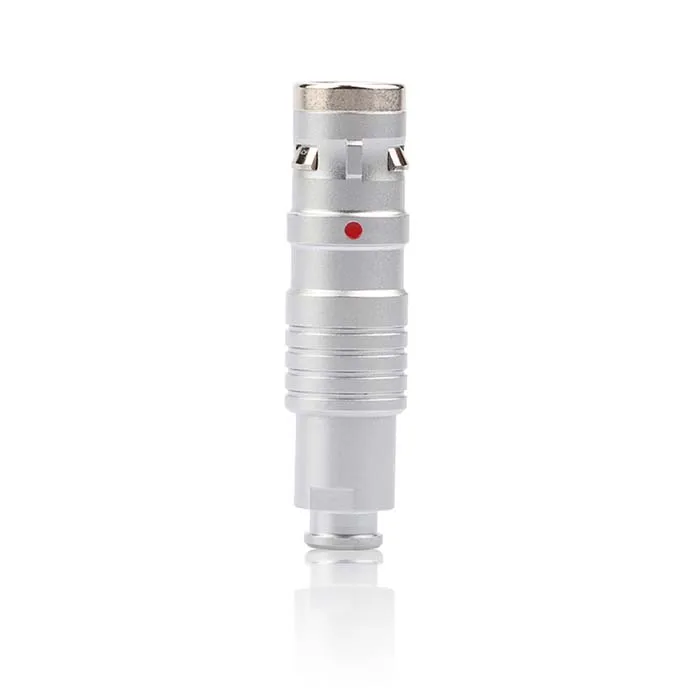

Metallic cylindrical push pull miniature connector 12 pin waterproof

Product Overview

Description

 REDEL metal circular push pull Medical 12 pin miniature connector



About MOCO



MOCO is a leading high-tech manufacturer specializes in development, design, manufacturing and



service of unipole and multipole circular push-pull connectors and cable assemblies. Established by



several experienced engineers of connectors and relative fields, MOCO is to serve both old and new,



domestic and overseas customers in a better way.





 K series

K series connectors are designed for out door applications. All  models of this series are watertight



when  mated to give a protection degree IP68 when correctly assembled to an appropriate



cable(IP66).





Main features:

-Security of the push-pull self-latching system;

-Multipole types 2 to 26 contacts;

-Solder or print contacts(straight or elbow);

-High packing density for space savings;

-Multiple key options to avoid cross mating of similar connectors;

-Keying system for connector alignment;

-360°screening for full EMC shielding;

-Watertight connection(IP68/IP66);

-Rugged housing for extreme working conditions.





Specifications

Contact Type: Solder



Max. Matings: 5000



Contact Dia.:1.3 mm (0.051in)



Bucket Dia.: 1 mm (0.039in)



Max. Solid Conductor: 0.5 mm^2 (AWG 20)



Max. Stranded Conductor: 0.5 mm^2 (AWG 20)



R (max): 3.6 mOhm



Ratted Current:15



Rated Current:15



Pictures









 Packaging Information:



Each connector in a PE bag. every 50 or 100 pcs of connectors in a small box (size:20cm*15cm*6cm), every 6 small boxes in a carton(size:30cm*20cm*20cm)







Shipping Terms:



*Loading Port: Shenzhen, China



*Sample Delivery: 3-10days after order confirmation.



*Mass Production Delivery: 25 -40 days after sample confirmation



*Samples are available within 4~7 working days
