SIECC Hydraulic Shearing Machine pneumatic sheet metal shear guillotine cutter mechanical shears
- Category: >>>
- Supplier: Shining Industrial Enterprise (china) Co. Ltd.
Share on (1971495899):
Product Overview
Description
PNEUMATIC SHEAR MACHINE
HIGH QUALITY CNC SHEAR MACHINE
Product Description

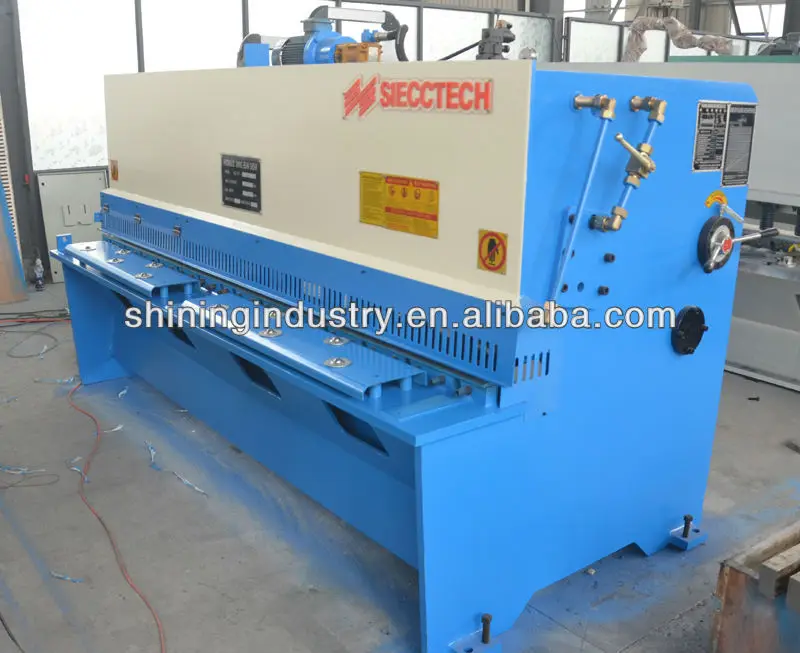

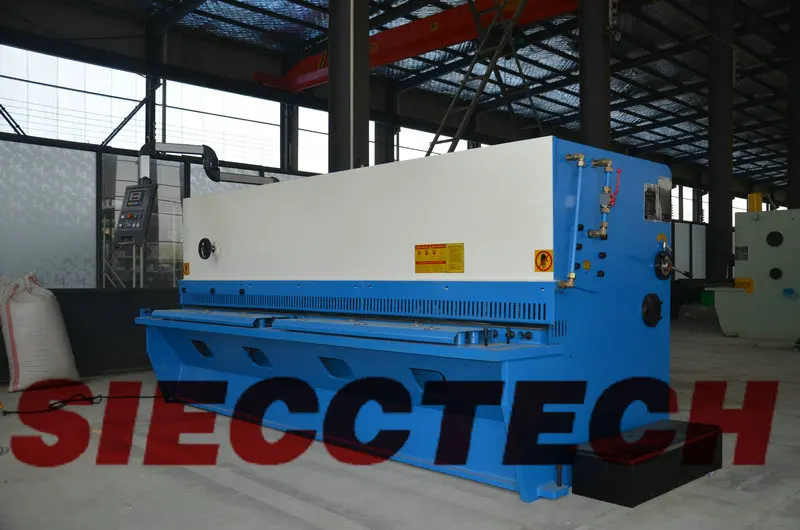

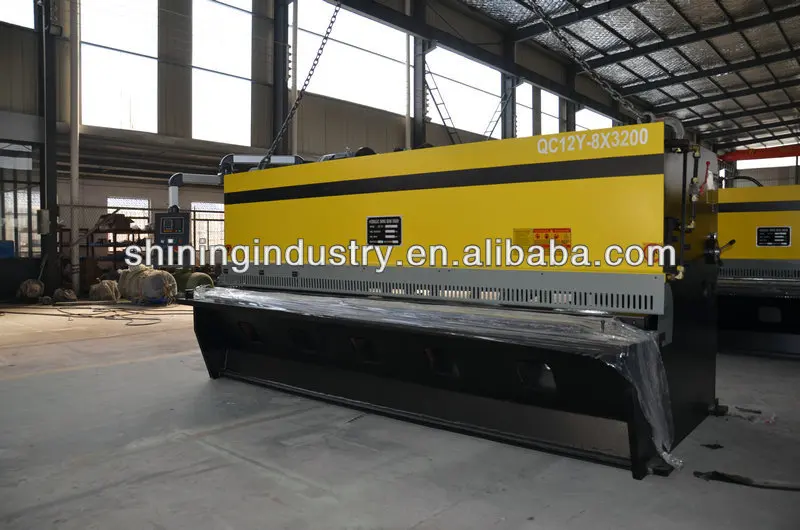

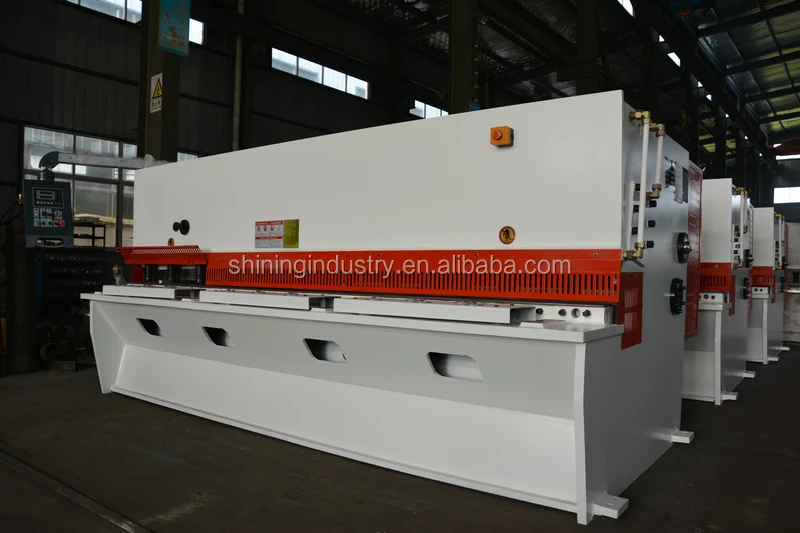

Machine Standard of QC12Y Series Hydraulic Shear Machine
The machine is produced under China’s two key standard imposed for shear machines
GB/T14404-93----Shear Machine Precision Standard
GB/T2257.2-1999----Shear Machine Security Technology requirement standard
CE Standard-All machines to EU are all under CE certification in any components and also the machine structure and precision.
The Main Structure Character of QC12Y Series Hydraulic Shear Machine(Standard)
Weld :The machine body is all welded connected through good quality steel plate. The process has gone through the vibration and aging treatment to eliminate internal stress with good rigidity and high stability.
Machine is composed by front-feeding platform, working table, machine front body, side electronic-box, Hydraulic system including gear pump and hydraulic valve, Motor, Backgauge, Nitrogen pullback cylinder, and control or display nc/cnc system and cutted plate lift declined platform,cylinder,hydraulic oil tank, pipe connectors and high-pressure pipes.
1.The front –feeding platform has equipped with ruler for the plate feeding and also smooth in the surface to protect the plate in any surface hurting when feeding. The ruler can be precision into MM or more unit for accuracy control and checking.

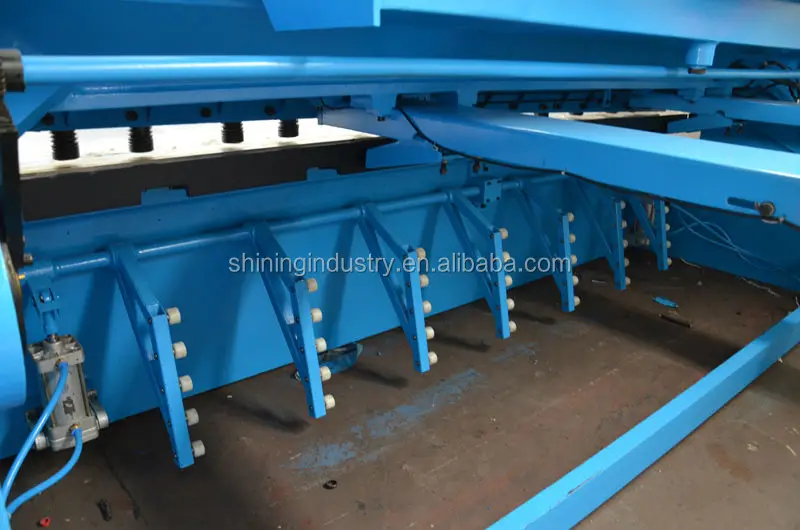

2.The working table has equipped with ball or round bar steel to support the plate into feeding and also the protection for any surface lacerate.
3.The electronic box been equipped with good certificated components.Mostly we use CE certificated SIEMENS or Schneider components for exportation machines and also some high quality CCC certificated components to carte for different standard needs clients.
4.The machine body steel ,we mostly choose China top brand steel plate provider Shanghai BAOSTEEL with good quality and been treated with anticorrosive paint before the last paint on. So the machine firstly will have good durable usage and also perfect outside appearance.

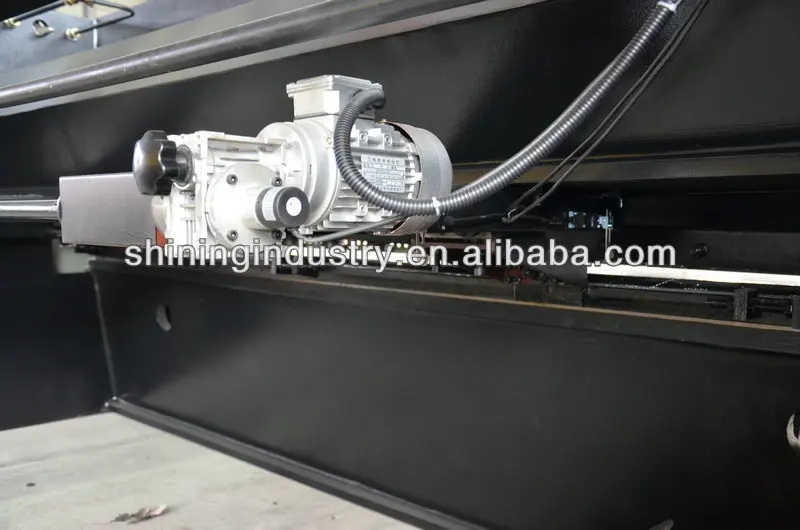

5.The blade :The blade material is 9CrSi or 6CrW2Si, the material is high tested material with thousand times for high rigidity and cutting result. The up blade with two edges and the bottom blade has four edges.(The detailed please check SIECC/SIECCTECH blade explain photo and instruction). The blade clearance can be adjusted by manual or by motor. Both has the index dial to display the clearance so the control and display can be easily.
6.The machine equipped the press foot to press the plate stably when cutting, the foot has been equipped with plastic surface with high fraction without surface destroy of the plate. For Hole plate,we will equip square foot for stable square press.
7. Gear Pump: We use good brand “straight conjugate internal gear pump” in both China brand Shanghai chengjie or Germany Eckerler. The internal gear pump is treated as never wear pump in industry and has been widely used in high precision hydraulic machines with the character of low-noise, no pulsation and long lifetime. Shanghai Chengjie gear pump also used in China’s aircraft industry so it is trustable and reliable. When in high speed working, the audio is flat and smooth even no trapping. The long lifetime is depend on his abrasive performance the inner machine components has oil film protection layer, so even use normal hydraulic oil, even no abrasion.
8.The hydraulic system can use Germany Rexroth or USA OMG system. The return is controlled by nitrogen return cylinder with stable working process and easy in operation. The hydraulic press enforced up transmission and nitrogen impose the up push-out with good cooperation working.
9.Backgauge are counted by counter and can be micro-adjusted.
10.the machine will be equipped with fence protection door before the cutting blade and the press foot.The fence can be opened if any needed. Near the throat,we will equipped with open-available door for person security but open-able when needs any inside checking.
Convenient working and person security protection(Optional)
- 1. The machine can be equipped with full closed back side door to prevent any careless inside when cutting.
- 2. The machine can be equipped with cutted lift out declined platform under th
Max. Shearing Thickness 8MM Max. Shearing Width 2500MM Strength of Shearing Sheets 450N/MM2 Throat Depth 100MM Shearing Angle 1°30′ Stroke Number 14/MIN Backgauge Range 20-600MM Blade Material 9CrSi Blade Length 2600MM Main Motor Type Y160M-4 Power 11KW Speed 1460R/MIN Overall dimension 3148X1850X1760MM Weight 5TON
e backgauge for convenient operation. - 3. Light curtain can be equipped also for security standard needs.
- 4. Light function is equipped for convenient checking and care when cutting.

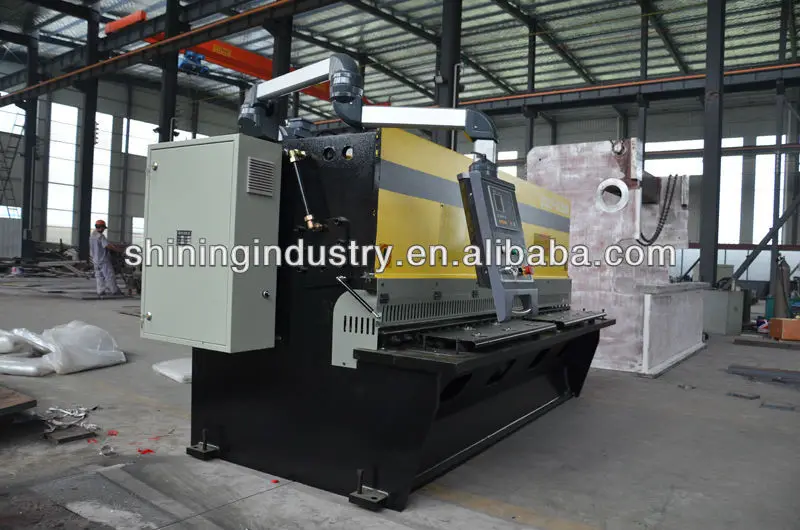

NC/CNC System and advance touch screen funtion
The normal system for CNC are Nanjing ESTUN (Holand Delem 60% JOINTED) system: ESTUN E20,ESTUN E21 and ESTUN E200 system,DELEM DA310 and DELEM DA360 and also Swiss CYBELEC system DNC60 and CT6 (Touch Screen). X/Y axis can be controlled and displayed. The backgauge distance can be controlled and calculated into 1000MM long.
The NC system will be ESTUN E10 mostly we use for high quality guarantee.
All of their instruction manual is available when applied to SIECC/SIECCTECH
1.All our Electronic Elemens are all made from China Famouse Enterprise like SIEMENS CHINA AND SCHNEIDER CHINA.The components excellence ensure the machine excellence

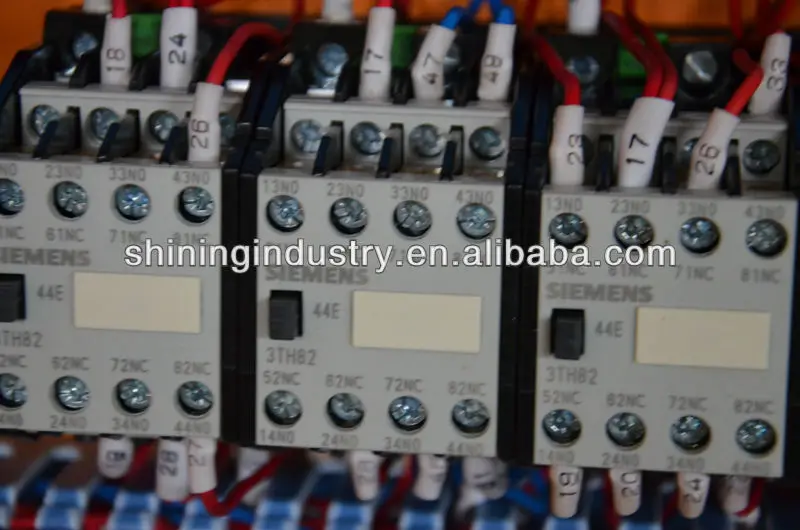

From Below photos,you can see all SEIMENS AND SCHNEIDER elements.And the outside box is int'l standard long box with outstanding apperance.All the cable has been cleared labelled for a future checking.
2. The Shearing Machine are well connected by high quality connectors ,this connector has endurance for high-pressure and both inside and outside has anti-rust treatment. This high-quality is top brand in China and they can protect the pipes and avoide any leakage for the hydraulic oil.Worldwide Dealer are all like our machines becasue their high quality and without any leakage engineer care and treatment.

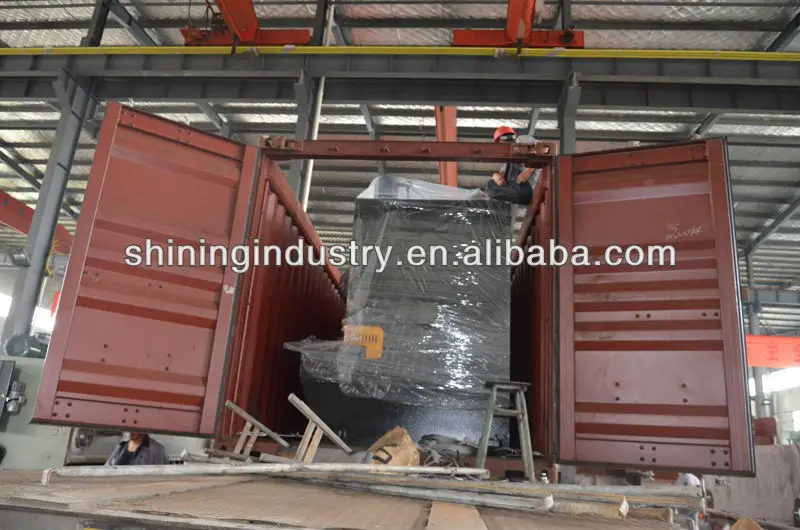

Packaging & Shipping
FAQ
How about your machine quality?We are worry about the quality.
SIECC is a mature brand in CHINA,through our many years research in technology,our design including structure and detailed sercurity and precision has enhanced greatly,and can match all the CE standard or more strict standard.Our machines distribute worldwide to about 50 countries where there are metal plate industry ,there are SIECC machines.And where there are our machines,there are good reputation and terminal user satisfaction.
Whether the machine price can be more discount
SIECC always provide high quality machine,as we know ,oversea market is more important and difficult than domestic market because of communication time costing after sales,So always,our machine has enough qaulity standard to make sure the machine can work more than the real warranty period.In this way ,we will save a lot and think in advance for the clients.
Actually SIECC also think about our price level,we are sure to provide quality=price and pice=quality ,the matched price and acceptable for the clients and durable for our machines.We welcome your negotiate with us and get a good satisfaction.
How about your manufactory in CHINA

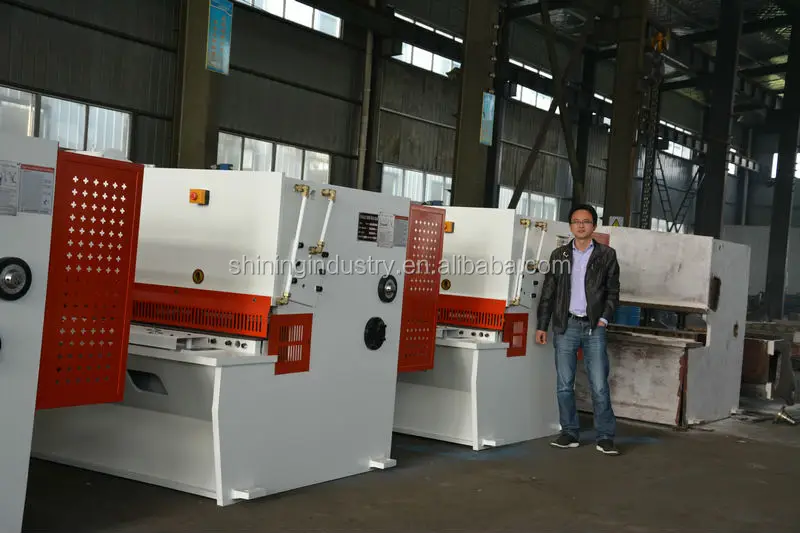

SIECC located in HAIAN CITY,NANTONG,JIANGSU province who is the leading area in China and also in the worldwide as the center of the metal plate solution machines,We have worked about 10 years in this area and totally have about 150 staffs.Rich experience in this field with professional technical supporting and oriented service.
We welcome your visit to us any time.
Do you accept L/C payment term?
Yes,we accept 100% L/C at sign from almost all countries.
