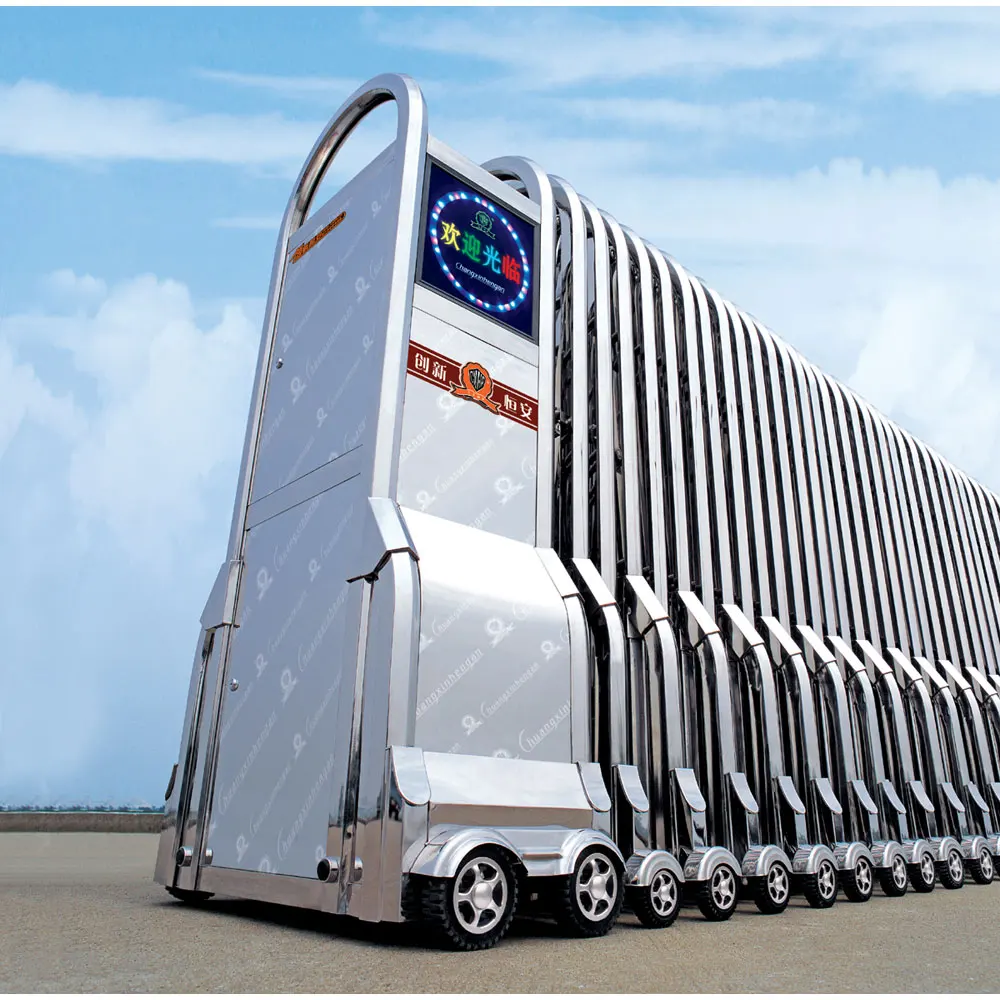

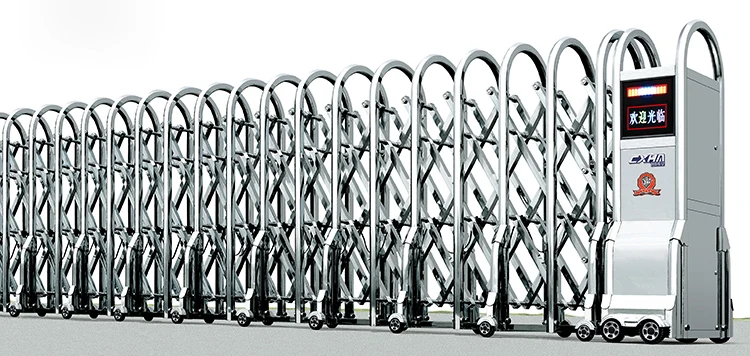

Electric retractable folding wrought iron gate

Product Overview

Description

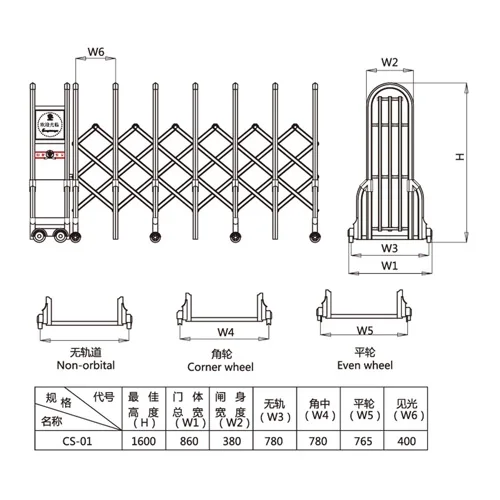

Product	Automatic Retratctable Gate
Model Number	VS-01
Materials	Stainless Steel

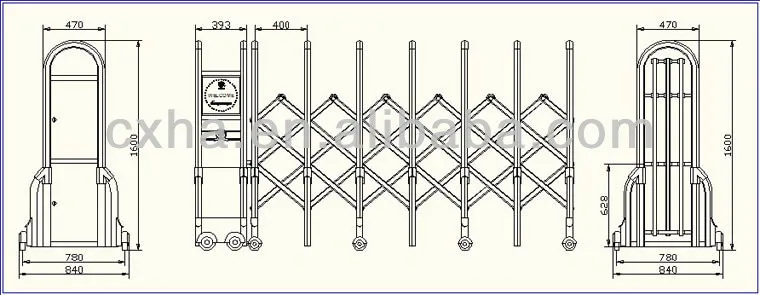

Standard Height	1600mm (customized height available)
Gate Width	860mm
Wheel Base	780mm (center-center)
Power Voltage	AC220V±20% 50Hz; AC110V±10% 60Hz
Power Consumption	370W / 740W
Working Temperature	-30°c - +70°c
Working Humidity	≤90%
Moving Speed	≈15m/min
Remote Control Distance	≤50m
Max. Length	≤30m
Main Parts Material	54×47×0.7mm
Auxiliary Parts Material	44×33×0.5mm

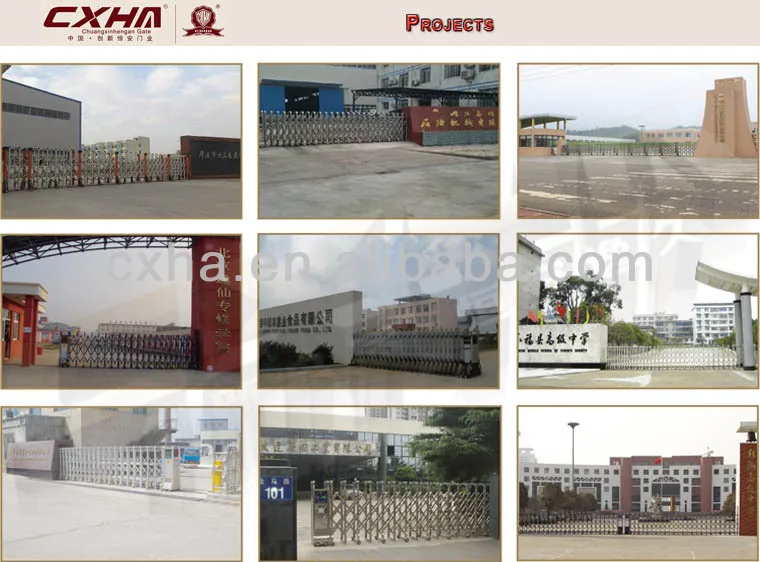

Widly Applied to	Enterprise, Factory, Park, School, University, Stadium...













1, Gate Motor Overheating Protection: The motor will automatically power off and enter into protection status when the temperature reach some degree, and it will work normally again after the temperature turn low.



2, Speed Clutch: When the power cut off, only use the clutch key rotating 180 degree then the clutch will keep apart, and now the Automatic Retractable Gate can be manually controlled.



3, Infrared Anti-Collision Device: If there is pedestrian or vehicle passing during working process, the Automatic Retractable Gate will automatically stop 30cm or 40cm away to avoid collision.



4, Anti-Climb Alarm: If there is anyone climbing over the Automatic Retractable Gate, it will alarm automatically (Optional).



5, Remote Control: It's very easy to control the gate for opening / closing / stopping if control distance is less than 50m.



6, Drive and Driven Wheels: With die-casting Al-alloy material for drive and driven wheels and imported rubber to make the system with wearing resistance, noise free and long service life.



7, Machine Head: The professional motor of Automatic Retractable Gate and thickening base board increase its weight and traction. The four wheel drive and chain driven make the system buffering and smooth start and stop. The head is also double sealed in whole to prevent dust and humidity to prolong its life.



8, Gate materials: The Automatic Retractable Gate is with high strength polished stainless steel materials (SS304 / SS201 for Option), with strong quality in hardness, anti-corossion and anti-collision.



9, Automatic Retractable Gate vice part material is with high strength Al-alloy and the hole is punching pressed by professional ironware mould with PA wear sets, everyone of which also includes stainless steel pad to avoid friction or noise. Door-Axis core material is φ16*1.0mm pure stainless steel with black plastic tube outside to make it beautiful but practical



10, All plastic spare parts of the Automatic Retractable Gate are imported materials to ensure its long durability (used life upon 10 years)



11, Display Screen: There are fixed 8 digits display LED screen or rolling digital screen with 500 digits available for choice ( standard for 8 digits LED screen)









































If you are interested in our Automatic Retractable Gate or have any doubt, please don't hesitate to contact us at any time, and you will get our best attention.
