Product Overview

Description



Products Description

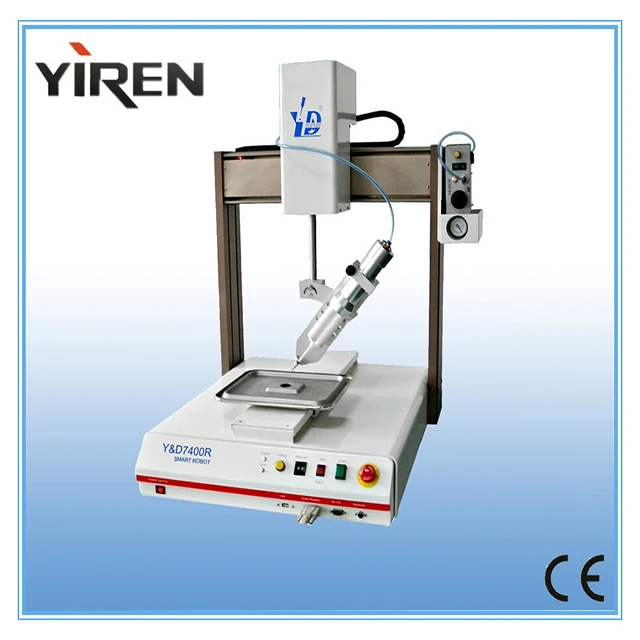

CE Approved new product of Polygon dispensing machine

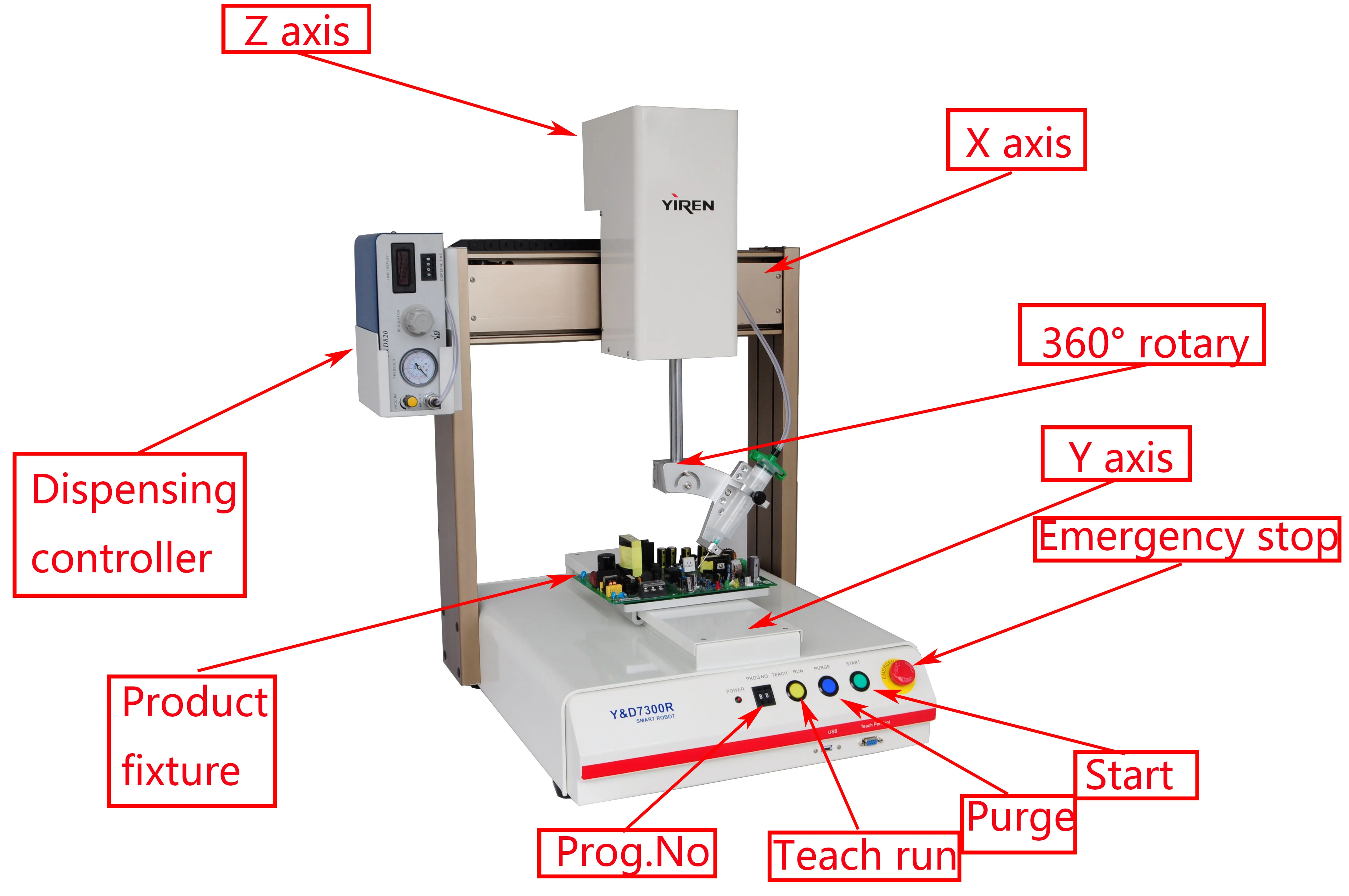

This series of machine are 4 axis designed robot arm.They are all programing by the teach pendant and the machine can store 100 groups of programs(4000 points in each group). Dates are stored in CF card,PC Storage & USB.Thay all have interpolation function.All the axis can do straight line,arc... dispensing. R axis can rotate 360º,and its max load is 2kg.This kind of machine only can be made one head.Clients should make a product fixture to fix the products on the machine. It is quite easy to operate and one can learn it quickly.




Product Overviews

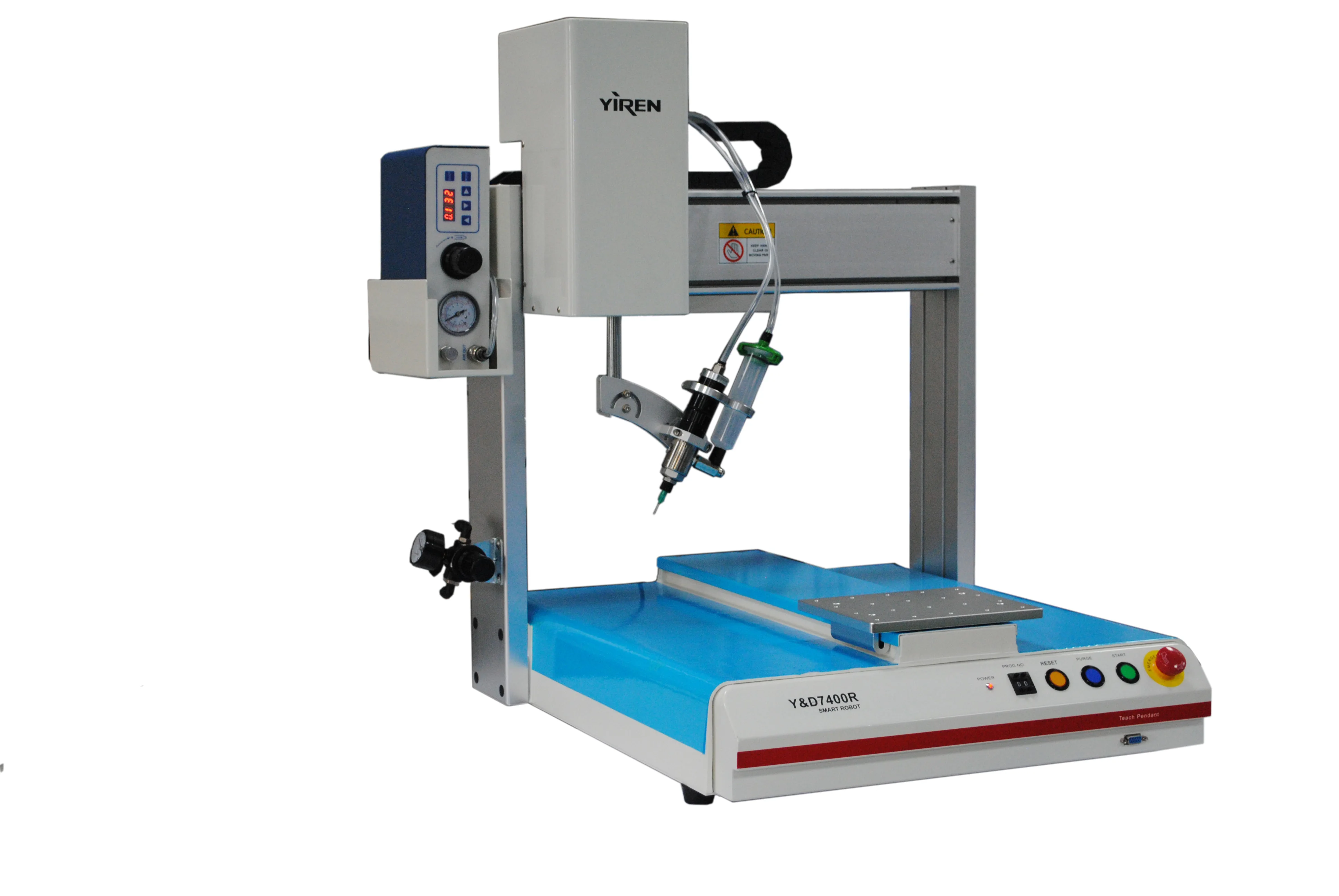

Y&D 7000R series 4 axis table robotic arms, can operate producers by teach pendant, with interpolation functions, axis can dispense straight line or arc. There are four axis, can rotate 360 degrees. Powerful function Software, convenient use, easy to use and set the program system.


Basic Information:
Program Display: LCD
Programming Method: Teach Pendant
Power Supply: AC90-260V 320 W
Working Temperature: 0-40℃
Working Relative Humidity:20-90% no condensation

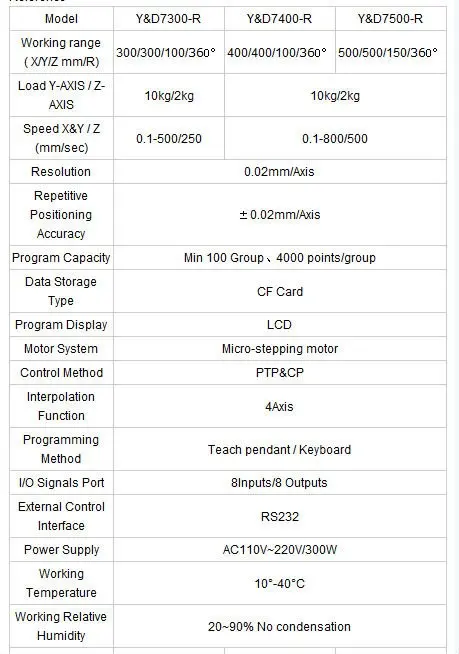

Parameters
Max load Y/Z Axis: 11KG/2KG
Speed X&Y/Z(mm/sec): 0.1-800/320
Resolution: 0.01mm/Axis
Repetitive Positioning Accuracy:±0.01mm/Axis
Program Capacity: in 100 Group, 4000points/Group
Data storage type: CF Card
Motor System: Micro stepping Motor
Control Method: PTP&CP
Interpolation Fuction:4 Axis
I/O Signals port:8 Inputs/ 8 Outputs
External Control Interface: RS232

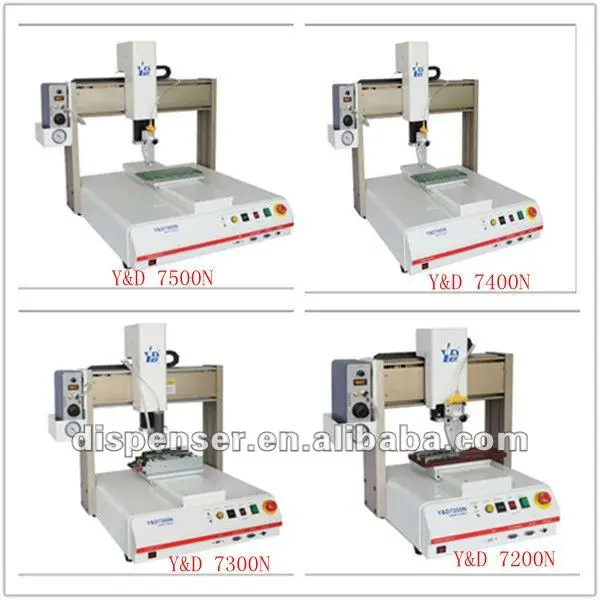

Models working range: X/Y/Z
Y&D7300R 300/300/100(mm) /360°
Y&D7400R 400/400/100(mm) /360°
Y&D7500R 500/500/100(mm) /360°


Product packaging




Package & Terms
Package: Y&D standard package.
payment:100% T/T in advance after confirm the order
Shipping:DHL/TNT&Fedex express shipment


Exhibition




We will participate in Munich Fair every year to show our products and technologies and build our own brand with all our heart.


Company Profile


Company Strenghth

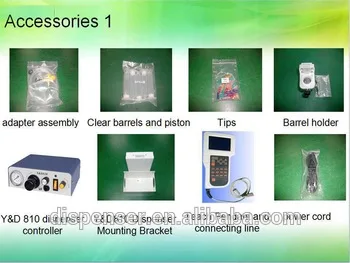

We are a professional manufacturer of dispensing equipment and liquid dispenser and all the accessories. Valve, pressure tank, cartridge, barrels, tips, dispensing pen, glue gun, connect and so on. Our main product including dispensing equipment and liquid dispenser. We also have gantry conveyor robot.






Competitive Advantages
* Professionalism,creativity,advanced fluid control technology.
* Established an unshakable position in the liquid control and dispensing production.
* Highly Vertical Integration Of Manufacturing.
* Worldwide Sales
* Advanced Engineering/ Development Capability.
* Good Material Management Programs.


OEM/ODM service offered
Our product could match with other accessories (valve, tank, cartridge) according to your actual situation or as your request. We are capable to manufacture dispensing equipment and liquid dispenser according to customer's drawings or samples. We are insisting on providing top quality products with competitive price. Please feel free to contact us. Welcome your inquiry.


For more information, please feel free to contact our sales, and we will give you a quick reply as soon as we get to know it.
